Quick Couplings (hydraulic) up to 4568 psi, ISO 16028 - Parker FEM/FEC Series Nipples
Parker FEM/FEC Series ISO 16028 Hydraulic Quick Couplings
Parker FF 以及 FC系列快換接頭

Parker FF 以及 FC系列快換陽接頭承壓（液壓）可達5000 psi，滿足液壓工具制造商協會 (HTMA - ISO 16028) 的標準尺寸為3/8英寸，可與FF系列陰接頭進行配合連接。派克FF系列是雙截止型，平齊端面結構的。Parker FF/FC系列快換陽接頭，HTMA (ISO 16028, 3/8”)，無溢流型，平齊端面快換接頭，可在壓力下連接，承壓。Parker派克無溢流型快換陰接頭和陽接頭是用于流體管路需要快速方便進行連接或者斷開應用的理想選擇，能保證- 小的溢流量和夾氣量。

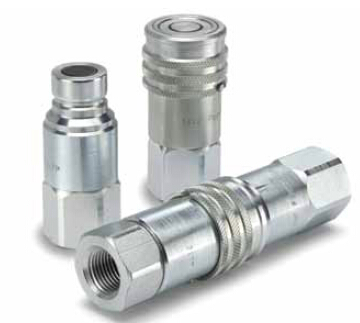

Parker FEM-FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of ISO 16028, and connect with FEM Series Couplers. Parker's FEM Series are double shut-off non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with ISO 16028. FEC nipples provide a connect under pressure option to overcome residual pressure. FEM Couplers and nipples are available in a wide range of sizes to be versatile for pressure ranges up to 4568 psi.

Parker FEM/FEC Series ISO 16028 Hydraulic Quick Couplings

性能特點

- 大工作壓力 (PSI) 1500 至 5000
流速 (GPM) 3 至 50
密封材料 丁腈橡膠，聚氨酯以及丁腈橡膠
媒介 液壓
半聯軸器 芯子
- 低工作溫度 (F) -40
- 高工作溫度 (F) 250
主體材料 碳鋼
電鍍 鍍鋅，白色三價鉻鈍化
應用 液壓，無溢流，液壓，無溢流，在壓力下進行連接

- FEM Sizes: 1/4” – 1”
- FEC Sizes: 1/2", 5/8", 3/4"
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Typical Applications:
- Skid loader attachments
- Hydraulic tools
- Situations where residual pressure makes reconnect difficult (FEC nipples)

Quick Couplings (hydraulic) up to 4568 psi, ISO 16028 - Parker FEM/FEC Series Nipples

Parker's FEM/FEC Series Non-Spill quick couplers and nipples are versatile for use across a spectrum of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

1/4 FEM-251-4FP-NL 1/4-18 NPSF 1.96 1.06 1.00 0.25
1/4 FEM-251-6FO-NL 9/16-18 UNF 2.08 1.06 1.00 0.25
3/8 FEM-371-6FP-NL 3/8-18 NPSF 2.89 1.19 1.06 0.51
3/8 FEM-371-8FO-NL 3/4-16 UNF 2.89 1.19 1.06 0.51
1/2 FEM-501-8FP-NL 1/2-14 NPSF 2.96 1.54 1.25 0.93
1/2 FEM-501-8FO-NL 3/4-16 UNF 2.96 1.54 1.25 0.93
1/2 FEM-501-10FO-NL 7/8-14 UNF 2.96 1.54 1.25 0.93
1/2 FEM-501-12FO-NL 1 1/16-12 UNF 3.21 1.54 1.25 0.93
5/8 FEM-621-12FO-NL 1 1/16-12 UNF 3.70 1.70 1.50 1.40
3/4 FEM-751-12FP-NL 3/4-14 NPSF 3.95 1.95 1.75 2.04
3/4 FEM-751-12FO-NL 1 1/16-12 UNF 3.95 1.95 1.75 2.04
1 FEM-1001-16FP-NL 1-11 1/2-NPSF 4.21 2.25 2.00 2.70
1 FEM-1001-16FO-NL 1 5/16-12 UNF
1/2 FEM-501-10BMF-NL 7/8-14 UNF 4.04 1.54 1.25 0.93
1/2 FEM-501-10BMS-NL 1-14 UNS

1/4 FEM-252-4FP 1/4-18 NPSF 1.71 1.25 1.06 1.00 0.17
3/8 FEM-372-6FP 3/8-18 NPSF 2.48 1.83 1.16 1.06 0.32
3/8 FEM-372-8FO 3/4-16 UNF 2.48 1.83 1.16 1.06 0.32
1/2 FEM-502-8FP 1/2-14 NPSF 2.77 2.15 1.38 1.25 0.54
1/2 FEM-502-10FO 7/8-14 UNF 2.77 2.15 1.38 1.25 0.54
1/2 FEM-502-12FO 1 1/16-12 UN 3.02 2.35 1.38 1.25 0.54
5/8 FEM-622-12FO 1 1/16-12 UN 3.09 2.39 1.65 1.50 0.76
3/4 FEM-752-12FP 3/4-14 NPSF 3.38 2.46 1.94 1.75 1.12
3/4 FEM-752-12FO 1-1/16 12 UN 3.38 2.46 1.94 1.75 1.12
1 FEM-1002-16FP 1-11 1/2 NPSF 3.85 2.93 2.25 2.00 1.72
1 FEM-1002-16FO 1-5/16 12 UN
1/2 FEM-502-10BMF 7/8-14 UNF 3.85 3.15 1.38 1.25 0.54
1/2 FEM-502-10BMS 1-14 UNS
