Parker EMA3 外螺紋測試點接頭 GMA3 管路測試點接頭 SMA3 測試軟管

EMA3 外螺紋測試點接頭 - 連接螺紋M16x2
油口端螺紋：BSP，公制

GMA3 管路測試點接頭 - 連接螺紋M16x2
24°錐 / 24°錐

VKA3 壓力表連接測試點接頭 - 連接螺紋M16x2
24°錐旋轉螺母

SMA3 測試軟管
M16x2內螺紋 / M16x2內螺紋

EMA3 外螺紋測試點接頭 - 連接螺紋M16x2 油口端螺紋：BSP，公制	SMA3 測試軟管 M16x2內螺紋 / M16x2內螺紋
GMA3 管路測試點接頭 - 連接螺紋M16x2 24°錐 / 24°錐	VKA3 壓力表連接測試點接頭 - 連接螺紋M16x2 24°錐旋轉螺母

B-158 樣本 3400-CN
樣本 3400-CN
硬管接頭及設備
測試接頭
A
軟管，接頭及設備
B
硬管接頭及設備
C
快換接頭
D
其他產品
樣本尺寸僅供參考，請以實際產品尺寸為準。
EMA3 外螺紋測試點接頭 - 連接螺紋M16x2
油口端螺紋：BSP，公制
T1
13
9 min
0.5 +0.15
2.5 +0.2
30° D1
T1 D1 L1 L2 S1 S2 圖
重量
g/ 件
訂貨號PN bar 設計參數
CF 71 CF 71
M 08×1.0 9.5 38.5 7.5 17 A 66 EMA3/8X1OR 250 4
M 10×1.0 11.5 37 7.5 17 A 70 EMA3/10X1OR 630 630 4 4
M 14×1.5 18.8 39.5 11 19 F 79 EMA3/14X1.5ISO 630 630 4 4
M 10×1.0 14 40 8 17 D 67 EMA3/10X1 400 4
M 12×1.5 17 38 12 17 D 74 EMA3/12X1.5 400 4
M 14×1.5 19 39 12 19 D 78 EMA3/14X1.5 400 4
M 16×1.5 21 40 12 22 D 90 EMA3/16X1.5 400 4
G 1/8 14 37.5 8 17 D 70 EMA3/1/8 400 4
G 1/4 18 39 12 19 D 77 EMA3/1/4 400 4
G 3/8 22 40.5 12 22 D 91 EMA3/3/8 400 4
G 1/2 26 46 14 27 17 E 137 EMA3/1/2 400 3.4
G 1/8 14 37.5 8 17 B 72 EMA3/1/8ED 400 400 4 4
G 1/4 19 39 12 19 B 76 EMA3/1/4ED 630 630 4 4
G 3/8 22 40.5 12 22 B 93 EMA3/3/8ED 630 630 4 4
M 10×1.0 14 40 8 17 B 71 EMA3/10X1ED 400 400 4 4
M 12×1.5 17 38 12 17 B 72 EMA3/12X1.5ED 630 630 4 4
M 14×1.5 19 39 12 19 B 77 EMA3/14X1.5ED 400 400 4 4
G 1/2 27 46 14 27 17 C 135 EMA3/1/2ED 400 400 4 4
圖A 圖B 圖C
圖F 圖D 圖E
訂貨示例：
碳鋼，無六價鉻鍍鋅：EMA3/10X1ORCF
316Ti 不銹鋼：EMA3/10X1OR71
EMA3

測試接頭

GMA3

GMA3 管路測試點接頭 -連接螺紋M16x2

24°錐 / 24°錐

系
列D1 T1 D3 L1 L2 L3 L4 L5 S1 S2重量
g/件
訂貨號PN bar設計參數
CF 71 CF 71
L
6 M 12×1.5 4 35 21 10 51 49 24 14 126 GMA3/06LOMD 315 315 4 4
8 M 14×1.5 6 35 21 10 51 49 24 17 128 GMA3/08LOMD 315 315 4 4
10 M 16×1.5 7 37 23 11 53 49 24 19 132 GMA3/10LOMD 315 315 4 4
12 M 18×1.5 8 37 23 11 53 50.5 27 22 145 GMA3/12LOMD 315 315 4 4
15 M 22×1.5 11 39 25 12 55 52 30 27 174 GMA3/15LOMD 315 315 4 4
18 M 26×1.5 14 39 24 12 57 53 32 32 192 GMA3/18LOMD 315 315 4 4
22 M 30×2.0 18 43 28 14 61 55 36 36 220 GMA3/22LOMD 160 160 4 4
28 M 36×2.0 23 43 28 14 61 57.5 41 41 259 GMA3/28LOMD 160 160 4 4
35 M 45×2.0 30 47 26 16 69 60 46 50 363 GMA3/35LOMD 160 160 4 4
42 M 52×2.0 36 47 25 16 71 64.5 55 60 419 GMA3/42LOMD 160 160 4 4
S
6 M 14×1.5 4 39 25 12 55 49 24 17 137 GMA3/06SOMD 630 630 4 4
8 M 16×1.5 5 39 25 12 55 49 24 19 141 GMA3/08SOMD 630 630 4 4
10 M 18×1.5 7 39 24 12 57 49 24 22 141 GMA3/10SOMD 630 630 4 4
12 M 20×1.5 7 39 24 12 57 49 24 24 150 GMA3/12SOMD 630 630 4 4
16 M 24×1.5 11 43 26 14 63 52 30 30 195 GMA3/16SOMD 400 400 4 4
20 M 30×2.0 15 47 26 16 69 55 36 36 254 GMA3/20SOMD 400 400 4 4
25 M 36×2.0 20 51 27 18 75 57.5 41 46 329 GMA3/25SOMD 400 400 4 4
30 M 42×2.0 25 55 28 20 81 60 46 50 412 GMA3/30SOMD 400 400 4 4
38 M 52×2.0 32 61 29 22 91 64.5 55 60 616 GMA3/38SOMD 315 315 4 4
訂貨示例：
碳鋼，無六價鉻鍍鋅：MA3/12LOMDCF
316Ti不銹鋼：MA3/12LOMDOR71

B-159樣本
3400-CN


測試接頭

VKA3

VKA3 壓力表連接測試點接頭 -連接螺紋M16x2

24°錐旋轉螺母

系列D1 T1 L1 S1 S2圖
重量
g/件
訂貨號PN bar設計參數
CF 71 CF 71
L
6 M 12×1.5 55 14 17 A 82 VKA3/06L 315 315 4 4
8 M 14×1.5 51 17 17 A 82 VKA3/08L 315 315 4 4
10 M 16×1.5 53 19 17 A 93 VKA3/10L 315 315 4 4
12 M 18×1.5 53 22 17 A 107 VKA3/12L 315 315 4 4
15 M 22×1.5 59 27 17 B 133 VKA3/15L 315 315 4 4
18 M 26×1.5 59 32 17 B 163 VKA3/18L 315 315 4 4
22 M 30×2.0 60 36 17 B 205 VKA3/22L 160 160 4 4
28 M 36×2.0 64 41 17 B 269 VKA3/28L 160 160 4 4
35 M 45×2.0 71 50 17 B 411 VKA3/35L 160 160 4 4
42 M 52×2.0 72 60 17 B 592 VKA3/42L 160 160 4 4
S
6 M 14×1.5 50 17 17 A 81 VKA3/06S 630 630 4 4
8 M 16×1.5 52 19 17 A 88 VKA3/08S 630 630 4 4
10 M 18×1.5 53 22 17 A 99 VKA3/10S 630 630 4 4
12 M 20×1.5 54 24 19 A 121 VKA3/12S 630 630 4 4
16 M 24×1.5 58 30 17 B 156 VKA3/16S 400 400 4 4
20 M 30×2.0 65 36 17 B 223 VKA3/20S 400 400 4 4
25 M 36×2.0 68 46 17 B 367 VKA3/25S 400 400 4 4
30 M 42×2.0 74 50 17 B 444 VKA3/30S 400 400 4 4
38 M 52×2.0 81 60 17 B 655 VKA3/38S 315 315 4 4
圖A圖B
訂貨示例：
碳鋼，無六價鉻鍍鋅：VKA3/12LCF
316Ti不銹鋼：VKA3/12L71

B-160樣本
3400-CN


測試接頭

SMA3

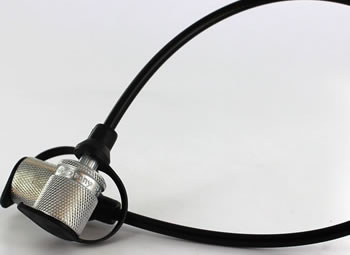

SMA3 測試軟管

M16x2內螺紋 / M16x2內螺紋

型號左接頭形式右接頭形式
軟管通徑
MM
SMA3-XXX* M16×2內螺紋
M16×2內螺紋
2
SMA4-XXX M16×2內螺紋
DKO內螺紋
M14×1.5 2
SMA5-XXX M16×2內螺紋
DKO內螺紋
M16×1.5 2
SMA6-XXX M16×2內螺紋
G1/4內螺紋
2
SMA7-XXX DKO內螺紋
M14×1.5 G1/4內螺紋
2
SMA8-XXX DKO內螺紋
M16×1.5 G1/4內螺紋
2
SMA9-XXX DKO內螺紋
M14×1.5 DKO內螺紋
M14×1.5 2
SMA10-XXX DKO內螺紋
M16×1.5 DKO內螺紋
M16×1.5 2

*XXX代表長度（
mm），可根據實際需要確定。
B-161樣本
3400-CN
