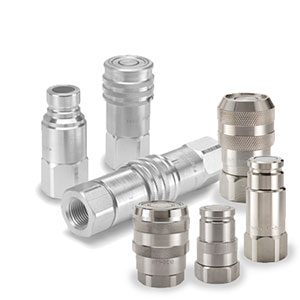

Parker's FEM Series are double shut off, non-spill quick couplings
Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.
Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion..
FEM Series Couplers (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards and connect with FEM/FEC Series Nipples. FEC Nipples provide the ability to connect under pressure. FEM and FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards, and connect with FEM Series Couplers. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.
Parker's FEM Series are double shut off, non-spill quick couplings
| Application: |
Hydraulic, non-spill, Hydraulic | non-spill |
| Body Size: |
1/4, 3/8, 1/2, 5/8, 3/4, 1 inch |
| Maximum Operating Pressure: |
Up to 4568 psi, 315 bar |
| Brand: |
Parker |
| Fitting Connection Type: |
various |
| Interchange Type: |
ISO 16028 |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
Up to 50 Gal/min |
|
| Seal Material: |
Nitrile | Polyurethane and Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Non-spill |
| Plating Type: |
Zinc with clear trivalent chromate |
| Sleeve Type: |
Push to connect |
| Lock Type: |
Locking balls |
| Specifications Met: |
ISO 16028 |
Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
Markets:
- Industrial
- Construction
- Utility
- Agriculture
Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Optional sleeve lock guards against accidental disconnection
Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines
LITERATURE AND REFERENCE MATERIALS
FEM Series ISO 16028 Non-spill Quick Couplings
Catalog 3800 Quick Coupling Products
FEM-FEC Series Catalog
HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers
| Part |
Connection Thread Size (inch) |
Connection Type |
Thread Style |
Body Size (inch) |
| FEM-1001-16FO-NL |
1 5/16 - 12 |
UNF |
Female |
1 |
| FEM-1001-16FP-NL |
1 - 11 1/2 |
NPSF |
Female |
1 |
| FEM-251-4FP-NL |
2001/4/18 |
NPSF |
Female |
1月4日 |
| FEM-251-6FO-NL |
9/16 - 18 |
UNF |
Female |
1月4日 |
| FEM-371-6FP-NL |
2003/8/18 |
NPSF |
Female |
3月8日 |
| FEM-371-8FO-NL |
2003/4/16 |
UNF |
Female |
3月8日 |
| FEM-501-10BMF-NL |
2007/8/14 |
UNF |
Male bulkhead flare |
1月2日 |
| FEM-501-10BMS-NL |
1月14日 |
UNS |
Male bulkhead face seal |
1月2日 |
| FEM-501-10FO-NL |
2007/8/14 |
UNF |
Female |
1月2日 |
| FEM-501-12FO-NL |
1 1/16 - 12 |
UNF |
Female |
1月2日 |
| FEM-501-8FO-NL |
2003/4/16 |
UNF |
Female |
1月2日 |
| FEM-501-8FP-NL |
2001/2/14 |
NPSF |
Female |
1月2日 |
| FEM-621-12FO-NL |
1 1/16 - 12 |
UNF |
Female |
5月8日 |
| FEM-751-12FO-NL |
1 1/16 - 12 |
UNF |
Female |
3月4日 |
| FEM-751-12FP-NL |
2003/4/14 |
NPSF |
Female |
3月4日 |
HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples
| Part |
Maximum Working Pressure (psi) |
Body Size (inch) |
Valve Style |
Connection Thread Size (inch) |
Thread Style |
| FEC-502-10FO |
3625 |
1月2日 |
Connect under pressure, non-spill |
2007/8/14 |
Female |
| FEC-502-12FO |
3625 |
1月2日 |
Connect under pressure, non-spill |
1 1/16 - 12 |
Female |
| FEC-502-8FP |
3625 |
1月2日 |
Connect under pressure, non-spill |
2001/2/14 |
Female |
| FEC-622-12FO |
3625 |
5月8日 |
Connect under pressure, non-spill |
1 1/16 - 12 |
Female |
| FEC-752-12FO |
3625 |
3月4日 |
Connect under pressure, non-spill |
1 1/16 - 12 |
Female |
| FEM-1002-16FO |
2900 |
1 |
Non-spill |
1 5/16 - 12 |
Female |
| FEM-1002-16FP |
2900 |
1 |
Non-spill |
1 - 11 1/2 |
Female |
| FEM-252-4FP |
4568 |
1月4日 |
Non-spill |
2001/4/18 |
Female |
| FEM-252-6FO |
4568 |
1月4日 |
Non-spill |
9/16 - 18 |
Female |
| FEM-372-6FP |
3625 |
3月8日 |
Non-spill |
2003/8/18 |
Female |
| FEM-372-8FO |
3625 |
3月8日 |
Non-spill |
2003/4/16 |
Female |
| FEM-502-10BMF |
3625 |
1月2日 |
Non-spill |
2007/8/14 |
Male bulkhead flare |
| FEM-502-10BMS |
3625 |
1月2日 |
Non-spill |
1月14日 |
Male bulkhead face seal |
| FEM-502-10FO |
3625 |
1月2日 |
Non-spill |
2007/8/14 |
Female |
| FEM-502-12FO |
3625 |
1月2日 |
Non-spill |
1 1/16 - 12 |
Female |
| FEM-502-8FO |
3625 |
1月2日 |
Non-spill |
2003/4/16 |
Female |
| FEM-502-8FP |
3625 |
1月2日 |
Non-spill |
2001/2/14 |
Female |
| FEM-622-12FO |
3625 |
5月8日 |
Non-spill |
1 1/16 - 12 |
Female |
| FEM-752-12FO |
3625 |
3月4日 |
Non-spill |
1 1/16 - 12 |
Female |
| FEM-752-12FP |
3625 |
3月4日 |
Non-spill |
2003/4/14 |
Female |
|
