Parker 6100 Series is a thread to connect, low spill coupling that can be connected under pressure
Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi

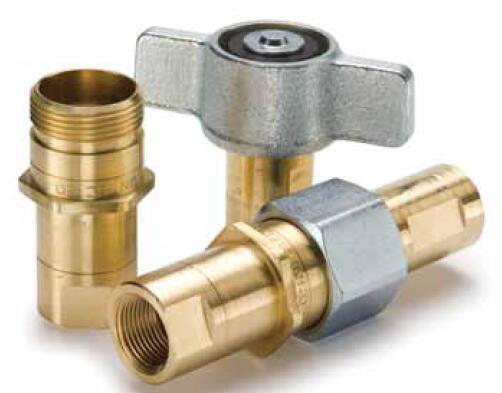

Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available.
Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed. 6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples.
|
| Body Size: |
3/4 to 1 1/2 inch, 3/4, 1, 1 1/4, 1 1/2 inch |
| Flow Rate: |
12 to 100 Gal/min |
| Media: |
Hydraulic |
| Minimum Operating Temperature: |
-40 °F |
| Maximum Operating Temperature: |
250 °F, 121 °C |
| Lock Type: |
Threads |
| Thread Size: |
Female |
| Connection Type: |
NPTF |
| Plating Type: |
Zinc with clear trivalent chromate on steel sleeve |
| Application: |
Hydraulic, connect under pressure, high flow |
|
| Coupling Half: |
Coupler |
| Seal Material: |
Nitrile |
| Maximum Operating Pressure: |
Up to 3000 psi, Up to 207 bar |
| Valve Type: |
Flat Face |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Materials of Construction: |
Brass |
| Vacuum Pressure Rating: |
No |
Technical Characteristics:
- Sizes: 3/4” thru 1-1/2"
- Materials: Brass with steel sleeve
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Oil and gas
- Construction
- Testing
Features/Benefits:
- Couplers are available with steel hex or heavy duty wing nut sleeve
- Low spill flush valves
- Bonded valve seal is durable under full pressure connect and disconnect
- Connection indicator groove on the nipple body visually indicates when the connection is complete
- Optional flange for secure bulkhead or panel mounting
Applications:
- Submersible pumps
- Oil field equipment
- Dump trailers
- Engine test stands
- Bulk liquid transfer
- CO2 transfer (special part numbers apply, contact us)
Literature and Reference Materials
6100 Series Catalog
Catalog 3800 Quick Coupling Products
Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Couplers
| Part |
Sleeve Type |
Connection Thread Size (inch) |
| 6125-08 |
Wing nut |
2001/2/14 |
| 6125-12 |
Wing nut |
2003/4/14 |
| 6125-16 |
Wing nut |
1 - 11 1/2 |
| 6125-20 |
Wing nut |
1 1/4 - 11 1/2 |
| 6125-24 |
Wing nut |
1 1/2 - 11 1/2 |
| Aug-35 |
Hex nut |
2001/2/14 |
| Dec-35 |
Hex nut |
2003/4/14 |
| 6135-16 |
Hex nut |
1 - 11 1/2 |
| 6135-20 |
Hex nut |
1 1/4 - 11 1/2 |
| 6135-24 |
Hex nut |
1 1/2 - 11 1/2 |
Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Nipples
| Part |
Connection Thread Size (inch) |
|
| Aug-20 |
2001/2/14 |
|
| Dec-20 |
2003/4/14 |
|
| 6105-16 |
1 - 11 1/2 |
|
| 6105-20 |
1 1/4 - 11 1/2 |
|
| 6105-24 |
1 1/2 - 11 1/2 |
|
|
