Parker Swivels (hydraulic) up to 5000 psi-PS Series Parker's hydraulic swivels are designed to eliminate hose twist and torque that may cause premature hose failure.

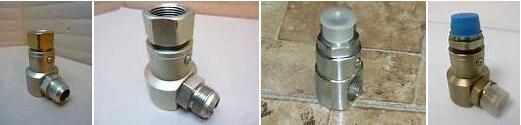

Parker PS Series Swivels (hydraulic) up to 5000 psi, are designed to eliminate hose twist and torque that may cause premature hose failure. The PS Series Swivel has a full flow, sealed bearing design with hardened bearing races for extended service. PS Series Swivels are available in 90 degree and in-line configurations with a wide range of port ends for both the housing and shaft.
- Sizes: 1/4” – 2”
- Materials: Carbon Steel, 303 Stainless Steel, 316 Stainless Steel
- Shaft Port Ends: Male NPTF, Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Male seal-lok, Female SAE Straight Thread
- Housing Port Ends: Male NPTF (non-standard), Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Male seal-lok, Female JIC 37 degree, Female NPSM Pipe Swivel, Female SAE Straight Thread
- Seal Options: Nitrile, Aflas, Ethylene Propylene, Fluorocarbon, Neoprene

Other Swivel Options: Nickel plating

Parker PS Series Swivels (hydraulic) up to 5000 psi
技術資料下載

旋轉接頭PS系列
PS系列型號:
PS 16 1 02 02 - 16 -16 Y -
1 2 3 4 5 6 7 8 9

1 PS代表派克PS系列旋轉接頭

2 規格

3 配置:1=直通型 9=90度

4 軸端口配置:01=NPTF外螺紋 02=NPTF內螺紋 03=JIC 37度外螺紋 05=SAE O形圈直管外螺紋 10=SAE內管螺紋 JM=Seal-lok式

5 軸端口配置:01=NPTF外螺紋(非標準) 02=NPTF內螺紋 03=JIC 37度外螺紋 05=SAE O形圈直管外螺紋 06=JIC 37度內螺紋 07=NPSM管內螺紋旋轉接頭 10=SAE內管螺紋 JM=Seal-lok式

6 軸端口規格

7 軸套端口規格

8 密封圈代碼:空白=丁晴橡膠 A=Aflas K=全氟橡膠 Perflurorelastomer W=丙基乙烯 Y=氟碳橡膠 Z=氯丁橡膠

9 材料與表面處理:空白=碳鋼,鍍鋅鈍黃表面 NI=碳鋼,化學鍍鎳表面 S3=303不銹鋼,經鈍化 S6=316不銹鋼,經電拋光

美制錐管外螺紋-美制錐管內螺紋:

PS410102-4-4 PS610102-6-6 PS810102-8-8 PS1210102-12-12 PS1610102-16-16

PS490102-4-4 PS690102-6-6 PS890102-8-8 PS1290102-12-12 PS1690102-16-16

美制錐管外螺紋-37度擴口式:

PS410103-4-4 PS610103-6-6 PS810103-8-8 PS1210103-12-12 PS1610103-16-16

PS490103-4-4 PS690103-6-6 PS890103-8-8 PS1290103-12-12 PS1690103-16-16

美制錐管外螺紋-37度擴口式內螺紋:

PS410106-4-4 PS610106-6-6 PS810106-8-8 PS1210106-12-12 PS1610106-16-16

PS490106-4-4 PS690106-6-6 PS890106-8-8 PS1290106-12-12 PS1690106-16-16

美制錐管外螺紋-SAE內管螺紋

PS410110-4-4 PS610110-6-6 PS810110-8-8 PS1210110-12-12 PS1610110-16-16

PS490110-4-4 PS690110-6-6 PS890110-8-8 PS1290110-12-12 PS1690110-16-16

美制錐管外螺紋-SAE O形圈直管外螺紋

PS490105-4-4 PS690105-6-6 PS890105-8-8 PS1290105-12-12 PS1690105-16-16

美制錐管外螺紋-NPSM管內管螺紋旋轉接頭

PS490107-4-4 PS690107-6-6 PS890107-8-8 PS1290107-12-12 PS1690107-16-16

美制錐管外螺紋-O形圈平面密封

PS4101JM-4-4 PS6101JM-6-6 PS8101JM-8-8 PS12101JM-12-12 PS16101JM-16-16

PS4901JM-4-4 PS6901JM-6-6 PS8901JM-8-8 PS12901JM-12-12 PS16901JM-16-16

美制錐管外螺紋-美制錐管內螺紋

PS410102-4-4 PS610102-6-6 PS810102-8-8 PS1210102-12-12 PS1610102-16-16

PS490102-4-4 PS690102-6-6 PS890102-8-8 PS1290102-12-12 PS1690102-16-16

三件式設計:

PS2410202-20-20 PS2410202-24-24 PS2410202-32-32

PS2490202-20-20 PS2490202-24-24 PS2490202-32-32

美制錐管內螺紋-37度擴口式:

PS410203-4-4 PS610203-6-6 PS810203-8-8 PS1210203-12-12 PS1610203-16-16

PS490203-4-4 PS690203-6-6 PS890203-8-8 PS1290203-12-12 PS1690203-16-16

三件式設計:

PS2410203-20-20 PS2410203-24-24 PS2410203-32-32

PS2490203-20-20 PS2490203-24-24 PS2490203-32-32

美制錐管內螺紋-37度擴口式內螺紋:

PS410206-4-4 PS610206-6-6 PS810206-8-8 PS1210206-12-12 PS1610206-16-16

PS490206-4-4 PS690206-6-6 PS890206-8-8 PS1290206-12-12 PS1690206-16-16

美制錐管內螺紋-SAE O形圈直管外螺紋

PS490205-4-4 PS690205-6-6 PS890205-8-8 PS1290205-12-12 PS1690205-16-16

美制錐管內螺紋-NPSM管內管螺紋旋轉接頭

PS490207-4-4 PS690207-6-6 PS890207-8-8 PS1290207-12-12 PS1690207-16-16

美制錐管內螺紋-SAE內管螺紋

PS410210-4-4 PS610210-6-6 PS810210-8-8 PS1210210-12-12 PS1610210-16-16

PS490210-4-4 PS690210-6-6 PS890210-8-8 PS1290210-12-12 PS1690210-16-16

美制錐管內螺紋-O形圈平面密封

PS4102JM-4-4 PS6102JM-6-6 PS8102JM-8-8 PS12102JM-12-12 PS16102JM-16-16

PS4902JM-4-4 PS6902JM-6-6 PS8902JM-8-8 PS12902JM-12-12 PS16902JM-16-16

37度擴口式-美制錐管內螺紋

PS410302-4-4 PS610302-6-6 PS810302-8-8 PS1210302-12-12 PS1610302-16-16

PS490302-4-4 PS690302-6-6 PS890302-8-8 PS1290302-12-12 PS1690302-16-16

三件式設計:

PS2410302-20-20 PS2410302-24-24 PS2410302-32-32

PS2490302-20-20 PS2490302-24-24 PS2490302-32-32

37度擴口式-37度擴口式

PS4110303-4-4 PS610303-6-6 PS810303-8-8 PS1210303-12-12 PS1610303-16-16

PS4910303-4-4 PS690303-6-6 PS890303-8-8 PS1290303-12-12 PS1690303-16-16

三件式設計:

PS2410303-20-20 PS2410303-24-24 PS2410303-32-32

PS2490303-20-20 PS2490303-24-24 PS2490303-32-32

37度擴口式-SAE O形圈直管外螺紋

PS490305-4-4 PS690305-6-6 PS890305-8-8 PS1290305-12-12 PS1690305-16-16

37度擴口式-NPSM管內管螺紋旋轉接頭

PS490307-4-4 PS690307-6-6 PS890307-8-8 PS1290307-12-12 PS1690307-16-16

37度擴口式-37度擴口式內螺紋

PS410306-4-4 PS610306-6-6 PS810306-8-8 PS1210306-12-12 PS1610306-16-16

PS490306-4-4 PS690306-6-6 PS890306-8-8 PS1290306-12-12 PS1690306-16-16

37度擴口式-SAE內管螺紋

PS410310-4-4 PS610310-6-6 PS810310-8-8 PS1210310-12-12 PS1610310-16-16

PS490310-4-4 PS690310-6-6 PS890310-8-8 PS1290310-12-12 PS1690310-16-16

三件式設計:

PS2410310-20-20 PS2410310-24-24 PS2410310-32-32

37度擴口式-O形圈平面密封

PS4103JM-4-4 PS6103JM-6-6 PS8103JM-8-8 PS12103JM-12-12 PS16103JM-16-16

PS4903JM-4-4 PS6903JM-6-6 PS8903JM-8-8 PS12903JM-12-12 PS16903JM-16-16

SAE O形圈直管外螺紋-美制錐管內螺紋

PS410502-4-4 PS610502-6-6 PS810502-8-8 PS1210502-12-12 PS1610502-16-16

PS490502-4-4 PS690502-6-6 PS890502-8-8 PS1290502-12-12 PS1690502-16-16

SAE O形圈直管外螺紋-37度擴口式

PS410503-4-4 PS610503-6-6 PS810503-8-8 PS1210503-12-12 PS1610503-16-16

PS490503-4-4 PS690503-6-6 PS890503-8-8 PS1290503-12-12 PS1690503-16-16

SAE O形圈直管外螺紋-37度擴口式內螺紋

PS410506-4-4 PS610506-6-6 PS810506-8-8 PS1210506-12-12 PS1610506-16-16

PS490506-4-4 PS690506-6-6 PS890506-8-8 PS1290506-12-12 PS1690506-16-16

SAE O形圈直管外螺紋-NPSM管內管螺紋旋轉接頭

PS490507-4-4 PS690507-6-6 PS890507-8-8 PS1290507-12-12 PS1690507-16-16

SAE O形圈直管外螺紋-SAE內管螺紋

PS410510-4-4 PS610510-6-6 PS810510-8-8 PS1210510-12-12 PS1610510-16-16

PS490510-4-4 PS690510-6-6 PS890510-8-8 PS1290510-12-12 PS1690510-16-16

SAE O形圈直管外螺紋-O形圈平面密封

PS4105JM-4-4 PS6105JM-6-6 PS8105JM-8-8 PS8105JM-10-10 PS12105JM-12-12 PS16105JM-16-16

PS4905JM-4-4 PS6905JM-6-6 PS8905JM-8-8 PS8905JM-10-10 PS12905JM-12-12 PS16905JM-16-16

SAE內管螺紋-美制錐管內螺紋

PS411002-4-4 PS611002-6-6 PS811002-8-8 PS1211002-12-12 PS1611002-16-16

PS491002-4-4 PS691002-6-6 PS891002-8-8 PS1291002-12-12 PS1691002-16-16

SAE內管螺紋-37度擴口式
PS411003-4-4 PS611003-6-6 PS811003-8-8 PS1211003-12-12 PS1611003-16-16

PS491003-4-4 PS691003-6-6 PS891003-8-8 PS1291003-12-12 PS1691003-16-16

SAE內管螺紋-SAE O形圈直管外螺紋

PS491005-4-4 PS691005-6-6 PS891005-8-8 PS1291005-12-12 PS1691005-16-16

SAE內管螺紋-37度擴口式內螺紋

PS411006-4-4 PS611006-6-6 PS811006-8-8 PS1211006-12-12 PS1611006-16-16

PS491006-4-4 PS691006-6-6 PS891006-8-8 PS1291006-12-12 PS1691006-16-16

SAE內管螺紋-NPSM管內管螺紋旋轉接頭

PS491007-4-4 PS691007-6-6 PS891007-8-8 PS1291007-12-12 PS1691007-16-16

SAE內管螺紋-SAE內管螺紋

PS411010-4-4 PS611010-6-6 PS811010-8-8 PS1211010-12-12 PS1611010-16-16

PS491010-4-4 PS691010-6-6 PS891010-8-8 PS1291010-12-12 PS1691010-16-16

三件式設計:

PS2411010-20-20 PS2411010-24-24 PS2411010-32-32

PS2491010-20-20 PS2491010-24-24 PS2491010-32-32

SAE內管螺紋-O形圈平面密封

PS4110JM-4-4 PS6110JM-6-6 PS8110JM-8-8 PS12110JM-12-12 PS16110JM-16-16

PS4910JM-4-4 PS6910JM-6-6 PS8910JM-8-8 PS12910JM-12-12 PS16910JM-16-16

O形圈平面密封-美制錐管內螺紋

PS41JM02-4-4 PS61JM02-6-6 PS81JM02-8-8 PS121JM02-12-12 PS161JM02-16-16

PS49JM02-4-4 PS69JM02-6-6 PS89JM02-8-8 PS129JM02-12-12 PS169JM02-16-16

O形圈平面密封-37度擴口式

PS41JM03-4-4 PS61JM03-6-6 PS81JM03-8-8 PS81JM03-10-10 PS121JM03-12-12 PS161JM03-16-16

PS49JM03-4-4 PS69JM03-6-6 PS89JM03-8-8 PS89JM03-10-10 PS129JM03-12-12 PS169JM03-16-16

O形圈平面密封-37度擴口式內螺紋

PS41JM06-4-4 PS61JM06-6-6 PS81JM06-8-8 PS121JM06-12-12 PS161JM06-16-16

PS49JM06-4-4 PS69JM06-6-6 PS89JM06-8-8 PS129JM06-12-12 PS169JM06-16-16

O形圈平面密封-SAE內管螺紋

PS41JM10-4-4 PS61JM10-6-6 PS81JM10-8-8 PS121JM10-12-12 PS161JM10-16-16

PS49JM10-4-4 PS69JM10-6-6 PS89JM10-8-8 PS129JM10-12-12 PS169JM10-16-16

O形圈平面密封-O形圈平面密封

PS41JMJM-4-4 PS61JMJM-6-6 PS81JMJM-8-8 PS121JMJM-12-12 PS161JMJM-16-16

PS49JMJM-4-4 PS69JMJM-6-6 PS89JMJM-8-8 PS129JMJM-12-12 PS169JMJM-16-16

O形圈平面密封-SAE O形圈直管外螺紋

PS49JM05-4-4 PS69JM05-6-6 PS89JM05-8-8 PS129JM05-12-12 PS169JM05-16-16

O形圈平面密封-NPSM管內管螺紋旋轉接頭

PS49JM07-4-4 PS69JM07-6-6 PS89JM07-8-8 PS129JM07-12-12 PS169JM07-16-16
