PARKER Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series

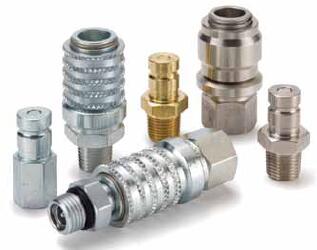

PARKER PD Series quick coupling
PARKER PD Series Nipples (diagnostic test port connectors) up to 6,000 psi, connect with PD Series Couplers. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PD Series Nipples allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test ports.
Test port Nipples can be permanently mounted on equipment at critical test point locations. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi when connected. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications.
|
| Maximum Operating Pressure: |
Up to 6000 psi, Up to 414 bar |
| Maximum Operating Temperature: |
Up to 204 °C, Up to 400 °F, 250 to 400 °F |
| Materials of Construction: |
Steel, Stainless steel |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
various |
| Body Size: |
1/8 inch |
| Flow Rate: |
0.8 Gal/min |
| Seal Material: |
Nitrile, Fluorocarbon |
| Media: |
Fluid or gas |
|
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 to -15 °F |
| Valve Type: |
Non-spill |
| Plating Type: |
Zinc with clear trivalent chromate |
| Application: |
Diagnostic |
Technical Characteristics:
- Size: 1/8""
- Materials: Steel, Stainless Steel, Brass
- Port Ends: Female NPTF, Female UNF, Male NPTF, Male Metric, Male UNF, Triple-Loc, Seal-Loc, Bulkhead
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene
Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO
Features/Benefits:
- Steel nipples are machined from high tensile strength material to be durable with continuous operating pressures up to 6000 psi
- Flush face valves minimize air inclusion and spillage
- SAE J1502 / ISO 15171-1 conformance provides global interchangeability with other test point couplings manufactured to the same specifications
- A variety of end fitting configurations, including bulkhead options, provide versatility for system installation and panel mounting
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems
Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation
Related Documents
Literature and Reference Materials
Catalog 3800 Quick Coupling Products
PD Series Catalog
SensoControl Landing Page
Selector Guides
SensoControl Interactive Product Guide and Software Downloads
Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Test Point Connectors - PD Series Nipples
| Part |
Maximum Working Pressure (psi) |
Body Material |
Connection Type |
Thread Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Tube Size (inch) |
| BPD323Y |
300 |
Brass |
NPTF |
Male |
2001/8/27 |
na |
na |
| BPD343Y |
300 |
Brass |
NPTF |
Male |
2001/4/18 |
na |
na |
| PD3107 |
6000 |
Steel |
Metric |
Male |
na |
M16 X 1.5 |
na |
| PD310BTL |
6000 |
Steel |
Seal-Lok |
na |
na |
na |
5/8 |
| PD3127 |
6000 |
Steel |
Metric |
Male |
na |
M18 X 1.5 |
na |
| PD312BTX |
6000 |
Steel |
Triple-Lok |
na |
na |
na |
3/4 |
| PD3147 |
6000 |
Steel |
Metric |
Male |
na |
M20 X 1.5 |
na |
| PD322 |
6000 |
Steel |
NPTF |
Female |
2001/8/27 |
na |
na |
| PD323 |
6000 |
Steel |
NPTF |
Male |
2001/8/27 |
na |
na |
| PD331 |
6000 |
Steel |
UNF |
Male |
2003/8/24 |
na |
na |
| PD341 |
6000 |
Steel |
UNF |
Male |
7/16 - 20 |
na |
na |
| PD342 |
6000 |
Steel |
NPTF |
Female |
2001/4/18 |
na |
na |
| PD343 |
6000 |
Steel |
NPTF |
Male |
2001/4/18 |
na |
na |
| PD345 |
6000 |
Steel |
Triple-Lok |
Male bulkhead |
7/16 - 20 UNF |
na |
1/4 |
| PD346 |
6000 |
Steel |
Seal-Lok |
Male bulkhead |
9/16 - 18 UNF |
na |
1/4 |
| PD34BTL |
6000 |
Steel |
Seal-Lok |
na |
na |
na |
1/4 |
| PD34BTX |
6000 |
Steel |
Triple-Lok |
na |
na |
na |
1/4 |
| PD351 |
6000 |
Steel |
UNF |
Male |
2001/2/20 |
na |
na |
| PD355 |
6000 |
Steel |
Triple-Lok |
Male bulkhead |
1/2 - 20 UNF |
na |
5/16 |
| PD357 |
6000 |
Steel |
Metric |
Male |
na |
M10 X 1.0 |
na |
| PD361 |
6000 |
Steel |
UNF |
Male |
9/16 - 18 |
na |
na |
| PD363 |
6000 |
Steel |
NPTF |
Male |
2003/8/18 |
na |
na |
| PD365 |
6000 |
Steel |
Triple-Lok |
Male bulkhead |
9/16 - 18 UNF |
na |
3/8 |
| PD366 |
6000 |
Steel |
Seal-Lok |
Male bulkhead |
11/16 - 16 UNF |
na |
3/8 |
| PD36BTL |
6000 |
Steel |
Seal-Lok |
na |
na |
na |
3/8 |
| PD36BTX |
6000 |
Steel |
Triple-Lok |
na |
na |
na |
3/8 |
| PD386 |
6000 |
Steel |
Seal-Lok |
Male bulkhead |
13/16 - 16 UNF |
na |
1/2 |
| PD38BTL |
6000 |
Steel |
Seal-Lok |
na |
na |
na |
1/2 |
| PD38BTX |
6000 |
Steel |
Triple-Lok |
na |
na |
na |
1/2 |
| SSPD343Y |
6000 |
Stainless steel |
NPTF |
Male |
2001/4/18 |
na |
na |
Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series Couplers
| Part |
Body Material |
Thread Type |
Connection Thread Size (inch) |
Connection Type |
| PD222 |
Steel |
Female |
2001/8/27 |
NPTF |
| PD240 |
Steel |
Female |
7/16 - 20 |
UNF |
| PD242 |
Steel |
Female |
2001/4/18 |
NPTF |
| PD243 |
Steel |
Male |
2001/4/18 |
NPTF |
| PD260 |
Steel |
Female |
9/16 - 18 |
UNF |
| SSPD242Y |
Stainless steel |
Female |
2001/4/18 |
NPTF |
|
