Parker PDF Series diagnostic quick couplers and test point nipples
Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

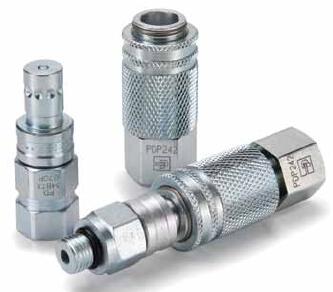

PDP Series Nipples (diagnostic test port connectors) 6,000 psi, connect with PDP Series Couplers. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PDP Couplers allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test points under full operating pressures up to 6000 psi.
PDP couplers and nipples push to connect, and then the coupler base is manually turned to open the nipple valve and complete the connection. When fully connected, the coupler base blocks the retracted sleeve to prevent accidental disconnects. PDP Nipples can be permanently mounted on equipment at critical test point locations, at threaded test ports, in rigid tubing or in hose assemblies. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi.
| Maximum Operating Pressure: |
6000 psi, 414 bar |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
various |
| Body Size: |
1/8 inch |
| Seal Material: |
Nitrile |
| Media: |
Fluid or gas |
| Coupling Half: |
Nipple |
|
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Ball |
| Plating Type: |
Zinc with clear trivalent chromate |
| Application: |
Diagnostic |
Technical Characteristics:
- Size: 1/8""
- Material: High tensile steel
- Port Ends: Male NPTF, Male UNF, Triple-Loc, Seal-Loc
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene
Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO
Features/Benefits:
- Steel nipples are machined from high tensile strength material to withstand continuous operating pressures up to 6000 psi
- Nipple has a durable ball valve
- End fitting configurations include Triple-Lok and Seal-Lok options
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems
Applications:
- Mobile equipment
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation
Related Documents
Literature and Reference Materials
Catalog 3800 Quick Coupling Products
PDP Series Catalog
SensoControl Landing Page
Selector Guides
SensoControl Interactive Product Guide and Software Downloads
Test Port and Diagnostic Equipment Quick Couplings, Test Point Connectors - PDP Series Nipples
| Part |
Thread Type |
Connection Thread Size (inch) |
Connection Type |
Tube Size (inch) |
| PDP323 |
Male |
2001/8/27 |
NPTF |
na |
| PDP341 |
Male |
7/16 - 20 |
UNF |
na |
| PDP343 |
Male |
2001/4/18 |
NPTF |
na |
| PDP34BTL |
na |
na |
Seal-Lok |
1/4 |
| PDP34BTX |
na |
na |
Triple-Lok |
1/4 |
| PDP361 |
Male |
9/16 - 18 |
UNF |
na |
| PDP36BTL |
na |
na |
Seal-Lok |
3/8 |
| PDP36BTX |
na |
na |
Triple-Lok |
3/8 |
Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers
| Part |
Thread Type |
Connection Thread Size (inch) |
Connection Type |
|
| PDP242 |
Female |
2001/4/18 |
NPTF |
|
|
