Parker UHP PFA/PTFE FM-4系列超高純流量計
Parker UHP PFA/PTFE FM-4 Series Flowmeter

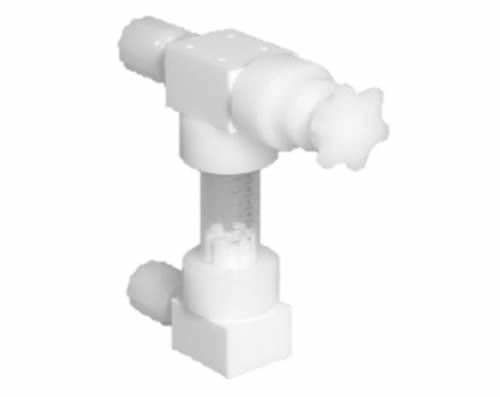

Parker FM-4 Series PFA/PTFE Flowmeter

Parker FM-4 系列PFA/PTFE 流量計用于需要精密液體流量控制的超高純應用。它提供極強耐腐蝕性，采用無泄漏操作的卡套技術 (最高壓力120 psig)。Parker派克FM-4系列是3/4"PFA/PTFE流量計， 非常適合需要對流體進行精確控制和測量的高純應用。采用PTFE體、高純PFA桶、精密加工針閥元件。這些特點使流量計具有高循環壽命、優秀的泄露完整性和優異的耐腐蝕性。

并非典型的面對面密封，F(xiàn)M-4系列采用壓縮技術將桶與本體進行密封。確保可靠、無泄漏操作，使端口可360°定位，增加靈活性。流量計獨特的PTFE浮動設計允許在各種化學品中的連續讀出和能見性。

Parker FM-4系列可配備Parflare入口和出口連接方式，節約裝配和安裝時間，確保潔凈至關重要的應用中無泄漏密封性能。

Parker FM-4 系列PFA/PTFE 超高純半導體流量計
Parker UHP PFA/PTFE FM-4 Series Flowmeter

The is designed for ultra-high purity applications where precise flow control of liquids is required. It offers extreme corrosion resistance and uses compression technology for leak-free operation (up to 120 psig).The Parker FM-4 Series is a 3/4 inch PFA/PTFE Flowmeter that’s ideally suited for high purity applications where precise control and measurement of liquids is required. It utilizes a PTFE body, a high-purity PFA barrel, and precision-machined needle valve components. These features afford the flowmeter high cycle life, excellent leak integrity, and exceptional resistance to aggressive liquids.

Rather than a typical face-to-face seal, the FM-4 Series utilizes compression technology to seal the barrel to the body. This ensures reliable, leak-free operation and enables 360-degree port orientation for increased flexibility. The flowmeter’s unique PTFE float design allows for consistent read out and visibility in a wide range of chemicals.

The FM-4 Series is fitted with Parflare inlet and outlet connection types, which reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

市場Markets:

- 半導體 Semiconductor
- 分析試驗室 Analytical Laboratory
- 制藥 Pharmaceutical
- 生物制藥 BioPharm
- 航空航天 Aerospace
- 工業 Industrial

特點和優勢:

- PTFE和PFA接液面提供高彎曲壽命和優異的耐腐蝕性
- 壓力范圍 0-120 psig
- 標準配置為一體式針閥控制流量和面板安裝螺母用于安裝
- 壓縮式桶與本體密封確保零泄漏，允許360°端口定位
- 流量范圍:根據結構的不同2 – 5 加侖/分
- 出入口可選Parflare連接方式
- 環境溫度范圍:0°F 至 +212° F (-17°C 至 +100° C)
- 流體溫度范圍:0°F 至 +266° F (-17°C 至 +130° C)

應用Applications:

- 腐蝕性和/或特殊化學品, 酸, 堿和泥漿 Corrosive and/or specialty chemicals, acids, bases, and slurries
- 半導體工具 Semiconductor Tools
- CMP/泥漿系統 CMP/Slurry Systems
- 閥組箱 (VMBs) Valve Manifold Boxes (VMBs)

性能特點

主體材料 PFA, PTFE, Polypro, PVDF
壓力范圍 0 psig-120 psig (8.3 bar)
最高環境溫度 (C) 100°C
最高環境溫度 (F) 212°F
最低環境溫度 (C) -17°C
最低環境溫度 (F) 0°F
最高液體溫度 (C) 130°C
最高液體溫度 (F) 266°F
最低液體溫度 (C) -17°C
最低液體溫度 (F) 0°F
