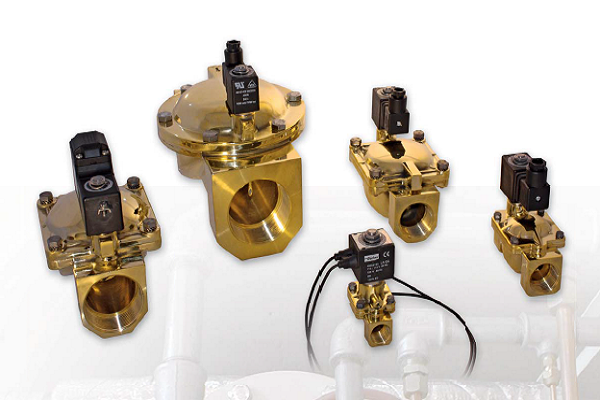

Parker 7321B/7322B are diaphragm pilot operated solenoid valves
Parker 7321B/7322B Series Water Valves

Parker 7321B/7322B 2/2先導閥是任何需要水、蒸汽和輕質油等完美控制介質的最佳解決方案-7321B/7322B系列是隔膜式先導閥，需要最小壓差才能操作-水是人類生命的基本元素，水控制使廣泛的變化成為可能人類活動的一部分，如灌溉和糧食生產、養殖、配水、能源生產、汽車和工具清洗；在許多應用中，水是基本元素，如消防、建筑、管道等，其中以螺線管技術為基礎。Parker 7321B/7322B 2/2 pilot operated valves is the best solution anywhere a perfect control media such water, steam, and light oils is required- 7321B/7322B Series are diaphragm pilot operated valves and require a minimum differential pressure to operate- Water is the basic element for human life, and water control makes possible a wide varety of human activities such as irrigation and food production, breeding, water dispensing, energy production, car and tools washing; water is the basic element in many applications like fire-fighting, domotic, plumbing- Basing on solenoid technology, among the features

Parker 7321B/7322B are diaphragm pilot operated solenoid valves
Parker 7321B/7322B Series Water Valves

產品應用

由于在流速方面的最佳性能，7321B/7322B系列可用于許多高流速和介質（如水、熱水和蒸汽）的應用-典型應用可在：管道m(xù)kt、工業洗衣機、洗車裝置、機床冷卻、水力清洗機、高壓滅菌器、灌溉系統等中找到…Thanks to the best performances in fl ow rate,7321B/7322B Series can be used for many applications with high flow rates and media such as water,hot water and steam- Typical applications can be found in: Plumbing mkt, industrial washing machines,car wash installations, cooling of machine tools, hydrocleaners, autoclaves, irrigation systems, etc…

Among the most valuable features you can fi nd in this product:

- Best performances for minimum and maximum operating pressure diff erential

- Exclusive diaphragm design for a Superior Flow Rate, higher than the competition valves with the same dimensional specs and fl at diaphragm

- One of the Fastest in electrical and hydraulic opening response time

- Modular concept: a wide range of electrical parts increases the versatility of this product

- Robust design: areas under mechanical stress have been studied and oversized

- Manual override control option: valve can be easily activated also when there’s no energy supply

- Stainless steel pilot for superior life endurance with special sealing

- Easy access to internal parts, to permit easy and quick maintenance

Introducing Parker 7321B/7322B Series Water Valves General Description

Parker 7321B/7322B are diaphragm pilot operated solenoid valves and require a minimum differential pressure to operate-
This serie is available in both Normally Closed and Normally Open function: 7321B Serie is a Normally Closed family (closed when de-energised), 7322B Serie is the Normally Open family (Open when de-energised)- Material Speci- cations
Valve body: CW617N UNI EN 12165:98 Forged Brass Enclosing tube: AISI 304 stainless steel Plunger: AISI 430F St- Steel Spring: Seals: Shading ring: AISI 302 St- Steel NBR (Buna N) - EPDM FKM (Viton) Copper

Installation

The valves can be mounted in any position- It is however recommended to install them with the coil in vertical position above the body-

Media

These valves have been developed to achieve the best performances for water, steam, light oils (up to 2°E)- Therefore these valves are not usable with gas and air- We recommend to choose NBR versions for plumbing mkt (max- temp- 90°C), FKM version for water/light oils control applications up to 140°C, EPDM version for superheated water and steam (up to 140°C)

Electrical Parts

A wide range of electrical parts are available for 7321B/7322B Series- The complete offer of electrical parts is shown at pages 18 to 21-
Please consult factory in case you need to verify the compatibility of 7321B/7322B Series with alternative ranges of paper FCDE coils not inclused in this catalogue- Please consult also the "How to Order" section at page 22 to select the product con- guration which - ts your application requirements-

Available Options

Manual Control

Parker 7321B Serie (NC version only) can be ordered with Manual control option- A manual control is used to operate the valve without connecting the coil-
The control consists in a slotted-head screw for a screwdriver and has two possible positions:
Closed: The letter "C" is in the upper position of the screw head (- g- 1,2) Open: The letter "A" is in the upper position of the screw head (- g- 1,2)
Standing in its closed position, the valve operates normally when coil is energised/de-energised- Manual and speed control are standard on 2 - " and 3" versions-

Speed Control Option (Anti-Water Hammer Control)

Parker 7321B Serie (NC version only) can be ordered with Speed control option- The closure time of certain types can be changed by means of the adjusting screw- The latter, by acting as a throttle on the inlet equalisation (pilot) hole of the valve, slows down the closure speed of the valve, thus reducing the water hammer effect-
The regulation range is as follows:
Screw fully open: Max- closure speed Screw fully closed: Valve always open

Please consult diagrams at page 6 of this catalogue to - nd details about shut-off response time with speed control option-

3/4" - 1"
Sec- Sec-
100 40 30
20
10 8
6 5 4
3
2
1

100 40 30
20
10 8
6 5 4
3
2
1

Diagrams of the Closing Times

1 1/4" - 1 1/2"

0- 1 0- 2 0- 3 0- 4 0- 5 0- 6 0- 8 1- 0 1- 5 bar 0- 1 0- 2 0- 3 0- 4 0- 5 0- 6 0- 8 1- 0 1- 5 bar
2" 2 1/2"
Sec- Sec- 100
100
40

80 6030
50 40
20
30
20
10
8

10
6

8
5
6
4 5 43
2
1
Sec-
100 80 60 50 40
30
20
10
8
6

5
4

3
2
1

Product availability
7321B/7322B Pressure Vessel

A wide range of con- gurations for this solenoid valve family is available: port sizes from 3/8" to 3" in brass, with BSPP port threads or with NPT ports, along with a wide range of seal and disc materials ensures that we have a standard valve to - t most applications-
In the table herebelow you might also - nd an explanation of the general description system for 7321B/7322B Series water valves family-

Please note:
- Electrical parts available are not included in the description system hereabove which refers to pressure vessel only- You can - nd electrical parts available at pages 18 to 21-
- Please consult in detail the "How to Order" section at page 22-

2/2 Normally Closed - BSP threads

NBR Seals (Max- Media Temp- 90°C)

Nominal pressure: 25 bar from 1 - " to 3" 16 bar

FKM Seals (Max- Media Temp- 140°C)

Nominal pressure: 25 bar

EPDM Seals (Max- Media Temp- 140°C)
Port Size G Ori- ce mm Flow Factors m3/h l/min Minimum Maximum Pressure Differential Weight Kg Manual Control Speed Control Pressure Description Part Number DimensionalDrawing
3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 13 13 20 25 35 40 50 3- 0 49- 98 3- 0 49- 98 8- 4 139- 94 9- 6 159- 94 25- 2 419- 83 30- 0 499- 80 37- 2 619- 75 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 55 0- 55 1- 02 1- 08 3- 15 2- 90 4- 30 ------- ------- 7321BIH00 7321BAH00 7321BCH00 7321BDH00 7321BEH00 7321BFH00 7321BGH00 443778W443781W443785W443789W443793W443797W443801W 2 2 3 3 4 4 4

Nominal pressure: 25 bar -Max press for steam: 4 bar

Dimensional Drawing N° 2

Dimensional Drawing N° 3

2/2 Normally Closed - BSP threads

Dimensional Drawing N° 4
Dimensional Drawing N° 5

2/2 Normally Open - BSP threads

NBR Seals (Max- Media Temp- 90°C)
Port Size G Ori- ce mm Flow Factors m3/h l/min Minimum Maximum Pressure Differential Weight Kg Manual Control Speed Control Pressure Description Part Number DimensionalDrawing
3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 13 13 20 25 35 40 50 65 75 3- 0 49- 98 3- 0 49- 98 8- 4 139- 94 9- 6 159- 94 25- 2 419- 83 30- 0 499- 80 37- 2 619- 75 66- 0 1099- 56 80- 0 1332- 80 0- 1 20 0- 1 20 0- 1 20 0- 1 20 0- 1 10 0- 1 10 0- 1 10 0- 2 10 0- 2 10 0- 55 0- 58 1- 02 1- 08 3- 15 2- 90 4- 30 13- 60 11- 90 --------- -------x x 7322BIN00 7322BAN00 7322BCN00 7322BDN00 7322BEN00 7322BFN00 7322BGN00 7322BLN06 7322BMN06 443805W443806W443807W443808W443809W443810W443811W444513W444503W 6 6 7 7 8 8 8 9 9

Nominal pressure: 25 bar from 1 - " to 3" 16 bar

FKM Seals (Max- Media Temp- 140°C)
Port Size G Ori- ce mm Flow Factors m3/h l/min Minimum Maximum Pressure Differential Weight Kg Manual Control Speed Control Pressure Description Part Number DimensionalDrawing
3/8" 1/2" 3/4" 1" 13 13 20 25 3- 0 49- 98 3- 0 49- 98 8- 4 139- 94 9- 6 159- 94 0- 1 20 0- 1 20 0- 1 20 0- 1 20 0- 55 0- 58 1- 02 1- 08 ---- ---- 7322BIV00 7322BAV00 7322BCV00 7322BDV00 444499W444500W444501W444502W 6 6 7 7

Nominal pressure: 25 bar from 1 - " to 2" 16 bar

EPDM Seals (Max- Media Temp- 140°C)
Port Size G Ori- ce mm Flow Factors m3/h l/min Minimum Maximum Pressure Differential Weight Kg Manual Control Speed Control Pressure Description Part Number DimensionalDrawing
3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 13 13 20 25 35 40 50 3- 0 49- 98 3- 0 49- 98 8- 4 139- 94 9- 6 159- 94 25- 2 419- 83 30- 0 499- 80 37- 2 619- 75 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 1 10 0- 55 0- 58 1- 02 1- 08 3- 15 2- 90 4- 30 ------- ------- 7322BIH00 7322BAH00 7322BCH00 7322BDH00 7322BEH00 7322BFH00 7322BGH00 444600W444601W444602W444603W444576W444604W444605W 6 6 7 7 8 8 8

Nominal pressure: 25 bar from 1 - " to 2" 16 bar
2/2 Normally Open - BSP threads

Dimensional Drawing N° 6
Dimensional Drawing N° 7
Dimensional Drawing N° 8
Dimensional Drawing N° 9
All dimensions are in mm

2/2 Normally Closed - NPT threads

NBR Seals (Max- Media Temp- 90°C)

Nominal pressure: 25 bar/360 PSI from 1 - " to 2" 16 bar/230 PSI

EPDM Seals (Max- Media Temp- 140°C)

Nominal pressure: 25 bar/360 PSI

2/2 Normally Open - NPT threads

NBR Seals (Max- Media Temp- 90°C)

EPDM Seals (Max- Media Temp- 140°C)

Electrical parts availability
Standard Coil Mono-Frequency, F class

Encapsulated in synthetic material, Connector for 2P + E DIN 43650 A Plug- IP65 rate can be achieved using a DIN Plug connector only-

Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24/50 48/50 110/50 220-230/50 380/50 24/60 230/60 115/60 12 DC 24 DC 48DC 110V DC 8 W 8 W 8 W 8 W 8 W 8 W 8 W 8 W 9 W 9 W 9 W 9 W ------------ 481865A2 481865A4 481865A5 4818653D 481865A9 481865B2 481865J3 481865K8 481865C1 481865C2 481865C4 481865C5 439500439515439514439502439531439804439530439528439508439501439523439532 10 10 10 10 10 10 10 10 10 10 10 10

Standard Coil Bi-Frequency, F class

Encapsulated in synthetic material, Connector for 2P + E DIN 43650 A Plug- IP65 rate can be achieved using a DIN Plug connector only-

Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
12/50-60 9 W 24/50-60 9 W 48/50-60 9 W 110-115/50 120/60 9 W 220-240/50 240/60 9 W ----- 4835101W 483510P0 483510S4 483510S5 483510S6 439812439503439526439507439504 10 10 10 10 10

UL approved Coil, F class

Encapsulated in synthetic material, Connector for 2P + E DIN 43650 A Plug- IP65 rate can be achieved using a DIN Plug connector only-

Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24/60 24DC 110/50 120/60 220/50 240/60 13 W 16 W 13 W 13 W UL UL/VDE UL UL 491514B2 491514C2 491514P3 491514Q3 439511439520439512439513 10 10 10 10

H class Coil

(DC, AC 14W) encapsulated in synthetic material- Connection for 2P + E DIN 43650 A Plug- IP65 rate can be achieved using a DIN Plug connector only-
Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24/50 110/50 230/50 24DC 14 W 14 W 14 W 14 W ---- 492425A2 492425A5 492425F4 492425C2 439550439551439518439522 10 10 10 10

Dimensional Drawing N° 10

All dimensions are in mm Dimensional Drawing N° 11

Electrical parts availability
IP67 Coil with two 500 mm - ying leads, F class

Encapsulated in synthetic material- Protection rate IP67 as per DIN 40050- Connection: 2 x 500 mm cables
Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24/50 - 24/60 110-115/50 120/60 220-240/50 240/60 24DC 12DC 9 W 9 W 9 W 9 W 9 W ----- 496081P0 496081S5 496081S6 496081C2 496081C1 439816439820439822439818439814 11 11 11 11 11

IP67 coil with two 500 mm - ying leads, F class, UL approved

Encapsulated in synthetic material- Protection rate IP67 as per DIN 40050- Connection: 2 x 500 mm cables
Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24/60 110/50 120/60 208-240/60 220/50 240/60 24DC 12DC 13 W 13 W 14 W 13 W 16 W 16 W UL UL UL UL UL UL 496082B2 496082P3 496082U3 496082Q3 496082C2 496082C1 439826439828439824 439834 439832439830 11 11 11 11 11 11

Explosion-proof EEx m II T4 (IP65)

Coil with housing integrated- Coil and magnetic circuit encapsulated in synthetic material-
The complete housing is supplied with an encapsulated connection cable (3 x 0- 75 mm2 section),
cable length is 3 000 mm with cable gland PG11- Power consumption: 8W AC, 9W DC-

Explosion-proof II 2 G-EEx dm IIC T4

Coil/housing assembly encapsulated in synthetic material (H class)- Protection degree: IP67- Cable connection through cable gland M20x1- 5 (DIN 46320)-
Voltage Power Consumption Approvals Description Part Number Dimensional Drawing
24DC 48DC 110DC 24/50 48/50 240/60 115/50 230/50 115/60 8 W 8 W 8 W 8 W 8 W 8 W 8 W 8 W 8 W ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD ATEX - EEx d mb IIC 2GD 495905C2 495905C4 495905C5 495905A2 495905A4 495905B8 495905E5 495905F4 495905K8 495905C2495905C4495905C5495905A2495905A4495905B8495905E5495905F4495905K8 13 13 13 13 13 13 13 13 13

Dimensional Drawing N° 12

Accessories
Connector 2P + E DIN 43650 A

Spare Parts
Diaphragm Service Kit

This kit contains diaphragm only- Basing on port size of the valve and seals material required, please consult the prospect herebelow- Spare part kit is the same for Normally open and Normally closed versions-

Rebuild Service Kit

This kit contains diaphragm, sleeve, plungers and seals- Basing on function, port size and seals material required, please consult the prospect herebelow- Spare part kit is not the same for Normally open and Normally closed versions-

How to Order

Step 1

Select the pressure vessel catalogue number (description) and/or part number at pages 8 to 19-

Step 2

Select the electrical part catalogue number and/or part number at pages 20 to 23-
Step 3

Select accessories at page 24-

Ordering a product or a con- guration not listed in the catalogue
