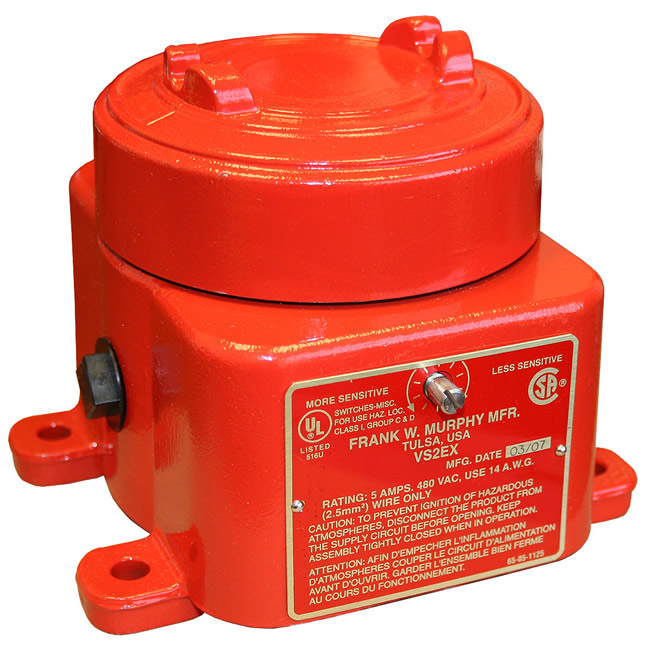

VS2EX (20700049): Explosion-Proof Shock & Vibration Switch

VS2EX: Explosion-Proof Shock & Vibration Switch, Meets IP54 Specs, Class 1, Div 1, Groups C & D (20700049)

The VS2EX Series switches are shock sensitive mechanisms for shutdown of engine or electric motor-powered equipment. These adjustable magnetic shock switches have a wide range and use a magnetic latch to ensure reliable operation.

The VS2EX has a base mounted case, explosion-proof aluminum alloy housing; meets NEMA 7/IP50 specifications; Class I, Division I, Groups C & D; UL and CSA listed with 480 VAC rating. In place of the leaf-type contacts, 2-SPDT snap-switches are used in this model. Sensitivity is externally adjustable and, when tripped, the VS2EX gives a Tattletale indication on the reset button.

Ideal for use on engines, pumps, compressors, heat exchangers and pumping units - the VS2EX can be used anywhere shutdown protection from damaging shock/vibration is desired. Switches are field adjustable to sensitivity required in each application. Wecan provide a certificate of conformance for the VS2EX, but no calibration report is available.

There is no calibration report for the VS2EX.

Basic Operation:
Pushing the reset button moves the tripping latch into a magnetically held position. A shock/vibration will move the magnet beyond this holding position, thus freeing the spring-loaded tripping latch to transfer the contacts and shut down the machinery (see dimensional diagrams or visual representation of parts).

Literature:
Sales Bulletin
Installation Instructions

For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

The VS2 Series switches are shock-sensitive mechanisms for shutdown of engine or electric motor powered equipment. It is designed to detect shock/vibration in three planes of motion.

These fully adjustable switches use a magnetic latch to ensure reliable operation. Explosion-proof EX models for hazardous locations are available.

Ideal for use on engines, pumps, compressors, heat exchangers and pumping units, the VS2 Series can be used where shut-down protection from damaging shock/vibration is desired. Switches are field adjustable to the sensitivity required in each application.

Basic Operation
Pushing the reset button moves the tripping latch into a magnetically held position. A shock/vibration will move the magnet beyond this holding position, thus freeing the spring loaded tripping latch to transfer the contacts and shut down the machinery (see dimensional diagrams or visual representation of parts).

Remote Reset Operation (VS2EXR and VS2EXRB)
The remote reset option includes a built-in electric solenoid which allows reset of tripped unit from a remote location. Available for 115 VAC or 24 VDC.

Specifications

Normal Operating Temperature: -40° to 185°F (-40° to 85°C); For UL and CSA applications, applicable temperature specification is de-rated to -40° to 140°F (-40° to 60°C)
VS2 and VS2C
Case: Environmental Protection: Ingress protected to IP54 (when mounted on a horizontal surface with drain holes down). Suitable for non-hazardous areas. VS2C: C-clamp mount, includes 45 ft. (13.7 m) 2-conductor cable and 5 cable clamps
Contacts: SPDT-double make leaf contacts, 3A @ 240 VAC; 10A @120 VAC; 10A @ 32 VDC
Shipping Weight: VS2: 2 lb. 8 oz. (1.1 kg); VS2C: 7 lb (3.2 kg)
Shipping Dimensions: VS2: 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm); VS2C: 12 x 7 x 5-1/2 in. (305 x 178 x 140 mm)
VS2EX
Case: Base mount, explosion-proof aluminum alloy housing; meets IP54 specifications; Class I, Division 1, Groups C & D; UL and CSA listed
Certification: CSA, UL
Snap switches: 2-SPDT snap switches; 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC
Shipping Weight: 4 lb. 8 oz. (2 kg)
Shipping Dimensions: 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm)
VS2EXR
Case: Same as VS2EX
Certification: CSA, UL
Snap switch: 1-SPDT snap switch and reset coil; 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC
Remote Reset: 115 VAC or 24 VDC (specify)
Shipping Weight: 5 lb. 8 oz. (2.2 kg)
Shipping Dimensions: 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm)
VS2EXRB
Case: Explosion-proof aluminum alloy housing; designed to meet Class I, Division 1, Group B hazardous areas
Certification: No third-party certification
Snap switch: 1-SPDT snap switch with reset coil (option available for 2-SPDT switches); 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC
Remote Reset: 115 VAC or 24 VDC (specify)
Shipping Weight: 17 lb. 8 oz. (7.9 kg)
Shipping Dimensions: 12 x 12 x 10 in. (305 x 305 x 254 mm)
