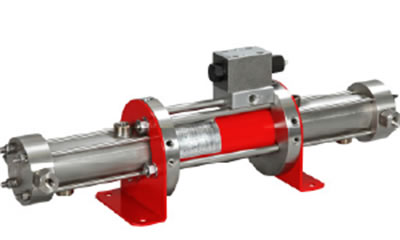

液驅氣體增壓器_Hydraulic Driven Boosters
MAXIMATOR HDLE系列液驅氣體增壓器共四種基本型號，涵蓋壓力范圍為50bar到900bar，且輸出流量恒定。為滿足更大流量要求，每種型號（HDLE2,5,15和30）均可進行增長活塞設計。適用于工業氣體和氫氣的增壓。
Maximator HDLE系列液驅氣體增壓器共四種基本型號，涵蓋壓力范圍為50bar到900bar，且輸出流量恒定。為滿足更大流量要求，每種型號（HDLE2,5,15和30）均可進行增長活塞設計。適用于工業氣體和氫氣的增壓。
HDLE操作溫度可達100°C。其廣泛應用于涉及氣體增壓的行業，例如：汽車、能源、化工、石化、石油和天然氣（海上或陸地上）等領域。
Maximator HDLE系列具有下述特點：
- 四種基本型號，涵蓋了不同的壓力范圍（50bar到900bar）；
- HDLE 2 壓力可達 50 bar，HDLE 5 壓力可達 100 bar，HDLE 15 壓力可達 300 bar，HDLE 30 壓力可達 900 bar；
- 在壓力范圍內輸出流量恒定；
- 雙沖程長度的HDLE系列可以提供更大的流量；
- 可根據客戶要求定制。
技術參數
型號 |
壓力比 |
排量 |
出口壓力 |
| ?
|
?
|
cm3 |
in3 |
bar |
HDLE2-D |
1:0.27 |
1,844.00 |
112.00 |
5. |
HDLE5-D |
1:0.68 |
1,492.00 |
91.00 |
100 |
HDLE15 |
1:0.48 |
244.00 |
14.00 |
300 |
HDLE15-D |
1:0.48 |
488.00 |
29.00 |
300 |
HDLE30 |
1:4 |
120.00 |
7.00 |
900 |
DLE30-D |
1:4 |
240.00 |
14.00 |
900 |
液驅氣體增壓單元Hydraulic Booster Station
- 壓力入口和出口可以選配截止閥、壓力表和壓力開關
- 供油單元由定量泵或變量泵與電動泵組成
- 達設定的工作壓力后，電氣控制系統關斷
Maximator Hydraulic Booster Stations
In Austria we provide this hydraulic unit with a variable capacity pump or a fixed displacement pump and an electric motor. The electrical control system allows the independent switching on /off as soon as the preset operating pressure is reached. Shut-off valves, pressure switches and pressure gauges are located at the pressure in- and outlet. You can choose between models with water- or air coolers.
General information:
You will receive this hydraulic compressor as a complete system, the hydraulic unit is included. The modular construction allows an exact adaptation to your individual requirements. Available are single or multi-stage and parallel designs.
You can choose between fixed displacement pumps or variable capacity pumps. Pumps can be provided with an electric motor. Optionally available are an electrical control system, pressure gauges at the pressure in- and outlet, pressure switches and shut-off valves.
Options:
Compression of non-inert gases with nitrogen flushing
Speed control by means of a frequency converter
Oil-air cooling: automatic turn on/off by means of thermostatic control
The HDLE models operate in the pressure ranges 2 to 50 bar, 5 to 100 bar, 15 to 300 and 30 to 900 bar.
Products:
HDLE2-D
HDLE5-D
Pressure ratio: 1:0,68
Displacement volume (cm3): 1.492,00
Displacement volume (in3): 91,00
HDLE15
HDLE15-D
HDLE30
HDLE-30D
