Hydraulic Driven Boosters - Hydraulic Booster Station
液驅氣體增壓單元
- 供油單元由定量泵或變量泵與電動泵組成；
- 達設定的工作壓力后，電氣控制系統關斷；
- 壓力入口和出口可以選配截止閥、壓力表和壓力開關；
- 配備空氣/水冷卻器。
Maximator液驅氣體增壓站模塊化設計，結構緊湊。針對不同的應用，Maximator可以靈活滿足客戶的各類需求，也可以提供定制的交鑰匙工程解決方案。根據工況需求，Maximator也可以提供多級增壓系統或多泵并聯系統。
供油單元由定量泵或變量泵與電動泵組成。電氣控制系統控制液驅氣體增壓器到達設定的工作壓力后停止工作。壓力入口和出口可以選配截止閥、壓力表和壓力開關。
可選項：
- 非惰性氣體的氮氣沖洗
- 變頻器的速度控制
- 油氣冷凝器的恒溫控制
壓力范圍：
- HDLE 2 up to 50 bar
- HDLE 5 up to 100 bar
- HDLE 15 up to 300 bar
- HDLE 30 up to 900 bar
型號 |
壓力比 |
排量 |
出口壓力 |
| ? |
? |
cm3 |
in3 |
bar |
HDLE2-D |
1:0.27 |
1,844.00 |
112.00 |
5. |
HDLE5-D |
1:0.68 |
1,492.00 |
91.00 |
100 |
HDLE15 |
1:0.48 |
244.00 |
14.00 |
300 |
HDLE15-D |
1:0.48 |
488.00 |
29.00 |
300 |
HDLE30 |
1:4 |
120.00 |
7.00 |
900 |
DLE30-D |
1:4 |
240.00 |
14.00 |
900 |

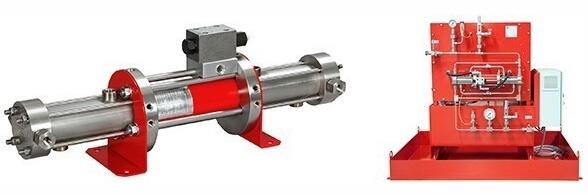

Maximator Hydraulic Booster Stations
In Austria we provide this hydraulic unit with a variable capacity pump or a fixed displacement pump and an electric motor. The electrical control system allows the independent switching on /off as soon as the preset operating pressure is reached. Shut-off valves, pressure switches and pressure gauges are located at the pressure in- and outlet. You can choose between models with water- or air coolers.
General information:
You will receive this hydraulic compressor as a complete system, the hydraulic unit is included. The modular construction allows an exact adaptation to your individual requirements. Available are single or multi-stage and parallel designs.
You can choose between fixed displacement pumps or variable capacity pumps. Pumps can be provided with an electric motor. Optionally available are an electrical control system, pressure gauges at the pressure in- and outlet, pressure switches and shut-off valves.
Options:
Compression of non-inert gases with nitrogen flushing
Speed control by means of a frequency converter
Oil-air cooling: automatic turn on/off by means of thermostatic control
The HDLE models operate in the pressure ranges 2 to 50 bar, 5 to 100 bar, 15 to 300 and 30 to 900 bar.
Products:
HDLE2-D
HDLE5-D
Pressure ratio: 1:0,68
Displacement volume (cm3): 1.492,00
Displacement volume (in3): 91,00
HDLE15
HDLE15-D
HDLE30
HDLE-30D
