Parker Universal Push to Connect (UPTC) fitting

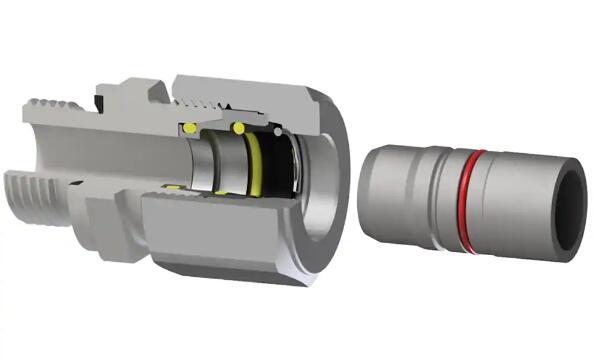

根據Tube ext預先組裝的UPTC接頭。直徑 ?15mm，帶公制公螺柱和保護蓋。 UPTC是用于管狀和/或剛性管連接的創新型Parker插入式解決方案，UPTC提供了將兩個組件永久連接在一起的簡單安全的方法。使用DIN版本時，它可以與所有符合ISO 8434-1的24°接頭連接結合使用。UPTC的主要功能是在裝配線生產中無需工具即可快速連接不同數量的管或軟管。

The main function of UPTC is to connect quick different numbers of tubes or hoses without tools. UPTC is an innovative Parker plug-in solution for tubular and/or rigid tube connections, UPTC provides a simple and secure means of permanently connecting both components together. With the DIN version, it can be combined with all 24° fitting connections compliant with ISO 8434-1. The main function of UPTC is to connect quick different numbers of tubes or hoses without tools in assembly line productions.

Markets:
- Truck and Bus
- Transportation
- Energy
- Agriculture
- Machine Tools

Applications:
- The UPTC plug-in system is suitable for general hydraulic applications according to
- Steering hydraulic lines, cab tilt hydraulic lines, Fuel hydraulic lines, Clutch hydraulic lines, Cooling hydraulic lines, Lubrication Systems, Machinery motion hydraulic lines.

Features/Benefits:
-High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- The Tool-free Push-to-Connect system is for tubes and hose application
- The Push-to-Connect system requires a very low insertion force
- Due to the special connector shape there is absolute no leakage under tough applications like hard vibrations or movement
- UPTC Plug-in connection contains a form-closed and soft-sealed connection, free of clearance and thereby wear-free
- The UPTC Plug-connection is very simple detachable at the adjacent fitting within a standard spanner (even simple detachable after a long utilisation period under hard environmental conditions)
- UPTC Push-to-Connect system fulfilled successful 1500h of a special accelerate RIG Vibration Test called Dust-Box-Text ("Arizona Road Dust")
- High pressure: UPTC has pressure ratings of up to 400 bar (L series). These features increase the range of applications.

Parker Universal Push to Connect (UPTC) fitting

市場：
- 卡車和公共汽車
- 運輸
- 能源
- 農業
- 機床

應用：
- UPTC插入式系統根據以下標準適用于常規液壓應用
- 轉向液壓管路，駕駛室傾斜液壓管路，燃油液壓管路，離合器液壓管路，冷卻液壓管路，潤滑系統，機械運動液壓管路。

特性/優點：
- 高耐腐蝕性：不含Cr（VI）的表面處理對白銹的平均耐蝕性超過500小時。此屬性延長了配件的使用壽命。
- 無需工具的即插即用系統適用于管材和軟管應用
- 即插即用系統需要非常低的插入力
- 由于特殊的接頭形狀，在劇烈振動或震動等惡劣應用中絕對沒有泄漏運動
- UPTC插入式接頭包含閉合和軟密封的連接，無間隙，因此無磨損
- UPTC插入式接頭非常容易在標準扳手內的相鄰接頭處拆卸（即使很長一段時間也可拆卸）在惡劣的環境條件下的
使用壽命）- UPTC推入式連接系統成功完成了1500h的特殊加速RIG振動測試，稱為Dust-Box-Text（“亞利桑那道路揚塵”）
- 高壓：UPTC的額定壓力高達400酒吧（L系列）。這些功能擴大了應用范圍。

根據Tube ext預先組裝的UPTC接頭。直徑 ?15毫米 公頭螺栓連接器使用公制螺紋M18x1,5固定。
派克UPTC系統采用不含鉻6的材料鋼制成。
標準表面保護層鍍鋅，可滿足許多應用的所有要求。在惡劣的環境條件下，例如永久振動或運動，Parker UPTC系統也能成功。派克UPTC系統的核心論點是在永久性振動或運動等惡劣環境條件下的無泄漏和無故障應用。插入式連接，以舒適的方式手動快速完成。
該系統具有封閉和軟密封的連接，無間隙，因此無磨損。

Technical Specifications

UPTC Universal Push to Connect 型號

GE15UELKMMEDCF UPTC通用推動連接 | ＃GE15UELKMMEDCF
