Triple-Lok 37°擴口JIC 標準硬管接頭和過渡接頭
Parker Fittings接頭 Parker Adapters

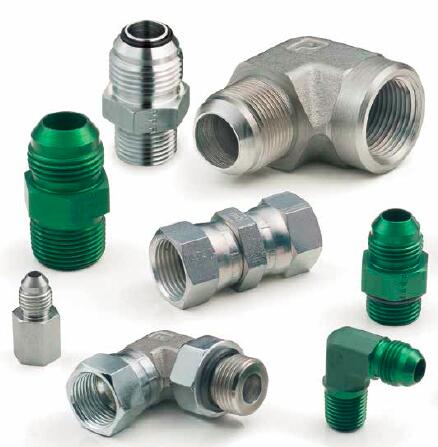

Triple-Lok 37° Flare JIC Tube Fittings and Adapters

派克的37° Flare JIC管接頭和適配器Triple-Lok 滿足SAE J514和ISO 8434-2的要求，并提供業界最廣泛的端口端產品。該設計具有較小的金屬對金屬密封面積，從而實現了緊湊的設計，低組裝扭矩，高溫和高壓能力。派克的Triple-Lok 37°擴口式JIC硬管接頭和過渡接頭密封方式是金屬對金屬形式，為高壓應用提供了可靠的零泄漏連接的解決方案。

Parker Triple-Lok 37°喇叭形JIC管接頭和接頭是可靠的無泄漏金屬對金屬連接解決方案，適用于大多數高壓液壓應用。Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications. Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok?, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters Triple-Lok 37°擴口JIC 標準硬管接頭和過渡接頭
Triple-Lok 37° Flare JIC Tube Fittings and Adapters

市場：

- 建筑
- 軍用地面系統
- 高空作業
- 農業
- 物料搬運
- 軍用航海
- 發動機傳動裝置

特點/優點：

- 易于適應英制管，公制管和軟管，從而獲得了世界范圍的認可。
- 大量的端口端選項，包括SAE直螺紋O型圈凸臺（ORB），NPTF，BSPP-ED，BSPP-O型圈固定環（ORR），BSPP，BSPT，ISO 6149，公制O型圈固定環（ORR）和Metric-ED
- 派克可調節端口上的堅固端口螺柱采用更長的防松螺母制成，幾乎消除了墊圈的損壞和潛在的泄漏，并且使裝配幾乎防錯。此功能提高了客戶的內部效率，并減少了由于備用墊圈損壞而導致的返工成本，這種損壞通常是市場上傳統的SAE可調節端口端所見。
- 鋼制配件大大超過了72個小時的SAE腐蝕要求，無紅銹，經獨立測試機構發現，這種耐久度可達1,000。增強的性能通過延長設備壽命為客戶提供競爭優勢，從而增加收入并降低保修成本。
- 不銹鋼螺母帶有涂層以防止磨損。
- 提供鋼，不銹鋼和黃銅，尺寸為1/8“-2?”，工作壓力高達7500 psi。

應用：
- 液壓和氣體處理連接

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Engine Transmission

Features/Benefits:
- Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
- Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
- Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
- Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility. This enhanced performance provides customers with a competitive advantage through extended equipment life, leading to increased revenues and reduced warranty costs.
- Stainless Steel nuts have a coating to prevent galling.
- Available in steel, stainless steel, and brass in sizes 1/8” - 2 ?” with working pressures up to 7500 psi.

Applications:
- Hydraulic fluid and gas handling connections

Triple-Lok 37° Flare JIC Tube Fittings and Adapters Technical Specifications
