Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers

測試端口和診斷設備快速接頭，在全系統壓力下推動連接 - PDP 系列耦合器 | #PDP242

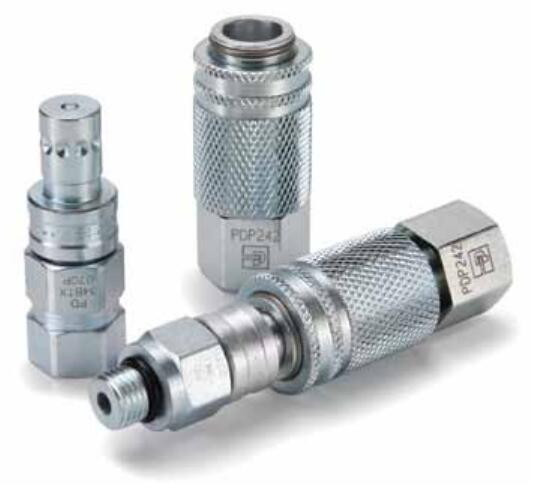

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers | #PDP242

PDP 系列快速接頭（診斷測試端口連接器）6,000 psi，與 PDP 系列接頭連接。這些推動連接快速接頭為機械儀表或?qū)Ｓ迷\斷設備（包括 SensoControl 儀表和附件）提供輕松連接。PDP 快速接頭允許測試儀器、儀表、傳感器和流量傳感器在高達 6000 psi 的全工作壓力下快速輕松地連接到系統測試點。

PDP快速接頭和公頭推動連接，然后手動轉動快速接頭底座打開奶嘴閥門并完成連接。完全連接后，快速接頭底座會阻擋縮回的套筒，以防止意外斷開。PDP 接頭可以永久安裝在設備的關鍵測試點位置、螺紋測試端口、剛性管或軟管組件中。接頭和接頭有 1/8"" 尺寸，額定壓力為 6,000 psi。

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers

技術特性：
- 尺寸：1/8""
- 材料：鋼
- 端口端：NPTF 內螺紋
- 密封選項：腈、乙烯丙烯、氟碳、氯丁橡膠

市場：
- 工業
- 建筑
- 成型
- 測試
- 維護和維修、MRO

特點/優點：
- 輕松推動連接操作，在高達 6000 psi 的全系統壓力下連接時使用 6 磅的力
- 快速接頭沒有閥門，以便在斷開連接時允許儀表和傳感器歸零
- 當完全連接，套筒無法縮回，從而防止意外斷開
- 與派克的 SensoControl 診斷設備兼容
- 適用于液壓或氣動系統

應用：
- 移動設備
- 冷卻系統
- 工業液壓系統
- 流體或空氣系統維護和故障排除
- 系統性能優化
- 系統驗證

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories. PDP Series Couplers (diagnostic test port connectors) 6,000 psi, connect with PDP Series Nipples. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PDP Couplers allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test points under full operating pressures up to 6000 psi. PDP couplers and nipples push to connect, and then the coupler base is manually turned to open the nipple valve and complete the connection. When fully connected, the coupler base blocks the retracted sleeve to prevent accidental disconnects. PDP Nipples can be permanently mounted on equipment at critical test point locations, at threaded test ports, in rigid tubing or in hose assemblies. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi.

Technical Characteristics:
- Sizes: 1/8""
- Material: Steel
- Port Ends: Female NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene

Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO

Features/Benefits:
- Easy push to connect operation, with a force of six pounds to connect at full system pressures up to 6000 psi
- Coupler is unvalved to allow gauges and transducers to return to zero when disconnected
- When fully connected, the sleeve is unable to be retracted, thus preventing accidental disconnection
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems

Applications:
- Mobile equipment
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation

Technical Specifications

Test Port and Diagnostic Equipment Quick Couplings, Push to Connect under Full System Pressure - PDP Series Couplers 型號
