Parker Quick Couplings
ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers

Parker's pressure venting pneumatic, air quick couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

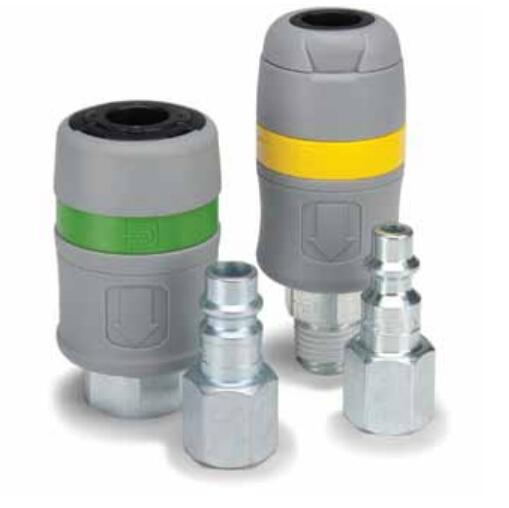

Tool-Mate Series pressure venting couplers (pneumatic, air) up to 300 psi, are available in two connection styles to accept either Industrial Interchange Nipples or RF Series (European High Flow profile) Nipples. The connection style is visually indicated by a colored band on the sleeve. Yellow designates Industrial Interchange and green designates European High Flow.
Parker's Tool-Mate Couplers are pressure venting, non-marring, push-to-connect, and single shut off. Exhaust style couplers allow safe disconnection at zero pressure to avoid dangerous hose whip. Tool-Mate PBS and PES part numbers meet ISO 4414 requirements for a controlled pressure release system.

ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers

Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Polyamide material with galvanized steel port ends
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Vents trapped air pressure prior to disconnection, eliminating the risk of hose whip
- Meets ISO 4414 requirements for a controlled pressure release system
- Easy push to connect operation
- Lightweight non-marring body helps to prevent damage to surface finishes and painted coatings during assembly operations
- Two step disconnection prevents accidental uncoupling
- Yellow band visually indicates Industrial Interchange connection style. Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B).
- Green band visually indicates European High Flow connection style. Connects with Parker's RF Series Nipples and other high flow profile nipples.

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Drop-down air lines
- Blow guns

Technical Specifications

ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers 型號
