Parker 快速接頭和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

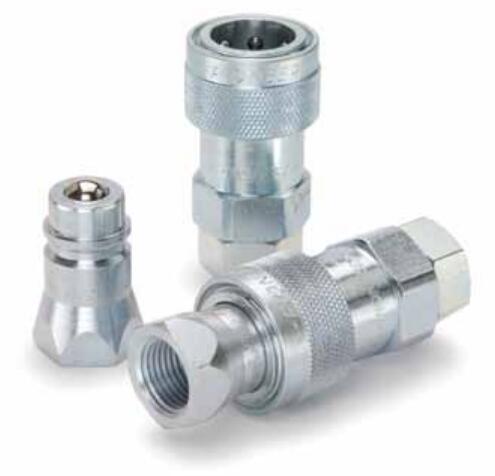

Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers

Parker's connect under pressure quick couplers with threaded actuation are an economic solution for connecting fluid lines while under pressure. They require the use of tools to open the connected coupling valves.

5000 Series Coupler (hydraulic) 2500 psi, connects with 8010 Series Nipples (ISO 5675 Pioneer universal male tips).

Parker's 5000 Series is a manual, threaded actuation coupler that can be connected under pressure with the use of tools. When the coupler and nipple are connected, the valves remain closed until the threaded union on the back of the coupler body is tightened. With the valves open, the sleeve is locked in position. Unscrewing the threaded union allows the valves to close and the coupler sleeve can then be retracted to release the nipple.

These economical steel couplers are available in 1/2" size for pressures up to 2500 psi.

Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers

Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Agriculture
- Hydraulic equipment

Features/Benefits:
- Globally connects with Pioneer male tips (8010 Series) or any other nipples conforming to ISO 5675
- Economical coupler to manually connect fluid lines under pressure with the use of tools

Applications:
- Agricultural equipment and attachments
- Lubrication systems
- Hydraulic tools

Technical Specifications

Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers 型號
