Parker Quick Couplings and Accessories
Parker Quick Couplings
ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters
Parker's Non-Spill Quick Coupling Adapters are designed to accommodate the ISO 16028 flush face and the ISO 7241-A poppet coupling types in mobile equipment hydraulics.
EAS/SAE Quick Coupling Adapters (hydraulic) 3625 psi, adapt (ISO 16028) flush style non spill valving to/from poppet style (ISO 7241-A). These adapters have global interchangeability with other ISO 16028 and ISO 7241-A compliant couplings. EAS/SAE adapters are available in 1/2" size.

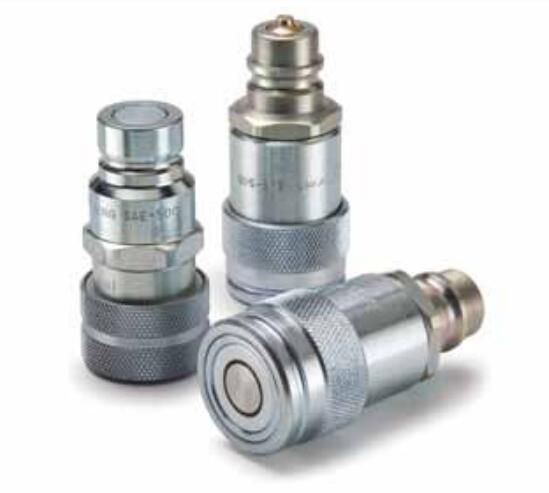

ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters
Technical Characteristics:
- Size: 1/2"
- Material: Steel
- Seal: Nitrile
Markets:
- Industrial
- Construction
- Agriculture
Features/Benefits:
- Adapts: ISO 16028 (non-spill valve) to/from ISO 7241-A (poppet valve)
- Global interchangeability with other ISO 16028 and ISO 7241-A compliant couplings
Applications:
- Skid loader attachments
- Mobile equipment attachments
Technical Specifications
| Maximum Operating Pressure: |
3625 psi, 250 bar |
| Valve Type: |
Poppet, Non-spill, Poppet, Non-spill valve |
| Application: |
Hydraulic, general purpose |
| Brand: |
Parker |
| Interchange Type: |
ISO 5675, ISO 7241-B |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/2 inch |
| Flow Rate: |
12 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Adapter |
| Minimum Operating Temperature: |
-40 °F |
| Plating Type: |
Zinc with clear trivalent chromate |
| Sleeve Type: |
Push to connect, Manual |
| Lock Type: |
Locking balls |
ISO 16028 and ISO 7241-A Quick Coupling Adapters (hydraulic) 3625 psi - EAS/SAE Adapters 型號
| Part |
Application |
| EAS-500 |
Adapts ISO 16028 non-spill to ISO 7241-A |
| SAE-500 |
Adapts ISO 7241-A poppet to ISO 16028 |
|
