Parker Quick Couplings

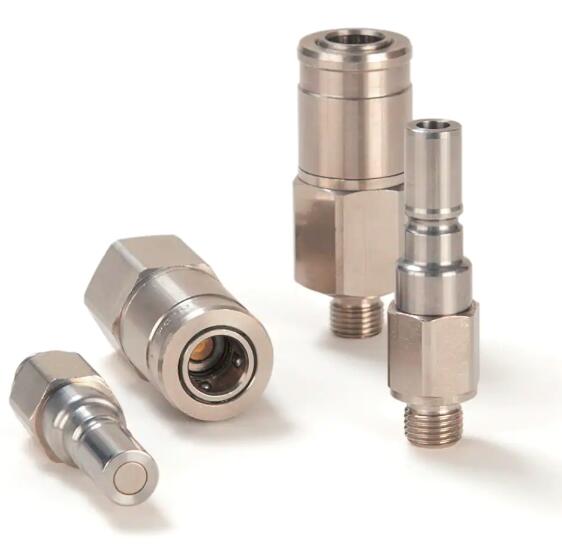

Push-Pull Dry Break Quick Connect Coupling, Series RNS
Dry break quick coupling system with nominal diameter 6 for thermal management applications up to 60 bar. Available made of brass/stainless steel.
Parker's Push-Pull Quick Connect Coupling Series RNS are rigid couplings with flat face valves. They can be mounted on rigid manifolds or tubing and assure connection/disconnection without spillage. Base material is brass and stainless steel. Connection guiding system and compensation of misalignment during connection on rack systems (when both are mounted on rigid devices).
Markets:
- Power generation and conversion
- Electronic cooling
Features/Benefits:
- Dry break connection/disconnection
- Specific design for cooling applications
- Push-Pull connection with break away function
Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-30 °C |
| Diameter: |
6 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Male Thread |
| Interchange Type: |
Parker Profile |
| Maximum Operating Pressure: |
870.24 psi, 60 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Valve Included: |
Yes |
| Version: |
Flat-sealing |
| Connection Type: |
Male Thread - BSPP |
| Connection Thread Size: |
1/4 inch |
| Length: |
66,3 up to 69,6 mm |
| Hex Size: |
21, 30 mm |
| Outside Diameter: |
28 mm |
| Materials of Construction: |
Brass/Stainless Steel |
| Seal Material: |
NBR |
Push-Pull Dry Break Quick Connect Coupling, Series RNS 型號
| Part |
Type |
| RNS-251-4MBO |
Coupling |
| RNS-252-4MBO |
Plug |
|
