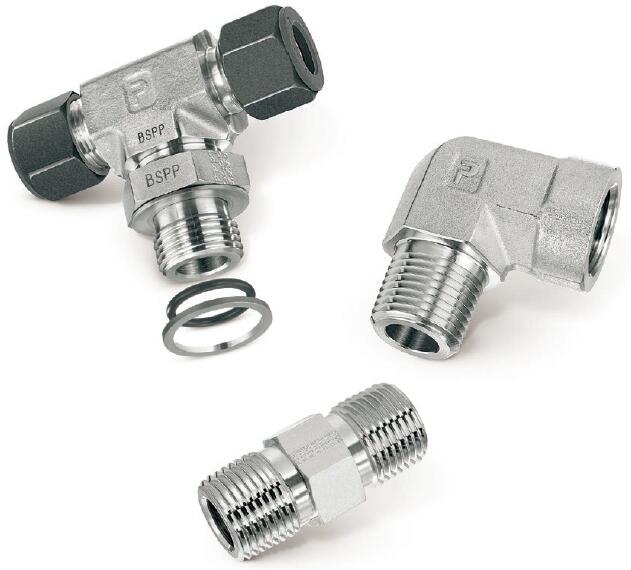

PARKER Pipe Fittings, Instrumentation 派克管件、儀表
Parker Fittings接頭 Pipe Fittings

派克管件可在高達 10,000 psi 的壓力下提供卓越的性能。這些儀表質量管件的開發符合 ANSI B31.1 和 ANSI B1 規范，適用于更高的壓力和溫度服務。這些管件使安裝人員能夠通過 NPT 與管壓接頭連接（例如，公接頭）直接連接到管，從而消除額外的連接。它們由各種螺紋形式的 ASTM 棒料和密紋鍛件制成，并且在 316 不銹鋼中具有完全可追溯的加熱代碼。此功能提供了完整的材料責任，這在基本的現成管件中是找不到的。這些管道配件和 ISO 轉換配件的尺寸范圍從 1/16" 到 2"，具有 NPT 和 BSPT/BSPP 連接。專為廣泛的儀器儀表和通用應用而設計。

Pipe Fittings, Instrumentation PARKER Pipe Fittings, Instrumentation 派克管件、儀表

Designed as leak free pipe connections for instrumentation and general industrial applications.These pipe fittings offer superior performance in various applications ranging from 3,000 to 10,000 psi. Parker's Pipe Fittings deliver superior performance in pressures up to 10,000 psi. These instrumentation quality pipe fittings were developed to meet both ANSI B31.1 and ANSI B1 specifications for higher pressure and temperature service. These pipe fittings offer the installer the ability to directly connect to tubing with NPT to tube compression fitting connections (for example, male connectors), thus eliminating an extra connection. They are made from ASTM bar stock and close grain forgings in a variety of thread forms and are fully heat code traceable in 316 stainless steel. This feature provides full material accountability, not found in basic, off the shelf pipe fittings. These Pipe Fittings and ISO Conversion Fittings range in size from 1/16" to 2", with both NPT and BSPT/BSPP connections. Engineered for a wide range of instrumentation and general purpose applications.

市場：

- 電力
- 化工/石化
- 精煉
- 紙漿和造紙
- 石油和天然氣

特點/優勢：

- 包裝在密封盒中以保持清潔
- 工作壓力根據電力管道規范 ANSI B31.1 和煉油廠管道規范 ANSI B31.3 計算。
- 所有管螺紋均為國家管錐度 (NPT)，并超過 ANSI B1.20.1 的要求。
- 滾壓外螺紋以提高強度
- 根據適用的 ASTM 棒料規格加工的直體
- 從密紋鍛件加工的形狀
- 尺寸范圍從 1/16" 到 2" NPT
- 材料 – 316 不銹鋼、黃銅和鋼。（其他材料由特殊訂購）
- 所有暴露的螺紋都受到保護以防止損壞

應用：

- 潤滑系統
- 通用工業系統
- 空氣系統
- 化學和廢物系統

Markets:

- Power
- Chemical /Petro-Chemical
- Refining
- Pulp and Paper
- Oil and Gas


Features/Benefits:

- Packaged in sealed boxes for cleanliness
- Working pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refinery Piping Code ANSI B31.3.
- All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.
- Rolled male threads for extra strength
- Straight bodies machined from applicable ASTM bar stock specifications
- Shapes machined from close grain forgings
- Size ranges from 1/16" through 2" NPT
- Materials – 316 Stainless Steel, Brass and Steel. (Other materials by special order)
- All exposed threads protected to prevent damage


Applications:

- Lubricating Systems
- General Industrial Systems
- Air Systems
- Chemical and Waste Systems

Technical Specifications

Pipe Fittings, Instrumentation 型號

Part Body Shape Connection 1 Size Connection 2 Size Connection 3 Thread Size (inch) Connection 1 Style Connection 2 Style Connection 3 Style Material Pressure Range (psig) Body Size (inch)
1 CP-B Pipe Cap 1/16" 1/16" N/A NPT F N/A N/A Brass 4500 N/A
1 CP-SS Pipe Cap 1/16" 1/16" N/A NPT F N/A N/A Stainless Steel 7500 N/A
1 PH-B Hex Head Plug 1/16" N/A N/A NPT M N/A N/A Brass 6000 N/A
1 PH-SS Hex Head Plug 1/16" N/A N/A NPT M N/A N/A Stainless Steel 10000 N/A
1 PHH-B Plug 1/16" N/A N/A NPT M N/A N/A Brass 6000 N/A
1 PHH-SS Plug 1/16" N/A N/A NPT M N/A N/A Stainless Steel 10000 N/A
1-1 FHC-B Female Hex Coupling 1/16" 1/16" N/A NPT F NPT F N/A Brass 4500 N/A
1-1 FHC-SS Female Hex Coupling 1/16" 1/16" N/A NPT F NPT F N/A Stainless Steel 7500 N/A
1-1 MCN-B Male Close Nipple 1/16" 1/16" N/A NPT M NPT M N/A Brass 6000 N/A
1-1 MCN-SS Male Close Nipple 1/16" 1/16" N/A NPT M NPT M N/A Stainless Steel 10000 N/A
1-1 MHN-B Male Hex Nipple 1/16" 1/16" N/A NPT M NPT M N/A Brass 6000 N/A
1-1 MHN-SS Male Hex Nipple 1/16" 1/16" N/A NPT M NPT M N/A Stainless Steel 10500 N/A
1-1 SE-B 90° Street Elbow 1/16" 1/16" N/A NPT M NPT F N/A Brass 3800 N/A
1-1 SE-SS 90° Street Elbow 1/16" 1/16" N/A NPT M NPT F N/A Stainless Steel 7000 N/A
1-1 SVE-B 45° Street Elbow 1/16" 1" N/A NPT M NPT F N/A Brass 3800 N/A
1-1 SVE-SS 45° Street Elbow 1/16" 1/16" N/A NPT M NPT F N/A Stainless Steel 7000 N/A
1-1-1 FT-B Female Tee 1/16" 1/16" 1/16" NPT F NPT F NPT F Brass 3800 N/A
1-1-1 FT-SS Female Tee 1/16" 1/16" 1/16" NPT F NPT F NPT F Stainless Steel 7000 N/A
1-1-1 MBT-B Male Branch Tee 1/16" 1/16" 1/16" NPT F NPT F NPT M Brass 3800 N/A
1-1-1 MBT-SS Male Branch Tee 1/16" 1/16" 1/16" NPT F NPT F NPT M Stainless Steel 7000 N/A
1-1-1 MT-B Male Tee 1/16" 1/16" 1/16" NPT M NPT M NPT M Brass 5500 N/A
1-1-1 MT-SS Male Tee 1/16" 1/16" 1/16" NPT M NPT M NPT M Stainless Steel 9500 N/A
1-1-1 ST-B Street Tee 1/16" 1/16" 1/16" NPT F NPT M NPT F Brass 3800 N/A
1-1-1 ST-SS Street Tee 1/16" 1/16" 1/16" NPT F NPT M NPT F Stainless Steel 7000 N/A
12 CP-B Pipe Cap 3/4" 3/4" N/A NPT F N/A N/A Brass 3000 N/A
12 CP-SS Pipe Cap 3/4" 3/4" N/A NPT F N/A N/A Stainless Steel 4300 N/A
12 PH-B Hex Head Plug 3/4" N/A N/A NPT M N/A N/A Brass 3800 N/A
12 PH-SS Hex Head Plug 3/4" N/A N/A NPT M N/A N/A Stainless Steel 6400 N/A
12 PHH-B Plug 3/4" N/A N/A NPT M N/A N/A Brass 3800 N/A
12 PHH-SS Plug 3/4" N/A N/A NPT M N/A N/A Brass 6400 N/A
12-12 FHC-B Female Hex Coupling 3/4" 3/4" N/A NPT F NPT F N/A Brass 3000 N/A
12-12 FHC-SS Female Hex Coupling 3/4" 3/4" N/A NPT F NPT F N/A Stainless Steel 4300 N/A
12-12 MCN-B Male Close Nipple 3/4" 3/4" N/A NPT M NPT M N/A Brass 3800 N/A
12-12 MCN-SS Male Close Nipple 3/4" 3/4" N/A NPT M NPT M N/A Stainless Steel 6400 N/A
12-12 MHN-B Male Hex Nipple 3/4" 3/4" N/A NPT M NPT M N/A Brass 3,800 N/A
12-12 MHN-SS Male Hex Nipple 3/4 3/4" N/A NPT M NPT M N/A Stainless Steel 6400 N/A
12-12 SE-B 90° Street Elbow 3/4" 3/4" N/A NPT M NPT F N/A Brass 2000 N/A
12-12 SE-SS 90° Street Elbow 3/4" 3/4" N/A NPT M NPT F N/A Stainless Steel 3500 N/A
12-12 SVE-B 45° Street Elbow 3/4" 3/4" N/A NPT M NPT F N/A Brass 2000 N/A
12-12 SVE-SS 45° Street Elbow 3/4" 1/2" N/A NPT M NPT F N/A Stainless Steel 3500 N/A
12-12-12 FT-B Female Tee 3/4" 3/4" 3/4" NPT F NPT F NPT F Brass 2000 N/A
12-12-12 FT-SS Female Tee 3/4" 3/4" 3/4" NPT F NPT F NPT F Stainless Steel 3500 N/A
12-12-12 MBT-B Male Branch Tee 3/4" 3/4" 3/4" NPT F NPT F NPT M Brass 2000 N/A
12-12-12 MBT-SS Male Branch Tee 3/4" 3/4" 3/4" NPT F NPT F NPT M Stainless Steel 3500 N/A
12-12-12 MT-B Male Tee 3/4" 3/4" 3/4" NPT M NPT M NPT M Brass 3400 N/A
12-12-12 MT-SS Male Tee 3/4" 3/4" 3/4" NPT M NPT M NPT M Stainless Steel 6400 N/A
12-12-12 ST-B Street Tee 3/4" 3/4" 3/4" NPT F NPT M NPT F Brass 2000 N/A
12-12-12 ST-SS Street Tee 3/4" 3/4" 3/4" NPT F NPT M NPT F Stainless Steel 3500 N/A
12-2 SE-B 90° Street Elbow 3/4" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
12-2 SE-SS 90° Street Elbow 3/4" 1/8" N/A NPT M NPT F N/A Stainless Steel 5500 N/A
12-4 FHC-B Female Hex Coupling 3/4" 1/4" N/A NPT F NPT F N/A Brass 3000 N/A
12-4 FHC-SS Female Hex Coupling 3/4" 1/4" N/A NPT F NPT F N/A Stainless Steel 4300 N/A
12-4 MHN-B Male Hex Nipple 3/4" 1/4" N/A NPT M NPT M N/A Brass 3800 N/A
12-4 MHN-SS Male Hex Nipple 3/4" 1/4" N/A NPT M NPT M N/A Stainless Steel 6400 N/A
12-4 RA-B Reducing Adapter 3/4" 1/4" N/A NPT F NPT M N/A Brass 3000 N/A
12-4 RA-SS Reducing Adapter 3/4" 1/4" N/A NPT F NPT M N/A Stainless Steel 4300 N/A
12-4 RB-B Reducing Bushing 3/4" 1/4" N/A NPT M NPT F N/A Brass 3800 N/A
12-4 RB-SS Reducing Bushing 3/4" 1/4" N/A NPT M NPT F N/A Stainless Steel 6,400 N/A
12-4 SE-B 90° Street Elbow 3/4" 1/4" N/A NPT M NPT F N/A Brass 3000 N/A
12-4 SE-SS 90° Street Elbow 3/4" 1/4" N/A NPT M NPT F N/A Stainless Steel 5600 N/A
12-6 FHC-B Female Hex Coupling 3/4" 3/8" N/A NPT F NPT F N/A Brass 3000 N/A
12-6 FHC-SS Female Hex Coupling 3/4" 3/8" N/A NPT F NPT F N/A Stainless Steel 4300 N/A
12-6 MHN-B Male Hex Nipple 3/4" 3/8" N/A NPT M NPT M N/A Brass 3,800 N/A
12-6 MHN-SS Male Hex Nipple 3/4" 3/8" N/A NPT M NPT M N/A Stainless Steel 6,400 N/A
12-6 RA-B Reducing Adapter 3/4" 3/8" N/A NPT F NPT M N/A Brass 3000 N/A
12-6 RA-SS Reducing Adapter 3/4" 3/8" N/A NPT F NPT M N/A Stainless Steel 4300 N/A
12-6 RB-B Reducing Bushing 3/4" 3/8" N/A NPT M NPT F N/A Brass 3800 N/A
12-6 RB-SS Reducing Bushing 3/4" 3/8" N/A NPT M NPT F N/A Stainless Steel 5,300 N/A
12-6 SE-B 90° Street Elbow 3/4" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
12-6 SE-SS 90° Street Elbow 3/4" 3/8" N/A NPT M NPT F N/A Stainless Steel 5000 N/A
12-8 FHC-B Female Hex Coupling 3/4" 1/2" N/A NPT F NPT F N/A Brass 3000 N/A
12-8 FHC-SS Female Hex Coupling 3/4" 1/2" N/A NPT F NPT F N/A Stainless Steel 4300 N/A
12-8 MHN-B Male Hex Nipple 3/4" 1/2" N/A NPT M NPT M N/A Brass 3,800 N/A
12-8 MHN-SS Male Hex Nipple 3/4" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,400 N/A
12-8 RA-B Reducing Adapter 3/4" 1/2" N/A NPT F NPT M N/A Brass 3000 N/A
12-8 RA-SS Reducing Adapter 3/4" 1/2" N/A NPT F NPT M N/A Stainless Steel 4300 N/A
12-8 RB-B Reducing Bushing 3/4" 1/2" N/A NPT M NPT F N/A Brass 3800 N/A
12-8 RB-SS Reducing Bushing 3/4" 1/2" N/A NPT M NPT F N/A Stainless Steel 4,900 N/A
12-8 SE-B 90° Street Elbow 3/4" 1/2" N/A NPT M NPT F N/A Brass 2500 N/A
12-8 SE-SS 90° Street Elbow 3/4" 1/2" N/A NPT M NPT F N/A Stainless Steel 4500 N/A
16 CP-B Pipe Cap 1" 1" N/A NPT F N/A N/A Brass 3100 N/A
16 CP-SS Pipe Cap 1" 1" N/A NPT F N/A N/A Stainless Steel 4500 N/A
16 PH-B Hex Head Plug 1" N/A N/A NPT M N/A N/A Brass 2700 N/A
16 PH-SS Hex Head Plug 1" N/A N/A NPT M N/A N/A Stainless Steel 4600 N/A
16 PHH-B Plug 1" N/A N/A NPT M N/A N/A Brass 2700 N/A
16 PHH-SS Plug 1" N/A N/A NPT M N/A N/A Brass 4600 N/A
16-12 FHC-B Female Hex Coupling 1" 3/4" N/A NPT F NPT F N/A Brass 3100 N/A
16-12 FHC-SS Female Hex Coupling 1" 3/4" N/A NPT F NPT F N/A Stainless Steel 4500 N/A
16-12 MHN-B Male Hex Nipple 1" 3/4" N/A NPT M NPT M N/A Brass 2700 N/A
16-12 MHN-SS Male Hex Nipple 1" 3/4" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-12 RA-B Reducing Adapter 1" 3/4" N/A NPT F NPT M N/A Brass 3100 N/A
16-12 RA-SS Reducing Adapter 1" 3/4" N/A NPT F NPT M N/A Stainless Steel 4500 N/A
16-12 RB-B Reducing Bushing 1" 3/4" N/A NPT M NPT F N/A Brass 2700 N/A
16-12 RB-SS Reducing Bushing 1" 3/4" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
16-12 SE-B 90° Street Elbow 1" 3/4" N/A NPT M NPT F N/A Brass 2000 N/A
16-12 SE-SS 90° Street Elbow 1" 3/4" N/A NPT M NPT F N/A Stainless Steel 3500 N/A
16-16 FHC-B Female Hex Coupling 1" 1" N/A NPT F NPT F N/A Brass 3100 N/A
16-16 FHC-SS Female Hex Coupling 1" 1" N/A NPT F NPT F N/A Stainless Steel 4500 N/A
16-16 MCN-B Male Close Nipple 1" 1" N/A NPT M NPT M N/A Brass 2700 N/A
16-16 MCN-SS Male Close Nipple 1" 1" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-16 MHN-B Male Hex Nipple 1" 1" N/A NPT M NPT M N/A Brass 2700 N/A
16-16 MHN-SS Male Hex Nipple 1" 1" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-16 RA-B Reducing Adapter 1" 1" N/A NPT F NPT M N/A Brass 2700 N/A
16-16 RA-SS Reducing Adapter 1" 1" N/A NPT F NPT M N/A Stainless Steel 4500 N/A
16-16 RB-B Reducing Bushing 1" 1" N/A NPT M NPT F N/A Brass 2700 N/A
16-16 RB-SS Reducing Bushing 1" 1" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
16-16 SE-B 90° Street Elbow 1" 1" N/A NPT M NPT F N/A Brass 2300 N/A
16-16 SE-SS 90° Street Elbow 1" 1" N/A NPT M NPT F N/A Stainless Steel 3900 N/A
16-16 SVE-B 45° Street Elbow 1" 1" N/A NPT M NPT F N/A Brass 2300 N/A
16-16 SVE-SS 45° Street Elbow 1" 3/4" N/A NPT M NPT F N/A Stainless Steel 3900 N/A
16-16-16 FT-B Female Tee 1" 1" 1" NPT F NPT F NPT F Brass 2300 N/A
16-16-16 FT-SS Female Tee 1" 1" 1" NPT F NPT F NPT F Stainless Steel 3900 N/A
16-16-16 MBT-B Male Branch Tee 1" 1" 1" NPT F NPT F NPT M Brass 2300 N/A
16-16-16 MBT-SS Male Branch Tee 1" 1" 1" NPT F NPT F NPT M Stainless Steel 3900 N/A
16-16-16 MT-B Male Tee 1" 1" 1" NPT M NPT M NPT M Brass 2700 N/A
16-16-16 MT-SS Male Tee 1" 1" 1" NPT M NPT M NPT M Stainless Steel 4600 N/A
16-16-16 ST-B Street Tee 1" 1" 1" NPT F NPT M NPT F Brass 2300 N/A
16-16-16 ST-SS Street Tee 1" 1" 1" NPT F NPT M NPT F Stainless Steel 3900 N/A
16-2 SE-B 90° Street Elbow 1" 1/8" N/A NPT M NPT F N/A Brass 2700 N/A
16-2 SE-SS 90° Street Elbow 1" 1/8" N/A NPT M NPT F N/A Stainless Steel 5500 N/A
16-4 FHC-B Female Hex Coupling 1" 1/4" N/A NPT F NPT F N/A Brass 3100 N/A
16-4 FHC-SS Female Hex Coupling 1" 1/4 N/A NPT F NPT F N/A Stainless Steel 4500 N/A
16-4 MHN-B Male Hex Nipple 1" 1/4" N/A NPT M NPT M N/A Brass 2700 N/A
16-4 MHN-SS Male Hex Nipple 1" 1/4" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-4 RA-B Reducing Adapter 1" 1/4" N/A NPT F NPT M N/A Brass 3100 N/A
16-4 RA-SS Reducing Adapter 1" 1/4" N/A NPT F NPT M N/A Stainless Steel 4500 N/A
16-4 RB-B Reducing Bushing 1" 1/4" N/A NPT M NPT F N/A Brass 2700 N/A
16-4 RB-SS Reducing Bushing 1" 1/4" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
16-4 SE-B 90° Street Elbow 1" 1/4" N/A NPT M NPT F N/A Brass 2700 N/A
16-4 SE-SS 90° Street Elbow 1" 1/4" N/A NPT M NPT F N/A Stainless Steel 5600 N/A
16-6 FHC-B Female Hex Coupling 1" 3/8" N/A NPT F NPT F N/A Brass 3100 N/A
16-6 FHC-SS Female Hex Coupling 1" 3/8 N/A NPT F NPT F N/A Stainless Steel 4500 N/A
16-6 MHN-B Male Hex Nipple 1" 3/8" N/A NPT M NPT M N/A Brass 2700 N/A
16-6 MHN-SS Male Hex Nipple 1" 3/8" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-6 RA-B Reducing Adapter 1" 3/8" N/A NPT F NPT M N/A Brass 3100 N/A
16-6 RA-SS Reducing Adapter 1" 3/8" N/A NPT F NPT M N/A Stainless Steel 4500 N/A
16-6 RB-B Reducing Bushing 1" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
16-6 RB-SS Reducing Bushing 1" 3/8" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
16-6 SE-B 90° Street Elbow 1" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
16-6 SE-SS 90° Street Elbow 1" 3/8" N/A NPT M NPT F N/A Stainless Steel 5000 N/A
16-8 FHC-B Female Hex Coupling 1" 1/2" N/A NPT F NPT F N/A Brass 3100 N/A
16-8 FHC-SS Female Hex Coupling 1" 1/2" N/A NPT F NPT F N/A Stainless Steel 4500 N/A
16-8 MHN-B Male Hex Nipple 1" 1/2' N/A NPT M NPT M N/A Brass 2700 N/A
16-8 MHN-SS Male Hex Nipple 1" 1/2" N/A NPT M NPT M N/A Stainless Steel 4600 N/A
16-8 RA-B Reducing Adapter 1" 1/2" N/A NPT F NPT M N/A Brass 3100 N/A
16-8 RA-SS Reducing Adapter 1" 1/2" N/A NPT F NPT M N/A Stainless Steel 4500 N/A
16-8 RB-B Reducing Bushing 1" 1/2" N/A NPT M NPT F N/A Brass 2700 N/A
16-8 RB-SS Reducing Bushing 1" 1/2" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
16-8 SE-B 90° Street Elbow 1" 1/2" N/A NPT M NPT F N/A Brass 2500 N/A
16-8 SE-SS 90° Street Elbow 1" 1/2" N/A NPT M NPT F N/A Stainless Steel 4500 N/A
2 CP-B Pipe Cap 1/8" 1/8" N/A NPT F N/A N/A Brass 4000 N/A
2 CP-SS Pipe Cap 1/8" 1/8" N/A NPT F N/A N/A Stainless Steel 6400 N/A
2 PH-B Hex Head Plug 1/8" N/A N/A NPT M N/A N/A Brass 5600 N/A
2 PH-SS Hex Head Plug 1/8" N/A N/A NPT M N/A N/A Stainless Steel 9100 N/A
2 PHH-B Plug 1/8" N/A N/A NPT M N/A N/A Brass 5600 N/A
2 PHH-SS Plug 1/8" N/A N/A NPT M N/A N/A Stainless Steel 9100 N/A
2-1 RB-B Reducing Bushing 1/8" 1/16" N/A NPT M NPT F N/A Brass 2900 N/A
2-1 RB-SS Reducing Bushing 1/8" 1/16" N/A NPT M NPT F N/A Stainless Steel 6400 N/A
2-2 FHC-B Female Hex Coupling 1/8" 1/8" N/A NPT F NPT F N/A Brass 4000 N/A
2-2 FHC-SS Female Hex Coupling 1/8" 1/8" N/A NPT F NPT F N/A Stainless Steel 6400 N/A
2-2 MCN-B Male Close Nipple 1/8" 1/8" N/A NPT M NPT M N/A Brass 5600 N/A
2-2 MCN-SS Male Close Nipple 1/8" 1/8" N/A NPT M NPT M N/A Stainless Steel 9100 N/A
2-2 MHN-B Male Hex Nipple 1/8" 1/8" N/A NPT M NPT M N/A Brass 5600 N/A
2-2 MHN-SS Male Hex Nipple 1/8" 1/8" N/A NPT M NPT M N/A Stainless Steel 9100 N/A
2-2 RA-B Reducing Adapter 1/8" 1/8" N/A NPT F NPT M N/A Brass 4000 N/A
2-2 RA-SS Reducing Adapter 1/8" 1/8" N/A NPT F NPT M N/A Stainless Steel 6400 N/A
2-2 SE-B 90° Street Elbow 1/8" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
2-2 SE-SS 90° Street Elbow 1/8" 1/8" N/A NPT M NPT F N/A Stainless Steel 7000 N/A
2-2 SVE-B 45° Street Elbow 1/8" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
2-2 SVE-SS 45° Street Elbow 1/8" 1/8" N/A NPT M NPT F N/A Stainless Steel 5500 N/A
2-2-2 FT-B Female Tee 1/8" 1/8" 1/8" NPT F NPT F NPT F Brass 2900 N/A
2-2-2 FT-SS Female Tee 1/8" 1/8" 1/8" NPT F NPT F NPT F Stainless Steel 5500 N/A
2-2-2 MBT-B Male Branch Tee 1/8" 1/8" 1/8" NPT F NPT F NPT M Brass 2900 N/A
2-2-2 MBT-SS Male Branch Tee 1/8" 1/8" 1/8" NPT F NPT F NPT M Stainless Steel 5500 N/A
2-2-2 MT-B Male Tee 1/8" 1/8" 1/8" NPT M NPT M NPT M Brass 5000 N/A
2-2-2 MT-SS Male Tee 1/8" 1/8" 1/8" NPT M NPT M NPT M Stainless Steel 9100 N/A
2-2-2 ST-B Street Tee 1/8" 1/8" 1/8" NPT F NPT M NPT F Brass 2900 N/A
2-2-2 ST-SS Street Tee 1/8" 1/8" 1/8" NPT F NPT M NPT F Stainless Steel 5500 N/A
20-16 FHC-B Female Hex Coupling 1 1/4" 1" N/A NPT F NPT F N/A Brass 2300 N/A
20-16 FHC-SS Female Hex Coupling 1 1/4" 1" N/A NPT F NPT F N/A Stainless Steel 3500 N/A
20-16 MHN-B Male Hex Nipple 1 1/4" 1" N/A NPT M NPT M N/A Brass 2000 N/A
20-16 MHN-SS Male Hex Nipple 1 1/4" 1" N/A NPT M NPT M N/A Stainless Steel 3500 N/A
20-16 RA-B Reducing Adapter 1 1/4" 1" N/A NPT F NPT M N/A Brass 2300 N/A
20-16 RA-SS Reducing Adapter 1 1/4" 1" N/A NPT F NPT M N/A Stainless Steel 3500 N/A
20-16 RB-B Reducing Bushing 1 1/4" 1" N/A NPT M NPT F N/A Brass 2000 N/A
20-16 RB-SS Reducing Bushing 1 1/4" 1" N/A NPT M NPT F N/A Stainless Steel 3500 N/A
20-20 FHC-B Female Hex Coupling 1 1/4" 1 1/4" N/A NPT F NPT F N/A Brass 2300 N/A
20-20 FHC-SS Female Hex Coupling 1 1/4" 1 1/4" N/A NPT F NPT F N/A Stainless Steel 3500 N/A
20-20 MHN-B Male Hex Nipple 1 1/4" 1.25 N/A NPT M NPT M N/A Brass 2000 N/A
20-20 MHN-SS Male Hex Nipple 1 1/4" 1 1/4" N/A NPT M NPT M N/A Stainless Steel 3500 N/A
20-20-20 FT-B Female Tee 1 1/4" 1 1/4" 1 1/4" NPT F NPT F NPT F Brass 1900 N/A
20-20-20 FT-SS Female Tee 1 1/4" 1 1/4" 1 1/4" NPT F NPT F NPT F Stainless Steel 3100 N/A
20-20-20 MT-B Male Tee 1 1/4" 1 1/4" 1 1/4" NPT M NPT M NPT M Brass 2000 N/A
20-20-20 MT-SS Male Tee 1 1/4" 1 1/4" 1 1/4" NPT M NPT M NPT M Stainless Steel 3500 N/A
24-24 FHC-B Female Hex Coupling 1 1/2" 1 1/2" N/A NPT F NPT F N/A Brass 2100 N/A
24-24 FHC-SS Female Hex Coupling 1 1/2" 1 1/2" N/A NPT F NPT F N/A Stainless Steel 3200 N/A
24-24 MHN-B Male Hex Nipple 1 1/2" 1 1/2" N/A NPT M NPT M N/A Brass 1800 N/A
24-24 MHN-SS Male Hex Nipple 1 1/2" 1 1/2" N/A NPT M NPT M N/A Stainless Steel 2900 N/A
24-24-24 FT-B Female Tee 1 1/2" 1 1/2" 1 1/2" NPT F NPT F NPT F Brass 1700 N/A
24-24-24 FT-SS Female Tee 1 1/2" 1 1/2" 1 1/2" NPT F NPT F NPT F Stainless Steel 2500 N/A
24-24-24 MT-B Male Tee 1 1/2" 1 1/2" 1 1/2" NPT M NPT M NPT M Brass 1800 N/A
24-24-24 MT-SS Male Tee 1 1/2" 1 1/2" 1 1/2" NPT M NPT M NPT M Stainless Steel 2900 N/A
4 CP-B Pipe Cap 1/4" 1/4" N/A NPT F N/A N/A Brass 4300 N/A
4 CP-SS Pipe Cap 1/4" 1/4" N/A NPT F N/A N/A Stainless Steel 6600 N/A
4 PH-B Hex Head Plug 1/4" N/A N/A NPT M N/A N/A Brass 4100 N/A
4 PH-SS Hex Head Plug 1/4" N/A N/A NPT M N/A N/A Stainless Steel 7,500 N/A
4 PHH-B Plug 1/4" N/A N/A NPT M N/A N/A Brass 4100 N/A
4 PHH-SS Plug 1/4" N/A N/A NPT M N/A N/A Stainless Steel 7,500 N/A
4-2 FHC-B Female Hex Coupling 1/4" 1/8" N/A NPT F NPT F N/A Brass 4300 N/A
4-2 FHC-SS Female Hex Coupling 1/4 1/8" N/A NPT F NPT F N/A Stainless Steel 6600 N/A
4-2 MHN-B Male Hex Nipple 1/4" 1/8" N/A NPT M NPT M N/A Brass 4100 N/A
4-2 MHN-SS Male Hex Nipple 1/4" 1/8" N/A NPT M NPT M N/A Stainless Steel 7,500 N/A
4-2 RA-B Reducing Adapter 1/4" 1/8" N/A NPT F NPT M N/A Brass 4300 N/A
4-2 RA-SS Reducing Adapter 1/4" 1/8" N/A NPT F NPT M N/A Stainless Steel 6600 N/A
4-2 RB-B Reducing Bushing 1/4" 1/8" N/A NPT M NPT F N/A Brass 3600 N/A
4-2 RB-SS Reducing Bushing 1/4" 1/8" N/A NPT M NPT F N/A Stainless Steel 6,000 N/A
4-2 SE-B 90° Street Elbow 1/4" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
4-2 SE-SS 90° Street Elbow 1/4" 1/8" N/A NPT M NPT F N/A Stainless Steel 5500 N/A
4-4 FHC-B Female Hex Coupling 1/4" 1/4" N/A NPT F NPT F N/A Brass 4300 N/A
4-4 FHC-SS Female Hex Coupling 1/4 1/4" N/A NPT F NPT F N/A Stainless Steel 6600 N/A
4-4 MCN-B Male Close Nipple 1/4" 1/4" N/A NPT M NPT M N/A Brass 4100 N/A
4-4 MCN-SS Male Close Nipple 1/4" 1/4" N/A NPT M NPT M N/A Stainless Steel 7500 N/A
4-4 MHN-B Male Hex Nipple 1/4" 1/4" N/A NPT M NPT M N/A Brass 4100 N/A
4-4 MHN-SS Male Hex Nipple 1/4" 1/4" N/A NPT M NPT M N/A Stainless Steel 7,500 N/A
4-4 RA-B Reducing Adapter 1/4" 1/4" N/A NPT F NPT M N/A Brass 4300 N/A
4-4 RA-SS Reducing Adapter 1/4" 1/4" N/A NPT F NPT M N/A Stainless Steel 6600 N/A
4-4 SVE-B 45° Street Elbow 1/4" 1/4" N/A NPT M NPT F N/A Brass 3000 N/A
4-4 SVE-SS 45° Street Elbow 1/4" 1/4" N/A NPT M NPT F N/A Stainless Steel 5600 N/A
4-4-4 FT-B Female Tee 1/4" 1/4" 1/4" NPT F NPT F NPT F Brass 3000 N/A
4-4-4 FT-SS Female Tee 1/4" 1/4" 1/4" NPT F NPT F NPT F Stainless Steel 5600 N/A
4-4-4 MBT-B Male Branch Tee 1/4" 1/4" 1/4" NPT F NPT F NPT M Brass 3000 N/A
4-4-4 MBT-SS Male Branch Tee 1/4" 1/4" 1/4" NPT F NPT F NPT M Stainless Steel 5600 N/A
4-4-4 MT-B Male Tee 1/4" 1/4" 1/4" NPT M NPT M NPT M Brass 4100 N/A
4-4-4 MT-SS Male Tee 1/4" 1/4" 1/4" NPT M NPT M NPT M Stainless Steel 7500 N/A
4-4-4 ST-B Street Tee 1/4" 1/4" 1/4" NPT F NPT M NPT F Brass 3000 N/A
4-4-4 ST-SS Street Tee 1/4" 1/4" 1/4" NPT F NPT M NPT F Stainless Steel 5600 N/A
6 CP-B Pipe Cap 3/8" 3/8" N/A NPT F N/A N/A Brass 3500 N/A
6 CP-SS Pipe Cap 3/8" 3/8" N/A NPT F N/A N/A Stainless Steel 5300 N/A
6 PH-B Hex Head Plug 3/8" N/A N/A NPT M N/A N/A Brass 4000 N/A
6 PH-SS Hex Head Plug 3/8" N/A N/A NPT M N/A N/A Stainless Steel 7,200 N/A
6 PHH-B Plug 3/8" N/A N/A NPT M N/A N/A Brass 4000 N/A
6 PHH-SS Plug 3/8" N/A N/A NPT M N/A N/A Stainless Steel 7,200 N/A
6-2 FHC-B Female Hex Coupling 3/8" 1/8" N/A NPT F NPT F N/A Brass 3500 N/A
6-2 FHC-SS Female Hex Coupling 3/8" 1/8" N/A NPT F NPT F N/A Stainless Steel 5300 N/A
6-2 MHN-B Male Hex Nipple 3/8" 1/8" N/A NPT M NPT M N/A Brass 4000 N/A
6-2 MHN-SS Male Hex Nipple 3/8" 1/8" N/A NPT M NPT M N/A Stainless Steel 7200 N/A
6-2 RA-B Reducing Adapter 3/8" 1/8" N/A NPT F NPT M N/A Brass 3500 N/A
6-2 RA-SS Reducing Adapter 3/8" 1/8" N/A NPT F NPT M N/A Stainless Steel 5300 N/A
6-2 RB-B Reducing Bushing 3/8" 1/8" N/A NPT M NPT F N/A Brass 4000 N/A
6-2 RB-SS Reducing Bushing 3/8" 1/8" N/A NPT M NPT F N/A Stainless Steel 6400 N/A
6-2 SE-B 90° Street Elbow 3/8" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
6-2 SE-SS 90° Street Elbow 3/8" 1/8" N/A NPT M NPT F N/A Stainless Steel 5,500 N/A
6-4 FHC-B Female Hex Coupling 3/8" 1/4" N/A NPT F NPT F N/A Brass 3500 N/A
6-4 FHC-SS Female Hex Coupling 3/8" 1/4" N/A NPT F NPT F N/A Stainless Steel 5300 N/A
6-4 MHN-B Male Hex Nipple 3/8" 1/4" N/A NPT M NPT M N/A Brass 4000 N/A
6-4 MHN-SS Male Hex Nipple 3/8" 1/4" N/A NPT M NPT M N/A Stainless Steel 7200 N/A
6-4 RA-B Reducing Adapter 3/8" 1/4" N/A NPT F NPT M N/A Brass 3500 N/A
6-4 RA-SS Reducing Adapter 3/8" 1/4" N/A NPT F NPT M N/A Stainless Steel 5300 N/A
6-4 RB-B Reducing Bushing 3/8" 1/4" N/A NPT M NPT F N/A Brass 3000 N/A
6-4 RB-SS Reducing Bushing 3/8" 1/4" N/A NPT M NPT F N/A Stainless Steel 5300 N/A
6-4 SE-B 90° Street Elbow 3/8" 1/4" N/A NPT M NPT F N/A Brass 3000 N/A
6-4 SE-SS 90° Street Elbow 3/8" 1/4" N/A NPT M NPT F N/A Stainless Steel 5,600 N/A
6-6 FHC-B Female Hex Coupling 3/8" 3/8" N/A NPT F NPT F N/A Brass 3500 N/A
6-6 FHC-SS Female Hex Coupling 3/8" 3/8" N/A NPT F NPT F N/A Stainless Steel 5300 N/A
6-6 MCN-B Male Close Nipple 3/8" 3/8" N/A NPT M NPT M N/A Brass 4000 N/A
6-6 MCN-SS Male Close Nipple 3/8" 3/8" N/A NPT M NPT M N/A Stainless Steel 7200 N/A
6-6 MHN-B Male Hex Nipple 3/8" 3/8" N/A NPT M NPT M N/A Brass 4000 N/A
6-6 MHN-SS Male Hex Nipple 3/8" 3/8" N/A NPT M NPT M N/A Stainless Steel 7200 N/A
6-6 RA-B Reducing Adapter 3/8" 3/8" N/A NPT F NPT M N/A Brass 3500 N/A
6-6 RA-SS Reducing Adapter 3/8" 3/8" N/A NPT F NPT M N/A Stainless Steel 5300 N/A
6-6 SE-B 90° Street Elbow 3/8" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
6-6 SE-SS 90° Street Elbow 3/8" 3/8" N/A NPT M NPT F N/A Stainless Steel 5,000 N/A
6-6 SVE-B 45° Street Elbow 3/8" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
6-6 SVE-SS 45° Street Elbow 3/8" 3/8" N/A NPT M NPT F N/A Stainless Steel 5000 N/A
6-6-6 FT-B Female Tee 3/8" 3/8" 3/8" NPT F NPT F NPT F Brass 2700 N/A
6-6-6 FT-SS Female Tee 3/8" 3/8" 3/8" NPT F NPT F NPT F Stainless Steel 5000 N/A
6-6-6 MBT-B Male Branch Tee 3/8" 3/8" 3/8" NPT F NPT F NPT M Brass 2700 N/A
6-6-6 MBT-SS Male Branch Tee 3/8" 3/8" 3/8" NPT F NPT F NPT M Stainless Steel 5000 N/A
6-6-6 MT-B Male Tee 3/8" 3/8" 3/8" NPT M NPT M NPT M Brass 4000 N/A
6-6-6 MT-SS Male Tee 3/8" 3/8" 3/8" NPT M NPT M NPT M Stainless Steel 7200 N/A
6-6-6 ST-B Street Tee 3/8" 3/8" 3/8" NPT F NPT M NPT F Brass 2700 N/A
6-6-6 ST-SS Street Tee 3/8" 3/8" 3/8" NPT F NPT M NPT F Stainless Steel 5000 N/A
8 CP-B Pipe Cap 1/2" 1/2" N/A NPT F N/A N/A Brass 3600 N/A
8 CP-SS Pipe Cap 1/2" 1/2" N/A NPT F N/A N/A Stainless Steel 5200 N/A
8 PH-B Hex Head Plug 1/2" N/A N/A NPT M N/A N/A Brass 3900 N/A
8 PH-SS Hex Head Plug 1/2" N/A N/A NPT M N/A N/A Stainless Steel 6,600 N/A
8 PHH-B Plug 1/2" N/A N/A NPT M N/A N/A Brass 3900 N/A
8 PHH-SS Plug 1/2" N/A N/A NPT M N/A N/A Stainless Steel 6,600 N/A
8-2 FHC-SS Female Hex Coupling 1/2" 1/8" N/A NPT F NPT F N/A Stainless Steel 5,200 N/A
8-2 MHN-B Male Hex Nipple 1/2" 1/8" N/A NPT M NPT M N/A Brass 3900 N/A
8-2 MHN-SS Male Hex Nipple 1/2" 1/8" N/A NPT M NPT M N/A Stainless Steel 6,600 N/A
8-2 RA-B Reducing Adapter 1/2" 1/8" N/A NPT F NPT M N/A Brass 3600 N/A
8-2 RA-SS Reducing Adapter 1/2" 1/8" N/A NPT F NPT M N/A Stainless Steel 5200 N/A
8-2 RB-B Reducing Bushing 1/2" 1/8" N/A NPT M NPT F N/A Brass 3900 N/A
8-2 RB-SS Reducing Bushing 1/2" 1/8" N/A NPT M NPT F N/A Stainless Steel 6600 N/A
8-2 SE-B 90° Street Elbow 1/2" 1/8" N/A NPT M NPT F N/A Brass 2900 N/A
8-2 SE-SS 90° Street Elbow 1/2" 1/8" N/A NPT M NPT F N/A Stainless Steel 5,500 N/A
8-4 FHC-SS Female Hex Coupling 1/2" 1/4" N/A NPT F NPT F N/A Stainless Steel 5,200 N/A
8-4 MHN-B Male Hex Nipple 1/2" 1/4" N/A NPT M NPT M N/A Brass 3900 N/A
8-4 MHN-SS Male Hex Nipple 1/2" 1/4" N/A NPT M NPT M N/A Stainless Steel 6,600 N/A
8-4 RA-B Reducing Adapter 1/2" 1/4" N/A NPT F NPT M N/A Brass 3600 N/A
8-4 RA-SS Reducing Adapter 1/2" 1/4" N/A NPT F NPT M N/A Stainless Steel 5200 N/A
8-4 RB-B Reducing Bushing 1/2" 1/4" N/A NPT M NPT F N/A Brass 3900 N/A
8-4 RB-SS Reducing Bushing 1/2" 1/4" N/A NPT M NPT F N/A Stainless Steel 6400 N/A
8-4 SE-B 90° Street Elbow 1/2" 1/4" N/A NPT M NPT F N/A Brass 3000 N/A
8-4 SE-SS 90° Street Elbow 1/2" 1/4" N/A NPT M NPT F N/A Stainless Steel 5,600 N/A
8-6 FHC-SS Female Hex Coupling 1/2" 3/8" N/A NPT F NPT F N/A Stainless Steel 5,200 N/A
8-6 MHN-B Male Hex Nipple 1/2" 3/8" N/A NPT M NPT M N/A Brass 3900 N/A
8-6 MHN-SS Male Hex Nipple 1/2" 3/8" N/A NPT M NPT M N/A Stainless Steel 6,600 N/A
8-6 RA-B Reducing Adapter 1/2" 3/8" N/A NPT F NPT M N/A Brass 3600 N/A
8-6 RA-SS Reducing Adapter 1/2" 3/8" N/A NPT F NPT M N/A Stainless Steel 5200 N/A
8-6 RB-B Reducing Bushing 1/2" 3/8" N/A NPT M NPT F N/A Brass 2800 N/A
8-6 RB-SS Reducing Bushing 1/2" 3/8" N/A NPT M NPT F N/A Stainless Steel 4600 N/A
8-6-SE-B 90° Street Elbow 1/2" 3/8" N/A NPT M NPT F N/A Brass 2700 N/A
8-6-SE-SS 90° Street Elbow 1/2" 3/8" N/A NPT M NPT F N/A Stainless Steel 5,000 N/A
8-8 FHC-SS Female Hex Coupling 1/2" 1/2" N/A NPT F NPT F N/A Stainless Steel 5,200 N/A
8-8 MCN-B Male Close Nipple 1/2" 1/2" N/A NPT M NPT M N/A Brass 3900 N/A
8-8 MCN-SS Male Close Nipple 1/2" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,600 N/A
8-8 MHLN-SS 2.0 Male Hex Long Nipple 1/2" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,600 2
8-8 MHLN-SS 3.0 Male Hex Long Nipple 1/2" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,600 3
8-8 MHLN-SS 4.0 Male Hex Long Nipple 1/2" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,600 4
8-8 MHN-B Male Hex Nipple 1/2" 1/2" N/A NPT M NPT M N/A Brass 3900 N/A
8-8 MHN-SS Male Hex Nipple 1/2" 1/2" N/A NPT M NPT M N/A Stainless Steel 6,600 N/A
8-8 RA-B Reducing Adapter 1/2" 1/2" N/A NPT F NPT M N/A Brass 3600 N/A
8-8 RA-SS Reducing Adapter 1/2" 1/2" N/A NPT F NPT M N/A Stainless Steel 5200 N/A
8-8 SE-B 90° Street Elbow 1/2" 1/2" N/A NPT M NPT F N/A Brass 2500 N/A
8-8 SE-SS 90° Street Elbow 1/2" 1/2" N/A NPT M NPT F N/A Stainless Steel 4,500 N/A
8-8 SVE-B 45° Street Elbow 1/2" 1/2" N/A NPT M NPT F N/A Brass 2500 N/A
8-8 SVE-SS 45° Street Elbow 1/2" 1/2" N/A NPT M NPT F N/A Stainless Steel 4500 N/A
8-8-8 FT-B Female Tee 1/2" 1/2" 1/2" NPT F NPT F NPT F Brass 2500 N/A
8-8-8 FT-SS Female Tee 1/2" 1/2" 1/2" NPT F NPT F NPT F Stainless Steel 4500 N/A
8-8-8 MBT-B Male Branch Tee 1/2" 1/2" 1/2" NPT F NPT F NPT M Brass 2500 N/A
8-8-8 MBT-SS Male Branch Tee 1/2" 1/2" 1/2" NPT F NPT F NPT M Stainless Steel 4500 N/A
8-8-8 MT-B Male Tee 1/2" 1/2" 1/2" NPT M NPT M NPT M Brass 3100 N/A
8-8-8 MT-SS Male Tee 1/2" 1/2" 1/2" NPT M NPT M NPT M Stainless Steel 5800 N/A
8-8-8 ST-B Street Tee 1/2" 1/2" 1/2" NPT F NPT M NPT F Brass 2500 N/A
8-8-8 ST-SS Street Tee 1/2" 1/2" 1/2" NPT F NPT M NPT F Stainless Steel 4500 N/A
8K-8RA-SS Reducing Adapter 1/2" 1/2" N/A 1/2-14NPT F 1/2-14 BSPT N/A Stainless Steel 4,600 N/A
