Parker派克PFA 氮氣槍（1/4 或 3/8 英寸）– SG-1 系列 | #SG-1-04

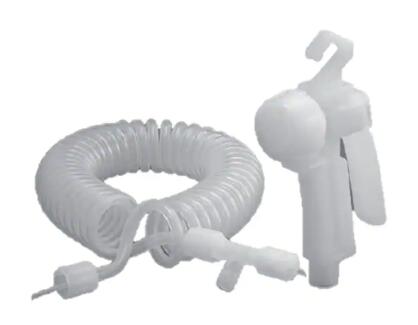

SG-1 Series PFA Nitrogen Gun (1/4 or 3/8 inch)
Parker Fittings接頭 Tube Fittings
SG-1 系列 PFA 氮氣槍專為超高純度半導體制造應用而設計。可提供 FNPT 或 Parflare 連接。其他選項包括 0.2 或 0.5 微米過濾器和盤繞軟管組件（高達 80 psig）。PFA 氮氣槍適用于超高純度 (UHP) 半導體應用。它采用帶有精密加工密封區域的模制 PFA 主體。這些材料與 PFA 內表面和一體式機加工改性 PTFE 隔膜和提升閥相結合，使 SG-1 系列氮氣槍具有高泄漏完整性和卓越的耐腐蝕性，可在清潔度至關重要的應用中發揮作用。SG-1 系列具有防塵圈，可形成可靠的隔膜與閥體密封，并提供可靠的通流關閉。其獨特的設計消除了對彈性體密封件的需要，同時提供了出色的靈活性和長壽命。它提供 1/4 英寸 FNPT 或 3/8 英寸 Parflare 連接。連接減少了組裝和安裝時間，同時確保了無污染操作的最小顆粒產生。
其他選項包括 0.2 或 0.5 微米過濾器和盤繞軟管組件。
SG-1 系列 PFA 氮氣槍 PFA Nitrogen Gun (1/4 or 3/8 inch) – SG-1 Series
The SG-1 Series PFA Nitrogen Gun is designed for ultra-high purity semiconductor manufacturing applications. Available with FNPT or Parflare connections. Additional options include a 0.2 or 0.5 micron filter and coiled hose assembly (up to 80 psig). The PFA Nitrogen Gun is suitable for use in ultra-high purity (UHP) semiconductor applications. It utilizes a molded PFA body with precision-machined sealing areas. These materials, coupled with PFA interior surfaces and a one-piece machined modified PTFE diaphragm and poppet, afford the SG-1 Series nitrogen gun with high leak integrity and exceptional corrosion resistance for performance in applications where cleanliness is critical.
The SG-1 Series features a wiper seat, which creates a reliable diaphragm to body seal and provides positive through flow shut-off. Its unique design eliminates the need for elastomer seals, while providing excellent flexibility and long life. It is available with 1/4 inch FNPT or 3/8 inch Parflare connections. The connections reduce assembly and installation time, while ensuring minimal particle generation for contamination-free operation.
Additional options include a 0.2 or 0.5 micron filter and a coiled hose assembly.
市場：
- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業
特點/優勢：
- PFA 內表面和一體式機加工改性 PTFE 隔膜/提升閥提供高彎曲壽命和出色的耐腐蝕性
- 獨特的設計消除了對彈性體密封的需要
- 功能齊全，壓力范圍為 0 至 80 psig
- 標準功能是用于流量的一體式針閥用于安裝的控制和面板螺母
- 雨刷座為閥體形成可靠的隔膜，并提供可靠的通流關閉
- 環境溫度范圍：0°F 至 +150° F（-17°C 至 +66° C）
- 流體溫度范圍：0°F 至 +200°F（-17°C 至 +93°C）
應用：
- 腐蝕性和/或特殊化學品、酸、堿和漿料
- 半導體工具
- CMP/漿料系統
Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
Features/Benefits:
- PFA interior surfaces and a one-piece machined modified PTFE diaphragm/poppet provide high flexural life and exceptional corrosion resistance
- Unique design eliminates the need for elastomer seals
- Fully functional from 0 to 80 psig
- Standard features are an integral needle valve for flow control and panel nuts for mounting
- Wiper seat creates a reliable diaphragm to body seal and provides positive through flow shut-off
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +200° F (-17°C to +93° C)
Applications:
- Corrosive and/or specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- CMP/Slurry Systems
Technical Specifications
| Fitting Type: |
Flare |
| Body Material: |
PFA, PVDF, Modified PTFE (optional HDFE filter element) |
| Screw Material: |
PET |
| Spring Material: |
Stainless Steel |
| Pressure Rating: |
0 psig (0 bar) to 80 psig (5.5 bar) |
| Maximum Ambient Temperature: |
66 °C, 150 °F |
| Minimum Ambient Temperature: |
-17 °C, 0 °F |
| Maximum Fluid Temperature: |
93 °C, 200 °F |
| Minimum Fluid Temperature: |
-17 °C, 0 °F |
PFA Nitrogen Gun (1/4 or 3/8 inch) – SG-1 Series 型號
| Part |
Port Connection |
| SG-1-03 |
1/4" FNPT |
| SG-1-04 |
3/8" Parflare |
技術規格
- 端口連接： 3/8" Parflare
- 配件類型： 耀斑
- 機身材質： PFA、PVDF、改性 PTFE（可選 HDFE 濾芯）
- 螺絲材質： 寵物
- 彈簧材質： 不銹鋼
- 壓力等級： 0 psig (0 bar) 至 80 psig (5.5 bar)
- 最高環境溫度： 150°F，66°C
- 最低環境溫度： -17°C，0°F
- 最高流體溫度： 200 華氏度，93 攝氏度
- 最低流體溫度： -17°C，0°F
|
