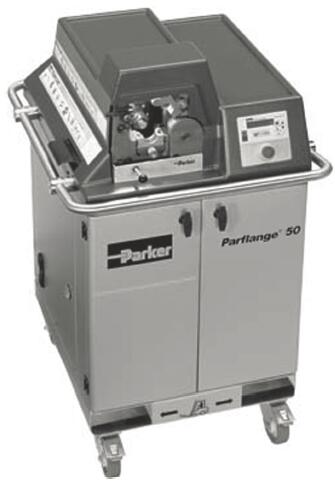

Parflange Pro 50 Flaring and Flanging System

Parker 的 Parflange? Pro 50 為 Seal-Lok O 型環面密封 (ORFS) 和 Triple-Lok 37° Flare JIC 接頭提供高產量、無泄漏法蘭和喇叭管連接。Parker 的 Parflange? Pro 50 為 Seal-Lok O 型環面密封 (ORFS) 和 Triple-Lok 37° Flare JIC 接頭提供快速、無泄漏的法蘭和喇叭管連接。這款高產機器使用軌道主軸工藝，在不到 15 秒的時間內生產出具有光滑配合表面的高質量、一致的法蘭和喇叭口。Parflange 技術通過快速、一致和可靠的無泄漏連接為我們的客戶創造了競爭優勢，從而降低了成本并增加了收入。

Parflange Pro 50 Flaring and Flanging System

Parker's Parflange Pro 50 provides high production, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Parker's Parflange? Pro 50 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, this high production machine produces high-quality, consistent flanges and flares with a smooth mating surface in less than 15 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.

特性/優點：
- 在不到 15 秒（高達 1 ?” 外徑）內生產出具有光滑配合表面的高質量法蘭，無需將套管與管端進行昂貴、耗時的釬焊。
- 這種高產量機器具有自動合模機構、自動工具潤滑系統和自動循環啟動增強功能，該增強功能通過將管子完全插入模具外殼而觸發。
- 可根據要求提供自動套筒裝載器選項。
- 方便的工作站設置，裝置下方帶有工具柜。
- 外徑從 ?” 到 1 ?” 的法蘭和喇叭形鋼和不銹鋼管。
- 還有法蘭不銹鋼盤管尺寸在CNG 應用中很常見。

應用：
- 翻邊和擴口鋼和不銹鋼管，用于工業和移動應用中的 O 形環面密封 (ORFS) 和 37° 擴口連接。

技術特性：
- 提供 440 伏 3 相。
- 尺寸為 33” x 28” x 41”，重 836 磅。

Features/Benefits:
- Produces a high-quality flange with smooth mating surface in less than 15 seconds (up to 1 ?” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
- This high production machine features an automatic die-clamping mechanism, an automatic tool lubrications system and an automatic cycle start enhancement that is triggered by full tube insertion into the die housing.
- An automatic sleeve loader option is available upon request.
- Convenient workstation setup with tooling cabinet below the unit.
- Flanges and flares steel and stainless steel tube from ?” up to 1 ?” OD.
- Also flanges stainless steel coiled tube sizes common in CNG applications.

Applications:
- Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.

Technical Characteristics:
- Available in 440-volt 3-phase.
- Dimensions are 33” x 28” x 41” and weighs 836 lbs.

Technical Specifications

Parflange Pro 50 Flaring and Flanging System 型號
