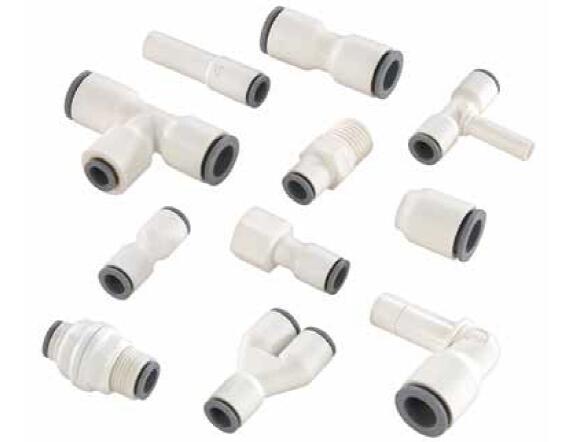

Parker LIQUIfit Fittings Parker派克 LIQUIfit 接頭
Parker Fittings接頭 Pneumatic Fittings
派克的 LIQUIfit 接頭確保為液體傳輸應用提供可靠和緊湊的連接。LIQUIfit 為水應用提供“生態設計”的創新替代方案；無流體污染，環保有保障。作為推入式接頭技術的世界領先者，派克的 LIQUIfit 接頭將派克的專業知識擴展到水和飲料行業。LIQUIfit 車身由獨特的生物基高性能聚合物制成，由可再生植物生產，以擴大非化石資源的使用。LIQUIfit 配件為水應用提供了一種“生態設計”的創新替代方案；無流體污染，環保有保障。
與以下 Parker Parflex Division 管一起使用。
- Parker LIQUIfit Fittings Parker派克 LIQUIfit 接頭
- Parker Legris : LIQUI?t, Connection Solutions for Beverage & Fluids From -10°C up to +150°C
- Water & Beverage Connectors Products & Custom Solutions Catalog 3525LQ1
Parker's LIQUIfit fitings ensure reliable and compact connections for liquid transfer applications. LIQUIfit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed. Being the world's leader in push-to-connect fitting technology Parker's Legris LIQUIfit push fit tube fittings extend Parker's expertise into the water and beverage industry. The LIQUIfit body is manufactured from a unique bio-based, high performance polymer produced from renewable plants, to expand the use of non-fossil-based resources. LIQUIfit quick connect water fittings offer an ”eco-designed” innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.
- 聚乙烯
市場：
- 水過濾
- 飲料配給
- 生命科學
- 裝瓶
- 半導體
- 醫療
特性/優點：
- 不銹鋼抓環
- EPDM D 型密封件
- 符合 FDA、NSF 和歐洲水法規要求
- D 型密封件在靜態和動態位置在管外徑上提供可靠密封
- 高化學性阻力
- 夾持系統的移動減少，可防止任何泵送效應
- 無需管插入件或鎖定夾
- 先進的夾持設計可實現無泄漏的
小彎曲半徑- 市場上最緊湊的外形
- 符合人體工程學且美觀的設計
- 易于清潔的外部形狀
- 英制和公制尺寸，5/32" - 1/2"，4mm - 12mm
- NPTF、UNS、BST 螺紋
應用：
- 水凈化系統
- 飲水機
- 冷熱飲水機
- 冷卻系統
- 食品加工
- CO2
Use with the following Parker Parflex Division tubing.
- Polyethylene
- Polypropylene
- Nylon
Markets:
- Water Filtration
- Beverage Dispensing
- Life Science
- Bottling
- Semi-Conductor
- Medical
Features and Benefits:
- Stainless steel grab ring
- EPDM D-seal
- Meets requirements of FDA, NSF 51 and NSF 61
- D-seal provides a positive seal on the O.D. of the tube , in both static and dynamic positions
- High chemical resistance
- Reduced movement of the gripping system prevents any pumping effect
- No tube insert or locking clip required
- Advanced gripping design allows a tight bend radius without leaks
- Most compact profile on the market
- Ergonomic and aesthetic design
- Easy-to-clean external shapes
- Inch & metric sizes, 5/32" - 1/2", 4mm - 12mm
- NPTF, UNS, BST threads
Applications:
- Water Purification Systems
- Water Dispensers
- Hot & Cold Drink Dispensers
- Cooling Systems
- Food Process
- CO2
Value:
Parker Hannifin's Fluid System Connectors Division's patented D-Seal technology provides superior sealing protection to enhance the tube connection, prolonging the fitting, resulting in increased OEM revenues by extending equipment life.
Technical Specifications
性能特點
形狀

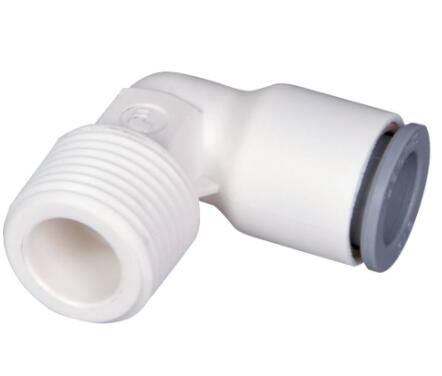

90? 彎頭、三通、活接、十字、連接器、隔板、水龍頭連接器、插頭、Y 型活接頭、帽、管異徑管、插入式 45? 彎頭、插入式 90? 彎頭、插入式三通、插入式分支三通、旋轉三通、旋轉分支三通、90° 旋轉彎頭、適配器、旋轉 Y 連接器
連接類型
推推、管桿和螺紋
NPTF、BSPT、BSPP
最低工作溫度
35°F
2℃
最高工作溫度
200 至 265 華氏度
93 至 130 °C
最大工作壓力
230 磅/平方英寸
15 巴
管材
聚乙烯、聚丙烯
媒體
水、飲料、二氧化碳
應用
水凈化、水/飲料配給、食品加工、醫療
符合規格
DI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW, WRAS, ACSDI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW、WRAS、ACS
建筑材料
主體：生物基聚合物或 POM 聚合物
密封：EPDM
密封材料
三元乙丙橡膠
抓環材料
不銹鋼
產品風格
管對管、管對內螺紋、倒鉤對管桿、管對內螺紋 UNS、管、管對管桿、管對管、立管對管
連接 1 管外徑
5/32，到 1/2 英寸
4 至 12 毫米
連接 1 管桿外徑
5/16 至 1/2 英寸
6 至 12 毫米
連接 1 尺寸
按壓連接，管桿
連接 2 管外徑
5/32 到 1/2 英寸
4 至 14 毫米
連接 2 軟管內徑
5/16 至 3/8 英寸
6 至 8 毫米
連接 2 管桿外徑
5/16 至 1/2 英寸
4 至 12 毫米
連接 2 螺紋尺寸
1/4 到 1/2 英寸
1/8 至 1/2 毫米
連接 2 尺寸
按壓連接，BSPT 內螺紋，管道內螺紋，倒鉤，UNS，na，管桿，BSPT 外螺紋，管道外螺紋，BSPP 外螺紋
| Shape: |
90? Elbow, Tee, Union, Cross, Connector, Bulkhead, Faucet Connector, Plug, Union Y, Cap, Tube Reducer, Plug-in 45? Elbow, Plug-in 90? Elbow, Plug-in Run Tee, Plug-in Branch Tee, Swivel Run Tee, Swivel Branch Tee, 90? Swivel Elbow, Adapter, Swivel Y Connector |
| Connection Type: |
Push-to-Push, Tube Stem and Thread, NPTF, BSPT, BSPP |
| Minimum Operating Temperature: |
35 °F, 2 °C |
| Maximum Operating Temperature: |
200 to 265 °F, 93 to 130 °C |
| Maximum Operating Pressure: |
230 psi, 15 bar |
| Tube Material: |
Polyethylene, Polypropylene |
| Media: |
Water, Beverages, CO2 |
| Application: |
Water Purification, Water/Beverage Dispensing, Food Process, Medical |
| Specifications Met: |
DI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW, WRAS, ACSDI: 2002/95/EC (RoHS), 2011/65/EC, RG: 1935/2004/EC, FDA: 21 CFR, NSF 51 at 95°C, NSF/ANSI 61 - C HOT, DM 174, KTW, WRAS, ACS |
| Materials of Construction: |
Body: Bio-based Polymer or POM POLYMER, Seal: EPDM |
| Seal Material: |
EPDM |
| Gripping Ring Material: |
Stainless Steel |
| Product Style: |
Tube to Tube, Tube to Female Pipe, Barb to Tube Stem, Tube to Female UNS, Tube, Tube to Tube Stem, Tube to Pipe, Standpipe to Pipe |
| Connection 1 Tube Outside Diameter: |
5/32, to 1/2 inch, 4 to 12 mm |
| Connection 1 Tube Stem Outside Diameter: |
5/16 to 1/2 inch, 6 to 12 mm |
| Connection 1 Size: |
Push-to-Connect, Tube Stem |
| Connection 2 Tube Outside Diameter: |
5/32 to 1/2 inch, 4 to 14 mm |
| Connection 2 Hose Inside Diameter: |
5/16 to 3/8 inch, 6 to 8 mm |
| Connection 2 Tube Stem Outside Diameter: |
5/16 to 1/2 inch, 4 to 12 mm |
| Connection 2 Thread Size: |
1/4 to 1/2 inch, 1/8 to 1/2 mm |
| Connection 2 Size: |
Push-to-Connect, Female BSPT, Female Pipe, Barb, UNS, na, Tube Stem, Male BSPT, Male Pipe, Male BSPP |
|
