Tube Fabrication Equipment

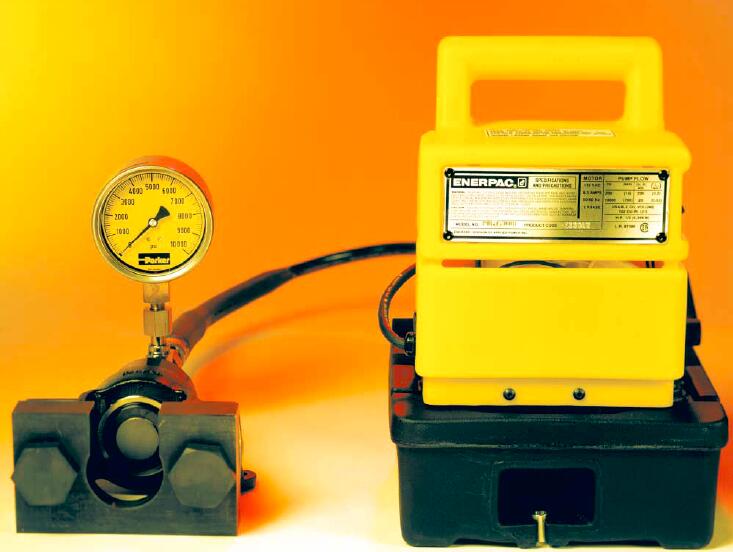

Hyferset Hydraulic Pre-Setting Tool
Parker's Hyferset is an efficient, dependable tool for pre-setting Parker ferrules on steel and stainless steel tube.
Parker's Hyferset is an efficient, dependable tool for pre-setting Parker ferrules on steel and stainless steel tube. This portable hydraulic tool easily accommodates pre-setting ferules for tube O.D. sizes of 4 (?”) through 32 (2”) and 6mm through 28mm.
Hyferset Hydraulic Pre-Setting Tool
Features/Benefits:
- The hydraulic push of the Hyferset pre-sets the ferrule onto the tube – producing a visible ridge of metal, in front of the sleeve bite edge, that can be easily inspected.
- Positive stop body dies are also available for inch bite type fittings, Parker's Ferulok, eliminating the need for predetermined relief valve settings, pressure gauges or chart reading.
Applications:
- Pre-setting Parker ferrules onto steel and stainless steel tube for industrial and mobile hydraulic applications
Technical Characteristics:
- An electric or hand hydraulic pump is required to run this machine and is sold separately or comes in the Hyferset kit.
- There is a kit option available which includes a hydraulic hand pump, hose assembly, 1 adapter, wooden carrying case, operation manual and video.
Technical Specifications
| Size: |
1/4 to 1-1/2 inch, 6 - 38 mm |
| Product Type: |
Pre-Setting Tool |
| Tube Material: |
Steel and Stainless Steel |
| Ferrule Pre-Setting Tube Size Range: |
1/4 to 2 inch, 6 to 28 mm |
| Includes: |
Hyferset basic unit, hydraulic hand pump, hose assembly, 1 adapter (6 FLO-S), wooden carrying case, operation manual and video |
Hyferset Hydraulic Pre-Setting Tool 型號
| Part |
Options |
| 611011A |
Basic Unit |
| 611049C |
Kit |
|
