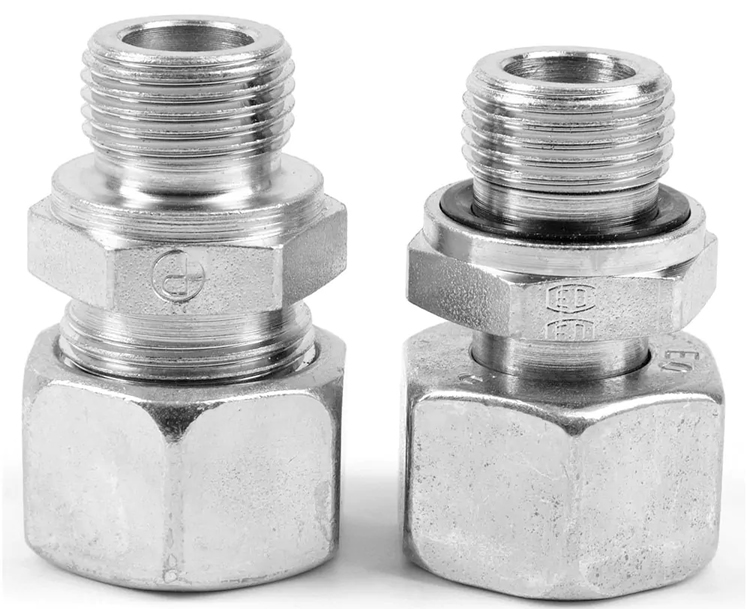

Parker -Ermeto DIN male stud high pressure hydraulic tube fittings
Parker 派克EO DIN 標準油口連接高壓液壓管接頭
EO DIN 標準油口連接高壓液壓管接頭的主要功能是可以連接不同數量的或軟管。EO DIN標準管接頭的廣泛范圍包括采用新一代無六價鉻鍍鋅表面處理方式的碳鋼和不銹鋼材質可選。EO DIN 標準外螺紋油口液壓管接頭的主要功能是可以連接不同數量的硬管或軟管。EO DIN標準外螺紋油口連接高壓液壓管接頭的廣泛范圍，包括GEO, GE-M-ED, GE-R-ED 到 GE-M，都可選擇采用新一代無六價鉻鍍鋅表面處理方式的碳鋼和不銹鋼材質。這些管接頭可以選擇帶漸進式卡套 (EO-PSR 或者 DPR) 或者彈性密封卡套 (EO-2)，具體選擇取決于應用。
Ermeto DIN male stud high pressure hydraulic tube fittings - Parker 派克
適用市場：
- 汽車行業
- 安防系統
- 能源行業
- 環境控制
- 工業領域
- 基礎建設
- 機床
- 物料搬運
- 行走機械
- 石油和天然氣
- 電力行業
- 過程控制
- 交通運輸
- 水處理
應用領域：
- 適用于一般的液壓系統領域。
產品特征/產品益處：
- 優良的耐腐蝕性能：一般而言，新一代無六價鉻鍍鋅表面處理方式針對依照德國工業標準DIN50021/ISO9227 鹽霧試驗，提供產品超過500個小時而不產生白銹的耐腐蝕性能。這種特質大大地延長了管接頭的使用壽命。
- 不銹鋼材質表面：相比碳鋼而言，針對腐蝕性介質和環境影響，不銹鋼管接頭有著優良的耐腐蝕性能，同時有著更好的高溫耐腐蝕性能。這些產品特征大大地?cái)U(kuò)展了管接頭的應用范圍。
- 耐壓性能：因?yàn)镋O DIN標準外螺紋油口連接高壓液壓管接頭有著壓力等級高達800 bar的重型 (S系列) 和壓力等級高達500 bar的輕型 (L系列) 可選，所以這種接頭可以被應用于廣泛的應用領域。
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel. The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings, types GEO, GE-M-ED, GE-R-ED up to GE-M is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).
技術規格：
- 產品序列： Light
- 形狀： Straight male stud connector
- 連接 1 類型： Male NPT thread (SAE J476)
- 連接 1 尺寸： 1/8-27 NPT
- 連接 2 類型： 24° DKO swivel
- 連接 2 管道外徑： 6 mm
- 結構材料： Stainless Steel
- 可選配件： n/a
- 連接尺寸： G 1/8 A 至 G 1 1/2 A; M 10x1.0 至 M48x2.0; 7/16-20UNF-2A 至 1 5/8-12UN-2A; 1/8-27 NPT 至1 1/2-11.5 NPT
- 連接 2 管道外徑： 04 至 42 mm
- 連接 2 尺寸： EO 24° 錐
- 產品序列： 特輕系列，輕系列，重系列
- 連接 1 尺寸： 公制外螺紋帶O型圈密封（ISO6149標準），公制外螺紋帶ED彈性密封（ISO9974標準），BSPP外螺紋帶ED密封（ISO1179標準），BSPP帶金屬面密封（ISO1179標準），BSPT外螺紋（DIN 3852-2標準，類型C）,公制外螺紋帶金屬面密封（ISO9974標準）
- 形狀： 公制外螺紋端直通接頭
- 可選配件： EO DIN 標準油口連接高壓液壓管接頭
- 管道外徑： 6-42 mm
- 最大運行壓力： 10-80 MPa, 100-800 bar, 1450-11603 psi
- 最高運行溫度： +250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F
- 最低運行溫度： -40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F
- 應用： Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
- 連接類型： Bite Type, Soft Seal Bite Type
- 符合規格： DIN ISO 8434
- 結構材料： Steel zinc plated (CrVI-free), Stainless steel
| Connection Size: |
G 1/8 A to G 1 1/2 A; M 10x1.0 to M48x2.0; 7/16-20UNF-2A to 1 5/8-12UN-2A; 1/8-27 NPT to 1 1/2-11.5 NPT |
| Connection 2 Tube Outside Diameter: |
04 to 42 mm |
| Connection 2 Size: |
EO 24° cone end |
| Product Series: |
Very light, Light, Heavy |
| Connection 1 Size: |
Male metric thread - O-ring (ISO 6149), Male metric thread - ED (ISO 9974), Male BSPP thread - ED (ISO 1179), Male BSPP thread - metal sealing edge (ISO 1179), Male short BSPT taper thread (DIN 3852-2, type C), Male metric thread - metal sealing edge (ISO 9974), Male short metric taper thread (DIN 3852-1, type C), Male UNF/UN thread - O-ring (ISO 11926), Male NPT thread (SAE J476) |
| Shape: |
Straight male stud connector |
| Optional Accessories: |
- |
| Tube Outside Diameter: |
6-42 mm |
| Maximum Operating Pressure: |
10-80 MPa, 100-800 bar, 1450-11603 psi |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
|
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Connection Type: |
Bite Type, Soft Seal Bite Type |
| Specifications Met: |
DIN ISO 8434 |
| Materials of Construction: |
Steel zinc plated (CrVI-free), Stainless steel |
Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
- Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Ermeto DIN male stud high pressure hydraulic tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- High pressure: Ermeto DIN male stud high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
Related Documents
Communities, Blogs, and Industry Links
ACS
Literature and Reference Materials
CAT-4100-UK - Industrial Tube Fittings
Product Demos & Tutorials
EO-2 Animation
EO-PSR Animation
EO2-FORM Animation
Compliance, Certifications, & Safety
CCS Approval No. HB 17T00022 for EO, EO-2 and EO2-FORM Fittings
DNV GL Certificate TA00000TA for EO-DPR, EO-PSR, EO-2, EO2-FORM
ISO 9001:2015 EN Locations WB, SH, AUG and PL--12 100 36356 TMS
ISO 9001:2015 Zertifikat für Location Schlo?-Holte--12 100 36356/02
ISO 9001:2015 Zertifikat für Location Siechnice--12 100 36356/04
ISO 9001:2015 Zertifikat für Location Windelsbleiche--12 100 36356/01
RINA--Type Approval Certificate--MAC333317XG
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
EGE06L1/8NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE06LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 6 M 10x1.0 Straight male stud connector Stainless steel na
EGE06LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free na
EGE06LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 6 G 1/8 A Straight male stud connector Stainless steel na
EGE06LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
EGE06S1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE06SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 6 M 12x1.5 Straight male stud connector Stainless steel na
EGE06SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE06SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 6 G 1/4 A Straight male stud connector Stainless steel na
EGE06SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE08L1/4NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE08LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 8 M 12x1.5 Straight male stud connector Stainless steel na
EGE08LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE08LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 8 G 1/4 A Straight male stud connector Stainless steel na
EGE08LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE08S1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE08SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 8 M 14x1.5 Straight male stud connector Stainless steel na
EGE08SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE08SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 8 G 1/4 A Straight male stud connector Stainless steel na
EGE08SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE10L1/4NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 10 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE10LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 10 M 14x1.5 Straight male stud connector Stainless steel na
EGE10LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE10LR3/8ED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 3/8 A Straight male stud connector Stainless steel na
EGE10LR3/8EDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EGE10LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 1/4 A Straight male stud connector Stainless steel na
EGE10LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE10S3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 10 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE10SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 10 M 16x1.5 Straight male stud connector Stainless steel na
EGE10SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE10SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 3/8 A Straight male stud connector Stainless steel na
EGE10SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EGE12L3/8NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 12 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE12LM22X1.5ED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 22x1.5 Straight male stud connector Stainless steel na
EGE12LM22X1.5EDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE12LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 16x1.5 Straight male stud connector Stainless steel na
EGE12LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE12LR1/2ED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/2 A Straight male stud connector Stainless steel na
EGE12LR1/2EDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE12LR1/4ED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/4 A Straight male stud connector Stainless steel na
EGE12LR1/4EDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE12LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 3/8 A Straight male stud connector Stainless steel na
EGE12LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EGE12S3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 12 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE12SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 18x1.5 Straight male stud connector Stainless steel na
EGE12SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 12 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE12SR1/2ED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/2 A Straight male stud connector Stainless steel na
EGE12SR1/2EDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE12SR1/4ED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/4 A Straight male stud connector Stainless steel na
EGE12SR1/4EDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE12SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 3/8 A Straight male stud connector Stainless steel na
EGE12SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 12 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EGE14S1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 14 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE14SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 14 M 20x1.5 Straight male stud connector Stainless steel na
EGE14SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 14 M 20x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE14SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 14 G 1/2 A Straight male stud connector Stainless steel na
EGE14SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 14 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE15L1/2NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 15 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE15LM22X1.5ED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 15 M 22x1.5 Straight male stud connector Stainless steel na
EGE15LM22X1.5EDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 15 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE15LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 15 M 18x1.5 Straight male stud connector Stainless steel na
EGE15LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 15 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE15LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 15 G 1/2 A Straight male stud connector Stainless steel na
EGE15LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 15 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE16S1/NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 16 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE16SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 16 M 22x1.5 Straight male stud connector Stainless steel na
EGE16SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 16 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE16SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 16 G 1/2 A Straight male stud connector Stainless steel na
EGE16SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 16 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE18L1/2NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 18 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE18LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 18 M 22x1.5 Straight male stud connector Stainless steel na
EGE18LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 18 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE18LR3/4ED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 18 G 3/4 A Straight male stud connector Stainless steel na
EGE18LR3/4EDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 18 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE18LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 18 G 1/2 A Straight male stud connector Stainless steel na
EGE18LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 18 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE20S3/4NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 20 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE20SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 20 M 27x2.0 Straight male stud connector Stainless steel na
EGE20SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 20 M 27x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE20SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 20 G 3/4 A Straight male stud connector Stainless steel na
EGE20SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 20 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE22L3/4NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 22 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE22LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 22 M 26x1.5 Straight male stud connector Stainless steel na
EGE22LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 22 M 26x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGE22LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 22 G 3/4 A Straight male stud connector Stainless steel na
EGE22LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 22 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE25S1NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 25 1-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE25SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 25 M 33x2.0 Straight male stud connector Stainless steel na
EGE25SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 25 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE25SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 35 G 1 A Straight male stud connector Stainless steel na
EGE25SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 35 G 1 A Straight male stud connector Steel, Chromium-6 Free na
EGE28L1NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 28 1-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE28LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 28 M 33x2.0 Straight male stud connector Stainless steel na
EGE28LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 28 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE28LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 28 G 1 A Straight male stud connector Stainless steel na
EGE28LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 28 G 1 A Straight male stud connector Steel, Chromium-6 Free na
EGE30S11/4NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 30 1 1/4-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE30SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 30 M 42x2.0 Straight male stud connector Stainless steel na
EGE30SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 30 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE30SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 30 G 1 1/4 A Straight male stud connector Stainless steel na
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
EGE30SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 30 G 1 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE35L11/4NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 35 1 1/4-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE35LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 35 M 42x2.0 Straight male stud connector Stainless steel na
EGE35LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 35 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE35LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 35 G 1 1/4 A Straight male stud connector Stainless steel na
EGE35LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 35 G 1 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EGE38S11/2NPTCF
Heavy Male NPT thread (SAE J476) 24° DKO swivel 38 1 1/2-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE38SMED71
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 38 M 48x2.0 Straight male stud connector Stainless steel na
EGE38SMEDCF
Heavy Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 38 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE38SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 38 G 1 1/2 A Straight male stud connector Stainless steel na
EGE38SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 38 G 1 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGE42L11/2NPTCF
Light Male NPT thread (SAE J476) 24° DKO swivel 42 1 1/2-11.5 NPT Straight male stud connector Steel, Chromium-6 Free na
EGE42LMED71
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 42 M 48x2.0 Straight male stud connector Stainless steel na
EGE42LMEDCF
Light Male metric thread - ED-seal (ISO 9974) 24° DKO swivel 42 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGE42LRED71
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 42 G 1 1/2 A Straight male stud connector Stainless steel na
EGE42LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) 24° DKO swivel 42 G 1 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EGEO06LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO06SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO08LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO08SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO10LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO10SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO12LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 12 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO12SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 12 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO15LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 15 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO16SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 16 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO18LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 18 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EGEO20SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 20 M 27x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO22LM27X2CF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 22 M 27x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO25SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 25 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO28LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 28 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO30SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 30 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO35LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 35 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO38SMCF
Heavy Male metric thread - O-ring (ISO 6149) 24° DKO swivel 38 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EGEO42LMCF
Light Male metric thread - O-ring (ISO 6149) 24° DKO swivel 42 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE06LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 6 M 10x1.0 Straight male stud connector Stainless steel na
EVGE06LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE06LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 6 G 1/8 A Straight male stud connector Stainless steel na
EVGE06LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
EVGE06SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 6 M 12x1.5 Straight male stud connector Stainless steel na
EVGE06SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE06SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 6 G 1/4 A Straight male stud connector Stainless steel na
EVGE06SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE08LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 8 M 12x1.5 Straight male stud connector Stainless steel na
EVGE08LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE08LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 8 G 1/4 A Straight male stud connector Stainless steel na
EVGE08LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE08SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 8 M 14x1.5 Straight male stud connector Stainless steel na
EVGE08SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE08SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 8 G 1/4 A Straight male stud connector Stainless steel na
EVGE08SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE10LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 10 M 14x1.5 Straight male stud connector Stainless steel na
EVGE10LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE10LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 10 G 1/4 A Straight male stud connector Stainless steel na
EVGE10LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE10SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 10 M 16x1.5 Straight male stud connector Stainless steel na
EVGE10SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE10SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 10 G 3/8 A Straight male stud connector Stainless steel na
EVGE10SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EVGE12LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 12 M 16x1.5 Straight male stud connector Stainless steel na
EVGE12LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 12 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE12LR1/2ED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/2 A Straight male stud connector Stainless steel na
EVGE12LR1/2EDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE12LR1/4ED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/4 A Straight male stud connector Stainless steel na
EVGE12LR1/4EDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE12LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 3/8 A Straight male stud connector Stainless steel na
EVGE12LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EVGE12SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 12 M 18x1.5 Straight male stud connector Stainless steel na
EVGE12SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 12 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE12SR1/2ED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/2 A Straight male stud connector Stainless steel na
EVGE12SR1/2EDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE12SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 3/8 A Straight male stud connector Stainless steel na
EVGE12SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 12 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
EVGE14SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 14 M 20x1.5 Straight male stud connector Stainless steel na
EVGE14SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 14 M 20x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE14SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 14 G 1/2 A Straight male stud connector Stainless steel na
EVGE14SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 14 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE15LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 15 M 18x1.5 Straight male stud connector Stainless steel na
EVGE15LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 15 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE15LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 15 G 1/2 A Straight male stud connector Stainless steel na
EVGE15LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 15 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE16SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 16 M 22x1.5 Straight male stud connector Stainless steel na
EVGE16SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 16 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE16SR3/4ED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 16 G 3/4 A Straight male stud connector Stainless steel na
EVGE16SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 16 G 1/2 A Straight male stud connector Stainless steel na
EVGE16SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 16 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE18LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 18 M 22x1.5 Straight male stud connector Stainless steel na
EVGE18LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 18 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE18LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 18 G 1/2 A Straight male stud connector Stainless steel na
EVGE18LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 18 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE1SR3/4EDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 16 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE20SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 20 M 27x2.0 Straight male stud connector Stainless steel na
EVGE20SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 20 M 27x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE20SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 20 G 3/4 A Straight male stud connector Stainless steel na
EVGE20SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 20 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE22LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 22 M 26x1.5 Straight male stud connector Stainless steel na
EVGE22LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 22 M 26x1.5 Straight male stud connector Steel, Chromium-6 Free na
EVGE22LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 22 G 3/4 A Straight male stud connector Stainless steel na
EVGE22LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 22 G 3/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE25SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 25 M 33x2.0 Straight male stud connector Stainless steel na
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
EVGE25SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 25 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE25SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 25 G 1 A Straight male stud connector Stainless steel na
EVGE25SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 25 G 1 A Straight male stud connector Steel, Chromium-6 Free na
EVGE28LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 28 M 33x2.0 Straight male stud connector Stainless steel na
EVGE28LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 28 M 33x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE28LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 28 G 1 A Straight male stud connector Stainless steel na
EVGE28LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 28 G 1 A Straight male stud connector Steel, Chromium-6 Free na
EVGE30SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 30 M 42x2.0 Straight male stud connector Stainless steel na
EVGE30SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 30 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE30SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 30 G 1 1/4 A Straight male stud connector Stainless steel na
EVGE30SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 30 G 1 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE35LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 35 M 42x2.0 Straight male stud connector Stainless steel na
EVGE35LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 35 M 42x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE35LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 35 G 1 1/4 A Straight male stud connector Stainless steel na
EVGE35LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 35 G 1 1/4 A Straight male stud connector Steel, Chromium-6 Free na
EVGE38SMED71
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 38 M 48x2.0 Straight male stud connector Stainless steel na
EVGE38SMEDCF
Heavy Male metric thread - ED (ISO 9974) Standpipe adjustable 38 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE38SRED71
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 38 G 1 1/2 A Straight male stud connector Stainless steel na
EVGE38SREDCF
Heavy Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 38 G 1 1/2 A Straight male stud connector Steel, Chromium-6 Free na
EVGE42LMED71
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 42 M 48x2.0 Straight male stud connector Stainless steel na
EVGE42LMEDCF
Light Male metric thread - ED (ISO 9974) Standpipe adjustable 42 M 48x2.0 Straight male stud connector Steel, Chromium-6 Free na
EVGE42LRED71
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 42 G 1 1/2 A Straight male stud connector Stainless steel na
EVGE42LREDCF
Light Male BSPP thread - ED-seal (ISO 1179) Standpipe adjustable 42 G 1 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE04LL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE04LL1/8NPT71X
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Stainless steel na
GE04LL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE04LL1/8NPTCFX
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE04LL6X1KEG71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE04LL6X1KEG71X
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Stainless steel na
GE04LL6X1KEGCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE04LL6X1KEGCFX
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Steel, Chromium-6 Free na
GE04LLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE04LLM71X
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Stainless steel na
GE04LLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE04LLMCFX
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free na
GE04LLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE04LLR71X
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Stainless steel na
GE04LLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE04LLRCFX
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free na
GE04LLRED71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE04LLREDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE04LLREDOMD71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Stainless steel na
GE04LLREDOMDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE04ZLL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE04ZLL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 4 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE04ZLL6X1KEG71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE04ZLL6X1KEGCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 06x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE04ZLLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE04ZLLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 4 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE04ZLLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE04ZLLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 4 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE04ZLLRED71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE04ZLLREDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 4 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06L1/2NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06L1/2NPT71X
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel na
GE06L1/2NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06L1/2NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06L1/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06L1/4NPT71X
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel na
GE06L1/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06L1/4NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06L1/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06L1/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel na
GE06L1/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06L1/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06L3/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06L3/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel na
GE06L3/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06L3/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06LL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LL1/8NPT71X
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel na
GE06LL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LL1/8NPTCFX
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06LLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LLM71X
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Stainless steel na
GE06LLM8X1KEG71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LLM8X1KEG71X
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Stainless steel na
GE06LLM8X1KEGCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LLM8X1KEGCFX
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free na
GE06LLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LLMCFX
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free na
GE06LLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LLR71X
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel na
GE06LLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LLRCFX
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free na
GE06LLRED71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LLREDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LLREDOMD71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel na
GE06LLREDOMDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06LM71
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LM71X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel na
GE06LMCF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LMCFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free na
GE06LMED71
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LMEDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LMEDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel na
GE06LMEDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/271
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/271X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel na
GE06LR1/2CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
GE06LR1/2CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/2ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/2EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR1/2EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel na
GE06LR1/2EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/471
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/471X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel na
GE06LR1/4CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR1/4CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/4ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/4EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR1/4EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel na
GE06LR1/4EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/4KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/4KEG71X
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Stainless steel na
GE06LR1/4KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR1/4KEGCFX
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free na
GE06LR1/8KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR1/8KEG71X
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel na
GE06LR1/8KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR1/8KEGCFX
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free na
GE06LR3/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR3/871X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel na
GE06LR3/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR3/8CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR3/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR3/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LR3/8EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel na
GE06LR3/8EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06LR71
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LR71X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel na
GE06LRCF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LRCFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06LRED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06LREDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06LREDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel na
GE06LREDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06S1/2NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06S1/2NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel na
GE06S1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06S1/2NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06S1/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06S1/4NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel na
GE06S1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06S1/4NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06S1/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06S1/8NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel na
GE06S1/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06S1/8NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06S3/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06S3/8NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel na
GE06S3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06S3/8NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE06SM14X1.571
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SM14X1.571X
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Stainless steel na
GE06SM14X1.5CF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SM14X1.5CFX
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE06SM71
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SM71X
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel na
GE06SMCF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SMCFX
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE06SMED71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SMEDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SMEDOMD71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel na
GE06SMEDOMDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE06SR1/271
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR1/271X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel na
GE06SR1/2CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR1/2CFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR1/2ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR1/2EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR1/2EDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel na
GE06SR1/2EDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR1/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR1/871X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel na
GE06SR1/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR1/8CFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR1/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR1/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR1/8EDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel na
GE06SR1/8EDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR3/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR3/871X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel na
GE06SR3/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR3/8CFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR3/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR3/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SR3/8EDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel na
GE06SR3/8EDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE06SR71
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SR71X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel na
GE06SRCF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SRCFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE06SRED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE06SREDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE06SREDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel na
GE06SREDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE06ZL1/2NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZL1/2NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZL1/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
GE06ZL1/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZL1/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZL1/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZL3/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZL3/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLLM8X1KEG71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLLM8X1KEGCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 08x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 6 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLLRED71
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLLREDCF
Very light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLM71
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLMCF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLMED71
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLMEDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 6 M 10x1.0 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/271
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/2CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/2ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/2EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/471
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/4CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/4ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/4EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/4KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/4KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR1/8KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR1/8KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 6 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR3/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR3/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR3/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLR3/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLR71
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLRCF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZLRED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZLREDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZS1/2NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZS1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZS1/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZS1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZS1/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZS1/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZS3/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZS3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 6 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSM14X1.571
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSM14X1.5CF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSM71
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSMCF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSMED71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSMEDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 6 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR1/271
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR1/2CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR1/2ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR1/2EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR1/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR1/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR1/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR1/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR3/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR3/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR3/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSR3/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSR71
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSRCF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE06ZSRED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE06ZSREDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 6 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08L1/2NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08L1/2NPT71X
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel na
GE08L1/2NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08L1/2NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08L1/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08L1/4NPT71X
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel na
GE08L1/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08L1/4NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08L1/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08L1/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel na
GE08L1/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08L1/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08L3/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08L3/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel na
GE08L3/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08L3/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08L7/16UNF71
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08L7/16UNFCF
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08L7/16UNFOMD71
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel na
GE08L7/16UNFOMDCF
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free na
GE08LL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LL1/8NPT71X
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel na
GE08LL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LL1/8NPTCFX
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08LLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LLM71X
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Stainless steel na
GE08LLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LLMCFX
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free na
GE08LLR1/471
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LLR1/471X
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel na
GE08LLR1/4CF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
GE08LLR1/4CFX
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free na
GE08LLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LLR71X
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel na
GE08LLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LLRCFX
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free na
GE08LM71
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LM71X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel na
GE08LMCF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LMCFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE08LMED71
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LMEDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LMEDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel na
GE08LMEDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/271
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/271X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel na
GE08LR1/2CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/2CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/2ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/2EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/2EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel na
GE08LR1/2EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/4KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/4KEG71X
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel na
GE08LR1/4KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/4KEGCFX
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/871X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel na
GE08LR1/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/8CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/8EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel na
GE08LR1/8EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR1/8KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR1/8KEG71X
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel na
GE08LR1/8KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR1/8KEGCFX
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free na
GE08LR3/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR3/871X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel na
GE08LR3/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR3/8CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR3/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR3/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LR3/8EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel na
GE08LR3/8EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08LR71
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LR71X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel na
GE08LRCF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LRCFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE08LRED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08LREDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08LREDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel na
GE08LREDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE08S1/2NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08S1/2NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel na
GE08S1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08S1/2NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08S1/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08S1/4NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel na
GE08S1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08S1/4NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08S3/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08S3/8NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel na
GE08S3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08S3/8NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE08S7/16UNF71
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08S7/16UNFCF
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08S7/16UNFOMD71
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel na
GE08S7/16UNFOMDCF
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free na
GE08SM71
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SM71X
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel na
GE08SMCF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SMCFX
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE08SMED71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SMEDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SMEDOMD71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel na
GE08SMEDOMDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE08SR1/271
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SR1/271X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel na
GE08SR1/2CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SR1/2CFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE08SR1/2ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SR1/2EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SR1/2EDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel na
GE08SR1/2EDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE08SR3/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SR3/871X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel na
GE08SR3/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SR3/8CFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08SR3/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SR3/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SR3/8EDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel na
GE08SR3/8EDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE08SR71
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SR71X
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel na
GE08SRCF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SRCFX
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE08SRED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE08SREDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE08SREDOMD71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel na
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
GE08SREDOMDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE08ZL1/2NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZL1/2NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZL1/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZL1/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZL1/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZL1/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZL3/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZL3/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZL7/16UNF71
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZL7/16UNFCF
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLL1/8NPT71
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLL1/8NPTCF
Very light Male NPT thread (SAE J476) 24° cone end 8 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLLM71
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLLMCF
Very light Male short metric taper thread (DIN 3852-1, type C) 24° cone end 8 M 10x1.0 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLLR1/471
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLLR1/4CF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLM71
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLMCF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLMED71
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLMEDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 8 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/271
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/2CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/2ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/2EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/4KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/4KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR1/8KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR1/8KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 8 R 1/8 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR3/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR3/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR3/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLR3/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLR71
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLRCF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZLRED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZLREDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZS1/2NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZS1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZS1/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZS1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZS3/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZS3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 8 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZS7/16UNF71
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZS7/16UNFCF
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 8 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSM71
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSMCF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSMED71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSMEDCF
Heavy Male metric thread - ED (ISO 9974) 24° cone end 8 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSR1/271
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSR1/2CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSR1/2ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSR1/2EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSR3/871
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSR3/8CF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSR3/8ED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSR3/8EDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSR71
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSRCF
Heavy Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE08ZSRED71
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with EO-2 functional nut
GE08ZSREDCF
Heavy Male BSPP thread - ED (ISO 1179) 24° cone end 8 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with EO-2 functional nut
GE10L1/2NPT71
Light Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L1/2NPT71X
Light Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Stainless steel na
GE10L1/2NPTCF
Light Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L1/2NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10L1/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L1/4NPT71X
Light Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Stainless steel na
GE10L1/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L1/4NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10L1/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 10 1/8-27 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L1/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 10 1/8-27 NPT Straight male stud connector Stainless steel na
GE10L1/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 10 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L1/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 10 1/8-27 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10L3/4NPT71
Light Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L3/4NPT71X
Light Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Stainless steel na
GE10L3/4NPTCF
Light Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L3/4NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10L3/8NPT71
Light Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L3/8NPT71X
Light Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Stainless steel na
GE10L3/8NPTCF
Light Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L3/8NPTCFX
Light Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10L7/16UNF71
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 7/16-20UNF-2A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10L7/16UNFCF
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10L7/16UNFOMD71
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 7/16-20UNF-2A Straight male stud connector Stainless steel na
GE10L7/16UNFOMDCF
Light Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 7/16-20UNF-2A Straight male stud connector Steel, Chromium-6 Free na
GE10LLR71
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LLR71X
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Stainless steel na
GE10LLRCF
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LLRCFX
Very light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free na
GE10LM10X171
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 10X1.0 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM10X171X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 10X1.0 Straight male stud connector Stainless steel na
GE10LM10X1CF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 10X1.0 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM10X1CFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 10X1.0 Straight male stud connector Steel, Chromium-6 Free na
GE10LM12X1.571
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 12X1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
Part Series Connection 1 Style Connection 2 Style Connection 2 Tube O.D. (mm) Connection Size Shape Fitting Material Pre-Installed Optional Accessories
GE10LM12X1.571X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 12X1.5 Straight male stud connector Stainless steel na
GE10LM12X1.5CF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 12X1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM12X1.5CFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 12X1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM12X1.5ED71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 12x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM12X1.5EDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM12X1.5EDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 12x1.5 Straight male stud connector Stainless steel na
GE10LM12X1.5EDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 12x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM16X1.571
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16X1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM16X1.571X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16X1.5 Straight male stud connector Stainless steel na
GE10LM16X1.5CF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16X1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM16X1.5CFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16X1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM16X1.5ED71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM16X1.5EDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM16X1.5EDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Stainless steel na
GE10LM16X1.5EDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM18X1.571
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 18X1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM18X1.571X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 18X1.5 Straight male stud connector Stainless steel na
GE10LM18X1.5CF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 18X1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM18X1.5CFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 18X1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM18X1.5ED71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 18x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM18X1.5EDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM18X1.5EDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 18x1.5 Straight male stud connector Stainless steel na
GE10LM18X1.5EDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 18x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM22X1.571
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 22X1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM22X1.571X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 22X1.5 Straight male stud connector Stainless steel na
GE10LM22X1.5CF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 22X1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM22X1.5CFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 22X1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM22X1.5ED71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 22x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM22X1.5EDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LM22X1.5EDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 22x1.5 Straight male stud connector Stainless steel na
GE10LM22X1.5EDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 22x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LM71
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LM71X
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Stainless steel na
GE10LMCF
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LMCFX
Light Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LMED71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LMEDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LMEDOMD71
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Stainless steel na
GE10LMEDOMDCF
Light Male metric thread - ED (ISO 9974) 24° cone end 10 M 14x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10LR1/271
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR1/271X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Stainless steel na
GE10LR1/2CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR1/2CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR1/2ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR1/2EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR1/2EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Stainless steel na
GE10LR1/2EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/2 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR1/4KEG71
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR1/4KEG71X
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Stainless steel na
GE10LR1/4KEGCF
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR1/4KEGCFX
Light Male short BSPT taper thread (DIN 3852-2, type C) 24° cone end 10 R 1/4 tap. Straight male stud connector Steel, Chromium-6 Free na
GE10LR1/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR1/871X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Stainless steel na
GE10LR1/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR1/8CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR1/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR1/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR1/8EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Stainless steel na
GE10LR1/8EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/8 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR3/871
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR3/871X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Stainless steel na
GE10LR3/8CF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR3/8CFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR3/8ED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR3/8EDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LR3/8EDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Stainless steel na
GE10LR3/8EDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 3/8 A Straight male stud connector Steel, Chromium-6 Free na
GE10LR71
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LR71X
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Stainless steel na
GE10LRCF
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LRCFX
Light Male BSPP thread - metal sealing edge (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE10LRED71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10LREDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10LREDOMD71
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Stainless steel na
GE10LREDOMDCF
Light Male BSPP thread - ED (ISO 1179) 24° cone end 10 G 1/4 A Straight male stud connector Steel, Chromium-6 Free na
GE10S1/2NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10S1/2NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Stainless steel na
GE10S1/2NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10S1/2NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/2-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10S1/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10S1/4NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Stainless steel na
GE10S1/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10S1/4NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 10 1/4-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10S3/4NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10S3/4NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Stainless steel na
GE10S3/4NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10S3/4NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/4-14 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10S3/8NPT71
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10S3/8NPT71X
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Stainless steel na
GE10S3/8NPTCF
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10S3/8NPTCFX
Heavy Male NPT thread (SAE J476) 24° cone end 10 3/8-18 NPT Straight male stud connector Steel, Chromium-6 Free na
GE10S9/16UNF71
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 9/16-18UNF-2A Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10S9/16UNFCF
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 9/16-18UNF-2A Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10S9/16UNFOMD71
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 9/16-18UNF-2A Straight male stud connector Stainless steel na
GE10S9/16UNFOMDCF
Heavy Male UNF/UN thread - O-ring (ISO 11926) 24° cone end 10 9/16-18UNF-2A Straight male stud connector Steel, Chromium-6 Free na
GE10SM71
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
GE10SM71X
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Stainless steel na
GE10SMCF
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free Pre-assembled with nut and EO-PSR cutting ring
GE10SMCFX
Heavy Male metric thread - metal sealing edge (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Steel, Chromium-6 Free na
GE10SMED71
Heavy Male metric thread - ED (ISO 9974) 24° cone end 10 M 16x1.5 Straight male stud connector Stainless steel Pre-assembled with nut and EO-DPR cutting ring
|
fcg.cnmec@parkerdistribution.com.cn
