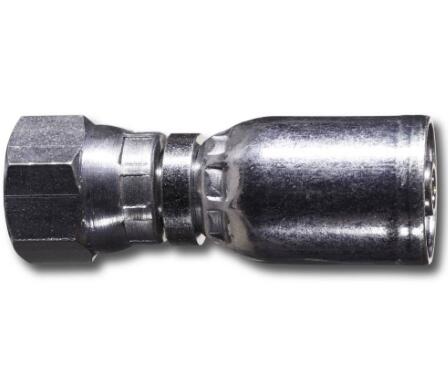

Crimped Thermoplastic Hydraulic Hose Fittings, 54 Series
Parker 54 Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose type 515H.
Parker 54 Fittings are designed to perfectly connect with the respective Parker hoses, ensuring an ideal combination. Our hose assemblies serve our customers needs reliably and efficiently.
Markets:
- Industrial
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Industrial hydraulics
- Suitable for hose type 515H with working pressure from 25 up to 63 MPa (3625 up to 9140 psi)
Technical Specifications
| Nominal Hose Inside Diameter: |
6, 10, 5, 8 mm |
| Hose I.D. (size): |
-4, -6, -3, -5 |
| Hose Inside Diameter: |
1/4, 3/8, 3/16, 5/16 inch |
| Connection Thread Size: |
NA, 1/4, 3/8, 12x1.5, 14x1.5, 16x1.5, 18x1.5 inch |
| Connection Type: |
NA, BSP, Metric |
| Tube Outside Diameter: |
NA, 1/4, 3/8 inch |
| Length: |
49, 54, 36, 70, 73, 81, 51, 59, 61, 33, 40, 43, 60, 35, 39, 42, 44, 65, 63, 82, 45 mm, 1,9, 2,1, 1,4, 2,8, 2,9, 3,2, 2, 2,3, 2,4, 1,3, 1,6, 1,7, 1,5, 2,6, 2,5, 1,8 inch |
| Fitting Type: |
1D, 92, B1, B2, C3, C4, C5, CA, CE, CF |
| Materials of Construction: |
Galvanised steel |
Crimped Thermoplastic Hydraulic Hose Fittings, 54 Series 型號
| Part |
Maximum Working Pressure (MPa) |
Style |
Hose I.D. (mm) |
Shape |
Tube O.D. (mm) |
Connection Thread Size (mm) |
| 11D54-12-6 |
25 |
Metric standpipe |
9.5 |
Straight |
12 |
NA |
| 11D54-6-4 |
25 |
Metric standpipe |
6.3 |
Straight |
6 |
NA |
| 11D54-8-4 |
25 |
Metric standpipe |
6.3 |
Straight |
8 |
NA |
| 19254-4-4 |
63 |
BSP female swivel 60° cone |
6.3 |
Straight |
NA |
NA |
| 1B154-4-4 |
63 |
BSP female swivel 60° cone |
6.3 |
45° Elbow |
NA |
NA |
| 1B254-4-4 |
63 |
BSP female swivel 60° cone |
6.3 |
90° Elbow |
NA |
NA |
| 1C354-10-5 |
25 |
Metric female swivel 24°/60° |
7.9 |
Straight |
10 |
16x1.5 |
| 1C354-8-4 |
25 |
Metric female swivel 24°/60° |
6.4 |
Straight |
8 |
14x1.5 |
| 1C554-8-4 |
25 |
Metric female swivel 24°/60° |
6.4 |
90° Elbow |
8 |
14x1.5 |
| 1CA54-10-5 |
40 |
Metric female swivel 24° with O-ring |
7.9 |
Straight |
10 |
16x1.5 |
| 1CA54-10-6 |
40 |
Metric female swivel 24° with O-ring |
9.5 |
Straight |
10 |
16x1.5 |
| 1CA54-12-6 |
35 |
Metric female swivel 24° with O-ring |
9.5 |
Straight |
12 |
18x1.5 |
| 1CA54-6-3 |
31.5 |
Metric female swivel 24° with O-ring |
4.8 |
Straight |
6 |
12x1.5 |
| 1CA54-8-4 |
42.5 |
Metric female swivel 24° with O-ring |
6.3 |
Straight |
8 |
14x1.5 |
| 1CE54-12-6 |
35 |
Metric female swivel 24° with O-ring |
9.5 |
45° Elbow |
12 |
18x1.5 |
| 1CE54-8-4 |
42.5 |
Metric female swivel 24° with O-ring |
6.3 |
45° Elbow |
8 |
14x1.5 |
| 1CF54-10-6 |
40 |
Metric female swivel 24° with O-ring |
9.5 |
90° Elbow |
10 |
|
|
