Parker 高壓海底球閥 -
Parker Ball Valves
20,000 PSI Ball Valve - Subsea Series
20,000 PSI 球閥 - 海底系列 | #20,000 PSI 球閥 - 海底系列
20,000 PSI Ball Valve - Subsea Series | #20,000 PSI Ball Valve - Subsea Series
High pressure ball valves for subsea operation. Pressures to 20,000 psi (1379 bar) and water depths to 12,500 feet (3810 meters)
用于海底作業的高壓海底球閥。壓力達 20,000 psi (1379 bar)，水深達 12,500 英尺（3810 米) . 派克 Autoclave 的高壓海底球閥能夠在 20,000 psi (1379 bar) 和 12,500 英尺（3810 米）的深度下工作，尺寸有 3/16"、1/4"、3/8" 和 1/2" . 標準球閥采用 316 不銹鋼制成，并提供特殊材料。我們獨特的設計創新包括一體式耳軸安裝球和閥桿，消除了兩件式設計中常見的剪切失效，可重新擰緊的閥座壓蓋可延長閥座壽命，以及更低摩擦的閥桿密封件，可降低驅動扭矩并提高循環生活。
特點
一件式，耳軸安裝的閥桿設計。
全端口流路最大限度地減少壓降。
PEEK 閥座具有出色的耐化學性、耐熱性和耐磨性。
適用于 NACE MR-01-75
由冷加工不銹鋼制成。
提供可選的 O 形圈材料。
適用于遙控車輛 (ROV) 操作。
可選接液材料。
管道和管道端部連接的多種選擇。
High pressure ball valves for subsea operation. Pressures to 20,000 psi (1379 bar) and water depths to 12,500 feet (3810 meters) .Parker Autoclave's high pressure subsea ball valves are capable of operating to 20,000 psi (1379 bar) and depths of 12,500 feet (3810 meters), in sizes 3/16", 1/4", 3/8", and 1/2". Standard ball valves are furnished in 316 SS with specials materials available. Our unique design innovations include an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and lower friction stem seal that reduces actuation torque and enhances cycle life.
FEATURES
One piece, trunnion mounted stem design.
Full port flow path minimizes pressure drop.
PEEK seats for excellent chemical, heat and wear resistance.
Available to NACE MR-01-75
Manufactured from cold worked stainless steel.
Optional O-rings materials available.
Adaptable for Remote Operated Vehicle (ROV) operation.
Optional wetted materials.
Wide selection of tube and pipe end connections.
.jpg)

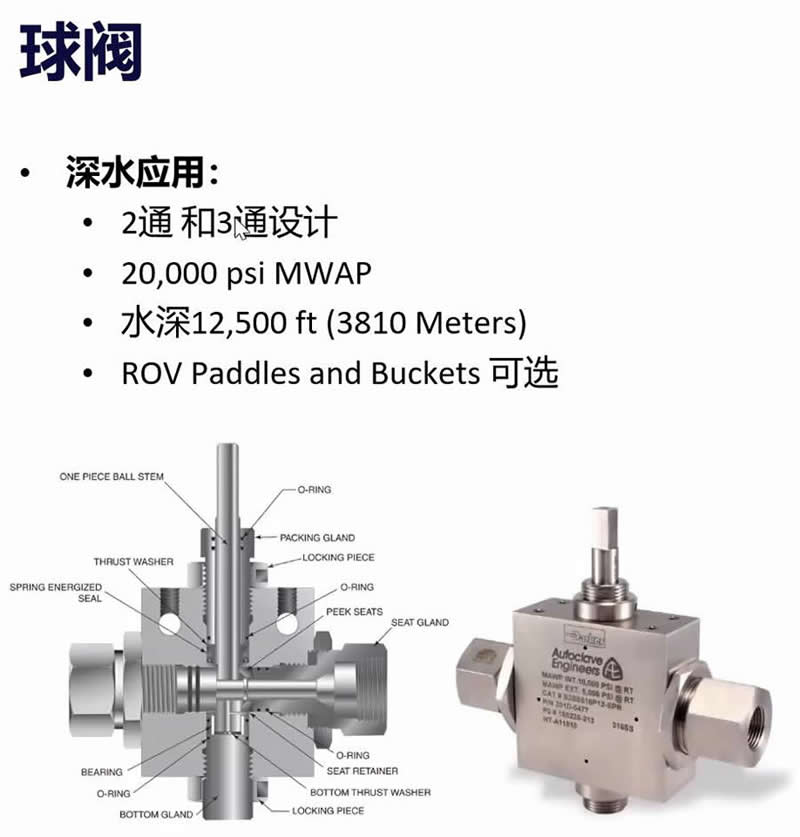

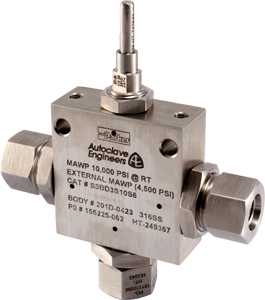

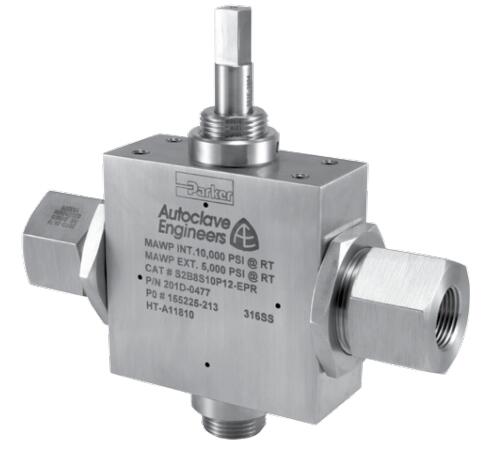

高壓海底球閥
3/16"、1/4"、3/8" 和 1/2" 至 20,000 psi (1379 bar)，可在水深達 12,500 英尺（3810 米）的情況下工作
Parker Autoclave 的高壓海底球閥能夠在 20,000 psi (1379 bar) 和 12,500 英尺（3810 米）的深度下工作，尺寸有 3/16"、1/4"、3/8" 和 1/2" . 標準球閥采用 316 不銹鋼制成，并提供特殊材料。
特征
- 一件式，耳軸安裝閥桿設計。
- 全端口流路最大限度地減少壓降。
- PEEK 閥座具有出色的耐化學性、耐熱性和耐磨性。
- 適用于 NACE MR-01-75
- 由冷加工不銹鋼制成。
- 提供可選的 O 形圈材料。
- 適用于遙控車輛 (ROV) 操作。
- 可選接液材料。
- 管道和管道端部連接的多種選擇。
優點
Parker Autoclave 的高壓球閥旨在提供卓越的質量，以在各種閥門類型、尺寸和過程連接中實現最大性能。 我們獨特的設計創新包括一體式耳軸安裝球和閥桿，消除了兩件式設計中常見的剪切失效，可重新擰緊的閥座壓蓋可延長閥座壽命，以及更低摩擦的閥桿密封件，可降低驅動扭矩并提高循環生活。
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8E10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8E10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8F10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
|
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8F10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8M10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
S2BS8M10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
S2BS8M10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8S10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
|
fcg.cnmec@parkerdistribution.com.cn
