Parker Needle Valves

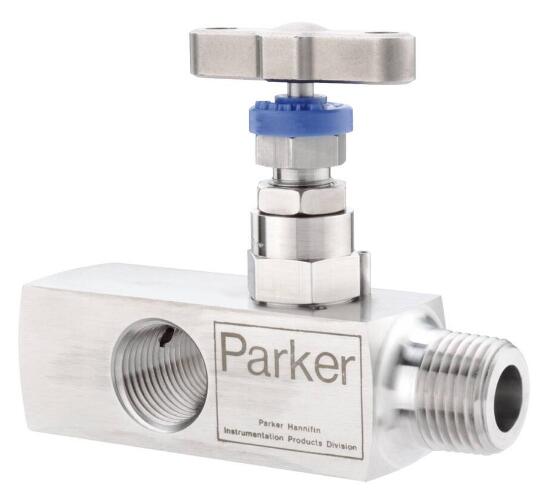

10,000 PSI Needle Valve - HGV Multi Port Series

Parker's multi-port gauge valves are purpose designed valves for operation up to 6,000 psig (414 bar) and 10,000 psig (689 bar).

Parker's Multi-port gauge valves are purpose designed valves for operation up to 6000 psig (414 bar) and 10000 psi (689 bar). Complete with standard PTFE gland packing and self centering none rotational tip gives the user assurance of bubble tight seat shut off. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations. NACE compliance and oxygen clean are also available along with an extensive list of materials. Each valve has 3 female outlets giving the user optimum selection for instrument positioning and location.

10,000 PSI Needle Valve - HGV Multi Port Series

Features:
- Rolled spindle operating threads
- Stainless steel construction as standard
- PTFE packing standard, optional graphite
- Alternative tip and materials of construction available
- Self centering non rotating spindle tip for bubble tight shut off
- Colour coded functional identification
- Back stop spindle for blowout prevention and minimal atmospheric leakage
- Low torque operating T bar handle.
- Externally adjustable gland
- Base mount option
- Variety of end connections including integral compression one piece bodies
- Dust cap to prevent ingress of contamination to operating thread
- Bonnet locking pin fitted as standard

Technical Specifications

10,000 PSI Needle Valve - HGV Multi Port Series 型號
