Dynalco SST-7200 Digital Speed Switch數字速度開關
Download Info資料下載:
Dynalco SST-7200 / 7200D / 7400 / 7400D Data Sheet
Dynalco SST-7200/7400 Manual
Product Code: SST-7200

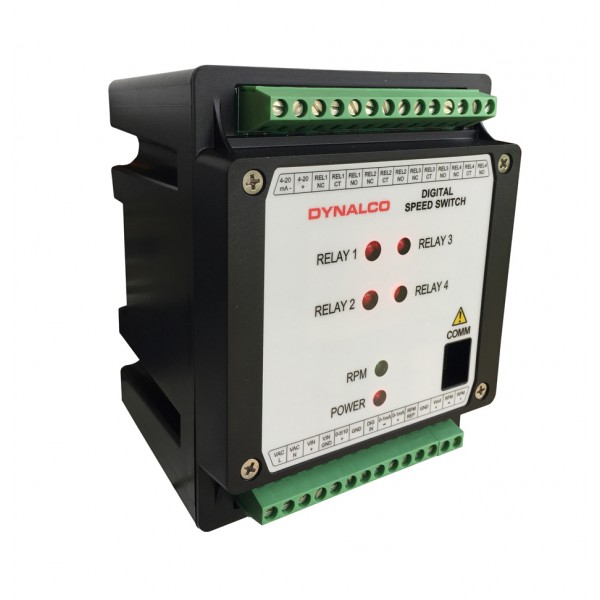

Dynalco SST-7200 Digital Speed Switch數字速度開關
Description產品簡介
Dynalco SST-7200是一個PC可編程、安裝在DIN軌道上的速度開關，配有2個標準繼電器，通過提供可靠的欠速/超速保護，保護旋轉設備免受故障的影響。SST-7200 is a PC-programmable, DIN rail mounted speed switch with 2 standard relays to protect your rotating equipment from failure by providing reliable under/over speed protection
SST-7200, SST-7400 SST-7200D & SST-7400D Product Data Sheet
Instrumentation & Controls Speed Switch / Transmitter
- Accepts 2 or 3-wire speed sensors
- 0 - 50 KHz input frequency range
- 4 – 20 mA output (isolated)
- 0 – 5 / 0 – 10 VDC linear output
- 50 msec relay response time
- 2 or 4 SPDT relays
- Failed (open) pickup sensing
- Square wave repeater output
- 10 – 36 VDC input supply power
- Available input isolation transformer
- PC programmable over USB port
- Front Keypad programmable (for models with LCD Display)
- –I suffix:
Isolated RPM input from the power supply
ground by more than 300V peak
- –AC suffix (for models with LCD Display):
AC supply voltage to use for the VAC L / VAC N terminals (see Electrical specifications)
SST-7200D和SST-7400D接受脈沖輸入，并提供4-20mA輸出，該輸出非常精確和穩定，溫度變化代表本地面板儀表或PLC模擬輸入卡的旋轉機械速度。它們還提供2個“SST-7200（D）”和4個“SST-7400（D）”快速繼電器對超速/低速條件的響應。應用范圍包括工業發動機、渦輪機械和泵的速度測量和超速保護。SST-7200(D) & SST-7400(D) accept a pulsed input and provide a 4-20 mA output that is very accurate and stable with temperature changes representing speed of rotating machinery for a local panel meter or PLC analog input card. They also provide 2 “SST-7200(D)” and 4 “SST-7400(D)” quick relay responses to over/under speed conditions. Applications include speed measurement & overspeed protection of industrial engines, turbomachinery and pumps.
SPECIFICATIONS
規格參數
Electrical電氣:
Supply Voltage: 10 – 36 VDC, maximum 5 Watts (standard)
–AC suffix: Only for models with LCD Display.
AC (and DC) supply voltage on terminals VAC L & VAC N.
115 to 280 VAC & 115 to 400 VDC, with maximum 10 Watts.
Input Types: 2-wire magnetic pickup (variable reluctance)
3-wire Hall-Effect
3-wire amplified VR type
–I suffix: Isolated RPM input from the power supply ground by more than 300V peak
Input Sensitivity: 25 mV min – 50 VRMS max
Proportional Output: Fully isolated 4 – 20 mA (sourced)
Plus 0 – 5 VDC or 0 – 10 VDC
0-1 mA linear output for instrument display
Relays: SPDT contacts rated 6 Amps at 28 VDC or 115 VAC
Display Information:
RPM, Alarms, Settings (RPM signal, setpoints / relay logic, analog input,security, relay test, setpoint log, and display)
Mechanical:
DIN rail mount (standard 35 mm)
Environmental:
Operating temperature range
-40°C to +70°C
Storage temperature range
-40°C to +80°C
HOW TO ORDER訂貨指導：
Specify part number as follows:
2 setpoints
SST-7200 with LED
SST-7200D with Display
SST-7200-I with LED, Isolated RPM input
SST-7200D-I with Display, Isolated RPM input
SST-7200D-AC with Display, VAC supply power
SST-7200D-I-AC with Display, VAC supply power & Isolated RPM input
4 setpoints
SST-7400 with LED
SST-7400D with Display
SST-7400-I with LED, Isolated RPM input
SST-7400D-I with Display, Isolated RPM input
SST-7400D-AC with Display, VAC supply power
SST-7400D-I-AC with Display, VAC supply power & Isolated RPM input
