DynalcoM321 magnetic pickup sensor IECEx 批準的磁性拾音器/速度傳感器
該標準可變磁阻 IECEx 批準的磁性拾音器具有標準靈敏度，使其最適合速度 > 300 rpm、大齒輪（> 12 英寸直徑）。它可以選擇螺紋長度、螺紋類型（公制和英制）和電氣連接。
IECEx Ex mb IIC 和 Ex ia IIC 雙重認證
ATEX認證
M321系列描述
多種螺紋尺寸和長度
無源（可變磁阻）-危險區域
高靈敏度（最低速度 > 300 RPM）
該磁性拾音傳感器通過了 ATEX 和 IECEx 認證，可用于危險區域：Ex mb（1、2 區）和 Ex ia（0、1、2 區）。它是一款靈敏的拾音器，適用于中速應用（最低 300 至 500 rpm）、較大齒輪（> 2 英寸直徑）應用。M321 具有 UNF2A 和 M（公制）型多種螺紋尺寸，螺紋長度從 1.875" 到 6"。
300 系列不銹鋼外殼完全采用危險區域級環氧樹脂封裝，內部沒有氣隙，這使得它在危險區域使用時可靠、堅固且絕對安全。
下載
M321 IECEx Approved Magnetic Pickup / Speed Sensor
This standard variable reluctance IECEx approved magnetic pickup has standard sensitivity which makes it best suited for speeds >300 rpm, large gear (>12 inch diam.). It has a choice of threaded lengths, thread type (Metrix and imperial) and electrical connections.
Dual approval for IECEx Ex mb IIC and Ex ia IIC
M321 Series
Description
Multiple Thread Sizes and Lengths
Passive (Variable Reluctance) - Hazardous Area
High Sensitivity (min. Speed > 300 RPM)
This magnetic pickup sensor is ATEX and IECEx approved for use in hazardous areas: Ex mb (Zone 1, 2) and Ex ia (Zone 0, 1, 2). It is a sensitive pickup suitable for mid-speed applications (300 to 500 minimum rpm), larger gear (>2 inch diam) applications. M321 has multiple thread sizes of UNF2A and M (metric) type, and thread lengths from 1.875” to 6”.
The 300 series Stainless Steel housing is fully potted with hazardous area rated epoxy resin with no air gap inside, which makes it a reliable, robust and absolutely safe for use in Hazardous areas.
M321 Series M321 High Sensitivity Sensors Multiple Thread Sizes and Lengths Passive (Variable Reluctance) - Hazardous Area High Sensitivity (min. Speed > 300 RPM)
MAGNETIC PICKUP WITH
HAZARDOUS AREA APPROVAL

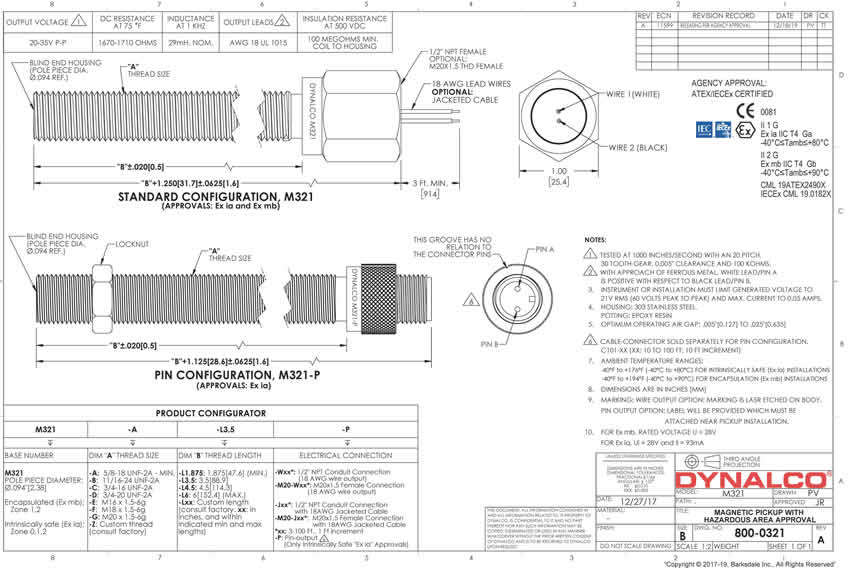

圖紙
|
