Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors
Dynalco SC-2124系列24通道通用掃描儀/顯示器
SC2124
我們的SC2124掃描儀/控制器是基于微處理器的控制器，具有24個模擬輸入通道，提供A，B或C類警報和停機，以及4個用于控制的繼電器輸出。 CSA批準。 基于SC-2000系列微處理器的掃描儀可連續采樣溫度，壓力和其他模擬信號。 大型多信息顯示屏既指示每個通道的值，又指示任何警報情況。 SC-2124型號具有大型4x20字符顯示屏，最多可接收24個0-5 V輸入，并具有8個板載電阻器，最多可用于8個4-20 mA輸入。 鍵盤可讓您訪問和配置J或K型熱電偶以及RTD和線性輸入。
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Datasheet
SC2124M-使用Modbus通訊
基于SC-2000系列微處理器的掃描儀可連續采樣溫度，壓力和其他模擬信號。 大型多信息顯示屏既指示每個通道的值，又指示任何警報情況。 SC-2124M型具有4x20大型字符顯示屏，并使用Modbus?RTU通信進行遠程監控。 它最多接受24個0-5 V輸入，并具有8個板載電阻，最多8個4-20 mA輸入。 鍵盤可讓您訪問和配置J或K型熱電偶以及RTD和線性輸入。
特征
- 基于微處理器的通信，用于遠程監控或便攜式計算機配置。
- 24個通用模擬輸入通道可配置為監視熱電偶，電壓和4–20
- 毫安輸入。
- A，B或C類警報和關閉。
- 開路熱電偶和RTD檢測。
- 寬直流電源范圍（9–38 Vdc）。
- 大型的4行乘20字符的字母數字顯示屏顯示所有通道的狀態以及通道名稱。
- 儀表總線（遠程顯示總線）：最多八個IDM-200顯示器，用于任何通道的專用顯示。
- 符合人體工程學的密封膜鍵盤，帶觸覺反饋。
-
堅固的前密封外殼。
-
DB型連接器可提供干凈，可靠的接線。
SC-2124M
配件類
- SC-CBLE25MM：6英尺電纜和接線盒，用于12個輸入（24個輸入系統需要2個）。
- SC-CBLE25MF：6英尺電纜和繼電器接線端子。
- SC-CBLE15MF：6英尺電纜和電源等的接線端子
所有型號：選項
- SC-RTD：過濾和調節模塊，最多可讀取12個100 ohm Pt或120 ohm Ni RTD通道。
- ETS-202：熱電偶的冷端補償。
- IDM-200：直徑為33/8英寸（?85.7毫米）的數字遠程顯示器。
資料下載Downloads
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors CSA Approval (EN)
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Manual (EN)
Dynalco Scanner WinHost Version 2.13 Software (EN)
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Datasheet (EN)
Dynalco SC-2124系列24通道通用掃描儀/顯示器 CSA認證（EN）
Dynalco SC-2124系列24通道通用掃描儀/顯示器手冊（ZH）
Dynalco Scanner WinHost版本2.13軟件（ZH）
Dynalco SC-2124系列24通道通用掃描儀/監控器數據表（ZH）
SC-2124 Series
Description
SC2124
Our SC2124 scanner/controller is a microprocessor based controller that has 24 channels of Analog input, offers Class A, B or C alarms and shutdowns and 4 relay outputs for controls. CSA approved.
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions.

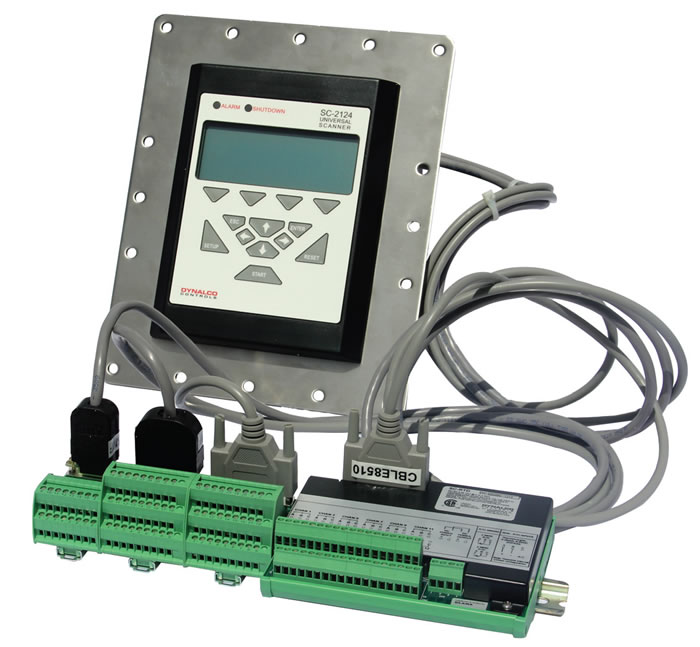

Model SC-2124 has a large 4x20 character display and accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs.
SC2124M - with Modbus communications
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions.
Model SC-2124M has a large 4x20 character display and uses Modbus? RTU communication for remote monitoring. It accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs.
Features
- Microprocessor-based with communications for remote monitoring or laptop configuration.
- 24 universal analog input channels configurable for monitoring thermocouples, voltages, and 4–20
- mA inputs.
- Class A, B, or C alarms and shutdowns.
- Open thermocouple and RTD detection.
- Wide DC power range (9–38 Vdc).
- Large 4-row by 20-character alphanumeric display shows status of all channels along with channel names.
- Meter Bus (remote display bus): up to eight IDM-200 displays for dedicated display of any channel.
- Ergonomic, sealed-membrane keypad with tactile feedback.
- Rugged, front-sealed enclosure.
- DB-style connectors for clean, reliable wiring.
SC-2124M
- SC-2124 with Modbus communications.
ACCESSORIES
- SC-CBLE25MM: 6 ft cable & terminal block for 12 inputs (2 required for 24 input system).
- SC-CBLE25MF: 6 ft cable & terminal block for relays.
- SC-CBLE15MF: 6 ft cable & terminal block for power, etc.
ALL MODELS: Options
- SC-RTD: Filtering and conditioning module to read up to 12 channels of 100 ohm Pt or 120 ohm Ni RTDs.
- ETS-202: Cold-junction compensation for thermocouples.
- IDM-200: 33/8 in. (~85.7 mm) diameter digital remote display.
|
