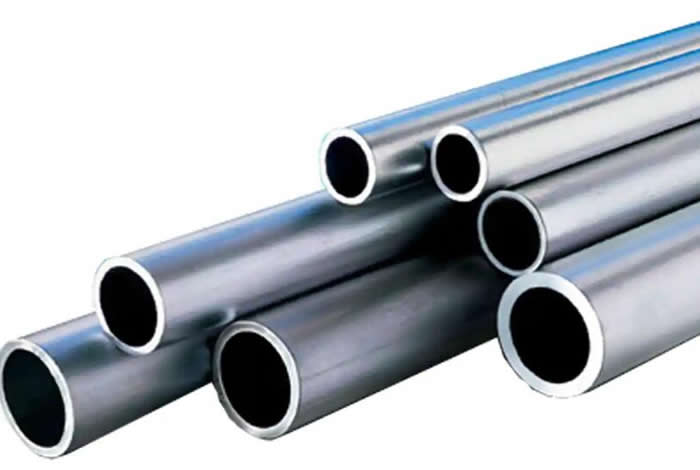

Parker Seamless EO tubes and tube bends
派克無縫EO管和彎管
派克的管件程序為液壓應用提供了所有可能性。用于移動和固定系統的管。提供不同尺寸，碳鋼和不銹鋼管以及不同表面。The tube programme from Parker gives all possibilities for usage in hydraulic applications. Tubes for mobile and stationary systems. Different dimensions, carbon- and stainless-steel tubes as well as different surfaces are available.
Parker Hannifin的管件程序為液壓應用提供了所有可能性。管件和法蘭系統的管，移動和固定系統的管。提供不同尺寸，碳鋼和不銹鋼管以及不同表面。派克管是為滿足多個市場的特殊要求而設計的。在實驗室和測試臺上進行連續測試可確保材料的高質量水平。來自獨立機構（例如ABS，LR或DNV）的認證證明了對高標準的遵守。這打開了液壓應用的可靠性和使用壽命。派克漢尼fin管材倉庫擁有遍布全球的網絡，可提供緊密，及時的高精度管材供應。因此，國際客戶也可以依靠我們。世界上幾乎每個國家都可以提供高效，可靠，環保和準時的交貨。
市場：
- 汽車
- 國防
- 能源
- 環境
- 工業
- 基礎設施
- 機床
- 物料搬運
- 移動
- 石油和天然氣
- 發電
- 過程
- 運輸
- 水
應用：
- 適用于一般液壓應用。
EO管和彎管的特點/優點：
- Parker管有不同尺寸和不同表面。因此，派克管可用于廣泛的應用。
- 派克管是為滿足多個市場的特殊要求而設計的。在實驗室和測試臺上進行連續測試可確保材料的高質量水平。來自獨立機構（例如ABS，LR或DNV）的認證證明了對高標準的遵守。這打開了液壓應用的可靠性和使用壽命。
- Parker建議使用冷拔的無縫液壓管和acc。符合DIN EN 10305-4.E 355N（St.52.4 NBK）或E 235N（St.37.4 NBK），因為這些管具有較高的承壓能力，出色的結垢表面，并且尺寸非常精確。這些優點有助于增強整個系統的可靠性以及燈管的使用壽命。
- 此外，Parker建議使用根據DIN EN 10216-5，ASTM A269 / A213和ASTM A312的無縫冷拔不銹鋼管。這些管具有高耐壓能力，出色的除垢表面，并且尺寸非常精確。這些優點有助于增強整個系統的可靠性以及這些燈管的使用壽命。
技術指標
管壁厚度（mm）： 0.5
材料： E235 + N（ST37.4; 1.0308），“黑色”（涂磷酸鹽和上油）
管外徑（mm）： 4
管內徑（mm）： 3
管尺寸： 公制（米）
形狀： 直行
結構材料： E235 + N（ST37.4; 1.0308），“黑色”（涂磷酸鹽和上油）
形狀： 直行
管外徑： 公制4毫米
管壁厚度： 0.5毫米
管內徑： 3毫米
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R04X0.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
4 |
0.5 |
3 |
R04X0.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
4 |
0.5 |
3 |
R04X0.75CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
4 |
0.75 |
2.5 |
R04X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
4 |
1 |
2 |
R04X1-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
4 |
1 |
2 |
R04X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
4 |
1 |
2 |
R04X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
4 |
1 |
2 |
R05X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
5 |
1 |
3 |
R06X0.75CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
6 |
0.75 |
4.5 |
R06X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
6 |
1 |
4 |
R06X1-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
6 |
1 |
4 |
R06X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
6 |
1.5 |
3 |
R06X1.5-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
6 |
1.5 |
3 |
R06X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
6 |
1.5 |
3 |
R06X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
6 |
1.5 |
3 |
R06X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
6 |
1 |
4 |
R06X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
6 |
1 |
4 |
R06X2.25 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
6 |
2.25 |
1.5 |
R06X2.25CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
6 |
2.25 |
1.5 |
R06X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
6 |
2 |
2 |
R08X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
8 |
1 |
6 |
R08X1-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
8 |
1 |
6 |
R08X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
8 |
1.5 |
5 |
R08X1.5-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
8 |
1.5 |
5 |
R08X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
8 |
1.5 |
5 |
R08X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
8 |
1.5 |
5 |
R08X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
8 |
1 |
6 |
R08X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
8 |
1 |
6 |
R08X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
8 |
2 |
4 |
R08X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
8 |
2.5 |
3 |
R08X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
8 |
2 |
4 |
R1/2X0.035TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
12.7 |
0.89 |
10.92 |
R1/2X0.049TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
12.7 |
1.24 |
10.22 |
R1/2X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
12.7 |
1.65 |
9.4 |
R1/2X0.083TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
12.7 |
2.11 |
8.48 |
R1/4X0.035TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
6.35 |
0.89 |
4.57 |
R1/4X0.049TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
6.35 |
1.24 |
3.87 |
R1/4X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
6.35 |
1.65 |
3.05 |
R1/8X0.028TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
3.18 |
0.71 |
1.76 |
R100X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
100 |
4 |
92 |
R101.60X3.05-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
101.6 |
3.05 |
95.5 |
R101.60X5.74-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
101.6 |
5.74 |
90.12 |
R101.60X8.08-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
101.6 |
8.08 |
85.44 |
R101.6X16ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
101.6 |
16 |
69.6 |
R10X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
10 |
1 |
8 |
R10X1-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
10 |
1 |
8 |
R10X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
10 |
1.5 |
7 |
R10X1.5-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
10 |
1.5 |
7 |
R10X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
10 |
1.5 |
7 |
R10X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
1.5 |
7 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R10X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
10 |
1 |
8 |
R10X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
1 |
8 |
R10X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
10 |
2 |
6 |
R10X2-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
10 |
2 |
6 |
R10X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
10 |
2.5 |
5 |
R10X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
2.5 |
5 |
R10X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
10 |
2 |
6 |
R10X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
2 |
6 |
R10X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
2 |
6 |
R10X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
10 |
3 |
4 |
R114.30X13.49-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
114.3 |
13.49 |
87.32 |
R114.30X3.05-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
114.3 |
3.05 |
108.2 |
R114.30X6.02-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
114.3 |
6.02 |
102.26 |
R114.30X8.56-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
114.3 |
8.56 |
97.18 |
R114.3X17.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
114.3 |
17.5 |
79.3 |
R115X15ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
115 |
15 |
85 |
R115X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
115 |
4 |
107 |
R120X20ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
120 |
20 |
80 |
R12X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
12 |
1 |
10 |
R12X1-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
12 |
1 |
10 |
R12X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
12 |
1.5 |
9 |
R12X1.5-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
12 |
1.5 |
9 |
R12X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
12 |
1.5 |
9 |
R12X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
1.5 |
9 |
R12X1.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
1.5 |
9 |
R12X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
12 |
1 |
10 |
R12X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
1 |
10 |
R12X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
12 |
2 |
8 |
R12X2-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
12 |
2 |
8 |
R12X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
2.5 |
7 |
R12X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
12 |
2 |
8 |
R12X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
2 |
8 |
R12X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
2 |
8 |
R12X3.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
3.5 |
5 |
R12X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
12 |
3 |
6 |
R13.72X1.65-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
13.72 |
1.65 |
10.42 |
R13.72X2.24-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
13.72 |
2.24 |
9.24 |
R13.72X3.02-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
13.72 |
3.02 |
7.68 |
R130X15ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
130 |
15 |
100 |
R140X4.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
140 |
4.5 |
131 |
R141.30X15.88-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
141.3 |
15.88 |
109.54 |
R141.30X6.55-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
141.3 |
6.55 |
128.2 |
R141.30X9.53-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
141.3 |
9.53 |
122.24 |
R14X1.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
14 |
1.5 |
11 |
R14X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
14 |
1.5 |
11 |
R14X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
14 |
1.5 |
11 |
R14X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
14 |
2 |
10 |
R14X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
14 |
2 |
10 |
R14X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
14 |
2.5 |
9 |
R14X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
14 |
2.5 |
9 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R14X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
14 |
2.5 |
9 |
R14X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
14 |
2.5 |
9 |
R14X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
14 |
2 |
10 |
R14X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
14 |
2 |
10 |
R14X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
14 |
3 |
8 |
R150X15ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
150 |
15 |
120 |
R15X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
15 |
1 |
13 |
R15X1-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
15 |
1 |
13 |
R15X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
15 |
1.5 |
12 |
R15X1.5-316BA |
316L (1.4404), BA (bright annealed) |
Straight |
metric (m) |
15 |
1.5 |
12 |
R15X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
15 |
1.5 |
12 |
R15X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
15 |
1.5 |
12 |
R15X1.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
15 |
1.5 |
12 |
R15X171 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
15 |
1 |
13 |
R15X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
15 |
1 |
13 |
R15X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
15 |
2 |
11 |
R15X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
15 |
2 |
11 |
R15X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
15 |
2 |
11 |
R15X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
15 |
2 |
11 |
R15X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
15 |
2 |
11 |
R165X5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
165 |
5 |
155 |
R168.26X3.40-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
168.26 |
3.4 |
161.46 |
R168.28X10.97-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
168.26 |
10.97 |
146.32 |
R168.28X18.26-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
168.26 |
18.26 |
131.74 |
R168.28X7.11-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
168.26 |
7.11 |
154.04 |
R16X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
16 |
1.5 |
13 |
R16X1.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
16 |
1.5 |
13 |
R16X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
16 |
1.5 |
13 |
R16X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
1.5 |
13 |
R16X1.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
1.5 |
13 |
R16X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
16 |
2 |
12 |
R16X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
16 |
2 |
12 |
R16X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
16 |
2.5 |
11 |
R16X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
16 |
2.5 |
11 |
R16X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
16 |
2.5 |
11 |
R16X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
2.5 |
11 |
R16X2.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
2.5 |
11 |
R16X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
16 |
2 |
12 |
R16X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
2 |
12 |
R16X2ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
16 |
2 |
12 |
R16X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
2 |
12 |
R16X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
16 |
3 |
10 |
R16X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
16 |
3 |
10 |
R16X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
16 |
3 |
10 |
R16X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
16 |
3 |
10 |
R17.15X1.65-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
17.15 |
1.65 |
13.85 |
R17.15X2.31-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
17.15 |
2.31 |
12.53 |
R17.15X3.20-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
17.15 |
3.2 |
10.75 |
R18X1 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
18 |
1 |
16 |
R18X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
18 |
1.5 |
15 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R18X1.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
18 |
1.5 |
15 |
R18X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
18 |
1.5 |
15 |
R18X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
1.5 |
15 |
R18X1.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
1.5 |
15 |
R18X1CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
1 |
16 |
R18X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
18 |
2 |
14 |
R18X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
18 |
2 |
14 |
R18X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
18 |
2.5 |
13 |
R18X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
2.5 |
13 |
R18X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
18 |
2 |
14 |
R18X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
2 |
14 |
R18X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
2 |
14 |
R18X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
18 |
3 |
12 |
R190X20ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
190 |
20 |
150 |
R1X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
25.4 |
1.65 |
22.1 |
R1X0.083TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
25.4 |
2.11 |
21.18 |
R1X0.095TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
25.4 |
2.41 |
20.58 |
R1X0.126TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
25.4 |
3.2 |
19 |
R20X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
1.5 |
17 |
R20X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
20 |
2 |
16 |
R20X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
20 |
2 |
16 |
R20X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X2.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X2.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
2.5 |
15 |
R20X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
20 |
2 |
16 |
R20X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
2 |
16 |
R20X2ST52.4 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
20 |
2 |
16 |
R20X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
2 |
16 |
R20X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
20 |
3 |
14 |
R20X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
20 |
3 |
14 |
R20X3.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
3.5 |
13 |
R20X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
20 |
3 |
14 |
R20X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
3 |
14 |
R20X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
3 |
14 |
R20X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
20 |
4 |
12 |
R21.34X2.11-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
21.34 |
2.11 |
17.12 |
R21.34X2.77-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
21.34 |
2.77 |
15.8 |
R21.34X3.73-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
21.34 |
3.73 |
13.88 |
R21.34X4.78-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
21.34 |
4.78 |
11.78 |
R219.08X12.70-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
219.08 |
12.7 |
193.68 |
R219.08X23.01-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
219.08 |
23.01 |
173.06 |
R219.08X8.18-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
219.08 |
8.18 |
202.72 |
R220X6 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
220 |
6 |
208 |
R22X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
22 |
1.5 |
19 |
R22X1.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
22 |
1.5 |
19 |
R22X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
22 |
1.5 |
19 |
R22X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
1.5 |
19 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R22X1.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
1.5 |
19 |
R22X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
22 |
2 |
18 |
R22X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
22 |
2 |
18 |
R22X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
22 |
2.5 |
17 |
R22X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
2.5 |
17 |
R22X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
22 |
2 |
18 |
R22X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
2 |
18 |
R22X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
2 |
18 |
R22X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
3 |
16 |
R22X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
22 |
4 |
14 |
R250X25ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
250 |
25 |
200 |
R25X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
25 |
2 |
21 |
R25X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
25 |
2 |
21 |
R25X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
25 |
2.5 |
20 |
R25X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
25 |
2.5 |
20 |
R25X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
25 |
2.5 |
20 |
R25X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
2.5 |
20 |
R25X2.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
2.5 |
20 |
R25X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
25 |
2 |
21 |
R25X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
2 |
21 |
R25X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
25 |
3 |
19 |
R25X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
25 |
3 |
19 |
R25X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
25 |
3 |
19 |
R25X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
3 |
19 |
R25X3ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
25 |
3 |
19 |
R25X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
3 |
19 |
R25X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
25 |
4 |
17 |
R25X4.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
4.5 |
16 |
R25X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
4 |
17 |
R25X4ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
25 |
4 |
17 |
R26.67X2.11-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
26.67 |
2.11 |
22.45 |
R26.67X2.87-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
26.67 |
2.87 |
20.93 |
R26.67X3.91-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
26.67 |
3.91 |
18.85 |
R26.67X5.56-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
26.67 |
5.56 |
15.55 |
R273.00X25.40-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
273 |
25.4 |
222.2 |
R273X6 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
273 |
6 |
261 |
R28X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
28 |
1.5 |
25 |
R28X1.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
28 |
1.5 |
25 |
R28X1.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
28 |
1.5 |
25 |
R28X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
28 |
1.5 |
25 |
R28X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
28 |
2 |
24 |
R28X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
28 |
2 |
24 |
R28X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
28 |
2.5 |
23 |
R28X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
28 |
2.5 |
23 |
R28X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
28 |
2.5 |
23 |
R28X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
28 |
2.5 |
23 |
R28X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
28 |
2 |
24 |
R28X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
28 |
2 |
24 |
R28X2ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
28 |
2 |
24 |
R28X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
28 |
3 |
22 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R28X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
28 |
3 |
22 |
R3/4X0.049TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
19.05 |
1.24 |
16.57 |
R3/4X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
19.05 |
1.65 |
15.75 |
R3/4X0.083TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
19.05 |
2.11 |
14.83 |
R3/4X0.095TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
19.05 |
2.41 |
14.23 |
R3/4X0.109TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
19.05 |
2.77 |
13.51 |
R3/8X0.035TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
9.53 |
0.89 |
7.75 |
R3/8X0.049TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
9.53 |
1.24 |
7.05 |
R3/8X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
9.53 |
1.65 |
6.23 |
R30X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
30 |
2.5 |
25 |
R30X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
30 |
2.5 |
25 |
R30X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
30 |
2.5 |
25 |
R30X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
2.5 |
25 |
R30X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
2 |
26 |
R30X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
30 |
3 |
24 |
R30X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
30 |
3 |
24 |
R30X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
30 |
3 |
24 |
R30X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
3 |
24 |
R30X3ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
30 |
3 |
24 |
R30X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
3 |
24 |
R30X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
30 |
4 |
22 |
R30X4-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
30 |
4 |
22 |
R30X471 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
30 |
4 |
22 |
R30X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
4 |
22 |
R30X4ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
4 |
22 |
R30X5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
30 |
5 |
20 |
R30X5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
5 |
20 |
R30X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
30 |
5 |
20 |
R33.40X2.77-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
33.4 |
2.77 |
27.86 |
R33.40X3.38-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
33.4 |
3.38 |
26.64 |
R33.40X4.55-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
33.4 |
4.55 |
24.3 |
R33.40X6.35-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
33.4 |
6.35 |
20.7 |
R35X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
35 |
2 |
35 |
R35X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
35 |
2 |
31 |
R35X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
35 |
2.5 |
30 |
R35X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
35 |
2.5 |
30 |
R35X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
35 |
2.5 |
30 |
R35X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
35 |
2.5 |
30 |
R35X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
35 |
2 |
31 |
R35X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
35 |
2 |
31 |
R35X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
35 |
3 |
29 |
R35X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
35 |
3 |
29 |
R35X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
35 |
3 |
29 |
R35X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
35 |
3 |
29 |
R35X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
35 |
3 |
29 |
R35X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
35 |
4 |
27 |
R38X2.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
38 |
2.5 |
33 |
R38X2.571 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
38 |
2.5 |
33 |
R38X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
2.5 |
33 |
R38X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
38 |
3 |
32 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R38X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
38 |
3 |
32 |
R38X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
3 |
32 |
R38X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
3 |
32 |
R38X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
38 |
4 |
30 |
R38X4-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
38 |
4 |
30 |
R38X471 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
38 |
4 |
30 |
R38X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
4 |
30 |
R38X4ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
38 |
4 |
30 |
R38X4ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
4 |
30 |
R38X5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
38 |
5 |
28 |
R38X5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
38 |
5 |
28 |
R38X5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
5 |
28 |
R38X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
5 |
28 |
R38X6-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
38 |
6 |
26 |
R38X6CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
6 |
26 |
R38X6ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
6 |
26 |
R38X7CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
38 |
7 |
24 |
R39X7.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
39 |
7.5 |
24 |
R42.16X2.77-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
42.16 |
2.77 |
36.62 |
R42.16X3.56-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
42.16 |
3.56 |
35.04 |
R42.16X4.85-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
42.16 |
4.85 |
32.46 |
R42.16X6.35-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
42.16 |
6.35 |
29.46 |
R42X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
42 |
2 |
38 |
R42X2-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
42 |
2 |
38 |
R42X271 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
42 |
2 |
38 |
R42X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
2 |
38 |
R42X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
42 |
3 |
36 |
R42X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
42 |
3 |
36 |
R42X371 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
42 |
3 |
36 |
R42X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
3 |
36 |
R42X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
3 |
36 |
R42X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
42 |
4 |
34 |
R42X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
4 |
34 |
R42X4ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
4 |
34 |
R42X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
42 |
5 |
32 |
R44.5X2.671 |
316TI (1.4571), BA (bright annealed) |
Straight |
metric (m) |
44.5 |
2.6 |
39.3 |
R46X8ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
46 |
8 |
30 |
R48.26X2.77-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
48.26 |
2.77 |
42.72 |
R48.26X3.68-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
48.26 |
3.68 |
40.9 |
R48.26X5.08-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
48.26 |
5.08 |
38.1 |
R48.26X7.14-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
48.26 |
7.14 |
33.98 |
R5/16X0.035TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
4.76 |
0.89 |
2.98 |
R5/8X0.049TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
15.88 |
1.24 |
13.4 |
R5/8X0.065TP316/L |
316L (1.4404), BA (bright annealed) |
Straight |
inch (i) |
15.88 |
1.65 |
12.58 |
R50X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
50 |
3 |
44 |
R50X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
50 |
3 |
44 |
R50X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
50 |
3 |
44 |
R50X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
50 |
3 |
44 |
R50X5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
50 |
5 |
40 |
R50X5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
50 |
5 |
40 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R50X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
50 |
5 |
40 |
R50X6 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
50 |
6 |
38 |
R50X6-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
50 |
6 |
38 |
R50X6ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
50 |
6 |
38 |
R50X8ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
50 |
8 |
34 |
R56X8.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
56 |
8.5 |
39 |
R56X8.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
56 |
8.5 |
39 |
R60.33X2.77-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
60.33 |
2.77 |
54.79 |
R60.33X3.91-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
60.33 |
3.91 |
52.51 |
R60.33X5.54-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
60.33 |
5.54 |
49.25 |
R60.33X8.74-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
60.33 |
8.74 |
42.85 |
R60X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
60 |
3 |
54 |
R60X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
60 |
3 |
54 |
R60X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
60 |
3 |
54 |
R60X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
60 |
3 |
54 |
R60X5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
60 |
5 |
50 |
R60X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
60 |
5 |
50 |
R60X6-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
60 |
6 |
48 |
R60X6ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
60 |
6 |
48 |
R60X6ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
60 |
6 |
48 |
R60X8ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
60 |
8 |
44 |
R65X8 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
65 |
8 |
49 |
R65X8ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
65 |
8 |
49 |
R66X8.5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
66 |
8.5 |
49 |
R66X8.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
66 |
8.5 |
49 |
R66X8.5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
66 |
8.5 |
49 |
R73.03X3.05-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
73.03 |
3.05 |
66.93 |
R73.03X5.16-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
73.03 |
5.16 |
62.71 |
R73.03X7.01-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
73.03 |
7.01 |
59.01 |
R73.03X9.52-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
73.03 |
9.52 |
53.99 |
R73X7-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
73 |
7 |
59 |
R73X7ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
73 |
7 |
59 |
R73X7ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
73 |
7 |
59 |
R75X12.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
75 |
12.5 |
50 |
R75X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
75 |
3 |
69 |
R75X3-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
75 |
3 |
69 |
R75X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
75 |
3 |
69 |
R75X3ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
75 |
3 |
69 |
R75X5-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
75 |
5 |
65 |
R75X5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
75 |
5 |
65 |
R75X5ST52CF |
E355+N (ST52.4; 1.0580), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
75 |
5 |
65 |
R80X10-316 |
316L (1.4404), pickled |
Straight |
metric (m) |
80 |
10 |
60 |
R80X10ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
80 |
10 |
60 |
R80X3ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
80 |
3 |
74 |
R80X8ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
80 |
8 |
64 |
R88.90X11.13-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
88.9 |
11.13 |
66.64 |
R88.90X3.05-316 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
88.9 |
3.05 |
82.8 |
R88.90X5.49-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
88.9 |
5.49 |
77.92 |
R88.90X7.62-316-A999 |
316L (1.4404), pickled |
Straight |
schedule (SCH) |
88.9 |
7.62 |
73.66 |
R88X14ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
88 |
14 |
60 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
R90X3.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Straight |
metric (m) |
90 |
3.5 |
83 |
R90X3.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Straight |
metric (m) |
90 |
3.5 |
83 |
R90X3.5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
90 |
3.5 |
83 |
R90X5ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
90 |
5 |
80 |
R90X9ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
90 |
9 |
72 |
R97X12ST52 |
E355+N (ST52.4; 1.0580), "black" (phosphated & oiled) |
Straight |
metric (m) |
97 |
12 |
73 |
RB16X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
16 |
2 |
12 |
RB16X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
16 |
2 |
12 |
RB16X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
16 |
2 |
12 |
RB16X371 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
16 |
3 |
10 |
RB18X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
18 |
1.5 |
15 |
RB18X1.571 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
18 |
1.5 |
15 |
RB18X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
18 |
1.5 |
15 |
RB20X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
20 |
2 |
16 |
RB20X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
20 |
2.5 |
15 |
RB20X2.571 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
20 |
2.5 |
15 |
RB20X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
20 |
2.5 |
15 |
RB20X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
20 |
2 |
16 |
RB20X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
20 |
2 |
16 |
RB22X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
22 |
1.5 |
19 |
RB22X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
22 |
1.5 |
19 |
RB22X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
22 |
2 |
18 |
RB22X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
22 |
2 |
18 |
RB22X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
22 |
2 |
18 |
RB25X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
25 |
2 |
21 |
RB25X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
25 |
2.5 |
20 |
RB25X2.571 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
25 |
2.5 |
20 |
RB25X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
25 |
2.5 |
20 |
RB25X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
25 |
2 |
21 |
RB25X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
25 |
3 |
19 |
RB25X371 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
25 |
3 |
19 |
RB25X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
25 |
3 |
19 |
RB28X1.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
28 |
1.5 |
25 |
RB28X1.571 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
28 |
1.5 |
25 |
RB28X1.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
28 |
1.5 |
25 |
RB28X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
28 |
2 |
24 |
RB28X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
28 |
2 |
24 |
RB28X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
28 |
2 |
24 |
RB28X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
28 |
3 |
22 |
RB28X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
28 |
3 |
22 |
RB30X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
30 |
2.5 |
25 |
RB30X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
30 |
2.5 |
25 |
RB30X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
30 |
3 |
24 |
RB30X371 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
30 |
3 |
24 |
RB30X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
30 |
3 |
24 |
RB30X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
30 |
4 |
22 |
RB30X471 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
30 |
4 |
22 |
RB30X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
30 |
4 |
22 |
RB35X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
35 |
2 |
31 |
RB35X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
35 |
2 |
31 |
Part |
Material |
Shape |
Tube Size |
Tube O.D. (mm) |
Tube Wall Thickness (mm) |
Tube I.D. (mm) |
RB35X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
35 |
2 |
31 |
RB35X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
35 |
3 |
29 |
RB35X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
35 |
3 |
29 |
RB38X2.5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
38 |
2.5 |
33 |
RB38X2.5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
38 |
2.5 |
33 |
RB38X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
38 |
3 |
32 |
RB38X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
38 |
3 |
32 |
RB38X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
38 |
4 |
30 |
RB38X471 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
38 |
4 |
30 |
RB38X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
38 |
4 |
30 |
RB38X5 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
38 |
5 |
28 |
RB38X5CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
38 |
5 |
28 |
RB38X7CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
38 |
7 |
24 |
RB42X2 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
42 |
2 |
38 |
RB42X271 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
42 |
2 |
38 |
RB42X2CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
42 |
2 |
38 |
RB42X3 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
42 |
3 |
36 |
RB42X371 |
316TI (1.4571), BA (bright annealed) |
Tube bend 90° |
metric (m) |
42 |
3 |
36 |
RB42X3CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
42 |
3 |
36 |
RB42X4 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
42 |
4 |
34 |
RB42X4CF |
E235+N (ST37.4; 1.0308), Cr(VI)-free (galvanized) |
Tube bend 90° |
metric (m) |
42 |
4 |
34 |
RB50X6 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
50 |
6 |
38 |
RB65X8 |
E235+N (ST37.4; 1.0308), "black" (phosphated & oiled) |
Tube bend 90° |
metric (m) |
65 |
8 |
49 |
|
