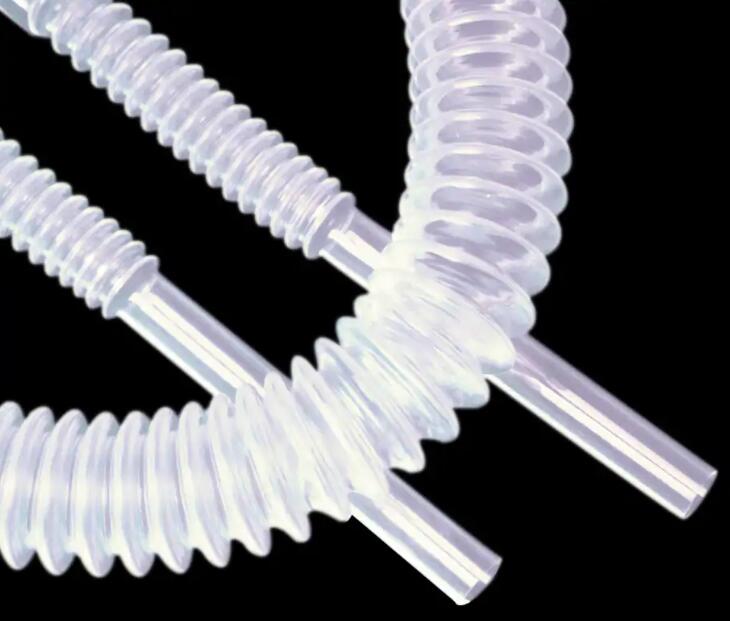

派克Corrugated Tubing - CR Series 波紋管
波紋管可在彎曲半徑要求較小的應用中幫助客戶更緊密地布置管線，而不會扭結或減小管的內徑。彎曲半徑幾乎比相同尺寸的光滑管小4倍。Corrugated Tubing aids customers in tighter routing of tubing in applications with small bend radius requirements without kinking or reducing the inside diameter of the tube. The bend radius is almost 4x smaller than a smoothbore tube of the same size.
派克的FEP波紋管由FEP樹脂制成，重量輕，無縫且極其透明，使操作員可以監控通過管的任何材料。不粘表面可輕松清潔介質，且無細菌運輸。波紋管與回旋管不同，因為波紋可以在不減少流量的情況下延伸或壓縮，從而允許您在狹窄空間中移動時縮短或加長管。FEP波紋管通常與帶有撓性臂的機器人一起用作電絕緣體或流體導管，以傳遞電線，空氣或腐蝕性液體。在半導體應用中，例如晶圓機，波紋管以高純度PFA提供。
派克Corrugated Tubing - CR Series 波紋管
半導體應用中，例如晶圓機，波紋管以高純度PFA提供
市場：
- 儀器儀表
- 半導體
- 材料處理
- 制藥
特性/優點：
- 極具靈活性，易于布線
- 出色的撓性壽命
- 不粘表面，易于清潔
- 化學惰性
- 可用于FEP，PFA或高純度PFA
應用：
- 真空應用
- 機械臂
- DNA測序儀
- 流體傳輸
- 濕臺
認證/合規性：
- AMS 3653E
- VW1，UL-83
- 符合FDA
- 符合USP VI級
技術規格：
- 由純正FEP（含氟乙烯丙烯），PFA（全氟烷氧基）和高純度PFA（高純度全氟烷氧基）擠壓而成
。如有需要，可提供其他顏色
- 可提供袖套以形成可連接的端部，以添加配件或法蘭；在袖帶件上，標準袖帶的尺寸將為所購買管的標稱尺寸–有關更多信息，請參見目錄4660
- 波紋管也可用于特殊配置，其中波紋管和直管沿管間歇地運行
- 備用包裝是隨機盤管
技術指標
• 產品類別： 1 英寸，波紋狀
• 長度（英寸）： 12
• 管材： FEP
• 最高工作溫度（ F ）： 200
• 免責聲明： 用戶通過自己的分析和測試，將完全負責系統和組件的最終選擇，并確保滿足應用程序的所有性能，耐用性，維護，安全和警告要求。
• 產品類別： 1 英寸 - 瓦楞紙
• 管外徑： 1.438 英寸， 36.5 毫米
• 袖口內徑： 1.000 英寸， 24.8 毫米
• 長度： 12 寸
• 燈管材質： FEP
• 符合規格： ASTM D3296-03 ；符合 FDA 符合 USP VI 級；有害物質
• 產品款式： 瓦楞
• 顏色： 自然
• 最小彎曲半徑： 1/2 英寸， 12.7 毫米
• 最低工作溫度： -100°F ， -75°C
• 最高工作溫度： 200°F ， 93°C
• 袖長： 2 英寸， 50.8 毫米
• 應用： 流體輸送，儀器儀表，制藥，機器人技術，半導體，真空應用，濕工作臺
• 媒體： 空氣，化學制品，水
Parker's FEP Corrugated Tubing is manufactured from FEP resin and is light weight, seamless and extremely clear, allowing operators to monitor any material passing through the tube. The non-stick surface allows for easy cleaning and bacteria free transport of media. Corrugated tubing differs from convoluted tubing because the corrugations can be extended or compressed without reducing flow, allowing you to shorten or lengthen the tube as you move through confined spaces.
FEP Corrugated tubing, is often used as an electrical insulator or fluid conduit with robots that have flexible arms to deliver electrical wiring, air, or corrosive liquids. In semiconductor applications, such as wafer machines, corrugated tubing is offered in a high purity PFA.
Markets:
- Instrumentation
- Semiconductor
- Material handling
- Pharmaceutical
Features/Benefits:
- Extremely flexible for easy routing
- Excellent flex life
- Non-stick surface for easy cleaning
- Chemically inert
- Available in FEP, PFA or High Purity PFA
Applications:
- Vacuum applications
- Robotic arms
- DNA sequencer
- Fluid transfer
- Wet bench
Certifications/Compliance:
- AMS 3653E
- VW1, UL-83
- FDA Compliant
- USP Class VI Compliant
Technical Specifications:
- Extruded from virgin FEP (Fluorinated Ethylene Propylene), PFA (Perfluoroalkoxy) and High Purity PFA (High Purity Perfluoroalkoxy)
- Standard tubing is supplied in natural; additional colors are available on request
- Cuffing is available to create an attachable end for adding fittings or flanges; On cuffed pieces, the sizing of standard cuffs will be nominal size of the tubing purchased – refer to Catalog 4660 for additional information
- Corrugated tubing is also available in specialty configurations where corrugated and straight tubing run intermittently along the tube
- Stock packaging is random coils
派克的FEP波紋管FEP樹脂制成，重量輕，無縫且極其透明，使操作員可以監控通過管的任何材料。不粘表面可輕松清潔介質，且無細菌運輸。波紋管與回旋管不同，因為波紋可以在不減少流量的情況下延伸或壓縮，從而允許您在狹窄空間中移動時縮短或加長管。FEP波紋管通常與帶有撓性臂的機器人一起用作電絕緣體或流體導管，以傳遞電線，空氣或腐蝕性液體。在半導體應用中，例如晶圓機，波紋管以高純度PFA提供。
FEP Corrugated tubing, is often used as an electrical insulator or fluid conduit with robots that have flexible arms to deliver electrical wiring, air, or corrosive liquids. In semiconductor applications, such as wafer machines, corrugated tubing is offered in a high purity PFA.
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR03-1.00-NC-1200-2C |
1in., Corrugated |
200 |
12 |
FEP |
CR03-1.00-NC-12000-2C |
1in., Corrugated |
200 |
120 |
FEP |
CR03-1.00-NC-13200-2C |
1in., Corrugated |
200 |
132 |
FEP |
CR03-1.00-NC-14400-2C |
1in., Corrugated |
200 |
144 |
FEP |
CR03-1.00-NC-2400-2C |
1in., Corrugated |
200 |
24 |
FEP |
CR03-1.00-NC-3600-2C |
1in., Corrugated |
200 |
36 |
FEP |
CR03-1.00-NC-4800-2C |
1in., Corrugated |
200 |
48 |
FEP |
CR03-1.00-NC-6000-2C |
1in., Corrugated |
200 |
60 |
FEP |
CR03-1.00-NC-7200-2C |
1in., Corrugated |
200 |
72 |
FEP |
CR03-1.00-NC-8400-2C |
1in., Corrugated |
200 |
84 |
FEP |
CR03-1.00-NC-9600-2C |
1in., Corrugated |
200 |
96 |
FEP |
CR03-1.25-NC-1200-2C |
1-1/4in., Corrugated |
200 |
12 |
FEP |
CR03-1.25-NC-12000-2C |
1-1/4in., Corrugated |
200 |
120 |
FEP |
CR03-1.25-NC-13200-2C |
1-1/4in., Corrugated |
200 |
132 |
FEP |
CR03-1.25-NC-14400-2C |
1-1/4in., Corrugated |
200 |
144 |
FEP |
CR03-1.25-NC-2400-2C |
1-1/4in., Corrugated |
200 |
24 |
FEP |
CR03-1.25-NC-3600-2C |
1-1/4in., Corrugated |
200 |
36 |
FEP |
CR03-1.25-NC-4800-2C |
1-1/4in., Corrugated |
200 |
48 |
FEP |
CR03-1.25-NC-6000-2C |
1-1/4in., Corrugated |
200 |
60 |
FEP |
CR03-1.25-NC-7200-2C |
1-1/4in., Corrugated |
200 |
72 |
FEP |
CR03-1.25-NC-8400-2C |
1-1/4in., Corrugated |
200 |
84 |
FEP |
CR03-1.25-NC-9600-2C |
1-1/4in., Corrugated |
200 |
96 |
FEP |
CR03-1.50-NC-1200-2C |
1-1/2in., Corrugated |
200 |
12 |
FEP |
CR03-1.50-NC-12000-2C |
1-1/2in., Corrugated |
200 |
120 |
FEP |
CR03-1.50-NC-13200-2C |
1-1/2in., Corrugated |
200 |
132 |
FEP |
CR03-1.50-NC-14400-2C |
1-1/2in., Corrugated |
200 |
144 |
FEP |
CR03-1.50-NC-2400-2C |
1-1/2in., Corrugated |
200 |
24 |
FEP |
CR03-1.50-NC-3600-2C |
1-1/2in., Corrugated |
200 |
36 |
FEP |
CR03-1.50-NC-4800-2C |
1-1/2in., Corrugated |
200 |
48 |
FEP |
CR03-1.50-NC-6000-2C |
1-1/2in., Corrugated |
200 |
60 |
FEP |
CR03-1.50-NC-7200-2C |
1-1/2in., Corrugated |
200 |
72 |
FEP |
CR03-1.50-NC-8400-2C |
1-1/2in., Corrugated |
200 |
84 |
FEP |
CR03-1.50-NC-9600-2C |
1-1/2in., Corrugated |
200 |
96 |
FEP |
CR03-1/2-NC-1200-2C |
1/2in., Corrugated |
200 |
12 |
FEP |
CR03-1/2-NC-12000-2C |
1/2in., Corrugated |
200 |
120 |
FEP |
CR03-1/2-NC-13200-2C |
1/2in., Corrugated |
200 |
132 |
FEP |
CR03-1/2-NC-14400-2C |
1/2in., Corrugated |
200 |
144 |
FEP |
CR03-1/2-NC-2400-2C |
1/2in., Corrugated |
200 |
24 |
FEP |
CR03-1/2-NC-3600-2C |
1/2in., Corrugated |
200 |
36 |
FEP |
CR03-1/2-NC-4800-2C |
1/2in., Corrugated |
200 |
48 |
FEP |
CR03-1/2-NC-6000-2C |
1/2in., Corrugated |
200 |
60 |
FEP |
CR03-1/2-NC-7200-2C |
1/2in., Corrugated |
200 |
72 |
FEP |
CR03-1/2-NC-8400-2C |
1/2in., Corrugated |
200 |
84 |
FEP |
CR03-1/2-NC-9600-2C |
1/2in., Corrugated |
200 |
96 |
FEP |
CR03-1/4-NC-1200-2C |
1/4in., Corrugated |
200 |
12 |
FEP |
CR03-1/4-NC-12000-2C |
1/4in., Corrugated |
200 |
120 |
FEP |
CR03-1/4-NC-13200-2C |
1/4in., Corrugated |
200 |
132 |
FEP |
CR03-1/4-NC-14400-2C |
1/4in., Corrugated |
200 |
144 |
FEP |
CR03-1/4-NC-2400-2C |
1/4in., Corrugated |
200 |
24 |
FEP |
CR03-1/4-NC-3600-2C |
1/4in., Corrugated |
200 |
36 |
FEP |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR03-1/4-NC-4800-2C |
1/4in., Corrugated |
200 |
48 |
FEP |
CR03-1/4-NC-6000-2C |
1/4in., Corrugated |
200 |
60 |
FEP |
CR03-1/4-NC-7200-2C |
1/4in., Corrugated |
200 |
72 |
FEP |
CR03-1/4-NC-8400-2C |
1/4in., Corrugated |
200 |
84 |
FEP |
CR03-1/4-NC-9600-2C |
1/4in., Corrugated |
200 |
96 |
FEP |
CR03-2.00-NC-1200-2C |
2in., Corrugated |
200 |
12 |
FEP |
CR03-2.00-NC-12000-2C |
2in., Corrugated |
200 |
120 |
FEP |
CR03-2.00-NC-13200-2C |
2in., Corrugated |
200 |
132 |
FEP |
CR03-2.00-NC-14400-2C |
2in., Corrugated |
200 |
144 |
FEP |
CR03-2.00-NC-2400-2C |
2in., Corrugated |
200 |
24 |
FEP |
CR03-2.00-NC-3600-2C |
2in., Corrugated |
200 |
36 |
FEP |
CR03-2.00-NC-4800-2C |
2in., Corrugated |
200 |
48 |
FEP |
CR03-2.00-NC-6000-2C |
2in., Corrugated |
200 |
60 |
FEP |
CR03-2.00-NC-7200-2C |
2in., Corrugated |
200 |
72 |
FEP |
CR03-2.00-NC-8400-2C |
2in., Corrugated |
200 |
84 |
FEP |
CR03-2.00-NC-9600-2C |
2in., Corrugated |
200 |
96 |
FEP |
CR03-2.50-NC-1200-2C |
2-1/2in., Corrugated |
200 |
12 |
FEP |
CR03-2.50-NC-12000-2C |
2-1/2in., Corrugated |
200 |
120 |
FEP |
CR03-2.50-NC-13200-2C |
2-1/2in., Corrugated |
200 |
132 |
FEP |
CR03-2.50-NC-14400-2C |
2-1/2in., Corrugated |
200 |
144 |
FEP |
CR03-2.50-NC-2400-2C |
2-1/2in., Corrugated |
200 |
24 |
FEP |
CR03-2.50-NC-3600-2C |
2-1/2in., Corrugated |
200 |
36 |
FEP |
CR03-2.50-NC-4800-2C |
2-1/2in., Corrugated |
200 |
48 |
FEP |
CR03-2.50-NC-6000-2C |
2-1/2in., Corrugated |
200 |
60 |
FEP |
CR03-2.50-NC-7200-2C |
2-1/2in., Corrugated |
200 |
72 |
FEP |
CR03-2.50-NC-8400-2C |
2-1/2in., Corrugated |
200 |
84 |
FEP |
CR03-2.50-NC-9600-2C |
2-1/2in., Corrugated |
200 |
96 |
FEP |
CR03-3/4-NC-1200-2C |
3/4in., Corrugated |
200 |
12 |
FEP |
CR03-3/4-NC-12000-2C |
3/4in., Corrugated |
200 |
120 |
FEP |
CR03-3/4-NC-13200-2C |
3/4in., Corrugated |
200 |
132 |
FEP |
CR03-3/4-NC-14400-2C |
3/4in., Corrugated |
200 |
144 |
FEP |
CR03-3/4-NC-2400-2C |
3/4in., Corrugated |
200 |
24 |
FEP |
CR03-3/4-NC-3600-2C |
3/4in., Corrugated |
200 |
36 |
FEP |
CR03-3/4-NC-4800-2C |
3/4in., Corrugated |
200 |
48 |
FEP |
CR03-3/4-NC-6000-2C |
3/4in., Corrugated |
200 |
60 |
FEP |
CR03-3/4-NC-7200-2C |
3/4in., Corrugated |
200 |
72 |
FEP |
CR03-3/4-NC-8400-2C |
3/4in., Corrugated |
200 |
84 |
FEP |
CR03-3/4-NC-9600-2C |
3/4in., Corrugated |
200 |
96 |
FEP |
CR03-3/8-NC-1200-2C |
3/8in., Corrugated |
200 |
12 |
FEP |
CR03-3/8-NC-12000-2C |
3/8in., Corrugated |
200 |
120 |
FEP |
CR03-3/8-NC-13200-2C |
3/8in., Corrugated |
200 |
132 |
FEP |
CR03-3/8-NC-14400-2C |
3/8in., Corrugated |
200 |
144 |
FEP |
CR03-3/8-NC-2400-2C |
3/8in., Corrugated |
200 |
24 |
FEP |
CR03-3/8-NC-3600-2C |
3/8in., Corrugated |
200 |
36 |
FEP |
CR03-3/8-NC-4800-2C |
3/8in., Corrugated |
200 |
48 |
FEP |
CR03-3/8-NC-6000-2C |
3/8in., Corrugated |
200 |
60 |
FEP |
CR03-3/8-NC-7200-2C |
3/8in., Corrugated |
200 |
72 |
FEP |
CR03-3/8-NC-8400-2C |
3/8in., Corrugated |
200 |
84 |
FEP |
CR03-3/8-NC-9600-2C |
3/8in., Corrugated |
200 |
96 |
FEP |
CR03-5/8-NC-1200-2C |
5/8in., Corrugated |
200 |
12 |
FEP |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR03-5/8-NC-12000-2C |
5/8in., Corrugated |
200 |
120 |
FEP |
CR03-5/8-NC-13200-2C |
5/8in., Corrugated |
200 |
132 |
FEP |
CR03-5/8-NC-14400-2C |
5/8in., Corrugated |
200 |
144 |
FEP |
CR03-5/8-NC-2400-2C |
5/8in., Corrugated |
200 |
24 |
FEP |
CR03-5/8-NC-3600-2C |
5/8in., Corrugated |
200 |
36 |
FEP |
CR03-5/8-NC-4800-2C |
5/8in., Corrugated |
200 |
48 |
FEP |
CR03-5/8-NC-6000-2C |
5/8in., Corrugated |
200 |
60 |
FEP |
CR03-5/8-NC-7200-2C |
5/8in., Corrugated |
200 |
72 |
FEP |
CR03-5/8-NC-8400-2C |
5/8in., Corrugated |
200 |
84 |
FEP |
CR03-5/8-NC-9600-2C |
5/8in., Corrugated |
200 |
96 |
FEP |
CR03-7/8-NC-1200-2C |
7/8in., Corrugated |
200 |
12 |
FEP |
CR03-7/8-NC-12000-2C |
7/8in., Corrugated |
200 |
120 |
FEP |
CR03-7/8-NC-13200-2C |
7/8in., Corrugated |
200 |
132 |
FEP |
CR03-7/8-NC-14400-2C |
7/8in., Corrugated |
200 |
144 |
FEP |
CR03-7/8-NC-2400-2C |
7/8in., Corrugated |
200 |
24 |
FEP |
CR03-7/8-NC-3600-2C |
7/8in., Corrugated |
200 |
36 |
FEP |
CR03-7/8-NC-4800-2C |
7/8in., Corrugated |
200 |
48 |
FEP |
CR03-7/8-NC-6000-2C |
7/8in., Corrugated |
200 |
60 |
FEP |
CR03-7/8-NC-7200-2C |
7/8in., Corrugated |
200 |
72 |
FEP |
CR03-7/8-NC-8400-2C |
7/8in., Corrugated |
200 |
84 |
FEP |
CR03-7/8-NC-9600-2C |
7/8in., Corrugated |
200 |
96 |
FEP |
CR04-1.00-NC-1200-2C |
1in., Corrugated |
300 |
12 |
PFA |
CR04-1.00-NC-12000-2C |
1in., Corrugated |
300 |
120 |
PFA |
CR04-1.00-NC-13200-2C |
1in., Corrugated |
300 |
132 |
PFA |
CR04-1.00-NC-14400-2C |
1in., Corrugated |
300 |
144 |
PFA |
CR04-1.00-NC-2400-2C |
1in., Corrugated |
300 |
24 |
PFA |
CR04-1.00-NC-3600-2C |
1in., Corrugated |
300 |
36 |
PFA |
CR04-1.00-NC-4800-2C |
1in., Corrugated |
300 |
48 |
PFA |
CR04-1.00-NC-6000-2C |
1in., Corrugated |
300 |
60 |
PFA |
CR04-1.00-NC-7200-2C |
1in., Corrugated |
300 |
72 |
PFA |
CR04-1.00-NC-8400-2C |
1in., Corrugated |
300 |
84 |
PFA |
CR04-1.00-NC-9600-2C |
1in., Corrugated |
300 |
96 |
PFA |
CR04-1.25-NC-1200-2C |
1-1/4in., Corrugated |
300 |
12 |
PFA |
CR04-1.25-NC-12000-2C |
1-1/4in., Corrugated |
300 |
120 |
PFA |
CR04-1.25-NC-13200-2C |
1-1/4in., Corrugated |
300 |
132 |
PFA |
CR04-1.25-NC-14400-2C |
1-1/4in., Corrugated |
300 |
144 |
PFA |
CR04-1.25-NC-2400-2C |
1-1/4in., Corrugated |
300 |
24 |
PFA |
CR04-1.25-NC-3600-2C |
1-1/4in., Corrugated |
300 |
36 |
PFA |
CR04-1.25-NC-4800-2C |
1-1/4in., Corrugated |
300 |
48 |
PFA |
CR04-1.25-NC-6000-2C |
1-1/4in., Corrugated |
300 |
60 |
PFA |
CR04-1.25-NC-7200-2C |
1-1/4in., Corrugated |
300 |
72 |
PFA |
CR04-1.25-NC-8400-2C |
1-1/4in., Corrugated |
300 |
84 |
PFA |
CR04-1.25-NC-9600-2C |
1-1/4in., Corrugated |
300 |
96 |
PFA |
CR04-1.50-NC-1200-2C |
1-1/2in., Corrugated |
300 |
12 |
PFA |
CR04-1.50-NC-12000-2C |
1-1/2in., Corrugated |
300 |
120 |
PFA |
CR04-1.50-NC-13200-2C |
1-1/2in., Corrugated |
300 |
132 |
PFA |
CR04-1.50-NC-14400-2C |
1-1/2in., Corrugated |
300 |
144 |
PFA |
CR04-1.50-NC-2400-2C |
1-1/2in., Corrugated |
300 |
24 |
PFA |
CR04-1.50-NC-3600-2C |
1-1/2in., Corrugated |
300 |
36 |
PFA |
CR04-1.50-NC-4800-2C |
1-1/2in., Corrugated |
300 |
48 |
PFA |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR04-1.50-NC-6000-2C |
1-1/2in., Corrugated |
300 |
60 |
PFA |
CR04-1.50-NC-7200-2C |
1-1/2in., Corrugated |
300 |
72 |
PFA |
CR04-1.50-NC-8400-2C |
1-1/2in., Corrugated |
300 |
84 |
PFA |
CR04-1.50-NC-9600-2C |
1-1/2in., Corrugated |
300 |
96 |
PFA |
CR04-1/2-NC-1200-2C |
1/2in., Corrugated |
300 |
12 |
PFA |
CR04-1/2-NC-12000-2C |
1/2in., Corrugated |
300 |
120 |
PFA |
CR04-1/2-NC-13200-2C |
1/2in., Corrugated |
300 |
132 |
PFA |
CR04-1/2-NC-14400-2C |
1/2in., Corrugated |
300 |
144 |
PFA |
CR04-1/2-NC-2400-2C |
1/2in., Corrugated |
300 |
24 |
PFA |
CR04-1/2-NC-3600-2C |
1/2in., Corrugated |
300 |
36 |
PFA |
CR04-1/2-NC-4800-2C |
1/2in., Corrugated |
300 |
48 |
PFA |
CR04-1/2-NC-6000-2C |
1/2in., Corrugated |
300 |
60 |
PFA |
CR04-1/2-NC-7200-2C |
1/2in., Corrugated |
300 |
72 |
PFA |
CR04-1/2-NC-8400-2C |
1/2in., Corrugated |
300 |
84 |
PFA |
CR04-1/2-NC-9600-2C |
1/2in., Corrugated |
300 |
96 |
PFA |
CR04-1/4-NC-1200-2C |
1/4in., Corrugated |
300 |
12 |
PFA |
CR04-1/4-NC-12000-2C |
1/4in., Corrugated |
300 |
120 |
PFA |
CR04-1/4-NC-13200-2C |
1/4in., Corrugated |
300 |
132 |
PFA |
CR04-1/4-NC-14400-2C |
1/4in., Corrugated |
300 |
144 |
PFA |
CR04-1/4-NC-2400-2C |
1/4in., Corrugated |
300 |
24 |
PFA |
CR04-1/4-NC-3600-2C |
1/4in., Corrugated |
300 |
36 |
PFA |
CR04-1/4-NC-4800-2C |
1/4in., Corrugated |
300 |
48 |
PFA |
CR04-1/4-NC-6000-2C |
1/4in., Corrugated |
300 |
60 |
PFA |
CR04-1/4-NC-7200-2C |
1/4in., Corrugated |
300 |
72 |
PFA |
CR04-1/4-NC-8400-2C |
1/4in., Corrugated |
300 |
84 |
PFA |
CR04-1/4-NC-9600-2C |
1/4in., Corrugated |
300 |
96 |
PFA |
CR04-2.00-NC-1200-2C |
2in., Corrugated |
300 |
12 |
PFA |
CR04-2.00-NC-12000-2C |
2in., Corrugated |
300 |
120 |
PFA |
CR04-2.00-NC-13200-2C |
2in., Corrugated |
300 |
132 |
PFA |
CR04-2.00-NC-14400-2C |
2in., Corrugated |
300 |
144 |
PFA |
CR04-2.00-NC-2400-2C |
2in., Corrugated |
300 |
24 |
PFA |
CR04-2.00-NC-3600-2C |
2in., Corrugated |
300 |
36 |
PFA |
CR04-2.00-NC-4800-2C |
2in., Corrugated |
300 |
48 |
PFA |
CR04-2.00-NC-6000-2C |
2in., Corrugated |
300 |
60 |
PFA |
CR04-2.00-NC-7200-2C |
2in., Corrugated |
300 |
72 |
PFA |
CR04-2.00-NC-8400-2C |
2in., Corrugated |
300 |
84 |
PFA |
CR04-2.00-NC-9600-2C |
2in., Corrugated |
300 |
96 |
PFA |
CR04-2.50-NC-1200-2C |
2-1/2in., Corrugated |
300 |
12 |
PFA |
CR04-2.50-NC-12000-2C |
2-1/2in., Corrugated |
300 |
120 |
PFA |
CR04-2.50-NC-13200-2C |
2-1/2in., Corrugated |
300 |
132 |
PFA |
CR04-2.50-NC-14400-2C |
2-1/2in., Corrugated |
300 |
144 |
PFA |
CR04-2.50-NC-2400-2C |
2-1/2in., Corrugated |
300 |
24 |
PFA |
CR04-2.50-NC-3600-2C |
2-1/2in., Corrugated |
300 |
36 |
PFA |
CR04-2.50-NC-4800-2C |
2-1/2in., Corrugated |
300 |
48 |
PFA |
CR04-2.50-NC-6000-2C |
2-1/2in., Corrugated |
300 |
60 |
PFA |
CR04-2.50-NC-7200-2C |
2-1/2in., Corrugated |
300 |
72 |
PFA |
CR04-2.50-NC-8400-2C |
2-1/2in., Corrugated |
300 |
84 |
PFA |
CR04-2.50-NC-9600-2C |
2-1/2in., Corrugated |
300 |
96 |
PFA |
CR04-3/4-NC-1200-2C |
3/4in., Corrugated |
300 |
12 |
PFA |
CR04-3/4-NC-12000-2C |
3/4in., Corrugated |
300 |
120 |
PFA |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR04-3/4-NC-13200-2C |
3/4in., Corrugated |
300 |
132 |
PFA |
CR04-3/4-NC-14400-2C |
3/4in., Corrugated |
300 |
144 |
PFA |
CR04-3/4-NC-2400-2C |
3/4in., Corrugated |
300 |
24 |
PFA |
CR04-3/4-NC-3600-2C |
3/4in., Corrugated |
300 |
36 |
PFA |
CR04-3/4-NC-4800-2C |
3/4in., Corrugated |
300 |
48 |
PFA |
CR04-3/4-NC-6000-2C |
3/4in., Corrugated |
300 |
60 |
PFA |
CR04-3/4-NC-7200-2C |
3/4in., Corrugated |
300 |
72 |
PFA |
CR04-3/4-NC-8400-2C |
3/4in., Corrugated |
300 |
84 |
PFA |
CR04-3/4-NC-9600-2C |
3/4in., Corrugated |
300 |
96 |
PFA |
CR04-3/8-NC-1200-2C |
3/8in., Corrugated |
300 |
12 |
PFA |
CR04-3/8-NC-12000-2C |
3/8in., Corrugated |
300 |
120 |
PFA |
CR04-3/8-NC-13200-2C |
3/8in., Corrugated |
300 |
132 |
PFA |
CR04-3/8-NC-14400-2C |
3/8in., Corrugated |
300 |
144 |
PFA |
CR04-3/8-NC-2400-2C |
3/8in., Corrugated |
300 |
24 |
PFA |
CR04-3/8-NC-3600-2C |
3/8in., Corrugated |
300 |
36 |
PFA |
CR04-3/8-NC-4800-2C |
3/8in., Corrugated |
300 |
48 |
PFA |
CR04-3/8-NC-6000-2C |
3/8in., Corrugated |
300 |
60 |
PFA |
CR04-3/8-NC-7200-2C |
3/8in., Corrugated |
300 |
72 |
PFA |
CR04-3/8-NC-8400-2C |
3/8in., Corrugated |
300 |
84 |
PFA |
CR04-3/8-NC-9600-2C |
3/8in., Corrugated |
300 |
96 |
PFA |
CR04-5/8-NC-1200-2C |
5/8in., Corrugated |
300 |
12 |
PFA |
CR04-5/8-NC-12000-2C |
5/8in., Corrugated |
300 |
120 |
PFA |
CR04-5/8-NC-13200-2C |
5/8in., Corrugated |
300 |
132 |
PFA |
CR04-5/8-NC-14400-2C |
5/8in., Corrugated |
300 |
144 |
PFA |
CR04-5/8-NC-2400-2C |
5/8in., Corrugated |
300 |
24 |
PFA |
CR04-5/8-NC-3600-2C |
5/8in., Corrugated |
300 |
36 |
PFA |
CR04-5/8-NC-4800-2C |
5/8in., Corrugated |
300 |
48 |
PFA |
CR04-5/8-NC-6000-2C |
5/8in., Corrugated |
300 |
60 |
PFA |
CR04-5/8-NC-7200-2C |
5/8in., Corrugated |
300 |
72 |
PFA |
CR04-5/8-NC-8400-2C |
5/8in., Corrugated |
300 |
84 |
PFA |
CR04-5/8-NC-9600-2C |
5/8in., Corrugated |
300 |
96 |
PFA |
CR04-7/8-NC-1200-2C |
7/8in., Corrugated |
300 |
12 |
PFA |
CR04-7/8-NC-12000-2C |
7/8in., Corrugated |
300 |
120 |
PFA |
CR04-7/8-NC-13200-2C |
7/8in., Corrugated |
300 |
132 |
PFA |
CR04-7/8-NC-14400-2C |
7/8in., Corrugated |
300 |
144 |
PFA |
CR04-7/8-NC-2400-2C |
7/8in., Corrugated |
300 |
24 |
PFA |
CR04-7/8-NC-3600-2C |
7/8in., Corrugated |
300 |
36 |
PFA |
CR04-7/8-NC-4800-2C |
7/8in., Corrugated |
300 |
48 |
PFA |
CR04-7/8-NC-6000-2C |
7/8in., Corrugated |
300 |
60 |
PFA |
CR04-7/8-NC-7200-2C |
7/8in., Corrugated |
300 |
72 |
PFA |
CR04-7/8-NC-8400-2C |
7/8in., Corrugated |
300 |
84 |
PFA |
CR04-7/8-NC-9600-2C |
7/8in., Corrugated |
300 |
96 |
PFA |
CR05-1.00-NC-1200-2C |
1in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-1.00-NC-12000-2C |
1in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-1.00-NC-13200-2C |
1in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-1.00-NC-14400-2C |
1in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-1.00-NC-2400-2C |
1in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-1.00-NC-3600-2C |
1in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-1.00-NC-4800-2C |
1in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-1.00-NC-6000-2C |
1in., Corrugated |
300 |
60 |
PFA, High Purity |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR05-1.00-NC-7200-2C |
1in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-1.00-NC-8400-2C |
1in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-1.00-NC-9600-2C |
1in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-1.25-NC-1200-2C |
1-1/4in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-1.25-NC-12000-2C |
1-1/4in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-1.25-NC-13200-2C |
1-1/4in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-1.25-NC-14400-2C |
1-1/4in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-1.25-NC-2400-2C |
1-1/4in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-1.25-NC-3600-2C |
1-1/4in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-1.25-NC-4800-2C |
1-1/4in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-1.25-NC-6000-2C |
1-1/4in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-1.25-NC-7200-2C |
1-1/4in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-1.25-NC-8400-2C |
1-1/4in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-1.25-NC-9600-2C |
1-1/4in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-1.50-NC-1200-2C |
1-1/2in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-1.50-NC-12000-2C |
1-1/2in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-1.50-NC-13200-2C |
1-1/2in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-1.50-NC-14400-2C |
1-1/2in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-1.50-NC-2400-2C |
1-1/2in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-1.50-NC-3600-2C |
1-1/2in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-1.50-NC-4800-2C |
1-1/2in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-1.50-NC-6000-2C |
1-1/2in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-1.50-NC-7200-2C |
1-1/2in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-1.50-NC-8400-2C |
1-1/2in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-1.50-NC-9600-2C |
1-1/2in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-1/2-NC-1200-2C |
1/2in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-1/2-NC-12000-2C |
1/2in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-1/2-NC-13200-2C |
1/2in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-1/2-NC-14400-2C |
1/2in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-1/2-NC-2400-2C |
1/2in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-1/2-NC-3600-2C |
1/2in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-1/2-NC-4800-2C |
1/2in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-1/2-NC-6000-2C |
1/2in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-1/2-NC-7200-2C |
1/2in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-1/2-NC-8400-2C |
1/2in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-1/2-NC-9600-2C |
1/2in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-1/4-NC-1200-2C |
1/4in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-1/4-NC-12000-2C |
1/4in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-1/4-NC-13200-2C |
1/4in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-1/4-NC-14400-2C |
1/4in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-1/4-NC-2400-2C |
1/4in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-1/4-NC-3600-2C |
1/4in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-1/4-NC-4800-2C |
1/4in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-1/4-NC-6000-2C |
1/4in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-1/4-NC-7200-2C |
1/4in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-1/4-NC-8400-2C |
1/4in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-1/4-NC-9600-2C |
1/4in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-2.00-NC-1200-2C |
2in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-2.00-NC-12000-2C |
2in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-2.00-NC-13200-2C |
2in., Corrugated |
300 |
132 |
PFA, High Purity |
-
Part |
Product Type |
Maximum Working Temperature (F) |
Length (inch) |
Tubing Material |
CR05-2.00-NC-14400-2C |
2in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-2.00-NC-2400-2C |
2in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-2.00-NC-3600-2C |
2in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-2.00-NC-4800-2C |
2in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-2.00-NC-6000-2C |
2in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-2.00-NC-7200-2C |
2in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-2.00-NC-8400-2C |
2in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-2.00-NC-9600-2C |
2in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-2.50-NC-1200-2C |
2-1/2in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-2.50-NC-12000-2C |
2-1/2in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-2.50-NC-13200-2C |
2-1/2in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-2.50-NC-14400-2C |
2-1/2in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-2.50-NC-2400-2C |
2-1/2in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-2.50-NC-3600-2C |
2-1/2in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-2.50-NC-4800-2C |
2-1/2in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-2.50-NC-6000-2C |
2-1/2in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-2.50-NC-7200-2C |
2-1/2in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-2.50-NC-8400-2C |
2-1/2in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-2.50-NC-9600-2C |
2-1/2in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-3/4-NC-1200-2C |
3/4in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-3/4-NC-12000-2C |
3/4in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-3/4-NC-13200-2C |
3/4in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-3/4-NC-14400-2C |
3/4in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-3/4-NC-2400-2C |
3/4in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-3/4-NC-3600-2C |
3/4in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-3/4-NC-4800-2C |
3/4in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-3/4-NC-6000-2C |
3/4in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-3/4-NC-7200-2C |
3/4in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-3/4-NC-8400-2C |
3/4in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-3/4-NC-9600-2C |
3/4in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-3/8-NC-1200-2C |
3/8in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-3/8-NC-12000-2C |
3/8in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-3/8-NC-13200-2C |
3/8in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-3/8-NC-14400-2C |
3/8in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-3/8-NC-2400-2C |
3/8in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-3/8-NC-3600-2C |
3/8in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-3/8-NC-4800-2C |
3/8in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-3/8-NC-6000-2C |
3/8in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-3/8-NC-7200-2C |
3/8in., Corrugated |
300 |
72 |
PFA, High Purity |
CR05-3/8-NC-8400-2C |
3/8in., Corrugated |
300 |
84 |
PFA, High Purity |
CR05-3/8-NC-9600-2C |
3/8in., Corrugated |
300 |
96 |
PFA, High Purity |
CR05-5/8-NC-1200-2C |
5/8in., Corrugated |
300 |
12 |
PFA, High Purity |
CR05-5/8-NC-12000-2C |
5/8in., Corrugated |
300 |
120 |
PFA, High Purity |
CR05-5/8-NC-13200-2C |
5/8in., Corrugated |
300 |
132 |
PFA, High Purity |
CR05-5/8-NC-14400-2C |
5/8in., Corrugated |
300 |
144 |
PFA, High Purity |
CR05-5/8-NC-2400-2C |
5/8in., Corrugated |
300 |
24 |
PFA, High Purity |
CR05-5/8-NC-3600-2C |
5/8in., Corrugated |
300 |
36 |
PFA, High Purity |
CR05-5/8-NC-4800-2C |
5/8in., Corrugated |
300 |
48 |
PFA, High Purity |
CR05-5/8-NC-6000-2C |
5/8in., Corrugated |
300 |
60 |
PFA, High Purity |
CR05-5/8-NC-7200-2C |
5/8in., Corrugated |
300 |
72 |
PFA, High Purity |
|
