Autoclave Engineers High Pressure Fittings and Tubing
高壓鋼管
Parker Autoclave Engineers提供全系列奧氏體冷拔不銹鋼鋼管，以適應 Parker Autoclave Engineers閥門和接頭的標準。 Parker Autoclave Engineers鋼管專為高壓工況設計，并嚴格滿足強度和抗腐蝕能力的要求鋼管的訂貨長度為20到26.5英尺(6.1到8.0米)隨機不等。
檢查和測試
Parker Autoclave Engineers 鋼管經過檢查，以確保沒有縫隙、刮痕、裂紋或其他缺陷以及滲碳或晶界碳化物析出。鍋管的外徑和內徑經特殊檢查并控制在極小的公差帶內，以確保正確配合。每批鋼管進行抽樣測試以此確認其機械性能。另外，還以統計學方法在鋼管的工作壓力下進行流體靜力學測試，如有需求， ParkerAutoclave Engineers 將額外付費進行 100% 流體靜力學測試。
規格參數：
- 可提供尺寸 1/4", 5/16", 3/8", 9/16", and 1".
- 材質：316SS不銹鋼 Fittings manufactured from cold worked 316 stainless steel.
- 操作溫度：零下252度到649度；Operating temperatures from -423oF (-252oC ) to 1200oF (649oC).
- 可根據客戶要求提供特殊定做材質。Available in special materials.
|
|

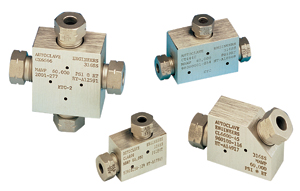

High Pressure Fittings:High Pressure to 150,000 psi (10342 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings |

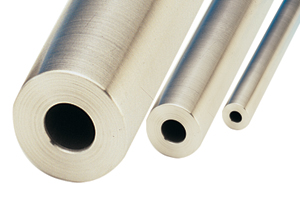

High Pressure Tubing:High Pressure to 150,000 psi (10342 bar) Seamless Stainless Tubing;
Tubing sizes are 1/4", 5/16", 3/8", 9/16", and 1". |
|
|

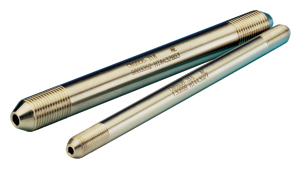

High Pressure Nipples:High Pressure to 150,000 psi (10342 bar) Coned and Threaded Nipples |
Check and Excess Flow Valves:High Pressure to 60,000 psi (4137 bar) Ball and O-ring Check Valves |
|
|

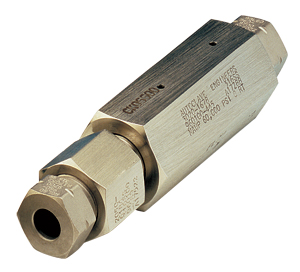

High Pressure Line Filters:High Pressure to 60,000 psi (4137 bar) Disc and Cup Filter |
Anti-Vibration Collet Gland Assembly:High Pressure to 150,000 psi (10342 bar) Anti-Vibration Collet and Gland KCGL, KCBGLX, and KCBGL Series |
|
 |
|
規程參數：
Tubing sizes are 1/16, 1/8", 1/4", 3/8", and 1/2".
Tubing is manufactured from annealed stainless steel.
Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C).
Stock tubing lengths from 20 to 26.5 foot (6 to 8 meters).
Special material and special length tubing available. |
Tubing, Autoclave Series - 30,000 PSI Sour Gas Service
Pressure Rating: 30,000 psi, 2068.39 bar
Outside Diameter: 1/2 to 3/4 inch, 1/4 to 1/2 inch
Application: Hydraulic, Instrumentation, Media Transfer, Suction / Vacuum |
Autoclave Engineers Medium Pressure Fittings and Tubing
|
|

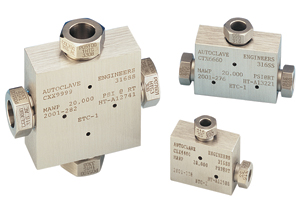

Medium Pressure Fittings
Medium Pressure to 20,000 psi (1379 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings |
Medium Pressure to 20,000 psi (1379 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings
|
|
|
| Medium Pressure to 20,000 psi (1379 bar) Coned and Threaded Nipples |

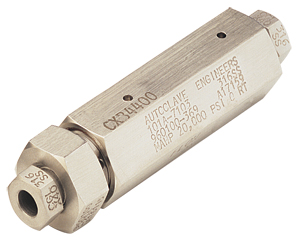

Medium Pressure Check and Excess Check Valves
Medium Pressure to 20,000 psi (1379 bar) Ball and O-ring Valves |
|
|
Medium Pressure Line Filters
Medium Pressure to 20,000 psi (1379 bar) Disc and Cup Filters |
Anti-Vibration Collet Gland Assembly
Medium Pressure to 20,000 psi (1379 bar) Anti-Vibration Collet and Gland KCBGLX Series |
|
|
Cone and Thread Tube Nipples, Medium Pressure, 20,000 PSI
Parker Autoclave’s pre-cut, coned-and-threaded tube nipples are provided in various sizes and lengths for rapid make-up. These are to be used with Parker Autoclave medium pressure valves and fittings for a secure connection. |
|
|
