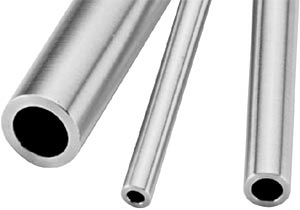

Tubing, Autoclave Series - 20,000 PSI
Parker Autoclave's medium pressure tubing is capable of operating to 20,000 psi (1379 bar) and range in size from 1/16" to 1 1/2" tube size. Standard tubing is available in cold worked stainless steel.
Parker Autoclave's low pressure tubing utilizes the proven Speed Bite connection. A low pressure package can be designed with Parker Autoclave tubing and a fitting that utilizes a single ferrule compression sleeve for systems up to 15,000 PSI (1034 BAR). This connection delivers fast, easy make-up and reliable bubble-tight performance, in a variety of liquid or gas service applications.
Technical Specifications
|
| Application: |
Hydraulic, Instrumentation, Media Transfer, Suction / Vacuum |
| Specifications Met: |
ASTM, ISO |
| Materials of Construction: |
6Mo, 904L, Alloy 625, Alloy 825, Alloy C-276, Duplex, Monel, Other Stainless Steel, Stainless Steel, Super Duplex, Titanium |
| Maximum Operating Pressure: |
34 (and over) bar, up to 34 bar, up to 7 bar, 500 and over psi, up to 100 psi, up to 500 psi |
| Maximum Operating Temperature: |
240 and over °C, up to 100 °C, up to 125 °C, up to 150 °C, up to 240 °C, up to 650 °C, up to 1200 °F, up to 212 °F, up to 257 °F, up to 302 °F, up to 464 °F |
| Media: |
Abrasives, Adhesives / Glue, Chemical Fluids, Food & Beverages, Fuels, Gases, Hydraulic Fluids, Medical Fluids, Oil / Petroleum, Pharmaceutical Fluids, Pneumatic Media, Steam, Water |
| Minimum Operating Temperature: |
0 (and up) °C, 10 and up °C, -40 and up °C, -50 and up °C, -70 and up °C, 32 and up °F, -40 and up °F, 50 and up °F, -58 and up °F, -94 and up °F |
| Outside Diameter: |
1 to 1-1/4 inch, 1/2 to 3/4 inch, 1/4 to 1/2 inch, 1-1/4 to 1-1/2 inch, 3/4 to 1 inch |
Markets:
- Chemical
- Petro-Chemical
- Oil and Gas
- Research
Features/Benefits:
- Tubing sizes are 1/16, 1/8", 1/4", 3/8", and 1/2"
- Tubing is manufactured from annealed stainless steel
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)
- Stock tubing lengths from 20 to 26.5 foot (6 to 8 meters)
- Special material and special length tubing available
Applications:
- Fluid Handling Systems
- Skid Panel Fabricators
- Test Panels
- Medium Pressure Systems
Related Documents
Literature and Reference Materials
20,000 PSI Autoclave Tubing
20,000 PSI Cone and Thread
Part |
Material |
Maximum Tube O.D (inch) |
Maximum Tube O.D (mm) |
Connection Type |
Maximum Tube I.D (inch) |
Maximum Tube I.D (mm) |
Tube Wall Thickness (inch) |
Tube Wall Thickness (mm) |
Flow Area (inch2) |
Flow Area (mm2) |
Special Tool Required |
13041 |
316 Stainless Steel |
1-1/2" |
38 mm |
SF1500CX |
0.937" |
23.80 mm |
0.281" |
7.15 mm |
0.589 |
444.88 |
Yes |
MS15-085 |
316 Stainless Steel |
9/16" |
14 mm |
SF562CX |
0.312" |
7.92 mm |
0.125" |
3.18 mm |
0.076 |
49.03 |
Yes |
MS15-092 |
316 Stainless Steel |
1/4" |
6 mm |
SF250CX |
0.109" |
2.77 mm |
0.070" |
1.78 mm |
0.009 |
5.81 |
Yes |
MS15-093 |
316 Stainless Steel |
3/8" |
10 mm |
SF375CX |
0.203" |
5.16 mm |
0.086" |
2.18 mm |
0.032 |
20.65 |
Yes |
MS15-095 |
316 Stainless Steel |
3/4" |
20 mm |
SF750CX |
0.438" |
11.13 mm |
0.156" |
3.96 mm |
0.151 |
97.42 |
Yes |
MS15-096 |
316 Stainless Steel |
1" |
25 mm |
SF1000CX |
0.562" |
14.27 mm |
0.219" |
5.56 mm |
0.248 |
160 |
Yes |
MS15-097 |
316 Stainless Steel |
9/16" |
14 mm |
SF562CX |
0.359" |
9.12 mm |
0.101" |
2.57 mm |
0.101 |
65.16 |
Yes |
MS15-098 |
316 Stainless Steel |
3/4" |
20 mm |
SF750CX |
0.516" |
13.11 mm |
0.117" |
2.97 mm |
0.209 |
134.84 |
Yes |
MS15-099 |
316 Stainless Steel |
1" |
25 mm |
SF1000CX |
0.688" |
17.48 mm |
0.156" |
3.96 mm |
0.371 |
239.35 |
Yes |
MS15-187 |
304 Stainless Steel |
9/16" |
14 mm |
SF562CX |
0.312" |
7.92 mm |
0.125" |
3.18 mm |
0.076 |
49.03 |
Yes |
MS15-192 |
304 Stainless Steel |
1/4" |
6 mm |
SF250CX |
0.109" |
2.77 mm |
0.070" |
1.78 mm |
0.009 |
5.81 |
Yes |
MS15-193 |
304 Stainless Steel |
3/8" |
10 mm |
SF375CX |
0.203" |
5.16 mm |
0.086" |
2.18 mm |
0.032 |
20.65 |
Yes |
MS15-194 |
304 Stainless Steel |
9/16" |
14 mm |
SF562CX |
0.359" |
9.12 mm |
0.101" |
2.57 mm |
0.101 |
65.16 |
Yes |
MS15-198 |
304 Stainless Steel |
1" |
25 mm |
SF1000CX |
0.688" |
17.48 mm |
0.156" |
|
|
|
|
|
