OPW浮式吸入總成
OPW Floating Suction Assemblies
OPW工程系統公司生產各種浮式吸入總成，可用于儲存完成不容許發生污染的油料（如航空燃料）的臥式或立式、地上或地下的儲罐。由于靠近頂部的燃料含水或外來雜質的可能小，因此這種浮式總成都設計為浮在液面上層，并從這樣的接近頂面的地方吸入完全不含污染物的液體。本公司生產的浮式吸入總成都能保證長期無故障的運行。OPW Engineered Systems manufactures floating suction assemblies for use in horizontal or vertical, above or below ground storage tanks where little or no contamination can be tolerated, such as aircraft jet fuel. Since the fuel near the top is least likely to contain water or foreign particles, the floating suction assemblies are designed to float near the top of the liquid surface and draw from this near-surface, contamination-free liquid. All of our floating suctions are designed for long, trouble-free life.
OPW Floating Suction Assemblies PDF Catalog
特點/優點
無需維護
調高效率，減少了過濾分離器的維護
永久潤滑雙滾道旋轉接頭
用于液下使用的三重密封旋轉接頭
吸入擋板和止動護套使槽底上方8”處（或根據需要規定）成為更低的可吸入液位
標準配置鋁合金制150磅平面法蘭；根據需要可提供碳鋼和不銹鋼法蘭
標準配置
以下是標準浮式吸入總成，特殊配置可按要求提供。The following are standard Floating Suction Assemblies. Special configurations are available upon request.
763型：用于直徑8’以下的儲罐 Model 763: for tanks under 8’ in diameter

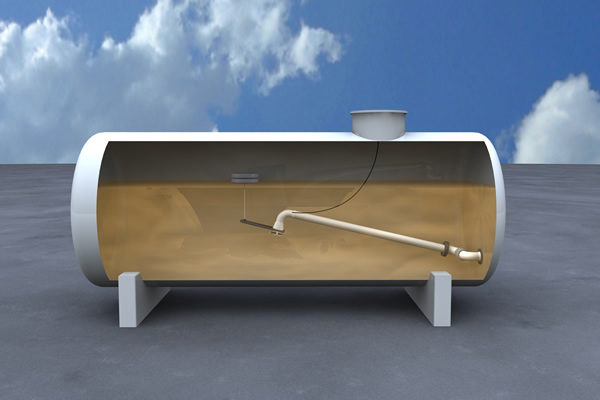

764型：用于直徑8’–12’以下的儲罐Model 764: for tanks 8’–12’ in diameter

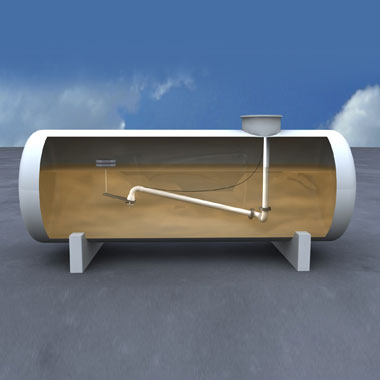

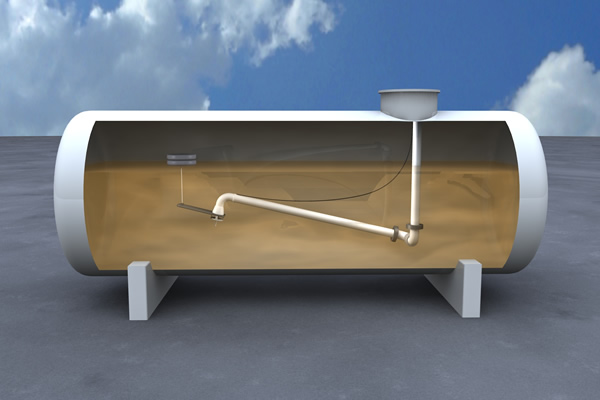

763V型：用于直徑8’以下的儲罐 Model 763V: for tanks under 8’ in diameter
764V型：用于直徑8’–12’以下的儲罐Model 764V: for tanks 8’–12’ in diameter

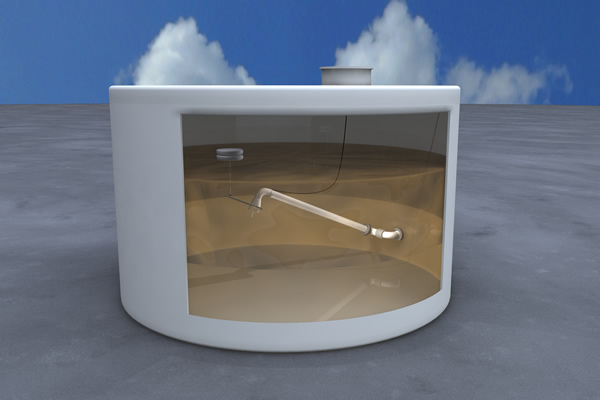

765型：單管，伸展距離長，錐頂罐
Model 765: Single-pipe, extended reach for cone roof tanks
766型：交叉型大型立式罐
Model 766: Scissor-style for large vertical tanks

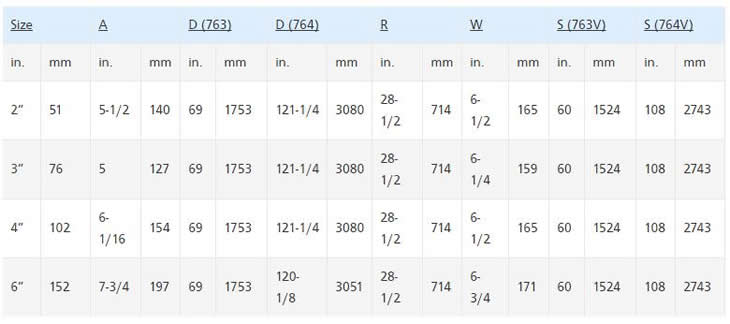

Dimensions 尺寸：
- 下載 Downloads
浮式吸入總成安裝、操作和維護手冊Floating Suction Installation, Operation & Maintenance Manual Standard Drawings
浮式吸入總成Floating Suctions
763 (69”長)
763V (69” 長)
763VE (69” 長)
764 (120” 長)
764V (120” 長)
- 764 VE (120” 長)
- 763型：用于直徑8’以下的儲罐 Model 763: for tanks under 8’ in diameter
- 764型：用于直徑8’–12’以下的儲罐Model 764: for tanks 8’–12’ in diameter
- 763V型：用于直徑8’以下的儲罐 Model 763V: for tanks under 8’ in diameter
- 764V型：用于直徑8’–12’以下的儲罐Model 764V: for tanks 8’–12’ in diameter
- 765型：單管，伸展距離長，錐頂罐
Model 765: Single-pipe, extended reach for cone roof tanks
- 766型：交叉型大型立式罐
Model 766: Scissor-style for large vertical tanks
液下用旋轉接頭Submerged Service Swivel Joints
- 類型30FJ Floating Suction Assembly 30FJ Drawing
- 類型40FJ Floating Suction Assembly 40FJ Drawing
類型50FJ
|
