OPW CIVACON
8130 Series Optic Rack Monitors
Optic Rack Monitor Model 8130 for Bottom & Top Loading
OPW CIVACON 8130系列光學裝車控制器可與多達8個相兼容的光學液位傳感器或機載監視器共同工作，用來監控運輸車輛或其他儲罐內的液位狀況。IVACON 8130 型光學防溢流及靜電接地檢測器可同時進行防溢流和靜電接地檢測，它采用工業標準級的光學信號可同時檢測12 個配光學防溢流傳感器的油倉。它具有工作可靠、易于安裝、重量輕等特點。The 8130 Series Optic Rack Monitor can be used with up to eight compatible optic liquid-level sensors or onboard monitors to monitor the status of liquid in transports or other storage tanks. The 8130 Series uses industry-standard optic signal format. A unique pulsed and intrinsically safe electrical signal is generated by the control panel and transmitted to the sensors via a coiled cord and optic format plug.
OPW 8130 Optic Overfill Protection Monitor
OPW CIVACON 8130系列采用工業標準的光學信號格式。由控制器產生的獨特的脈沖本質安全電氣信號通過螺旋型電纜線和光學制式插頭傳送到傳感器上。
OPW 8130 Optic Overfill Protection Monitor

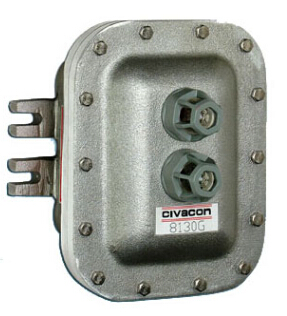

帶狀態指示燈的防爆型光學控制器，過量灌裝檢測和接地信號是分別發送到泵的控制系統上的。在8150型上還可以配置旁路開關。Explosion-proof optic monitor with status lights.The overfill detection and ground verification are signaled to the pump control system separately. Can also be provided with a by-pass switch, model 8150.
OPW 8130 Optic Overfill Protection Monitor
8100系列光學管架控制器—規格
操作溫度：-40oF~158oF(-40oC~70oC)
輸入要求：120 VAC 60 Hz
10VA（標準）；可提供240 VAC
輸出繼電器觸點：240 VAC – 5A DPDT
響應時間：不超過0.5秒（干-濕轉換過程）
電氣連接：內置接線端子板
外殼：NEMA 7防爆型
殼體材質：鋁合金
重量：8130型– 32 lbs,
認證：FM,CSA
Order Guide
- Monitors
- 8130-8130 Optic rack monitor with indicator lamps, integrated ground verification
- 8150-8150 Optic rack monitor with indicator lamps, ground verification and "Smart Remote" tamper-resistant keyed bypass switch
- Optic Plug & Cords
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
- 7120-7120 Optic Breakaway Plug with 30’ coiled cord and 7540-7540 breakaway junction box
- Grounding Cable & Clamps
- 7720-7720, Ground Verification Clamp with 40’ straight cord
- 7720-COIL, Ground Verification Clamp with 30’ coiled cord
- 7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
- 7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord
- Junction Boxes
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7540-8X30, Junction Box with 7-pin socket for Breakaway Optic Plug & Cord Sets, Includes bypass connection for 8130 Optic Rack Monitor (Does NOT include BCU-2)
- Options
- 8150-120, 8130-120 Optic Rack Monitor with Ground Verification, Red/Green Indicator Lights, Includes 7560-7560 Junction Box and one BCU-2 Bypass Control Unit
- 7150-7150, Optic Plug Hanger
- 7560-7560, Junction Box with bypass connection for 8150 Optic Rack Monitor (Does not include BCU-2 Bypass Control Unit)
- BCU-2, Bypass Control Unit for 8150 Optic Rack Monitor (7560-7560 or 7540-8X30 Junction Box required)
- 1386-1386, Opti/Therm Rack Monitor Tester
|
