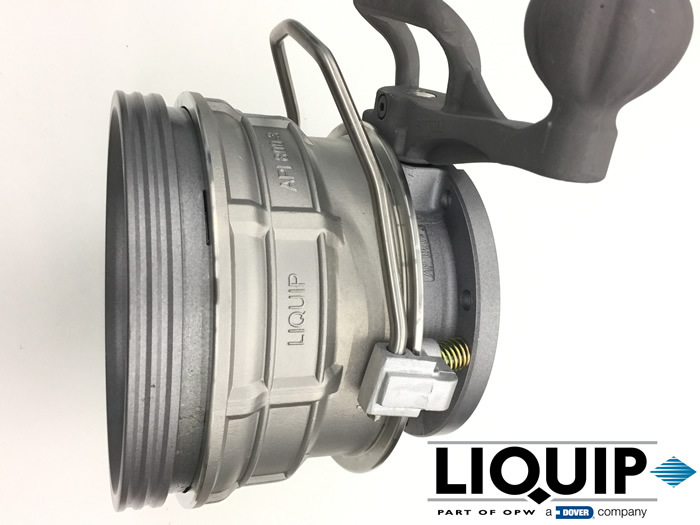

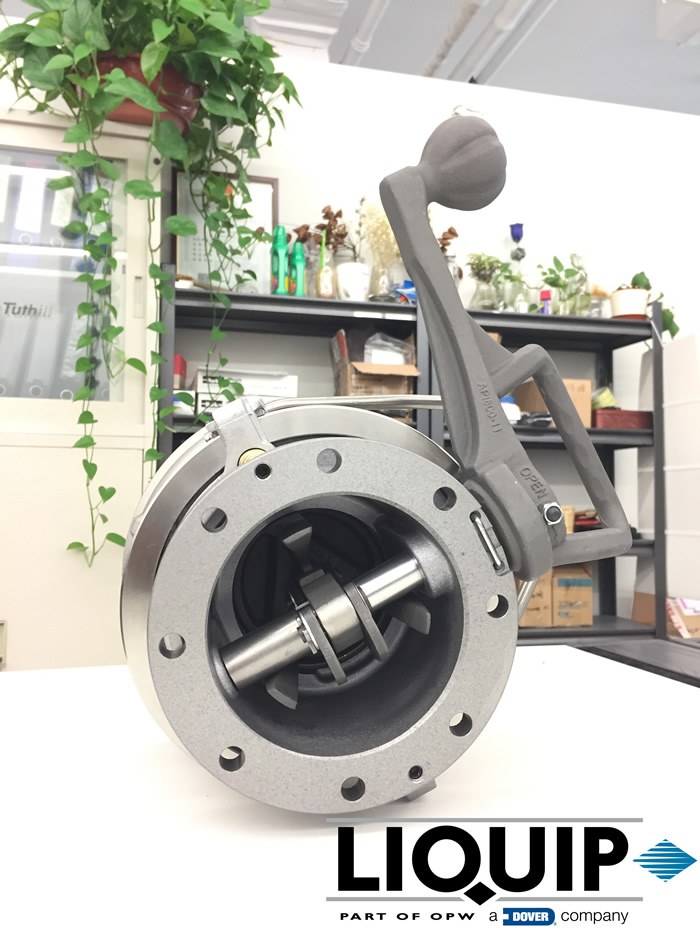

LYNX Series Bottom Loading Coupler
規格參數Specifications
| Handle Length |
Short 5.9" (150mm) or Long 7.8" (200mm) |
| Seals |
Viton B, Viton GFLT, Nitrile/Buna, Fluorosilicone, FFKM, Ultra Low-Temp (FKM)
|
| Max Working Pressure |
80 psi (5.5 bar) (550 kPa) |
| Product Test Pressure |
119 psi (8.2 bar) (820 kPa)
|
| Design Pressure |
363 psi (25 bar) (2500 kPa)
|
| Max Surge Pressure |
493 psi (34 bar) (3400 kPa)
|
| Operating Temperature |
Viton B70: 0°F to 200°F (-15°C to +90°C); Viton GFLT: -20°F to +200°F (-28°C to +90°C); Nitrile/Buna: -40°F to 212°F (-40°C to 100°C); Fluorosilicone: -49°F to 350°F (-45°C to 177°C); FFKM: 23°F to 140°F (-5°C to 60°C); FKM (Ultra Low-Temp): -40°F to 200°F (-40°C to 90°C)
|
| Design Standard |
API RP 1004 8th EDITION 2003 - Bottom Loading and Vapour Recovery; AS5602-2009 |
| Dismantling |
Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn
|
| Mounting |
- By industry standard 4" (100 mm) TTMA Flange
- 8 holes - 7/16" on 5.8" PCD, 6.6" outside diameter (- 11 mm on 149 mm PCD, 168 mm OD)
- Use spring washers when mounting coupler as per common industry practice |
| Adjustment or Service |
Refer to Maintenance Instructions document
|
| Weight |
19 lbs. (8.6 kg.) |
Viton- - is a registered trademark of DuPont
Safety and Reliability
Minimal product leakage during disconnect increases site safety.
Low risk of leakage because of a proven seal design.

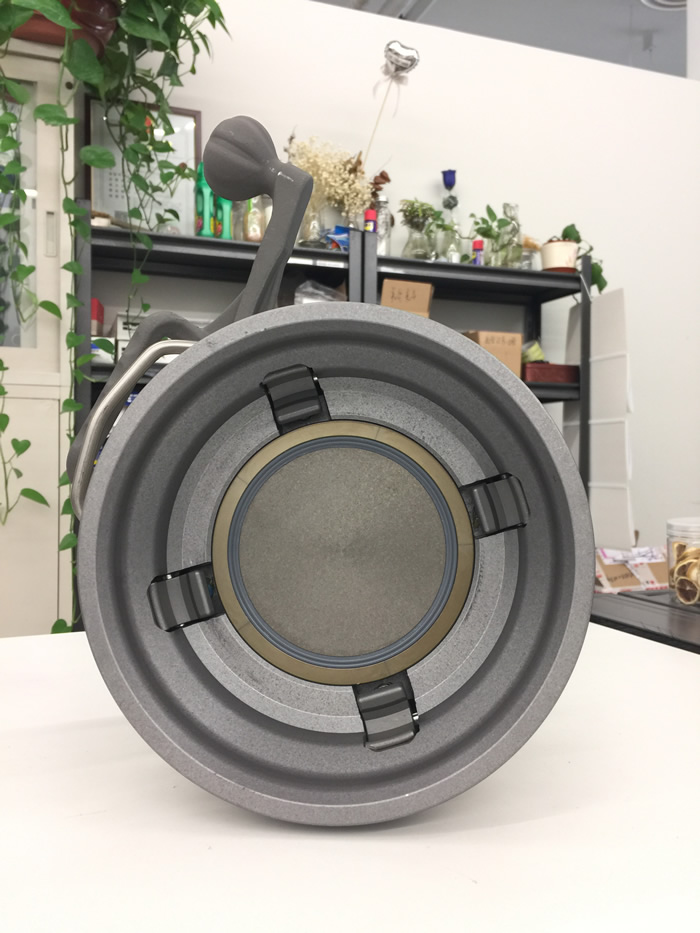

Four, "true interlocking" stainless steel latches ensure superior latch alignment and maximum safety.
Lightweight without reducing safety and reliability.
High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life.
Performance and Convenience
Fast and easy disassembly of entire coupler through U-pin design.
U-pin is secured when the TTMA flange is fastened to prevent the pin from falling out in service.
Fast in-field replacement of main seals, on or off the arm.
Two operating handle sizes to suit customer preference.
Less drippage at disconnect compared to previous models.
Collar designed to ensure minimal distortion of critical latching face.
Easy to operate handle with a noticeable positive lock.
Comfort and Style
Ergonomic operating handle and carry loop results in less physical strain on users.
Handle Length
Short (150mm) or Long (200mm).
Seals
-Viton B.
-Viton GFLT (recommended for ethanol blends).
-FFKM.
-Fluorosilicone.
-NBR (Nitrile/Buna).
Pressures
Max Working Pressure: 80 psi (5.5 bar) (550 kPa).
Product Test Pressure: 119 psi (8.2 bar) (820 kPa).
Design Pressure: 363 psi (25 bar) (2,500 kPa).
Max Surge Pressure: 493 psi (34 bar) (3,400 kPa).
Operating Temperature
Viton B70: -15°C to 90°C (0°F to 200°F).
Viton GFLT: -28°C to 90°C (-20°F to 200°F).
Nitrile/Buna: -40°C to 100°C (-40°F to 212°F).
Fluorosilicone: -45°C to 177°C (-49°F to 350°F).
FFKM: -5°C to 80°C (-23°F to 176°F).
Tecnoflon: -40°C to 90°C (-40°F to 200°F)
Design Standard
API RP 1004 8th EDITION 2003 - Bottom Loading and Vapour Recovery.
Dismantling
Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn.
Mounting
By industry standard 100mm (4”) TTMA Flange.
Weight
8.6kg (LYNX85x Couplers).
10.81kg (LYNX86x Couplers).
LYNX850: Short Handle, Viton B.
LYNX850VG: Short Handle, Viton GFLT.
LYNX850C: Short Handle, FFKM.
LYNX852: Long Handle, Viton B.
LYNX852VG: Long Handle, Viton GFLT.
LYNX852C: Long Handle, FFKM.
LYNX852G: Long Handle, Viton B - AVGAS Selective.
LYNX852J: Long Handle, Viton B - Jet Selective.
LYNX862: Long Handle Drip Catcher, Viton B70.
LYNX862VG: Long Handle Drip Catcher, Viton GFLT.
LBM800: Liquip Loading Arm Balance Assembly.
LBV450VG: 4" Butterfly Valve, Viton GFLT seals.
BF4-SG-25: 4" TTMA sightglass flange, 25mm thick.
BF4-SG-40: 4" TTMA sightglass flange, 40mm thick.
0657V: 4" TTMA Viton Gasket.
4248: 4" TTMA Klinger Gasket
