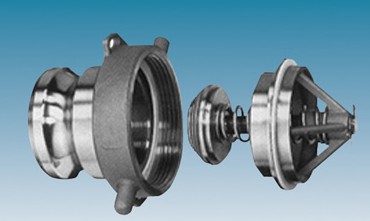

OPW 2173AVN | OPW 2173AVN油氣回收型干式快換接頭

OPW 2173AVN油氣回收型干式快換接頭能夠為頂部底部裝卸的槽車提供方便的油氣回收方法。 OPW 2173AVN可安裝在槽車上的QRB閥門上，其所提供的不漏液聯接方式在發生翻車的情況下可將危險液體緊急抽空。The OPW 2173AVN Vapor Recovery Dry Disconnect Coupling provides easy access in recovering vapors for either top or bottom loading/unloading tank truck operations. The OPW 2173AVN installs onto the QRB valve on tank trailers and can provide a dry disconnect connection for emergency evacuation of hazardous liquids in the case of a roll-over.OPW 2173AVN油氣回收型干式快換接頭能夠為頂部或者底部裝卸的槽車提供方便的油氣回收方法。OPW2173AVN可安裝在槽車的QRB閥門上，其所提供的不漏液聯接方式在發生翻車的情況下可將危險性液體緊急抽空。

2173AVN油氣回收型干式快換接頭

2173AVN系列蒸汽回收接頭

OPW 2173AVN蒸汽回收干式分離聯軸器為頂部或底部裝載/卸載油罐車操作提供了回收蒸汽的便捷通道。OPW 2173AVN安裝在油罐掛車的QRB閥上，可以提供干式斷開連接，以便在翻車時緊急撤離危險液體。

OPW 2173AVN油氣回收型干式快換接頭優點

- 閉路保護—在聯接/脫卸過程中氣相和液相的可靠密封，為操作人員和環境提供充分保護。專為具有較高蒸汽壓、易于快速氣化的VOC（揮發性有機化合物）物料的用途而設計。能將易揮發物料封閉在管線中，從而減少VOC物料輸送過程中的油氣損失

- 翻車保護—其低型面設計使聯接管件處在低于翻車平面的水平上，從而在發生翻車時將破壞降低到低限度。符合IMO的型面尺寸要求

- 便于緊急抽空—提供的不漏液聯接方式在發生翻車的情況下可將危險性液體緊急抽空

- 清洗快捷方便—其設計結構便于拆卸，以方便定期進行的清洗工作

OPW 2173AVN油氣回收型干式快換接頭特性

- 油氣軟管聯接—2”(DN50)Kamvalok干式快換陰端接頭或D2000帶操縱桿的干式快換陽端接頭

- 無須改裝槽車—可以很方便地連接到原有的MC307、DOT407、MC312、和DOT412槽車拖車上

- 3”(DN80)直螺紋安裝—與2”(DN50)干式快換接頭的凸輪/滑槽聯接構件一起，形成與ORB閥門配合使用的3”*2”(DN80* DN50)接續裝置

2173AVN Series Vapor Recovery Fitting

The OPW 2173AVN Vapor Recovery Dry Disconnect Coupling provides easy access in recovering vapors for either top or bottom loading/unloading tank truck operations. The OPW 2173AVN installs onto the QRB valve on tank trailers and can provide a dry disconnect connection for emergency evacuation of hazardous liquids in the case of a roll-over.

Features

Vapor Hose Connection – 2” Kamvalok? Dry Disconnect or D2000? Actuating Couplers
No trailer modifications required – Easy attachment to existing MC307, DOT407, MC312, and DOT412 trailers
3” straight thread mounting with 2” Kamvalok? dry disconnect cam and groove connection makes the ideal 3” x 2” adaptor for QRB valves
Can replace existing Clean-Out Caps for Closed Loop System

Benefits

Closed-Loop Protection – Helps protect people and the environment by providing a vapor and liquid tight seal during the connection/disconnection process specifically designed to contain VOC (Volatile Organic Compounds) products that have high vapor pressure that evaporates quickly. Contains fugitive emissions and transfers VOCs without vapor loss.
Roll-Over Safety – Low profile design keeps the fitting below roll-over plane to minimize damage in the event of a roll-over. Meets IMO profile dimensions.

Easy Emergency Evacuation – Provides a dry disconnect connection for emergency evacuation of hazardous liquids in case of roll-over
Quick and Easy Cleaning – Designed for easy disassembly for routine cleaning
