OPW Kamvalok 1600AN系列陽端接頭
OPW 1600AN Series Adaptors for Kamvalok® Couplings
OPW 1600AN系列專為與OPW Kamvalok陰端接頭配合使用以防止聯接/脫卸過程中的液體泄露而設計的。陽端接頭內含一個彈簧加載的提升閥，用來保證快速關閉和可靠密封。
1600AN Series Adaptors for Kamvalok® Couplings_PDF下載
1600AN系列是專為OPW Kamvalok陰端接頭配合使用以防止聯接/脫卸過程中液體泄漏而設計的。陽端接頭內含一個彈簧加載的提升閥，用來保證快速關閉和可靠密封。The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok- Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and tight seal.
OPW Kamvalok 1700DL Series Coupler

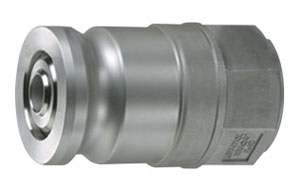

1600AN Series Kamvalok Adaptor
Kamvalok 1600AN系列陽端接頭特點
- 提供1 ”, 2”和3”規格
- 高強度結構—可提供鋁合金和不銹鋼兩種材質。不銹鋼的耐腐蝕強度可與316不銹鋼相當。
- 內螺紋聯接—可以與外螺紋管接口或軟管接頭相配合。
- 彈簧加載的提升閥結構—能保證快速關閉和可靠密封。
- 多種密封材質可供選用—可提供Buna-N, Fluorocarbon, PTFE, EPDM和Chemraz?。
Kamvalok 1600AN系列陽端接頭優點
- 整體式結構—消除一切可能泄露的途徑。
- 防止漏液—采用提升閥操縱結構，只能在Kamvalok?陰端接頭接好的情況下打開，在關閉情況下其設計結構能提供可靠密封。
- 運行可靠—簡單的彈簧加載提升閥結構和高強度結構材質能確保長期、可靠的運行。
- 流量條件—通過內置折流擋板來消除湍流，保證均勻的流量和較低的壓降。

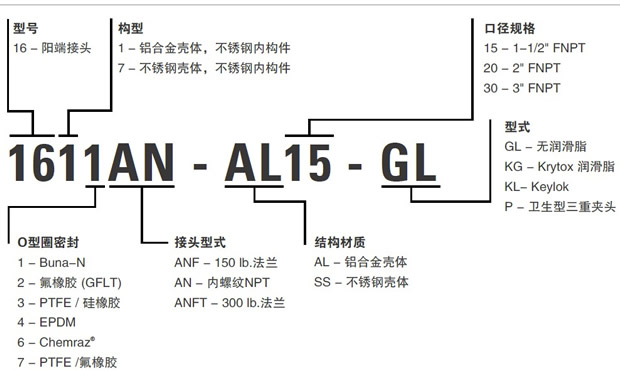

- 訂貨型號選型
OPW 1600AN Series Adaptor Ordering Specifications：
Stainless Steel Adaptors - Female NPT
產品型號 |
尺寸 |
| 1671AN-SS15 |
1-1/2" Buna Seal, Stainless Steel |
| 1671AN-SS20 |
2" Buna Seal, Stainless Steel |
| 1671AN-SS30 |
3" Buna Seal, Stainless Steel |
| 1672AN-SS15 |
1-1/2" Viton Seal, Stainless Steel |
| 1672AN-SS20 |
2" Viton Seal, Stainless Steel |
| 1672AN-SS30 |
3" Viton Seal, Stainless Steel |
| 1673AN-SS15 |
1-1/2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS20 |
2" Teflon Silicone Seal, Stainless Steel |
| 1673AN-SS30 |
3" Teflon Silicone Seal, Stainless Steel |
| 1674AN-SS15 |
1-1/2" EPT Seal, Stainless Steel |
| 1674AN-SS20 |
2" EPT Seal, Stainless Steel |
| 1674AN-SS30 |
3" EPT Seal, Stainless Steel |
| 1676AN-SS15 |
1-1/2" Chemraz Seal, Stainless Steel |
| 1676AN-SS20 |
2" Chemraz Seal, Stainless Steel |
| 1676AN-SS30 |
3" Chemraz Seal, Stainless Steel |
| 1677AN-SS15 |
1-1/2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS20 |
2" Teflon-Viton Seal, Stainless Steel |
| 1677AN-SS30 |
3" Teflon-Viton Seal, Stainless Steel |
| 1679AN-SS15 |
1-1/2" Viton-B Seal, Stainless Steel |
| 1679AN-SS20 |
2" Viton-B Seal, Stainless Steel |
| 1679AN-SS30 |
3" Viton-B Seal, Stainless Steel |
Aluminum Adaptors - Female NPT
產品型號
|
尺寸規格 |
| 1611AN-AL15 |
1-1/2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL20 |
2" Buna Seal, Alum. & Stainless Steel |
| 1611AN-AL30 |
3" Buna Seal, Alum. & Stainless Steel |
| 1612AN-AL15 |
1-1/2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL20 |
2" Viton Seal, Alum. & Stainless Steel |
| 1612AN-AL30 |
3" Viton Seal, Alum. & Stainless Steel |
| 1612A-AL07 |
3/4" Viton Seal, Alum. & Stainless Steel |
| 1613AN-AL15 |
1-1/2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL20 |
2" Teflon Seal, Alum. & Stainless Steel |
| 1613AN-AL30 |
3" Teflon Seal, Alum. & Stainless Steel |
| 1614AN-AL15 |
1-1/2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL20 |
2" EPT Seal, Alum. & Stainless Steel |
| 1614AN-AL30 |
3" EPT Seal, Alum. & Stainless Steel |
| 1616AN-AL15 |
1-1/2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL20 |
2" Chemraz Seal, Alum. & Stainless Steel |
| 1616AN-AL30 |
3" Chemraz Seal, Alum. & Stainless Steel |
| 1619A-AL07 |
3/4" Viton-B Seal, Alum. |
| 1619AN-AL15 |
1-1/2" Viton-B Seal, Alum. |
| 1619AN-AL20 |
2" Viton-B Seal, Alum. |
| 1619AN-AL30 |
3" Viton-B Seal, Alum. |
|
