德國SIKA儀器儀表產品匯總：
 |

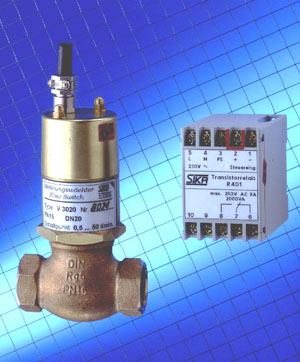

Flow Switch Piston Type
with Proximity Switch V 3000
- Magnet free construction
- Monitoring of extremely low flow
rates e.g. 0,5 l/min
- Various fitting positions
- High repeatability
- Low hysteresis < 1%
- Wear resistant proximity switches
- Stainless steel version available Pipe size
- DN 10, DN 15, DN 20, DN 25,
DN 32, DN 40, DN 50 |
SIKA FLOW SWITCH V 3000流量開關 |
 |
Flow Switch VHS...M, Inline Type
Size
- DN 10, DN 15, DN 20, DN 25,
DN 32, DN 40, DN 50
Setpoint ranges ( H2O, 20°C )
- 4,0 l/min ... 83,0 l/min
Max. flow rate
- 10 l/min ... 250 l/min |
SIKA FLOW SWITCH VHS,VHM系列流量開關 |
 |

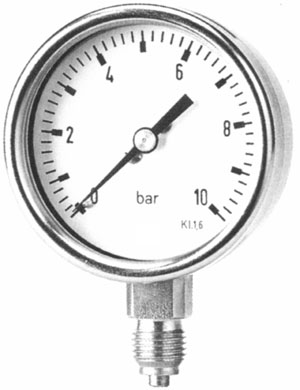

Diaphragm Pressure Gauges with Limit-Switch Contact Assemblies
Type MPS case mild steel
Type MPE stainless steel case 1.4301
Electrical connection
Pressure gauges of Type MPS with electro-mechanical contact devices ( standard or magnet contact ) are delivered ex factory with connection cable in the rear wall of the casing and 1 m cable length.
Generally all pressure gauges of Type MPE and pressure gauges with oil filling are delivered with plug connector at the right-hand side of the casing.
An exception are pressure gauges to be installed in panels, the plug connector is positioned in the rear wall.
Pressure gauges with inductive contact have a cable connecting box.
If the plug connector is installed at the rear side of an instrument of nominal size NG 100, a Blow-out ( 25 mm dia ) cannot be installed.
The adjacent sketches show the precise position of connection cable and plug connectors.
The plug connector has 6 pins and one earth terminal. The terminal box has 6 terminals only. |
SIKA Type MPS壓力表 |
|

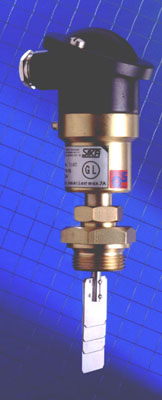

Paddle - Flow Switch VH 500 for Liquids,
Marine version
- Approved by German Lloyd, certificate
No.: 89 824-94 HH
- Suitable for water, oil, etc.
- Insert installation into pipe or T-pieces
DN 25 ... DN 50 or bigger
- Four paddles in different sizes included,
selection in accordance to the pipe size
- Robust construction
- Vibration proof to 4 g
- Wide set point ranges universally
insertable
- Setoint adjustment by paddle size selection
and by adjustment screw
- Micro switch with high contact rating
Size of pipe section
- DN 25, DN 32, DN 40, DN 50 |
SIKA Flow Switch VH 500流量開關 |
 |

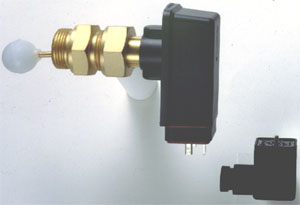

Level Switch VH ..., VK ...
Instrument versions
- Brass, Stainless, Plastic
with
- 3/4" BSP male, ball float PVDF
- 3/4" BSP male, stainless steel float
- 3/4" BSP male, elbow float bar,
ball float PVDF
( only brass and stainless steel version )
with
- Plug connection, standard: DIN 43650
- 1,5 m connecting cable
SIKA MODE:
VHS 05M,VHS 06M,VHS 01M,VHS 08M,VHS 10M,VHS 15M, VHS 15MA,VHS 20M,VHS 25M,VHS 32M,VHS 40M,VHS 50M,VKS 15MKU,VKS 20MKU,VKS 25MKU,VKS 32MKU,VKS 40MKU,VKS 50MKU |
 |
flow sensor
Turbotron DN 15
VTH
- economy-priced type for standard and serial applictions
Accuracy
- ± 1% of range
Reproducibility
- ± 0,2%
Measurement range
2...40 l/min
VTP
- high pressures, high temperatures, fuels
Accuracy
- ± 1% of range
Reproducibility
- ± 0,2%
Measurement range
2...40 l/min
VTI
- magnet-free rotor, high measurement accuracy, high resolution
Accuracy
- ± 0,5% of range
Reproducibility
- ± 0,1%
Measurement range
2...40 l/min
VTH15,VTH 15KS,VTP15MS,VTP15VA,VTI15MS,VTI15K5
|
 |
 |
SIKA flow sensor VTH Series 流量傳感器 |
德國SIKA流量開關，渦輪流量計
Item |
Product |
Part No. |
1 |
流量開關 |
VHS 15 M ； PN25, 8L/MIN
Tmax=110,
Max.26VA/1A/230V- |
2 |
SIKA 流量計 |
VTH15 |
3 |
水流量蝸輪 |
VT1540 用於 VTH 15 MS-40 |
4 |
SIKA 流量開關 |
VH310
VHS10M-MS DN10 PN25 20W 24V 3L/MIN |
5 |
SIKA 透平流量計 |
VTH15MS-41 |
6 |
溫度計 |
29121611063211 |
7 |
流量開關 |
VH780E1 |
8 |
水流量開關 |
VTH 15 MS-40 |
9 |
流量開關 |
VH310 PN25
VHS10M-MS DN10 PN25 20W 24V 3L/MIN |
10 |
流量開關 |
VHS05M PN25 |
11 |
透平流量計 |
VTH15MS-41 |
12 |
流量開關 |
VTH1540 Mhutt107 |
13 |
流量開關 |
TYPE:VHS32M TMAX110 PN25
SCTPOINT:14.5-19.0L/min |
14 |
溫度計 |
271B 10-200 度 /63 嵌裝 |
15 |
溫度計 |
K120200632110 |
16 |
溫度計 |
175.2121110021 |
17 |
流量開關 |
VH310M
VHS10M-MS DN10 PN25 20W 24V 3L/MIN |
18 |
流量檢測儀 |
VHS 05 M PN25 Tmax:11 |
19 |
溫度計 |
1.74212E+12 |
20 |
溫度表 |
3022216100223 或 221 |
21 |
流量開關 |
VHS 20 MK |
22 |
流量開關 |
VHS 15 MK |
23 |
溫度計 |
Thermonmer straight, SIKA 271B, casing size 200x36mm Immersior Length 63mm, Cagalogue No.271b-35-063
Temp range: --30 度 50 度 |
24 |
流量開關 |
Type ： VH 500 mebgenau bis 2 bar schaltleistung ： PN 6 Serien － Nr. ： 8428 24VDC,Widerst.last .max.8A ， indukt.Last max.7A 60VDC,Widerst.Last max.1A ， indukt.Last max.0.5A 250VAC,Widerst.Last max.10A,indukt.Last max.10A |
25 |
流量開關 |
Type ： VH 500 mebgenau bis 2 bar schaltleistung ： PN 6 Serien － Nr. ： 8428 24VDC,Widerst.last .max.8A ， indukt.Last max.7A 60VDC,Widerst.Last max.1A ， indukt.Last max.0.5A 250VAC,Widerst.Last max.10A,indukt.Last max.10A |
26 |
流量開關 |
VHS0819-VA 1/4BSP |
27 |
流量開關 |
VHS081M-VA 1/4BSP |
28 |
流量開關 |
VHS 15 M ； PN25, 8L/MIN
Tmax=110,
Max.26VA/1A/230V-20W/1A/48V |
29 |
流量開關 |
VH 310 M-MS VHS10M-MS |
30 |
流量開關 |
VHS15MS-40VE Qmax=40l/m |
31 |
流量開關 |
XVT-2053 |
32 |
流量開關 |
VTH 15 K5-412 2 –40L/MIN |
33 |
流量開關 |
VTM25 MS-180 4-160L/MIN |
34 |
流量開關 |
TU8051-2 |
35 |
流量開關 |
VHS05M 黃銅 |
36 |
流量開關 |
VHS05M 不銹鋼 |
37 |
流量開關 |
VKS10M PN10
TEM=100 度 26VA/1A/230V-20W /1A/48V 2.2-2.9L/Min |
38 |
流量開關 |
VHS 15M |
39 |
流量計 |
VTH25MS-180VE |
40 |
熱電阻溫度傳感器 |
W04392104003005 |
41 |
流量開關 |
VH308M |
42 |
流量開關 |
VH600M-MS |
43 |
流量開關 |
VTH15 MS-40VE |
44 |
流量開關 |
VT1540KROFNO4 |
45 |
流量開關 |
VT1 15 K5-41
2-40L/MIN |
46 |
渦輪流量計 |
VTR1020 螺紋連接 |
47 |
渦輪流量計 |
VTR1020 法蘭連接 DN20 PN16 碳鋼材質 |
48 |
渦輪流量計 |
VTR1020 法蘭連接 DN20 PN16 不銹鋼材質 |
49 |
渦輪流量計 |
VTR1020 法蘭連接 DN20 PN25 碳鋼材質 |
50 |
渦輪流量計 |
VTR1020 法蘭連接 DN20 PN25 碳鋼材質 |
51 |
|
VHS 15M-MS
輸出線圈 VH325 BRASS 2PCS |
52 |
流量開關 |
V1020 |
53 |
流量開關 |
VTH15MS-40VT1540MMIEBA01 |
54 |
流量開關 |
VHS15M-VA 1 寸外螺紋 |
|
|
