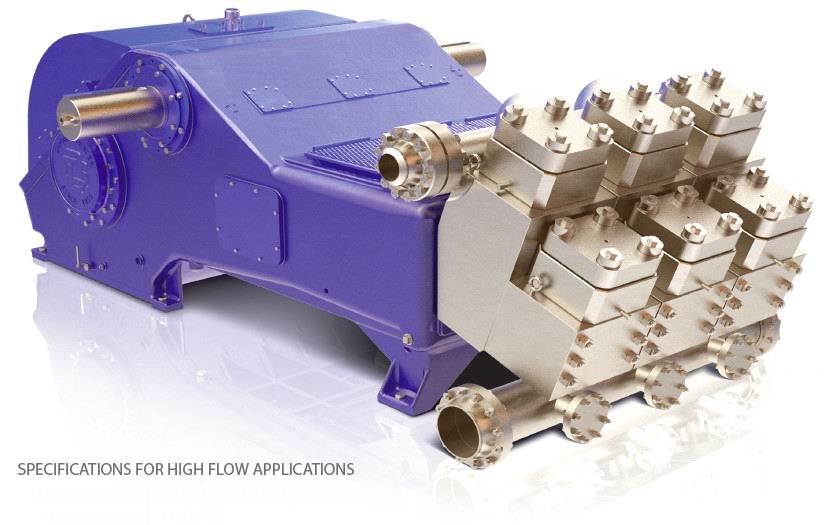

PZ-2400 Offshoe drilling pump海上鉆井泵
PZ-2400 OFFSHORE DRILLING PUMP SPECIFICATIONS FOR HIGH FLOW APPLICATIONS規格參數：
Maximum Input： 2,400 BHP (1,790 kw)
Maximum RPM ：110 RPM
Stroke Length： 14” (356 mm)
Piston Load： 185,000 lbs. (822,921 N)
Pump Weight： 63,500 lbs. (28,803 kg) with skid and hydraulic tensioning system
Gear Ratio： 4.033:1
PZ-2400 OFFSHORE DRILLING PUMP
STANDARD FEATURES標準規格參數：
Patent Pending, severe duty, Y-type fluid modules
SMART Pump monitoring and data acquisition
technology
High strength, cast power frame, eccentric, .
connecting rods, and crossheads
Full roller bearing construction
Heat treated alloy steel, double helical AGMA drive
gears
Double extended jackshaft for mounting sheaves or
sprockets
Replaceable bronze crosshead slides
Full open valve seats
Fabricated, log style suction manifold
Hydrostatic tested cast steel
discharge manifold
API suction and discharge connections.
OPTIONAL FEATURES可選參數：
DNV, ABS, API or other third party certifications
. Steel transportation and placement skid for
. pump only or larger maintenance skid with non-slip decking
Heat treated alloy steel, valve over valve
interchangeable fluid end modules
Centrifugal suction charging pump.
Suction stabilizer and / or discharge damper.
Full open valve seats.
Custom packaging available.
Clear Lexan covers on side and rear hood inspection .
ports.
|
