德國GATHER快速接頭 Gather快速接頭 gather齒輪泵


德國Gather Industrie GmbH主要生產泵、管道、閥門和過濾器等產品。公司自成立以來，追求創新，不斷推出新的產品，滿足客戶的更多需求。Gather Industrie公司同時提供良好的售后服務。今年來，該公司的產品遠銷全球各地，收到了越來越多的客戶的歡迎。

GATHER快速接頭平面設計使密封面不泄漏，易于接合斷開。
溫度介于-60 C和+315 °C
非泄漏斷線：沒有破壞環境的人或因泄漏的液體或氣體的危害退出共享
無耦合操作：沒有空氣或灰塵進入管道
系統入口能力（清潔就地）：嵌入式無殘留的清潔產品更換密封在與耦合仍然存在插座
所有的連接類型：螺紋類型眾多，軟管接頭，法蘭，特殊的連接
不銹鋼，哈氏合金
特殊類型：維護與管斷裂。
德國GATHER快速接頭\磁力齒輪泵
GATHER磁力驅動齒輪泵是由不銹鋼、哈氏合金或鈦合金做成的，主要用于水、水性液體、鹽溶液、酸堿溶液和溶劑，具有高度精確的特點。作為一個低維護流程泵，它可以優化集成到現有的系統；當用于加料和計量時，確保高度準確，重現性流動速率。在磁力耦合和使用最新的材料的基礎上，Gather持續推進泵的設計，從最初為實驗室服務的泵到開發適合于試驗設施（小型廠）酸性和苛刻環境的泵和過程工藝泵，符合壓力設備指令及危險區域ATEX的要求。
GATHER主要產品：GATHER磁力齒輪泵、GATHER離心泵、GATHER連接器、GATHER快速接頭、GATHER過濾器、GATHER止回閥、GATHER溢流閥、GATHER流量保護控制閥

德國GATHER快速接頭平面設計使密封面不泄漏，易于接合斷開。溫度介于-60 C和+315 °C非泄漏斷線：沒有破壞環境的人或因泄漏的液體或氣體的危害退出共享無耦合操作：沒有空氣或灰塵進入管道系統入口能力（清潔就地）：嵌入式無殘留的清潔產品更換密封在與耦合仍然存在插座所有的連接類型：螺紋類型眾多，軟管接頭，法蘭，特殊的連接不銹鋼，哈氏合金特殊類型：維護與管斷裂。

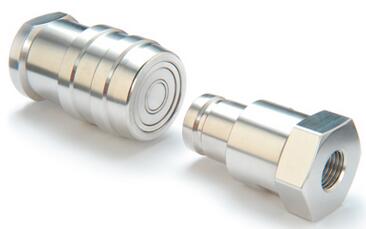

Flat-Face Quick-Disconnect Coupling Gather DBG系列平面快速接頭 Non-spill, robust and safe for any application DBG series, DN 4 to 65 More than 500,000 coupling cycles Most cost-effective of plain, low-alloy stainless steel	Flat-Face Sterile Coupling Gather快速接頭 Non-spill, robust and safe for any application especially in the pharmaceutical field Special variant of the DBG product series, DN 6 to DN 40 Unique in its class

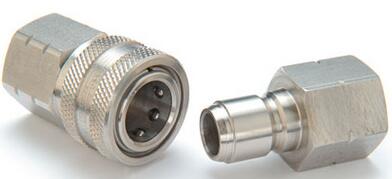

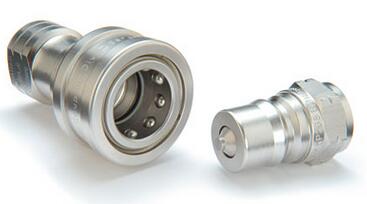

Original Hansen Tube-Hose Quick-Disconnect Coupling of HK Series Double shut-off versions Gather Hk Coupling系列快速接頭	Original Hansen Tube-Hose Quick-Disconnect Coupling of ST Series Gather ST系列快速接頭

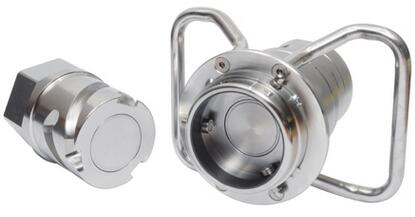

Connection under pressure Garher DBG-CUP系列帶壓操作快速接頭 Special series DBG-CUP, DN 12 to 25 Non-spilling, robust and save for every application CUP SYSTEM? – Connection Under Pressure Unique in its class	GATHER DBG-SV快速接頭 Tube-Hose Quick-Disconnect Coupling Double shutoff, dry-break and connectable under residual pressure Hose couplings of type DBG-SV are fitted with automa-tically closing shut-off valves.
Mechanical Pin Coding System 機械銷編碼系統	Electronic Coding System 電子編碼系統

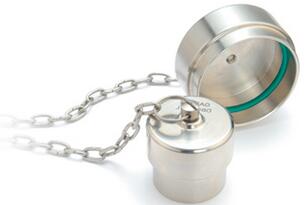

Gather快速接頭防塵帽 防塵塞	Gather快速接頭防塵帽 防塵塞

Hansen Coupling

The Evergreen“ HK Products - The Proven Hansen Design Series

Double shutoff feature, robust and safe in any application

DN 4 to DN 125

Technical Data

Connects/disconnects liquid, gas or steam lines quickly
Nominal diameters from DN 4 to DN 125
For vacuum and pressure up to 550 bar, at -60°C to +315°C
Double, single shutoff or without shutoff function
High operational safety: integrated shutoff valves reliably prevent product losses when the coupling is disconnected
Proven locking mechanism: automatic ball locking for high operational safety
All types of connection: numerous thread types, hose nipples, flanges, special connections
Stainless steel, steel, brass, aluminum, Hastelloy, titanium

Flat-Face Quick-Disconnect Coupling

Non-spill, robust and safe for any application
DBG series, DN 6 to 65
More than 500,000 coupling cycles
Most cost-effective of plain, low-alloy stainless steel

The flat-face sealing design enables non-spill disconnect and inclusion-free coupling operations.

Temperatures ranging between -60°C and +315°C
Single-hand operation
Non-spill disconnection: No environmental damage or hazards to persons due to spilled liquid or exiting gas
Inclusion-free coupling operation: No ingress of air or dirt into the piping system
CIP capability (Cleaning-in-Place): Inline cleaning without product residues
Seal replacement at the socket with coupling still in place
All types of connection: numerous thread types, hose nipples, flanges, special connections
Stainless steel, Hastelloy
Special types:
with hose breaking safeguard
with electronic identification system
with mechanical pin coding
with handles
Ready-to-install couplings for docking systems
Series products available from stock

Series Nominal diameter Admissible operating pressure Connection

DBG 2 DN 6 350 bar 1/4"
DBG 3 DN 10 350 bar 3/8"
DBG 4 DN 12 250 bar 1/2"
DBG 6 DN 20 200 bar 3/4"
DBG 8 DN 25 105 bar 1"
DBG 12 DN 40 60 bar 1.1/2"
DBG 20 DN 65 20 bar 2.1/2"

GATHER接頭 的相關產品
GATHER泵｜GATHER閥 PU2020、PU2013、PU2015
GATHER泵 PU2020、PU2015、PU2013
GATHER閥 Rü-G1/8-V、Rü-G1/4-V、Rü-G3/8-V、Rü-G1/2-V、Rü-G3/4-V
GATHER接頭 GATHER接頭
GATHER產品常用型號：
DBG 2 DN 6 350 bar 1/4"
DBG 3 DN 10 350 bar 3/8"
DBG 4 DN 12 250 bar 1/2"
DBG 6 DN 20 200 bar 3/4"
DBG 8 DN 25 105 bar 1"
DBG 12 DN 40 60 bar 1.1/2"
DBG 20 DN 65 20 bar 2.1/2"
GATHER快速接頭 HKT12N-BR V01/K57222
GATHER快速接頭 HKG30N-AL V01/K57359G3A

接頭 HKG30F-AL-V01-G3A-KR-LLRG-EN替代A24-H60BS-KR-RG170-EN-143
快速接頭 A-24-K60BS-EN-143 DN80
快速接頭 A-24-H60BS-KR-RG170-EN-143 DN80
噴涂泵 P522274 70716651 1M-K/9 PTB-NR.02ATEXD034
軋機-支承輥 HKT12N-BR V01/K57222
軋機-支承輥 HKG30N-AL V01/K57359G3A
GATHER快速接頭 公頭 HKT12N-BR V01/K57222
GATHER快速接頭 公頭 HKG30N-AL V01/K57359G3A
GATHER快速接頭 公頭 HKT12N-BR V01/K57222
GATHER快速接頭 公頭 HKG30N-AL V01/K57359G3A
GATHER快速接頭 母頭 HKT12F-BR-V01
GATHER快速接頭 公頭 HKT12N-BR V01/K57222
GATHER快速接頭 母頭 HKG30F-AL-V01
GATHER快速接頭 公頭 HKG30N-AL V01/K57359G3A
GATHER快速接頭 母頭 HKT12F-BR-V01
GATHER快速接頭 公頭 HKT12N-BR V01/K57222
GATHER快速接頭 母頭 HKG30F-AL-V01
GATHER快速接頭 公頭 HKG30N-AL V01/K57359G3A
接管插座 HKT6F-CC-R01-ST3/4 CD01
GATHER接頭 HKT6N-CC-R01-AM26.94 2.6X20 CD01
接管插頭 HKT6F-LL-R01-ST3/4 CD01
GATHER接頭 HKT6N-LL-R01-AN269426X20
GATHER快速接頭（軋機-支承輥） HKT12N-BR V01/K57222
GATHER快速接頭（軋機-支承輥） HKG30N-AL V01/K57359G3A
GATHER快速接頭 公頭 HKT12N-BR V01/K57222
GATHER快速接頭 公頭 HKG30N-AL V01/K57359G3A
GATHER快速接頭 A-24-H60BS-KR-RG170-EN-143
GATHER HKG30F-AL-V01-G3A-KR-LLRG-EN替代A24-H60BS-KR-RG170-EN-143
GATHER 管接頭 DN80 part NO.21281 HKG30F-AL-V01-G3A-KR-LLRG-EN GATHER INDUSTRIE 進口 原圖號A00723.510.07.10.8805_10929220_0060 HKG30F-AL-V01-G3A-KR-LLRG-EN Al
GATHER 管接頭 DN40 part NO.21538 HKT12F-BR-V01-G1.1/2A GATHER INDUSTRIE 進口 原圖號A00723.510.07.10.8805_10929156_0050 HKT12F-BR-V01-G1.1/2A Messing-FPM
GATHER接頭 DN40 part NO.21538 HKT12F-BR-V01-G1.1/2A
GATHER接頭 DN80 part NO.21281 HKG30F-AL-V01-G3A-KR-LLRG-EN
快速接頭 BG3F-KL-V01-G1/2-LS,DN10 FKM
快速接頭 DBG3N-KL-V01/V10-MF22X1.5-SBL,DN10，FKM
