Autoclave Engineers ball valves球閥

從1945年開始，Autoclave Engineers開始生產具有安全、可靠操作性的高壓閥系統，它們可以適用于各種溫度、壓力和環境狀況。今天，Autoclave Engineers已經發展成為各類高壓行業提供可靠的高壓閥、接頭和管子的世界領先者。產品性能是Autoclave Engineers對客戶的承諾，Autoclave的閥、接頭和管子滿足嚴格的標準，它的壓力可以從0到150,000 psi(10343 bar) ，溫度從 0 到 1200°F (650°C)有上千種變化。沒有別的工廠能比Autoclave Engineers在高壓要求方面做得更好，也沒有別的工廠能比Autoclave Engineers做的系統更可靠和具有創新的特性。Autoclave Engineers的產品為滿足客戶的各種需求而設計，并且具有品質高，交貨準時，價格適當?shù)奶攸c(diǎn)。

Autocalve engineers球閥規格參數：
壓力：最大到20,000psi（1379bar）
溫度：0°F (-17.8°C)到500°F (260°C)
連接尺寸：1/8”到1/2”
流通尺寸：0.094”（2.39mm）到0.500”（12.7mm）
材質：316不銹鋼

Autoclave Ball Valve

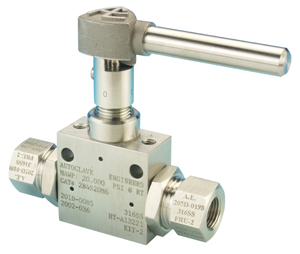

2-Way Ball Valves: 1/4”, 3/8”, & 1/2” pressures to 20,000 psi. (1379 bar)
3-Way Ball Valves: Standard and Diverter
. 3/16”, 3/8”, & 1/2” pressures to 20,000 psi. (1379 bar)
4-Way Ball Valves: 3/8” pressures to 10,000 psi. (689 bar)
Subsea Ball Valves: 3/16”, 1/4”, 3/8”, & 1/2” pressures to 20,000 psi.
(1379 bar)
Ball Valve Actuators: Air and Electric operators
Ball Valve Options/Details: High Temperature Seals, Materials, Limit Switches,
Handles, Lockouts, and Connection Details.

Autoclave高壓球閥型號

4B6S10L8 4BS6S10L8 4B6S10M6 4BS6S10M6 4B6S10M94BS6S10M94B6S10M12 4BS6S10M12
4B6S10P4 4BS6S10P4 4B6S10P6 4BS6S10P64B6S10P84BS6S10P8

3B3S15L2 3BD3S15L2 3B3S15L4 3BD3S15L4 3B3S15L63BD3S15L63B3S10L8 3BD3S10L8
3B3S20M4 3BD3S20M4 3B3S20M6 3BD3S20M63B3S20M93BD3S20M9 3B3S20H4 3BD3S20H4
3B3S20H6 3BD3S20H6 3B3S20H93BD3S20H93B3S15P2 3BD3S15P2 3B3S15P4 3BD3S15P4
3B3S15P6 3BD3S15P63B3S15P83BD3S15P8 3B6S10L8 3BD6S10L8 3B6S15M6 3BD6S15M6
3B6S15M93BD6S15M93B6S15M12 3BD6S15M12 3B6S15P4 3BD6S15P4 3B6S15P6
3BD6S15P63B6S15P83BD6S15P8 3B8S10M12 3BD8S10M12 3B8S10M16
3BD8S10M163B8S10P123BD8S10P12 3B8S10P16 3BD8S10P16

2B4S15L2 2B4S15L4 2B4S15L6 2B4S10L8 2B4S20M42B4S20M62B4S20M9 2B4S20H4 2B4S20H6
2B4S20H9 2B4S15P2 2B4S15P42B4S15P62B4S15P8 2B6S10L8 2B6S20M6 2B6S20M9 2B6S20M12
2B6S15P42B6S15P62B6S15P8 2B8S15M12 2B8S15M16 2B8S10P12
2B8S10P162B16S10MA242B16S10S16 2B16S10P16 2B12S15M16
2B12S15P82B12S10P122B12S10P16

6DB10L8P4 6DB15M6M4 6DB15M9M4 6DB15M12M46DB15P4P46DB15P6P4 6DB15P8P4

Autoclave高壓球閥型號

4B6S10L8 4BS6S10L8 4B6S10M6 4BS6S10M6 4B6S10M94BS6S10M94B6S10M12 4BS6S10M12
4B6S10P4 4BS6S10P4 4B6S10P6 4BS6S10P64B6S10P84BS6S10P8

3B3S15L2 3BD3S15L2 3B3S15L4 3BD3S15L4 3B3S15L63BD3S15L63B3S10L8 3BD3S10L8
3B3S20M4 3BD3S20M4 3B3S20M6 3BD3S20M63B3S20M93BD3S20M9 3B3S20H4 3BD3S20H4
3B3S20H6 3BD3S20H6 3B3S20H93BD3S20H93B3S15P2 3BD3S15P2 3B3S15P4 3BD3S15P4
3B3S15P6 3BD3S15P63B3S15P83BD3S15P8 3B6S10L8 3BD6S10L8 3B6S15M6 3BD6S15M6
3B6S15M93BD6S15M93B6S15M12 3BD6S15M12 3B6S15P4 3BD6S15P4 3B6S15P6
3BD6S15P63B6S15P83BD6S15P8 3B8S10M12 3BD8S10M12 3B8S10M16
3BD8S10M163B8S10P123BD8S10P12 3B8S10P16 3BD8S10P16

2B4S15L2 2B4S15L4 2B4S15L6 2B4S10L8 2B4S20M42B4S20M62B4S20M9 2B4S20H4 2B4S20H6
2B4S20H9 2B4S15P2 2B4S15P42B4S15P62B4S15P8 2B6S10L8 2B6S20M6 2B6S20M9 2B6S20M12
2B6S15P42B6S15P62B6S15P8 2B8S15M12 2B8S15M16 2B8S10P12
2B8S10P162B16S10MA242B16S10S16 2B16S10P16 2B12S15M16
2B12S15P82B12S10P122B12S10P16

6DB10L8P4 6DB15M6M4 6DB15M9M4 6DB15M12M46DB15P4P46DB15P6P4 6DB15P8P4

Ball Valves -2-Way Series (1/4” Orifice)
Pressures to 20,000 psi (1379 bar) .250” (6.35mm) Orifice
MAWP @ Minimum Orifice Connection Room Temperature inches(mm)
100 200 300 400 500
TEMPERATURE .F

(Ball Valve Actuators, next page) see next page)
High Temperature
PRESSURE BAR
For complete information on available end connections and material options, see next page. 2-way ball valves are furnished complete with tube or pipe connections.
Typical catalog number: 2B 4 S 20 M9 W125 11,000 psi (758 bar) .094 (2.39) SW250 11,500 psi (793 bar) .128 (3.25) SW375 10,000 psi (690 bar) .250 (6.35) SW500 5,500 psi (379 bar) .250 (6.35) SF250CX20 20,000 psi (1379 bar) .109 (2.77) SF375CX20 20,000 psi (1379 bar) .203 (5.16) SF562CX20 20,000 psi (1379 bar) .250 (6.35) F250C 20,000 psi (1379 bar) .094 (2.39) F375C 20,000 psi (1379 bar) .125 (3.17) F562C 20,000 psi (1379 bar) .188 (4.77) 1/8” NPT 10,000 psi (690 bar) .250 (6.35) 1/4” NPT 10,000 psi (690 bar) .250 (6.35) 3/8” NPT 10,000 psi (690 bar) .250 (6.35) 1/2” NPT 10,000 psi (690 bar) .250 (6.35)

Valve PressureBall Material End OptionsSeries (X 1000 psi)Orifice Connection
S -316SS2B: 2-way M9 -SF562CX20
HT -Diameter
(For material options
(See Chart on
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

4-1/4” contact factory) (6.35 mm)
End Connection Options
Catalog End Connection MAWP @ Hex
Number Number Connection Room Temperature Inches(mm)

2B4S11L2 L2 W125 11,000 psi (758 bar) 1 (25.40)
2B4S11L4 L4 SW250 11,500 psi (793 bar) 1 (25.40)
2B4S10L6 L6 SW375 10,000 psi (690 bar) 1 (25.40)
2B4S105L8 L8 SW500 5,500 psi (379 bar) 1 (25.40)
2B4S20M4 M4 SF250CX20 20,000 psi (1379 bar) 1 (25.40)
2B4S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1 (25.40)
2B4S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1 (25.40)
2B4S20H4 H4 F250C 20,000 psi (1379 bar) 1 (25.40)
2B4S20H6 H6 F375C 20,000 psi (1379 bar) 1 (25.40)
2B4S20H9 H9 F562C 20,000 psi (1379 bar) 1.38 (35.05)
2B4S10P2 P2 1/8” NPT 10,000 psi (690 bar) 1 (25.40)
2B4S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1 (25.40)
2B4S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1 (25.40)
2B4S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)

MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
Ball Valve Options Valve Maintenance
Pneumatic Actuator - (1/8” NPT Female Air Connection) Repair Kits: add “R” to the front of valve catalog first 4AO - Air-to-open/Spring to close numbers for proper repair kit.
AOC - Air-to-open-and-close (double action) (Example: R2B4S)
(Both operators equipped for manual override) Consult your Autoclave representative for pricing on repair Electric Actuator - (Speed = 5 seconds/90.) kits. Refer to the Operation and Maintenance manual for EO1 - 120 volt AC 50/60 Hz proper maintenance procedures. EO2 - 220 volt AC 50/60 Hz
Actuator Operating Temperature:
Pneumatic: -20.F to 175.F (-29.C to 79.C) Electric: -20.F to 160.F (-29.C to 71.C)
High Temperature Option:
HT - for media temperature up to 500.F (260.C)
See ball valve actuator section for full description, additional information, and options.

(Ball Valve Acutators, next page) see next page.)
High Temperature
PRESSURE BAR
For complete information on available end connections and material options, see next page. 2-way ball valves are furnished complete with tube or pipe connections.
Typical catalog number: 2B 6 S 20 M9
Ball Valves -2-Way Series (3/8” Orifice)
Pressures to 20,000 psi (1379 bar) .375” (9.52mm) Orifice
MAWP @ Minimum Orifice Connection Room Temperature inches(mm)

SW500 5,500 psi (379 bar) .375 (9.52) SF375CX20 20,000 psi (1379 bar) .203 (5.16) SF562CX20 20,000 psi (1379 bar) .312 (7.92) SF750CX20 20,000 psi (1379 bar) .375 (9.52) 1/4” NPT 10,000 psi (690 bar) .375 (9.52) 3/8” NPT 10,000 psi (690 bar) .375 (9.52) 1/2” NPT 10,000 psi (690 bar) .375 (9.52)
Valve Cv=3.51
MAWP: Maximum Allowable Working Pressure
PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C.
(-18) (38) (93) (150) (204) (260)

(1379)
(1034)
0
100 200 300 400 500
TEMPERATURE .F
*pressure ratings are determined by the end connections chosen, see chart.
Ordering Procedure

XXX

Valve PressureBall Material End OptionsSeries (X 1000 psi)Orifice Connection
2B: 2-way Diameter S - 316SS
M9 -SF562CX20
HT -
(For material (See Chart on6-3/8” options contact(9.52 mm)
factory)
End Connection Options
Catalog End Connection MAWP @ Hex
Number Number Connection Room Temperature Inches(mm)
2B6S05L8 L8 SW500 5,500 psi (379 bar) 1.38 (35.05)
2B6S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1.38 (35.05)
2B6S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1.38 (35.05)
2B6S20M12 M12 SF750CX20 20,000 psi (1379 bar) 1.38 (35.05)
2B6S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1.38 (35.05)
2B6S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1.38 (35.05)
2B6S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.

Ball Valve Options Valve Maintenance
Pneumatic Actuator - (1/8” NPT Female Air Connection) Repair Kits: add “R” to the front of valve catalog first 4AO - Air-to-open/Spring to close numbers for proper repair kit.
AOC - Air-to-open-and-close (double action) (Example: R2B6S)
(Both operators equipped for manual override) Consult your Autoclave representative for pricing on repair Electric Actuator - (Speed = 6 seconds/90.) kits. Refer to the Operation and Maintenance manual for EO1 - 120 volt AC 50/60 Hz proper maintenance procedures. EO2 - 220 volt AC 50/60 Hz
Actuator Operating Temperature:
Pneumatic: -20.F to 175.F (-29.C to 79.C)
Electric: -20.F to 160.F (-29.C to 71.C)

High Temperature Option:
HT - for media temperature up to 500.F (260.C)
See ball valve actuator section for full description, additional information, and options.

Ball Valves -2-Way Series (1/2” Orifice)
Pressures to 10,000 psi (690 bar) .500” (12.7mm) Orifice
MAWP @ Minimum Orifice Connection Room Temperature Inches (mm)
SF750CX20 10,000 psi (690 bar) .500 (12.70) SF1000CX20 10,000 psi (690 bar) .500 (12.70) 3/4” NPT 10,000 psi (690 bar) .500 (12.70) 1” NPT 10,000 psi (690 bar) .500 (12.70)
Valve Cv=10.20
MAWP: Maximum Allowable Working Pressure

(345)
Ordering Procedure

For complete information on available end connections and material options, see next page. 2-way ball valves are furnished complete with tube or pipe connections.
Typical catalog number: 2B 8 S 10 M12

XXX

Valve
PressureBall Material End Options
High Temperature
Series
(X 1000 psi)
Orifice
Connection
S -316SS
2B: 2-way
M12 - SF750CX20 HT -
Diameter
(For material options
(See Chart on next (Ball Valve Acutators, see next page.) All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
8-1/2”
contact factory) page)(12.7 mm)
End Connection Options
Catalog End Connection MAWP @ Hex
Number Number Connection Room Temperature Inches(mm)

2B8S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.75 (44.5) 2B8S10M16 M16 SF1000CX20 10,000 psi (690 bar) 1.75 (44.5) 2B8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5) 2B8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.

Ball Valve Options Valve Maintenance
Pneumatic Actuator - (1/8” NPT Female Air Connection) Repair Kits: add “R” to the front of valve catalog first 4AO - Air-to-open/Spring to close numbers for proper repair kit.
AOC - Air-to-open-and-close (double action) (Example: R2B8S)
(Both operators equipped for manual override) Consult your Autoclave representative for pricing on repair Electric Actuator - (Speed = 5 seconds/90.) kits. Refer to the Operation and Maintenance manual for EO1 - 120 volt AC 50/60 Hz proper maintenance procedures. EO2 - 220 volt AC 50/60 Hz
Actuator Operating Temperature:
Pneumatic: -20.F to 175.F (-29.C to 79.C)
Electric: -20.F to 160.F (-29.C to 71.C)

High Temperature Option:
HT - for media temperature up to 500.F (260.C)
See ball valve Actuator section for full description, additional information, and options.
Ball Valve Dimensions - inches (mm)

VALVE MODELS
2B4S 2B6S 2B8S
A 4.33 (109.99) 4.97 (126.30) 5.93 (150.59)
B 4.19 (106.49) 5.53 (140.41) 7.73 (196.46)
C 2.00 (50.80) 3.00 (76.20) 4.13 (104.78)
D 3.37 (85.55) 4.99 (126.82) 5.12 (130.04)
E 3.90 (99.02) 5.52 (140.32) 10.25 (260.35)
F 1.13 (28.58) 1.38 (34.92) 1.75 (44.56)
G 1.50 (38.10) 2.00 (50.80) 3.00 (76.20)
H 0.75 (19.05) 1.00 (25.40) 1.50 (38.10)
J 0.43 (10.92) 0.41 (10.31) 0.50 (12.70)
K 0.28 (7.11) 0.28 (7.11) 0.28 (7.11)
L 1.91 (48.41) 2.50 (63.50) 3.09 (78.58)
Block Thickness 1.00 (25.40) 1.38 (34.92) 1.75 (44.45)

Ball Valve Panel Mounting Dimensions - inches (mm)
VALVE MODELS
A 2B4S 1.500 (38.10) 2B6S 2.000 (50.80) 2B8S 3.000 (76.20)
B 0.750 (19.05) 1.000 (25.40) 1.500 (38.10)
C 1.03 (26.01) 1.41 (35.81) 1.78 (45.21)
D 0.28 (7.11) 0.28 (7.11) 0.28 (7.11)
Note: Body mounting 1/4” - 20 thread All dimensions are for reference only and are subject to change without notice.
! WARNING !

Catalog End Connection MAWP @ Hex
Number Number Connection Room Temperature Inches(mm)
3B3S11L2 L2 W125 11,000 psi (758 bar) 1 (25.40)
3BD3S11L2
3B3S11L4 L4 SW250 11,500 psi (793 bar) 1 (25.40)
3BD3S11L4
3B3S10L6 L6 SW375 10,000 psi (690 bar) 1 (25.40)
3BD3S10L6
3B3S05L8 L8 SW500 5,500 psi (379 bar) 1 (25.40)
3BD3S05L8
3B3S20M4 M4 SF250CX20 20,000 psi (1379 bar) 1 (25.40)
3BD3S20M4
3B3S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1 (25.40)
3BD3S20M6
3B3S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1 (25.40)
3BD3S20M9
3B3S20H4 H4 F250C 20,000 psi (1379 bar) 1 (25.40)
3BD3S20H4
3B3S20H6 H6 F375C 20,000 psi (1379 bar) 1 (25.40)
3BD3S20H6
3B3S20H9 H9 F562C 20,000 psi (1379 bar) 1.38 (35.05)
3BD3S20H9
3B3S10P2 P2 1/8” NPT 10,000 psi (690 bar) 1 (25.40)
3BD3S10P2
3B3S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1 (25.40)
3BD3S10P4
3B3S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1 (25.40)
3BD3S10P6
3B3S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
3BD3S10P8

Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
3B6S05L8 3BD6S05L8 L8 SW500 5,500 psi (379 bar) 1.38 (35.05)
3B6S15M6 3BD6S15M6 M6 SF375CX20 15,000 psi (1034 bar) 1.38 (35.05)
3B6S15M9 3BD6S15M9 M9 SF562CX20 15,000 psi (1034 bar) 1.38 (35.05)
3B6S15M12 3BD6S15M12 M12 SF750CX20 15,000 psi (1034 bar) 1.38 (35.05)
3B6S10P4 3BD6S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1.38 (35.05)
3B6S10P6 3BD6S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1.38 (35.05)
3B6S10P8 3BD6S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure

Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
3B8S10M12 3BD8S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.75 (44.5)
3B8S10M16 3BD8S10M16 M16 SF1000CX20 10,000 psi (690 bar) 1.75 (44.5)
3B8S10P12 3BD8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5)
3B8S10P16 3BD8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5)
MAWP: Maximum Allowable Working Pressure

PRESSURE PSIG
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
For complete information on available end connections and material options, see next page. 4-way ball valves are furnished complete with tube or pipe connections.
Typical catalog number: 4B 6 S 10 M9
High Temperature
PRESSURE BAR
(Ball Valve Actuators,
Ball Valves -4-Way Series (3/8” Orifice)
Pressures to 10,000 psi (690 bar) .375” (9.52mm) Orifice
MAWP @ Minimum Orifice Connection Room Temperature inches(mm)

SW500 5,500 psi (379 bar) .375 (9.52) SF375CX20 10,000 psi (690 bar) .203 (5.16) SF562CX20 10,000 psi (690 bar) .312 (7.92) SF750CX20 10,000 psi (690 bar) .375 (9.52) 1/4” NPT 10,000 psi (690 bar) .375 (9.52) 3/8” NPT 10,000 psi (690 bar) .375 (9.52) 1/2” NPT 10,000 psi (690 bar) .375 (9.52)
Valve Cv=2.5
MAWP: Maximum Allowable Working Pressure

PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C

4B: 4-way crossover Diameter S -316SS 4BS: 4--way
M9 -SF562CX20
(See Chart on
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

6-3/8” (For material optionsswitching (9.52 mm) contact factory) next page) see next page)
End Connection Options
Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
4B6S05L8 4BS6S05L8 L8 SW500 5,500 psi (379 bar) 1.38 (35.05)
4B6S10M6 4BS6S10M6 M6 SF375CX20 10,000 psi (690 bar) 1.38 (35.05)
4B6S10M9 4BS6S10M9 M9 SF562CX20 10,000 psi (690 bar) 1.38 (35.05)
4B6S10M12 4BS6S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.38 (35.05)
4B6S10P4 4BS6S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1.38 (35.05)
4B6S10P6 4BS6S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1.38 (35.05)
4B6S10P8 4BS6S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure

High Temperature Option:
HT - for media temperature up to 500.F (260.C)
4-Way Switching 180° Turn (supplied with "D" port plugged)
Valve Maintenance
Repair Kits: add “R” to the front of valve catalog
first 4 (5 for switching) numbers for proper
repair kit.
(Example: R4B6S)
Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.

All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Ball Valve Dimensions - inches (mm)

VALVE MODEL
4B6S/4BS6S
E A 5.78
(146.81)
B 6.67
(169.42)
C 3.50
(88.90)
D 5.13
(130.18) JA TYPICAL E 10.25
(260.35)
F 1.63
(41.28)
G 2.63
(66.68)
H 1.13
(33.34)
J 0.41
(10.32)
K 0.28
(7.11)

L 2.97
(75.39)
Block 3.50
Thickness (88.90)

Ball Valve Panel Mounting Dimensions - inches (mm)
VALVE MODELS
4B6S/4BS6S
6DB10L8P4 L8 SW500 10000 psi
690 bar 0.328 Inch
8.33 mm P4 1/4" NPT

6DB15M6M4 M6 SF375CX20 15000 psi
1034 bar 0.203 Inch
5.16 mm M4 SF250CX20

6DB15M9M4 M9 SF562CX20 15000 psi
1034 bar 0.312 Inch
7.92 mm M4 SF250CX20

6DB15M12M4 M12 SF750CX20 15000 psi
1034 bar 0.328 Inch
8.33 mm M4 SF250CX20

6DB15P4P4 P4 1/4 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm P4 1/4" NPT

6DB15P6P4 P6 3/8 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm P4 1/4" NPT

6DB15P8P4 P8 1/2 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm P4 1/4" NPT
4B6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4BS6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4B6S10M6 3/8 Inch M6 SF375CX20 10000 psi
690 bar 0.203 Inch
5.16 mm 1.38 Inch
35.05 mm

4BS6S10M6 3/8 Inch M6 SF375CX20 10000 psi
690 bar 0.203 Inch
5.16 mm 1.38 Inch
35.05 mm

4B6S10M9 3/8 Inch M9 SF562CX20 10000 psi
690 bar 0.312 Inch
7.92 mm 1.38 Inch
35.05 mm

4BS6S10M9 3/8 Inch M9 SF562CX20 10000 psi
690 bar 0.312 Inch
7.92 mm 1.38 Inch
35.05 mm

4B6S10M12 3/8 Inch M12 SF750CX20 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4BS6S10M12 3/8 Inch M12 SF750CX20 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4B6S10P4 3/8 Inch P4 1/4 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4BS6S10P4 3/8 Inch P4 1/4 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4B6S10P6 3/8 Inch P6 3/8 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4BS6S10P6 3/8 Inch P6 3/8 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4B6S10P8 3/8 Inch P8 1/2 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

4BS6S10P8 3/8 Inch P8 1/2 NPT 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm
3B3S15L2 3/16 Inch L2 W125 15000 psi
1034 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

3BD3S15L2 3/16 Inch L2 W125 15000 psi
1034 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

3B3S15L4 3/16 Inch L4 SW250 15000 psi
1034 bar 0.128 Inch
3.25 mm 1.00 Inch
25.40 mm

3BD3S15L4 3/16 Inch L4 SW250 15000 psi
1034 bar 0.128 Inch
3.25 mm 1.00 Inch
25.40 mm

3B3S15L6 3/16 Inch L6 SW375 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S15L6 3/16 Inch L6 SW375 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S10L8 3/16 Inch L8 SW500 10000 psi
690 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S10L8 3/16 Inch L8 SW500 10000 psi
690 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S20M4 3/16 Inch M4 SF250CX20 20000 psi
1379 bar 0.109 Inch
2.77 mm 1.00 Inch
25.40 mm

3BD3S20M4 3/16 Inch M4 SF250CX20 20000 psi
1379 bar 0.109 Inch
2.77 mm 1.00 Inch
25.40 mm

3B3S20M6 3/16 Inch M6 SF375CX20 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S20M6 3/16 Inch M6 SF375CX20 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S20M9 3/16 Inch M9 SF562CX20 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S20M9 3/16 Inch M9 SF562CX20 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S20H4 3/16 Inch H4 F250C 20000 psi
1379 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

3BD3S20H4 3/16 Inch H4 F250C 20000 psi
1379 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

3B3S20H6 3/16 Inch H6 F375C 20000 psi
1379 bar 0.125 Inch
3.17 mm 1.00 Inch
25.40 mm

3BD3S20H6 3/16 Inch H6 F375C 20000 psi
1379 bar 0.125 Inch
3.17 mm 1.00 Inch
25.40 mm

3B3S20H9 3/16 Inch H9 F562C 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.38 Inch
35.05 mm

3BD3S20H9 3/16 Inch H9 F562C 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.38 Inch
35.05 mm

3B3S15P2 3/16 Inch P2 1/8 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S15P2 3/16 Inch P2 1/8 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S15P4 3/16 Inch P4 1/4 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3BD3S15P4 3/16 Inch P4 1/4 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S15P6 3/16 Inch P6 3/8 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm
3BD3S15P6 3/16 Inch P6 3/8 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.00 Inch
25.40 mm

3B3S15P8 3/16 Inch P8 1/2 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.38 Inch
35.05 mm

3BD3S15P8 3/16 Inch P8 1/2 NPT 15000 psi
1034 bar 0.188 Inch
4.77 mm 1.38 Inch
35.05 mm

3B6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3BD6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3B6S15M6 3/8 Inch M6 SF375CX20 15000 psi
1034 bar 0.203 Inch
5.16 mm 1.38 Inch
35.05 mm

3BD6S15M6 3/8 Inch M6 SF375CX20 15000 psi
1034 bar 0.203 Inch
5.16 mm 1.38 Inch
35.05 mm

3B6S15M9 3/8 Inch M9 SF562CX20 15000 psi
1034 bar 0.312 Inch
7.92 mm 1.38 Inch
35.05 mm

3BD6S15M9 3/8 Inch M9 SF562CX20 15000 psi
1034 bar 0.312 Inch
7.92 mm 1.38 Inch
35.05 mm

3B6S15M12 3/8 Inch M12 SF750CX20 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3BD6S15M12 3/8 Inch M12 SF750CX20 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3B6S15P4 3/8 Inch P4 1/4 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3BD6S15P4 3/8 Inch P4 1/4 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3B6S15P6 3/8 Inch P6 3/8 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3BD6S15P6 3/8 Inch P6 3/8 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3B6S15P8 3/8 Inch P8 1/2 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3BD6S15P8 3/8 Inch P8 1/2 NPT 15000 psi
1034 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

3B8S10M12 1/2 Inch M12 SF750CX20 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3BD8S10M12 1/2 Inch M12 SF750CX20 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3B8S10M16 1/2 Inch M16 SF1000CX20 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3BD8S10M16 1/2 Inch M16 SF1000CX20 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3B8S10P12 1/2 Inch P12 3/4 NPT 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3BD8S10P12 1/2 Inch P12 3/4 NPT 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3B8S10P16 1/2 Inch P16 1 NPT 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

3BD8S10P16 1/2 Inch P16 1 NPT 10000 psi
2B4S15L2 1/4 Inch L2 W125 15000 psi
1034 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

2B4S15L4 1/4 Inch L4 SW250 15000 psi
1034 bar 0.128 Inch
3.25 mm 1.00 Inch
25.40 mm

2B4S15L6 1/4 Inch L6 SW375 15000 psi
1034 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S10L8 1/4 Inch L8 SW500 10000 psi
690 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S20M4 1/4 Inch M4 SF250CX20 20000 psi
1379 bar 0.109 Inch
2.77 mm 1.00 Inch
25.40 mm

2B4S20M6 1/4 Inch M6 SF375CX20 20000 psi
1379 bar 0.203 Inch
5.16 mm 1.00 Inch
25.40 mm

2B4S20M9 1/4 Inch M9 SF562CX20 20000 psi
1379 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S20H4 1/4 Inch H4 F250C 20000 psi
1379 bar 0.094 Inch
2.39 mm 1.00 Inch
25.40 mm

2B4S20H6 1/4 Inch H6 F375C 20000 psi
1379 bar 0.125 Inch
3.17 mm 1.00 Inch
25.40 mm

2B4S20H9 1/4 Inch H9 F562C 20000 psi
1379 bar 0.188 Inch
4.77 mm 1.38 Inch
35.05 mm

2B4S15P2 1/4 Inch P2 1/8 NPT 15000 psi
1034 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S15P4 1/4 Inch P4 1/4 NPT 15000 psi
1034 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S15P6 1/4 Inch P6 3/8 NPT 15000 psi
1034 bar 0.250 Inch
6.35 mm 1.00 Inch
25.40 mm

2B4S15P8 1/4 Inch P8 1/2 NPT 15000 psi
1034 bar 0.250 Inch
6.35 mm 1.38 Inch
35.05 mm

2B6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

2B6S20M6 3/8 Inch M6 SF375CX20 20000 psi
1379 bar 0.203 Inch
5.16 mm 1.38 Inch
35.05 mm

2B6S20M9 3/8 Inch M9 SF562CX20 20000 psi
1379 bar 0.312 Inch
7.92 mm 1.38 Inch
35.05 mm

2B6S20M12 3/8 Inch M12 SF750CX20 20000 psi
1379 bar 0.328 Inch
8.33 mm 1.38 Inch
35.05 mm

2B6S15P4 3/8 Inch P4 1/4 NPT 15000 psi
1034 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

2B6S15P6 3/8 Inch P6 3/8 NPT 15000 psi
1034 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

2B6S15P8 3/8 Inch P8 1/2 NPT 15000 psi
1034 bar 0.375 Inch
9.52 mm 1.38 Inch
35.05 mm

2B8S15M12 1/2 Inch M12 SF750CX20 15000 psi
1034 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

2B8S15M16 1/2 Inch M16 SF1000CX20 15000 psi
1034 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

2B8S10P12 1/2 Inch P12 3/4 NPT 10000 psi
690 bar 0.500 Inch
12.70 mm 1.75 Inch
44.5 mm

2B8S10P16 1/2 Inch P16 1 NPT 10000 psi
2B16S10MA24 1 Inch M24 SM1500CX10 (Male) 10000 psi
690 bar 0.938 Inch
23.83 mm 1.88 Inch
47.60 mm

2B16S10S16 1 Inch S16 1" SAE (Female) 10000 psi
2B16S10P16 1 Inch P16 1" NPT (Female) 10000 psi
2B12S15M16 3/4 Inch M16 SF1000CX10 15000 psi
2B12S15P8 3/4 Inch P8 1/2 NPT 15000 psi
2B12S10P12 3/4 Inch P12 3/4 NPT 10000 psi
2B12S10P16 3/4 Inch P16 1 NPT 10000 psi
