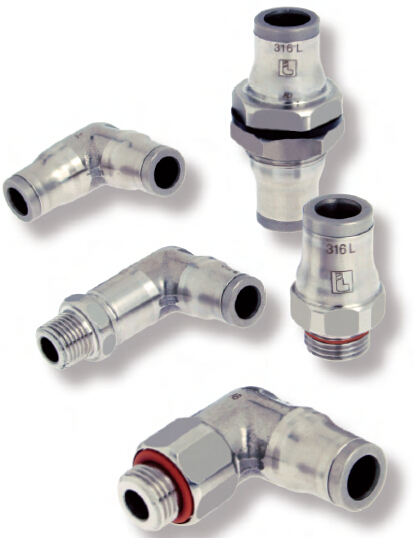

Legris LF 3800 / LF 3900 - 303/316L Stainless Steel Push-In Fittings for Aggressive Environments
LF 3800 / LF 3900-303 / 316L用于惡劣環境的不銹鋼推入式接頭
Parker Fittings接頭 Industrial Fittings

為了滿足您的技術和環境要求，Parker Legris設計了該系列的金屬配件，可在最苛刻的環境中提供堅固性，可靠性和對工業流體的耐受性。LF 3900和LF 3800系列采用全不銹鋼結構，旨在在腐蝕性環境中輸送流體，適用于多種應用：食品工業，化工，醫療……AISI 316L的車身和底座，F(xiàn)KM密封件。AISI 316L中的車身和底座。采用316L（LF 3900）或303（LF 3800）的筒夾，真空度為99％，工作壓力最高為30 bar，工作溫度為-20°C至+ 120°C，可與所有類型的校準塑料管一起使用。
In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

Parker Legris has developed two ranges of stainless steel fittings (LF 3800 or LF 3900 in full 316L) for conveying corrosive fluids in aggressive environments. These ranges provide two complementary levels of corrosion resistance and a hygienic external design.

LF 3800/ LF 3900 - 303/316L Stainless Steel Push-In Fittings for Aggressive Environments

Parker Legris開發了兩種系列的不銹鋼配件（LF 3800或316L的LF 3900），用于在腐蝕性環境中輸送腐蝕性流體。 這些范圍提供了兩個互補的耐腐蝕水平和衛生的外部設計。

產品優勢：

>
對侵蝕性 環境具有很高的抵抗力 -LF 3800：非常適合輸送腐蝕性流體-LF
3900：對內部和外部腐蝕具有最大的化學耐受性
-衛生的外部設計減少了保留區
-易于原位清潔
-成熟的抓地力技術

>廣泛應用范圍
-非常適合與食品永久接觸
-兼容頻繁滅菌
-在鹽水環境和戶外應用中表現出色
-耐工業清潔劑和洗滌劑
-與聚合物和帶槽不銹鋼管兼容-適用
于多種應用：優化的庫存管理


>可靠性和安全性
-全金屬產品允許檢測所有組件
-全孔，壓降最小
-耐錘擊，機械沖擊和沖擊
-手動連接和斷開，無需工具
-生產中進行100％泄漏測試
-日期編碼以確保質量和可追溯性
-IP 51隔板：全面防止食品和非食品區進入

產品類型：
-螺柱配件
-螺柱立管
- 彈藥 筒
-螺柱彎頭
-緊湊型螺柱彎頭
-螺柱分支三通
-螺柱
直通 三通 -相等的直形連接器
-相等的螺柱彎頭
-相等的三通
-相等的隔板連接器
-插入式減速器
-堵頭
-斷開工具的

應用：
-食品加工
-造紙工業
-石油化工
-制藥
-化工
-醫療

技術特征：
-流體：所有與配件和管材組件材料兼容的流體
-材料：不銹鋼316L，不銹鋼303，F(xiàn)KM
-壓力：真空至30 bar-
溫度：-20°C至+ 150°C
-?公制：4-12 mm
-?英寸：3/16“至1/2”

調節：
-ISO 14743氣動變速箱，按用于熱塑性塑料管的配件
-DI：97/23 / EC（PED）
-DI：2002/95 / EC（RoHS），2011/65 / EC
-DI：94/9 / EC（ATEX）
-RG：1907/2006 （REACH）
-UL94 V-0：密封
-RG：21CFR（FDA）-RG：1935/2004
/ EC
-USDA NSF H1：油脂


技術：
-316L不銹鋼接頭
-303不銹鋼接頭
-衛生接頭
-隔板連接器
-推入式配件
-推連接配件
-氣動配件
-即時接頭
-快速接頭
-連接器
-旋轉接頭

PRODUCT ADVANTAGES:

> High Resistance to Aggressive Environments
- LF 3800: excellent for conveying aggressive ? uids
- LF 3900: maximum chemical resistance to internal and external corrosion
- Hygienic external design for reducing retention zones
- Easy cleaning in situ
- Proven gripping technology

> Wide Range of Applications
- Perfect for permanent contact with foodstuffs
- Compatible with frequent sterilization
- Excellent in saline environments and outdoor applications
- Resistant to industrial cleaning agents and detergents
- Compatible with polymer and grooved stainless steel tubing
- One ?tting for many applications: optimised stock management


> Reliability & Safety
- All-metal product allowing detection of all components
- Full bore, with minimal pressure drop
- Resistant to hammering, mechanical shock and impulse
- Manual connection and disconnection, no tools required
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
- IP 51 bulkhead: complete protection against ingress in food and non-food zones

PRODUCT TYPES:
- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Compact Stud Elbow
- Stud Branch Tee
- Stud Run Tee
- Equal Straight Connector
- Equal Stud Elbow
- Equal Tee
- Equal Bulkhead Connector
- Plug-In Reducer
- Blanking Plug
- Disconnection Tool

APPLICATIONS:
- Food Process
- Paper Industry
- Petrochemical
- Pharmaceutical
- Chemical
- Medical

TECHNICAL CHARACTERISTICS:
- Fluids: All fluids compatible with the fittings and tubing component materials
- Materials: Stainless Steel 316L, Stainless Steel 303, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
- ? metric: 4-12 mm
- ? inch: 3/16" to 1/2"

REGULATIONS:
- ISO 14743 Pneumatic transmissions, push-in fittings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI: 94/9/EC (ATEX)
- RG : 1907/2006 (REACH)
- UL94 V-0: Seal
- RG: 21CFR (FDA)
- RG: 1935/2004/EC
- USDA NSF H1: Grease


TECHNOLOGIES:
- 316L Stainless Steel Fittings
- 303 Stainless Steel Fittings
- Hygienic Fittings
- Bulkhead Connectors
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

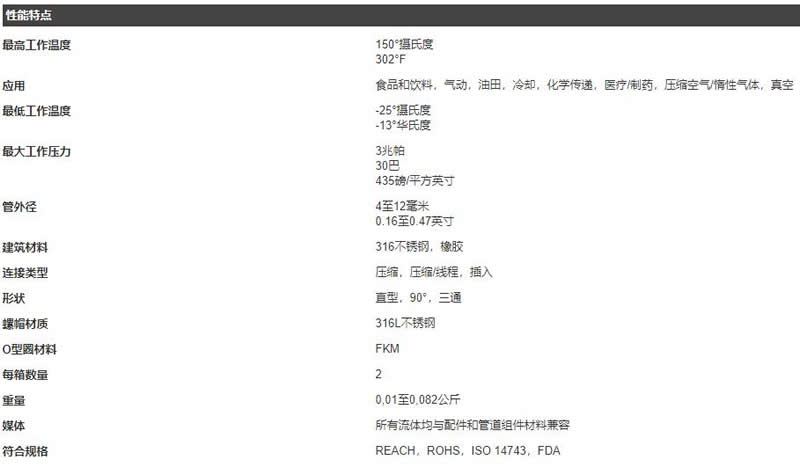

Technical Specifications

LF 3800/ LF 3900 - 303/316L Stainless Steel Push-In Fittings for Aggressive Environments 型號
