Parker Autoclave's P Series needle valves
針閥、管閥 P 系列 - 15,000 PSI | #15P4071
Parker 針閥
Parker Needle Valves
Needle Valve, Pipe Valve P Series - 15,000 PSI
派克 Autoclave 的 P 系列針閥為石油和天然氣加工行業的小口徑儀表應用提供了多種管道閥。它們的額定壓力為 15,000 psi (1034 bar)，管道尺寸從 1/4" 到 1" 不等。派克 Autoclave 的 P 系列管針閥旨在為氣體和液體服務提供易于使用的商業連接。這些閥門由完整的配件、管道和附件??系列補充。P 系列閥門設計為 1/4” 至 1” 管道尺寸提供直列管道連接。這些管閥可在高達 15,000 psi (1034 bar) 的壓力下工作。工作溫度范圍為 -423°F 至 400°F（-252°C 至 204°C），標配 316 不銹鋼機身。
Needle Valve, Pipe Valve P Series - 15,000 PSI
市場：
- 化工
- 石化
- 研究
- 一般工業
- 結構
特點/優點：
- P 系列閥門設計提供適用于 1/4” 至 1” 管道尺寸的直列管道連接。1/8 連接偏移。
- 上升的把立/桿身設計。
- 非旋轉閥桿可防止閥桿/閥座磨損（1/8" NPT 旋轉閥桿設計）。
- 金屬對金屬閥座實現氣密關閉，在磨料流中更長的閥桿/閥座壽命，在重復使用時具有更高的耐用性/關閉循環和出色的耐腐蝕性。
- PTFE 封裝填料提供可靠的閥桿和閥體密封。
- 閥桿套筒和填料壓蓋材料已被選擇以延長螺紋循環壽命并減少手柄扭矩。
- 選擇 V?? 型或調節閥桿尖端。
- 工作溫度范圍從 -423°F (-252°C) 到 400°F (204°C)。
應用：
- 噴水系統
- 中壓流體處理系統
- 噴水
- 研究試驗系統
Parker Autoclave's P Series needle valves offer a diverse line of pipe valves for small bore instrumentation applications in the oil and gas processing industry. These are rated to 15,000 psi (1034 bar) with sizes ranging from 1/4" to 1" pipe.
Parker Autoclave's P Series pipe needle valves are designed to provide a commercial easy to use connection for gas and liquid service. These valves are complemented by a complete line of fittings, tubing and accessories. P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. These pipe valves work in pressures up to 15,000 psi (1034 bar). Operating temperatures can go from -423F to 400°F (-252°C to 204°C) with 316 stainless steel body as standard.
Markets:
- Chemical
- Petrochemical
- Research
- General Industry
- Construction
Features/Benefits:
- P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. 1/8 connections offset.
- Rising stem/bar stock body design.
- Non-rotating stem prevents stem/seat galling (1/8" NPT rotating stem design).
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Operating temperature range from -423°F (-252°C) to 400°F (204°C).
Applications:
- Water Jet Systems
- Medium Pressure Fluid Handling Systems
- Water Blasting
- Research Pilot Systems
Technical Specifications
| Maximum Operating Pressure: |
1034, 690 bar |
| Pipe Outside Diameter: |
1/8, 1/4, 3/8, 1/2, 3/4, 1 inch |
| Connection Type: |
Pipe |
| Bore Diameter: |
0.078, 0.203, 0.219, 0.312, 0.438, 0.562 inch |
Needle Valve, Pipe Valve P Series - 15,000 PSI 型號
| Part |
Maximum Working Pressure (psi) |
Pipe O.D. (mm) |
Stem Type |
Valve Type |
Bore Size (mm) |

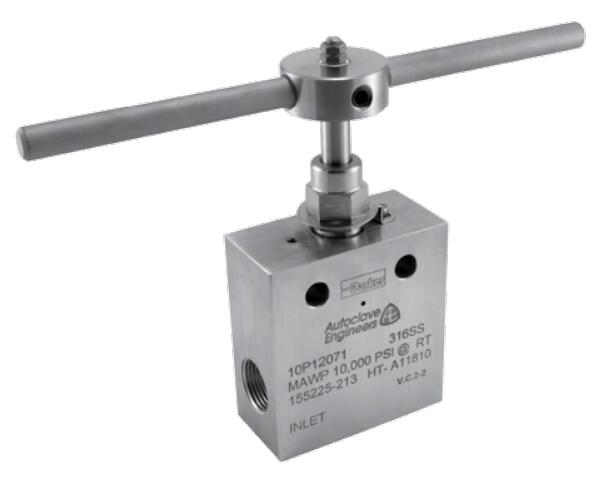

| 10P12071 |
10,000 |
19.05 mm |
2-Way Straight |
VEE |
11.13 mm |
| 10P12072 |
10,000 |
19.05 mm |
2-Way Angle |
VEE |
11.13 mm |
| 10P12073 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
VEE |
11.13 mm |
| 10P12074 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
VEE |
11.13 mm |
| 10P12075 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
VEE |
11.13 mm |
| 10P12081 |
10,000 |
19.05 mm |
2-Way Straight |
REG |
11.13 mm |
| 10P12082 |
10,000 |
19.05 mm |
2-Way Angle |
REG |
11.13 mm |
| 10P12083 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
REG |
11.13 mm |
| 10P12084 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
REG |
11.13 mm |
| 10P12085 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
REG |
11.13 mm |
| 10P16071 |
10,000 |
25.4 mm |
2-Way Straight |
VEE |
14.27 mm |
| 10P16072 |
10,000 |
25.4 mm |
2-Way Angle |
VEE |
14.27 mm |
| 10P16073 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
VEE |
14.27 mm |
| 10P16074 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
VEE |
14.27 mm |
| 10P16075 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
VEE |
14.27 mm |
| 10P16081 |
10,000 |
25.4 mm |
2-Way Straight |
REG |
14.27 mm |
| 10P16082 |
10,000 |
25.4 mm |
2-Way Angle |
REG |
14.27 mm |
| 10P16083 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
REG |
14.27 mm |
| 10P16084 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
REG |
14.27 mm |
| 10P16085 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
REG |
14.27 mm |
| 15P2001 |
15,000 |
3.18 mm |
2-Way Straight |
VEE |
1.98 mm |
| 15P2002 |
15,000 |
3.18 mm |
2-Way Angle |
VEE |
1.98 mm |
| 15P2011 |
15,000 |
3.18 mm |
2-Way Straight |
REG |
1.98 mm |
| 15P2012 |
15,000 |
3.18 mm |
2-Way Angle |
REG |
1.98 mm |
| 15P4071 |
15,000 |
6.35 mm |
2-Way Straight |
VEE |
5.16 mm |
| 15P4072 |
15,000 |
6.35 mm |
2-Way Angle |
VEE |
5.16 mm |
| 15P4073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.16 mm |
| 15P4074 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
VEE |
5.16 mm |
| 15P4075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.16 mm |
| 15P4081 |
15,000 |
6.35 mm |
2-Way Straight |
REG |
5.16 mm |
| 15P4082 |
15,000 |
6.35 mm |
2-Way Angle |
REG |
5.16 mm |
| 15P4083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.16 mm |
| 15P4084 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
REG |
5.16 mm |
| 15P4085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.16 mm |
| 15P6071 |
15,000 |
9.53 mm |
2-Way Straight |
VEE |
5.56 mm |
| 15P6072 |
15,000 |
9.53 mm |
2-Way Angle |
VEE |
5.56 mm |
| 15P6073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.56 mm |
| 15P6074 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
VEE |
5.56 mm |
| 15P6075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.56 mm |
| 15P6081 |
15,000 |
9.53 mm |
2-Way Straight |
REG |
5.56 mm |
| 15P6082 |
15,000 |
9.53 mm |
2-Way Angle |
REG |
5.56 mm |
| 15P6083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.56 mm |
| 15P6084 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
REG |
5.56 mm |
| 15P6085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.56 mm |
| 15P8071 |
15,000 |
12.70 mm |
2-Way Straight |
VEE |
7.92 mm |
| 15P8072 |
15,000 |
12.70 mm |
2-Way Angle |
VEE |
7.92 mm |
| 15P8073 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
VEE |
7.92 mm |
| 15P8074 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
VEE |
7.92 mm |
| 15P8075 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
VEE |
7.92 mm |
| 15P8081 |
15,000 |
12.70 mm |
2-Way Straight |
REG |
7.92 mm |
| 15P8082 |
15,000 |
12.70 mm |
2-Way Angle |
REG |
7.92 mm |
| 15P8083 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
REG |
7.92 mm |
| 15P8084 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
REG |
7.92 mm |
| 15P8085 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
REG |
7.92 mm |
|
