Parker Autoclave's 10 V Series needle valves 10 V 系列針閥
Parker 針閥
Parker Needle Valves

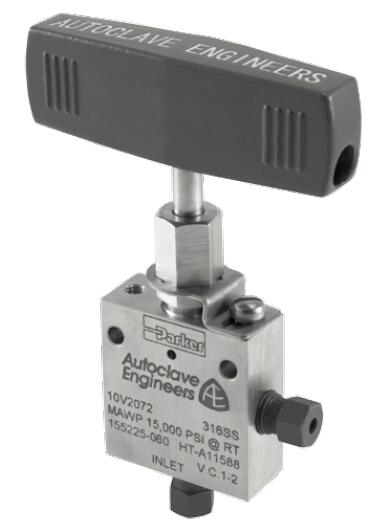

Needle Valves, 10V Series - 15,000 PSI
10V 系列針閥 - 15,000 PSI | #10V2071
Parker Autoclave 10V 系列針閥采用非旋轉上升桿設計，工作壓力高達 15,000 psi (1034 bar)。這些閥門采用 316 不銹鋼材質，并采用經過驗證的 Speed Bite 單套圈連接。派克 Autoclave 的 10V 系列針閥采用非旋轉升降桿設計，工作壓力高達 15,000 psi (1034 bar)。管道尺寸范圍從 1/8"" 到 1/2""。管道連接采用 Parker Autoclave Engineers Speed Bite 單套圈設計。工作溫度范圍為 0°F 至 650°F（-17.8°C 至 343°C）。316 不銹鋼結構，可提供其他選項。除了它們的許多功能外，這些閥門還可以在各種應用中提供可靠且無故障的服務。
Needle Valves, 10V Series - 15,000 PSI
市場：
- 石油和天然氣
- 石化
- 化工
- 電源
特性/優點：
- 10V 系列閥門設計為 1/4” 至 1/2” 管尺寸提供直列管連接。
- 管道尺寸從 1/8” 到 1/2”。
- 上升桿/棒材主體設計。
- 非旋轉閥桿可防止閥桿/閥座磨損。
- 金屬對金屬閥座可實現氣密關閉、更長的閥桿/閥座在磨料流中的使用壽命、更高的重復開/關循環的耐用性和出色的耐腐蝕性。
- PTFE 封裝填料提供可靠的閥桿和閥體密封。
- 選擇了閥桿套筒和填料壓蓋材料以延長螺紋循環壽命并降低手柄扭矩。
- 可選擇V 形或調節閥桿尖端。
- 有五種體型可供選擇。
應用：
- 測試面板
- 中壓滑板
- 化學品注入
- 中壓流體處理系統
- 研究系統
Parker Autoclave's 10 V Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These valves are available in 316 Stainless Steel and utilize the proven Speed Bite single ferrule connection.
Parker Autoclave's 10V Series needle valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8"" to 1/2"". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power
Features/Benefits:
- 10V Series valve design provides in-line tube connections for 1/4” to 1/2” tube sizes.
- Tubing sizes from 1/8” to 1/2”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.
Applications:
- Test Panels
- Medium Pressure Skid Panels
- Chemical Injection
- Medium Pressure Fluid Handling Systems
- Research Systems
Technical Specifications
| Maximum Operating Pressure: |
1,034, 690 bar |
| Tube Outside Diameter: |
1/8, 1/4, 3/8, 1/2 inch |
| Connection Type: |
W125, SW250, SW375 , SW500 |
| Bore Diameter: |
0.094, 0.125, 0.250 inch, 2.39 , 3.18 , 6.35 mm |
Needle Valves, 10V Series - 15,000 PSI 型號
| Part |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
| 10V2071 |
15,000 |
3.18 mm |
VEE |
2-Way Straight |
| 10V2072 |
15,000 |
3.18 mm |
VEE |
2-Way Angle |
| 10V2073 |
15,000 |
3.18 mm |
VEE |
3-Way / 2 on Pressure |
| 10V2074 |
15,000 |
3.18 mm |
VEE |
3-Way / 1 on Pressure |
| 10V2075 |
15,000 |
3.18 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V2081 |
15,000 |
3.18 mm |
REG |
2-Way Straight |
| 10V2082 |
15,000 |
3.18 mm |
REG |
2-Way Angle |
| 10V2083 |
15,000 |
3.18 mm |
REG |
3-Way / 2 on Pressure |
| 10V2084 |
15,000 |
3.18 mm |
REG |
3-Way / 1 on Pressure |
| 10V2085 |
15,000 |
3.18 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V2872 |
15,000 |
3.18 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V2882 |
15,000 |
3.18 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V4071 |
15,000 |
6.35 mm |
VEE |
2-Way Straight |
| 10V4072 |
15,000 |
6.35 mm |
VEE |
2-Way Angle |
| 10V4073 |
15,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 10V4074 |
15,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 10V4075 |
15,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V4081 |
15,000 |
6.35 mm |
REG |
2-Way Straight |
| 10V4082 |
15,000 |
6.35 mm |
REG |
2-Way Angle |
| 10V4083 |
15,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 10V4084 |
15,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 10V4085 |
15,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V4872 |
15,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V4882 |
15,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V6071 |
15,000 |
9.53 mm |
VEE |
2-Way Straight |
| 10V6072 |
15,000 |
9.53 mm |
VEE |
2-Way Angle |
| 10V6073 |
15,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 10V6074 |
15,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 10V6075 |
15,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V6081 |
15,000 |
9.53 mm |
REG |
2-Way Straight |
| 10V6082 |
15,000 |
9.53 mm |
REG |
2-Way Angle |
| 10V6083 |
15,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 10V6084 |
15,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 10V6085 |
15,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V6872 |
15,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V6882 |
15,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V8071 |
10,000 |
12.70 mm |
VEE |
2-Way Straight |
| 10V8072 |
10,000 |
12.70 mm |
VEE |
2-Way Angle |
| 10V8073 |
10,000 |
12.70 mm |
VEE |
3-Way / 2 on Pressure |
| 10V8074 |
10,000 |
12.70 mm |
VEE |
3-Way / 1 on Pressure |
| 10V8075 |
10,000 |
12.70 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V8081 |
10,000 |
12.70 mm |
REG |
2-Way Straight |
| 10V8082 |
10,000 |
12.70 mm |
REG |
2-Way Angle |
| 10V8083 |
10,000 |
12.70 mm |
REG |
3-Way / 2 on Pressure |
| 10V8084 |
10,000 |
12.70 mm |
REG |
3-Way / 1 on Pressure |
| 10V8085 |
10,000 |
12.70 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V8872 |
10,000 |
12.70 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V8882 |
10,000 |
12.70 mm |
REG |
2-Way Angle / Replaceable Seat |
|
