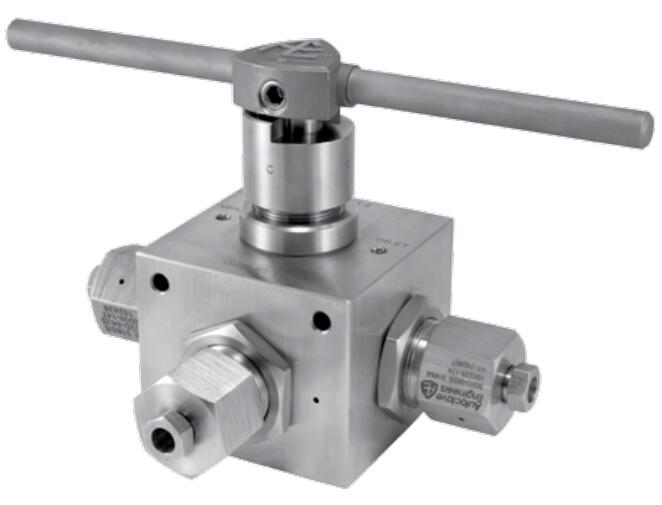

Ball Valves,4 Way 4B Series - 10,000 PSI

派克 Autoclave4B 系列4 通球閥 - 10,000 PSI | #4B6S10P4

派克 Autoclave 的 4B 系列 4 通球閥設計用于在高達 10,000 psi (690 bar) 的壓力下工作。一個關鍵的性能特點是一體式耳軸安裝閥桿，可消除兩件式設計中的剪切故障。派克 Autoclave 的 4B 系列球閥旨在提供卓越的質量，以在各種閥門類型、尺寸和過程連接中實現最佳性能。一些更獨特的設計創新包括一體式耳軸安裝式球和閥桿，消除了兩件式設計中常見的剪切故障，可重新擰緊的閥座密封套，延長閥座壽命，以及低摩擦閥桿密封，減少驅動扭矩并提高循環壽命。這些球閥還可以進行修改，以結合使用特殊材料、高溫應用密封件、海底模型和閥門執行器。當涉及到高壓應用時，這些球閥與相關的高壓組件一起提供高壓市場所需的關鍵性能。

派克 Autoclave4B 系列4 通球閥 - 10,000 PSI | #4B6S10P4
Ball Valves,4 Way 4B Series - 10,000 PSI

市場：
- 石油和天然氣
- 石化
- 研究
- 化學
- 動力

特性/優點：
- 一體式、耳軸安裝式、閥桿設計消除了兩件式設計中的剪切失效并減少了側向載荷的影響。
- 可重新擰緊的閥座密封套，延長閥座使用壽命。
- 填充碳的 PEEK 閥座具有出色的耐化學性、耐熱性和耐磨性。
- 全端口流路將壓降降至最低。
- 316 冷加工不銹鋼結構。
- 低摩擦壓力輔助石墨填充 PTFE 閥桿密封可延長循環壽命并降低操作扭矩。
- 提供四分之一轉分頻器和半轉四路切換型號。
- Viton O 型圈，可在 0°F (-17.8°C) 至 400°F (204°C) 的溫度范圍內運行。
- 可選的O 形圈可用于高溫應用。
- 可選的接液材料。
- 有多種管端配件可供選擇。
- 電動和氣動執行器選項。

應用：
- 測試面板
- 高壓滑板
- 化學品注入
- 特種高壓氣體系統
- 研究系統

Parker Autoclave's 4B Series 4 Way Ball Valve is designed to work in pressures up to 10,000 psi ( 690 bar). A key performance feature is the one-piece trunnion mounted stem that eliminates shear failure found in two piece designs.

Parker Autoclave's 4B Series ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. Some of the more unique design innovations include an integral one-piece trunnion mounted style ball and stem that eliminates
the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and a low friction stem seal that reduces actuation torque and enhances cycle life. These ball valves can also be modified to incorporate the use of special materials, seals for high temperature applications, subsea models, and valve actuators. When it comes to high-pressure applications, these ball valves
with associated high-pressure components, provide the critical performance demanded by the high pressure market.

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical
- Power


Features/Benefits:
- One-piece, trunnion mounted style, stem design eliminates shear failure found in two piece designs and reduces the effects of side loading.
- Re-torqueable seat glands for longer seat life.
- Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.
- 316 cold worked stainless steel construction.
- Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque.
- Quarter turn crossover, and the half turn four way switching models available.
- Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
- Optional o-rings available for high-temperature applications.
- Optional wetted materials.
- Wide selection of tube and pipe ended fittings are available.
- Electric and pneumatic actuator options.

Applications:
- Test Panels
- High Pressure Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems

Technical Specifications

Ball Valves,4 Way 4B Series - 10,000 PSI 型號
