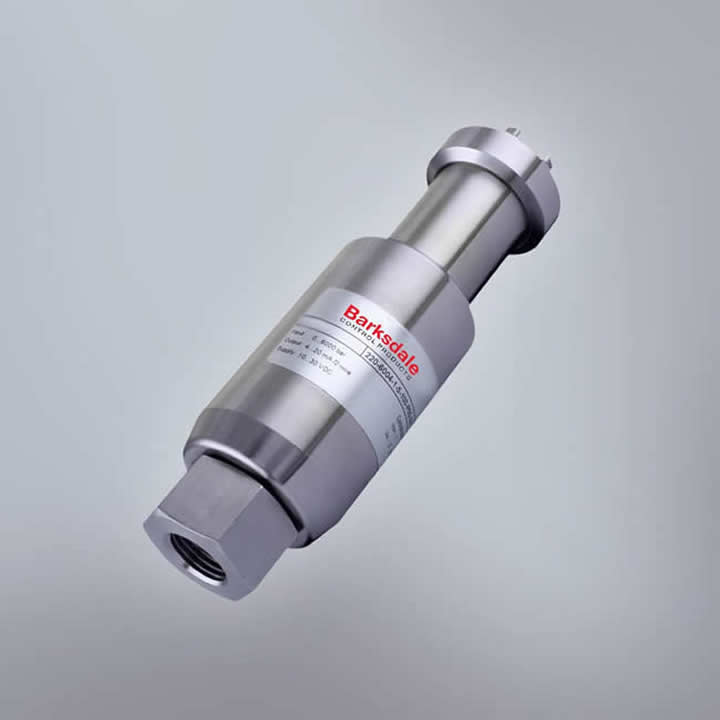

Barksdale UPA6 High-Pressure Transducer
Electronic High-Pressure Transducer UPA6
Industrial Pressure Transmitter for very high Pressure
超高壓傳感器 - 量程范圍 0…2500和0…6000bar
Barksdale UPA6是一種高壓傳感器，由Barksdale制造。量程范圍 0…2500 0…6000bar的額定壓力范圍。具有0.5%的fs線性誤差精度。UPA6產品適用于水噴射火炬、液壓回路、化工、石化等行業。Barksdale UPA6 is a high-pressure transducer, manufactured by Barksdale. This contains nominal pressure ranges from 0...2500 0...6000bar. It has 0.5 % FS linearity error accuracy. This product is applicable in water jet torching, hydraulic circuits and chemical and petrochemical industry.
Barksdale UPA6 High-Pressure Transducer pdf catalog free download
技術選型資料下載
量程范圍
0 ... 2500 bar， 0... 6000 bar nominal pressure ranges
- 超高壓工業壓力變送器Industrial Pressure Transmitter for very high pressure
- 線性誤差0.5%f.s.（根據要求0.25%f.s.）Linearity error 0.5% f.s. (0.25% f.s. on request)
- 基于補償應變計，連接到不銹鋼隔膜 Based on a compensated strain gauge, bonded onto a stainless steel diaphragm
產品應用Applications:
- 液壓回路 Hydraulic circuits
- 高壓水射流 Water jet torching
- 化學和石化工業 Chemical and petrochemical industry
Ordering guide
| High Pressure Transmitter, DIN 43650, 4-20 mA, 9/16" UNF IG |
Art. No.
型號 |
Pressure range in
bar, rel.
壓力范圍 |
Over pressure in
bar
超壓
|
Burst pressure [bar]
爆破壓力 |
| 0438-001 |
2500 |
3000 |
4400 |
| 0438-002 |
4000 |
4000 |
6800 |
| 0438-003 |
6000 |
6000 |
9500 |
| Other on request |
Datasheets

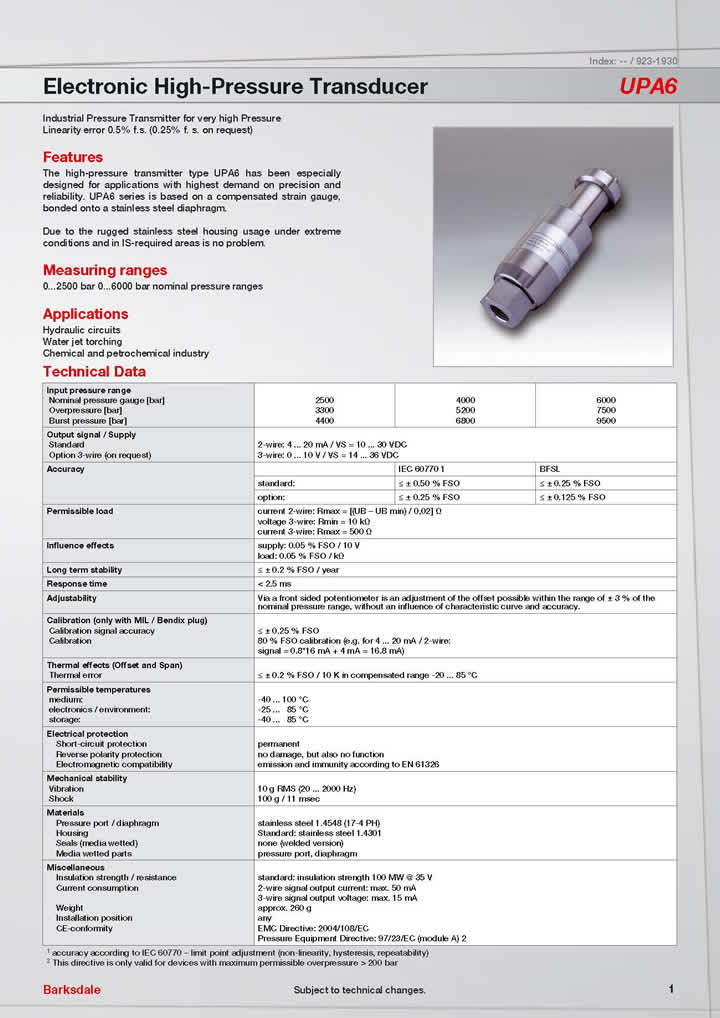

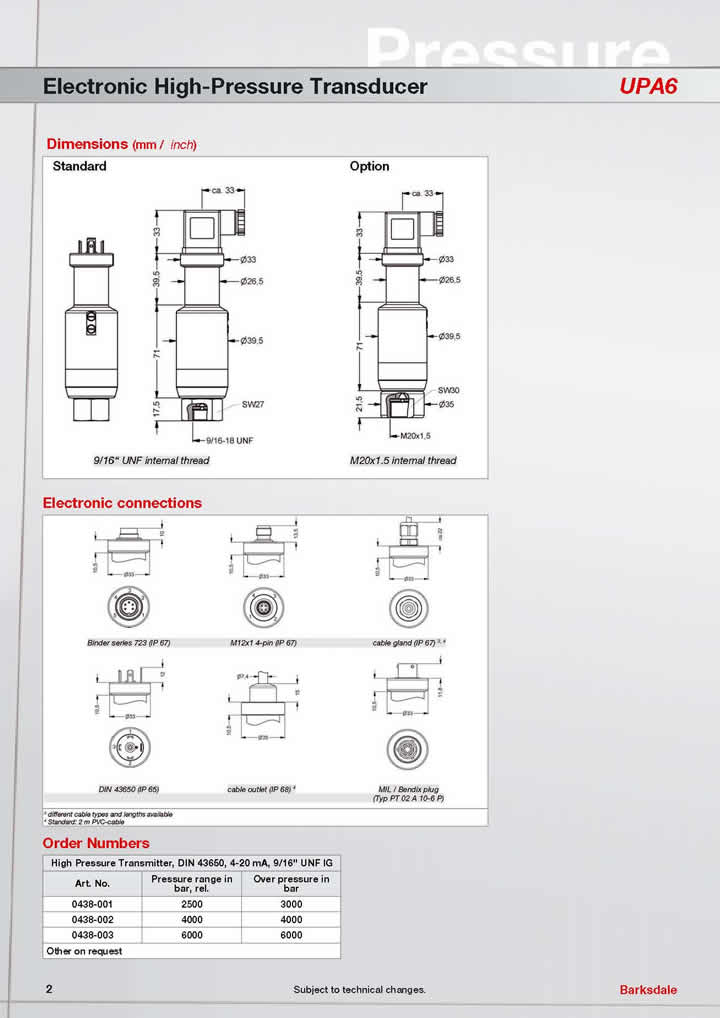

Datasheet UPA6
|
