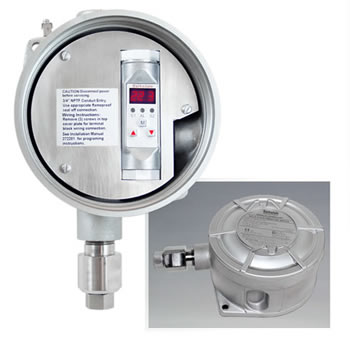

Barksdale UDS7-BX Explosion Proof Electronic Pressure Switch
UDS7-BX系列防爆電子壓力開關
Barksdale的UDS7系列固態壓力開關提供三個分立元件（雙壓力開關、壓力傳感器和數字壓力表）組合成一個緊湊的封裝的便利性。可使用內置的用戶友好菜單輕松調整設定值，無需測試壓力。模擬傳感器輸出可從全可調范圍的25%擴展到125%。一個12位微處理器提供內置自診斷，允許開關延時和壓力循環高達每秒100次。這些裝置是按照IP65防護等級建造的。對于需要精確壓力控制和超長使用壽命的應用，UDS7系列是解決方案。Barksdale's UDS7 Series Solid State Pressure Switches offer the convenience of three discrete components (dual pressure switch, pressure transducer, and digital pressure gauge) combined into one compact package. Setpoints can be easily adjusted using a built-in, user-friendly menu without the need for test pressure. Analog transducer outputs are scalable from 25% to 125% of the full adjustable range. A 12-bit microprocessor provides built-in self diagnostics and allows for switch time delays and pressure cycling up to 100 times per second. These units are built to last and come standard with IP65 protection.For applications requiring precision pressure control and extremely long life, the UDS7 Series is the ideal solution.
Barksdale UDS7-BX Explosion Proof Electronic Pressure Switch
UDS7-BX防爆電子壓力開關Barksdale UDS7-BX Explosion Proof Electronic Pressure Switch
UDS7-BX防爆電子壓力開關ATEX Ex d認證結構,雙重密封保護,可調設定點延遲-9.9秒。2個設定點，高精度，死區完全可調數字讀出。通過鍵盤完全可配置，適合快速循環（每秒100次），NEMA 4、7、9和IP66。
產品應用：
油氣管道
煉油廠
石油化工廠
制漿造紙廠
燃煤和燃油發電廠
水泥廠
燃料系統的氣體輸送
Oil & gas pipelines
Refineries
Petrochemical plants
Pulp and paper mills
Coal and oil fired power plants
Cement plants
Gas transfers for fuel systems
ATEX Ex d認證結構
雙重密封保護
可調設定點延遲-9.9秒
2個設定點
高精度，死區完全可調數字讀出
通過鍵盤完全可配置
適合快速循環（每秒100次）
NEMA 4、7、9和IP66
ATEX Ex d Certified Construction
Dual seal protection
Adjustable setpoint delay - up to 9.9 seconds
2 setpoints
High accuracy with fully adjustable deadband
Digital readout
Fully configurable via keypad
Suitable for rapid cycling (100 times per second)
NEMA 4, 7, 9 & IP66
Technical specifications - General Specifications*
| Accuracy: |
±1% f. s. at 77°F (25°C) TYP |
| Repeatability: |
± 0.1% f. s. at 77°F (25°C) |
| Sensor Element: |
Piezoresistive measuring cell |
| Wetted Parts: |
316 and 17-4 PH stainless steel |
| Enclosure: |
Die cast aluminum |
| Proof Pressure (psi): |
2X rated pressure or 13,000 PSIG (896 bar), whichever is less |
| Process Connection: |
1/4” NPTF |
| Electrical Connection: |
Internal screw terminal strip via conduit connection 3/4” NPTF |
| Power Supply (Vs): |
15 to 32 VDC, 10% max. ripple |
| Power Consumption: |
Approx. 50 mA at 24 VDC (without load) |
A/D-Converter:
Resolution:
Scanning Rate: |
10 bit (1,024 steps per measure span)
200/s (for peak value memory) |
Switching Output(s):
Adjustment Range:
Deadband:
Switching Frequency:
Delay:
Contact Rating:
Status Display(s): |
0 to 125% f. s.
0 to 125% f. s.
Max. 100 Hz
0.0 to 9.9 s - adjustable
Max. 400 mA, short circuit-proof
LED(s) green |
Digital Display:
Display Range:
Display Rate:
Delay: |
3-digit(1), 7-segment LED display; height 10 mm, (0.39 inches), red
-1 to 999
20/s
0.0 to 9.9 s adjustable |
| Error Display: |
Orange LED (alarm) |
| Operating Elements: |
3 easy response push buttons |
Temperature Range:
Media:
Electronics:
Storage: |
-13°F to 185°F (-25°C to +85°C)
14°F to 158°F (-10°C to +70°C)
-22°F to 176°F (-30°C to +80°C) |
| Temperature Influence: |
±0.2% f. s. /10K |
| Protection Class: |
NEMA 4, 7, 9 & IP65 |
| Compensation Range: |
14°F to 158°F (-10°C to +70°C) |
| Approvals: |
CE0081
ISSeP 09 ATEX 0 34X
Ex II 2 G D
Ex d IIC T6 Gb
Ex tb IIIC T80°C Db IP65
-40°C <= Tamb <= +60°C |
| Additional Features: |
Microprocessor-controlled, self monitoring with error code display, all parameters are confi gured by keypad. |
| Shipping Weight: |
Approx. 9.3 lbs. |
|
|
|
|
|
|
|
| * See product confi gurator for additional options. |
| Note (1). Pressure ranges greater than 1000 PSIG will be displayed in PSH units. |
| PSIG = PSH x 10. Example: 750 PSH = 7500 PSIG |
Certificates
ATEX 034X-UDS7-BX
ATEX QAN Certificate
Operating Manuals
UDS7-BX Manual - For Models Shipped before 11/23/13
UDS7-BX Manual - For Models Shipped on and after 11/25/13
UDS7-BX Supplemental Programming Instructions
Datasheets
UDS7-BX Series Datasheet
Details
UDS7-BX Description Explosion Proof Electronic Pressure Switch
|
|
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 10000 PSI, UDS7-BX-18-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 10000 PSI
Type Electronic |
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 6000 PSI, UDS7-BX-16-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 10000 PSI
Type Electronic |
|
|
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 5000 PSI, UDS7-BX-15-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic |
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 4000 PSI, UDS7-BX-14-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic |
|
|
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 3000 PSI, UDS7-BX-13-6
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 0-10 VDC Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic |
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 3000 PSI, UDS7-BX-13-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic |
|
|
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 500 PSI, UDS7-BX-08-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 500 PSI
Type Electronic |
|
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 10000 PSI, UDS7-BX-18-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 10000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 6000 PSI, UDS7-BX-16-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 10000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 5000 PSI, UDS7-BX-15-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 4000 PSI, UDS7-BX-14-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 3000 PSI, UDS7-BX-13-6
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 0-10 VDC Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 3000 PSI, UDS7-BX-13-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 5000 PSI
Type Electronic
Barksdale Series UDS7-BX Explosion Proof Electronic Switch, Dual Setpoint, 0 to 500 PSI, UDS7-BX-08-3
Connection Material Stainless Steel
Electrical Connectors Screw Terminals
Model UDS7-BX
Number of Setpoints Dual Setpoint
Output Dual Switch Plus 4-20 mA Output
Pressure Connection 1/4 In NPT
Pressure Range < 500 PSI
Type Electronic
|
